High Voltage Transformer DC 3v-6v to 400kV Boost Step-up Power Module High-voltage Generator 400000V

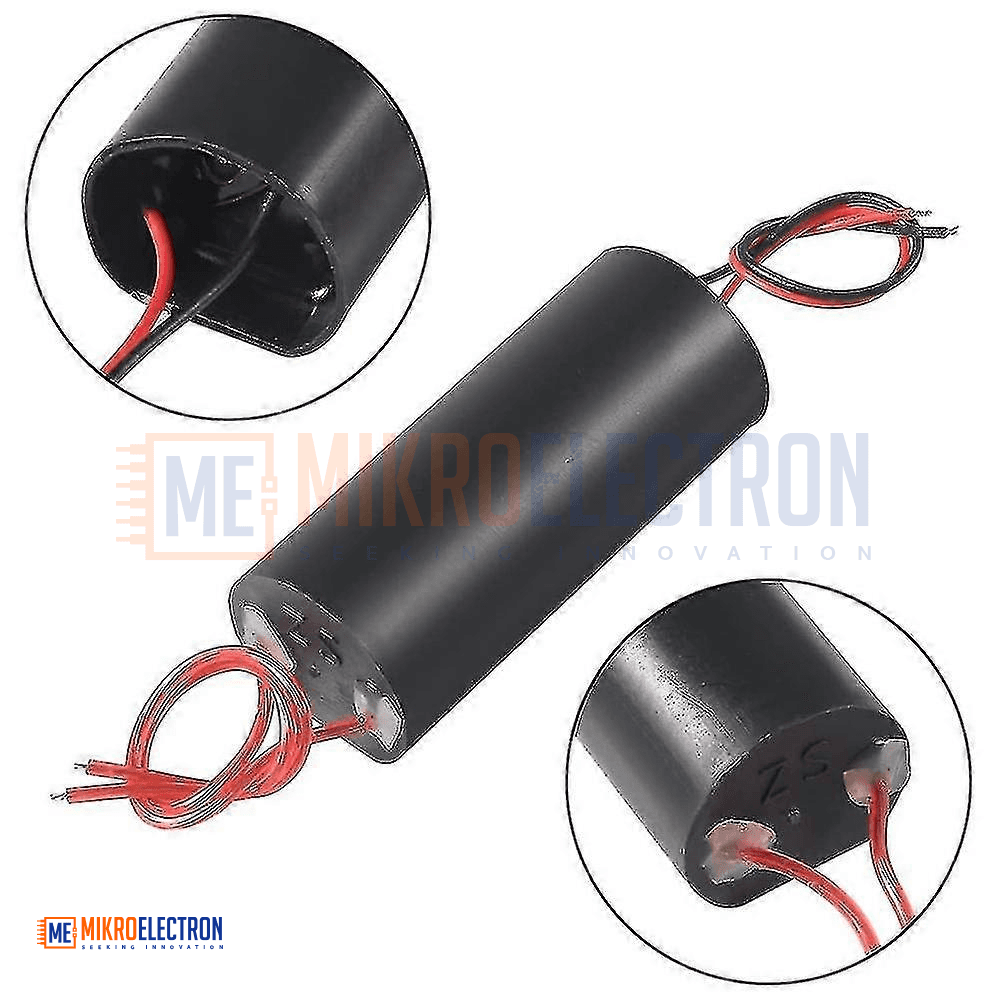

The DC 3V–6V to 400kV High Voltage Generator Module is a compact boost power module designed to convert low DC voltage into a high-voltage pulse output. Operating from a 3V to 6V DC supply, it generates high-voltage pulses capable of producing an arc discharge over a short air gap. Its compact design makes it suitable for educational demonstrations, scientific experiments, ignition systems, high-voltage research, and specialized electronic projects. The module features pre-attached input and output wires for easy integration. Due to the extremely high output voltage, it must be handled with appropriate safety precautions by experienced users.
تُعد وحدة توليد الجهد العالي من 3 إلى 6 فولت DC حتى 400 كيلو فولت دائرة رفع جهد مدمجة مصممة لتحويل الجهد المستمر المنخفض إلى نبضات جهد عالية جدًا. تعمل بجهد دخل يتراوح بين 3 و6 فولت وتنتج خرجًا عالي الجهد قادرًا على توليد شرارة كهربائية عبر مسافة قصيرة في الهواء. يتميز التصميم بالحجم الصغير وسهولة الدمج في التجارب العلمية والأبحاث التعليمية وأنظمة الإشعال والتطبيقات الإلكترونية المتخصصة. تأتي الوحدة مزودة بأسلاك توصيل جاهزة. ونظرًا لارتفاع الجهد الناتج بشكل كبير، يجب استخدامها بحذر شديد مع الالتزام بإجراءات السلامة المناسبة.
The High Voltage Generator Module is a compact DC-to-high-voltage converter designed to produce high-voltage pulse outputs from a low-voltage DC power source. It operates from a 3V to 6V DC input and utilizes an internal oscillation and transformer circuit to generate a high-voltage discharge output. The module is widely used in laboratory demonstrations, ignition systems, educational projects, and high-voltage research applications. Its compact dimensions and pre-wired connections make it easy to integrate into compatible electronic systems.
Warning: This module generates extremely high voltage. Proper insulation, safety procedures, and experienced handling are required to avoid electric shock, injury, or equipment damage.
Specifications
| Parameter | Specification |
|---|---|
| Product Type | High Voltage Generator Module |
| Input Voltage | DC 3V – 6V |
| Input Current | 2A – 5A |
| Output Type | High Voltage Pulse Output |
| Maximum Output Voltage | Up to 400kV (No-load rating) |
| Discharge Gap Distance | 10 – 20 mm |
| Output Wire Length | 100 mm |
| Input Wire Length | 100 mm |
| Input Polarity | Red: Positive (+), Green: Negative (-) |
| Dimensions | 24 × 22 × 63 mm |
Safety Notes
- Generates extremely high voltage and must be handled carefully.
- Do not touch output wires during operation.
- Keep away from children and unauthorized users.
- Use proper insulation and protective equipment.
- Disconnect power before handling or modifying connections.
- Operate only in a safe and controlled environment.
Applications
- Educational high-voltage demonstrations
- Scientific experiments
- Electronic research projects
- Ignition system development
- Specialized laboratory testing
- Electrostatic experiments
- Physics education projects
- High-voltage learning applications
- Prototype development
- Industrial testing applications
