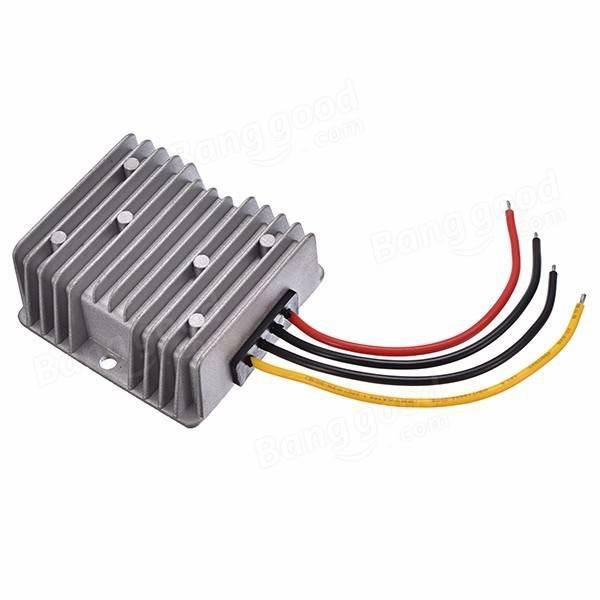

12v TO 24V 10A DC To DC Step Up Converter Voltage Regulator

Name: 12v TO 24V 10A DC To DC Step Up Converter Voltage Regulator | 12v, TO, 24V, 10A, DC, To, DC, Step, Up, Converter, Voltage, Regulator
Brand: Mikroelectron
SKU: me-3409
Price: 25.00 JOD
Availability: InStock
Rating: 5.0 (1 reviews)

5.0(1 review)

SKU: ME-3409

JD25.00JD28.00

DC/DC Power Converter Regulator (STEP UP)DC 12V to 24V (10A) (240W) Input voltage: 12V DC Output voltage: 24V DC Input voltage range: 10 ~ 15V DC Output current: 10A (max), 240W Operating temperature: -10°C ~ +60°C Wire lengths: 150mm (6") Construction: die-cast aluminum casing, Epoxy sealed pottingDimensions: 75 x 75 x 32mm Weight: 250g Conversion Efficiency: greater than 85%

Power Modules

DC-DC Converters

Converter Modules

DC/DC Power Converter Regulator (STEP UP)

DC 12V to 24V (10A) (240W)

Input voltage: 12V DC

Output voltage: 24V DC

Input voltage range: 10 ~ 15V DC

Output current: 10A (max), 240W

Operating temperature: -10°C ~ +60°C

Wire lengths: 150mm (6")

Construction: die-cast aluminum casing, Epoxy sealed potting

Dimensions: 75 x 75 x 32mm

Weight: 250g

Conversion Efficiency: greater than 85%
