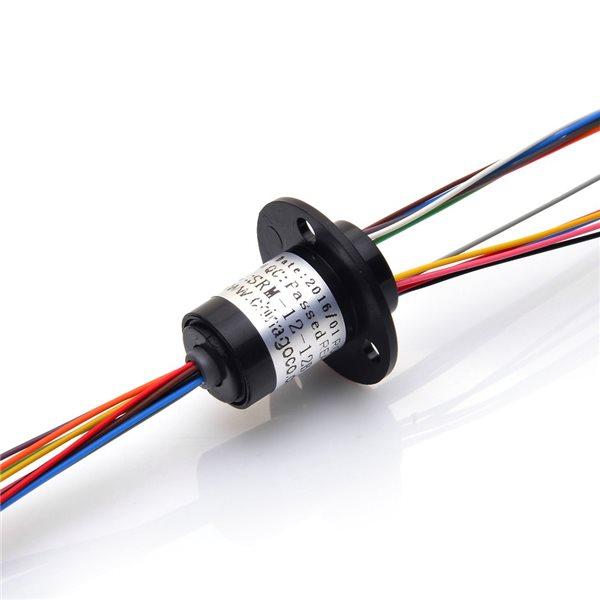

Slipring Conductive SRM-12-12B
DescriptionProduct Name:Capsule Slip Ring Mini 12 Channel Conductive Slipring Photoelectric Hybrid Slip Rings for Security Monitor EquipmentItem Code:403173929Category:Mode AccessoriesShort Description:Channel: 12channel Current: 1.5A Diameter: 12.6mm Type: SRM-12-12A SRM-12-12B SRM-12-12C SRM-12-12D SRM-12-12E SRM-12-12F SRM-12-12G SRM-12-12U Quantity: 1 pc Sales Model: mix order Color: as pictur...
Description
Capsule Slip Ring Mini 12 Channel Conductive Slipring Photoelectric Hybrid Slip Rings for Security Monitor Equipment
Specification:
- Channel: 12 Channel
- Length: 21.6mm
- Current Rating: 1.5A /Channel
- Rated voltage: 220V
- Insulation Resistance: 500mOhm/500VDC
- Working life: >=5 millions revolutions(depends on work speed,environment)
- Working temperature:-40C~+80C
- Rotating Speed: 250rpm/minute
- Protection Class: IP54
- Contact Material: Metal
- Shell Materials: Engineering plastics
- Torque: 0.01N.M
- Bearing: High precision ball bearings
- Wire Specification: AWG#30 Teflon wire UL
- Relative Humidity: 60%
- Mechanical Vibration: MIL-SID-810E
- Inner Diam.*Out Dia.: 0*12.5mm
- Cable length: 250mm
- Environmental Certification: RoHS
- CE Certification: YES
