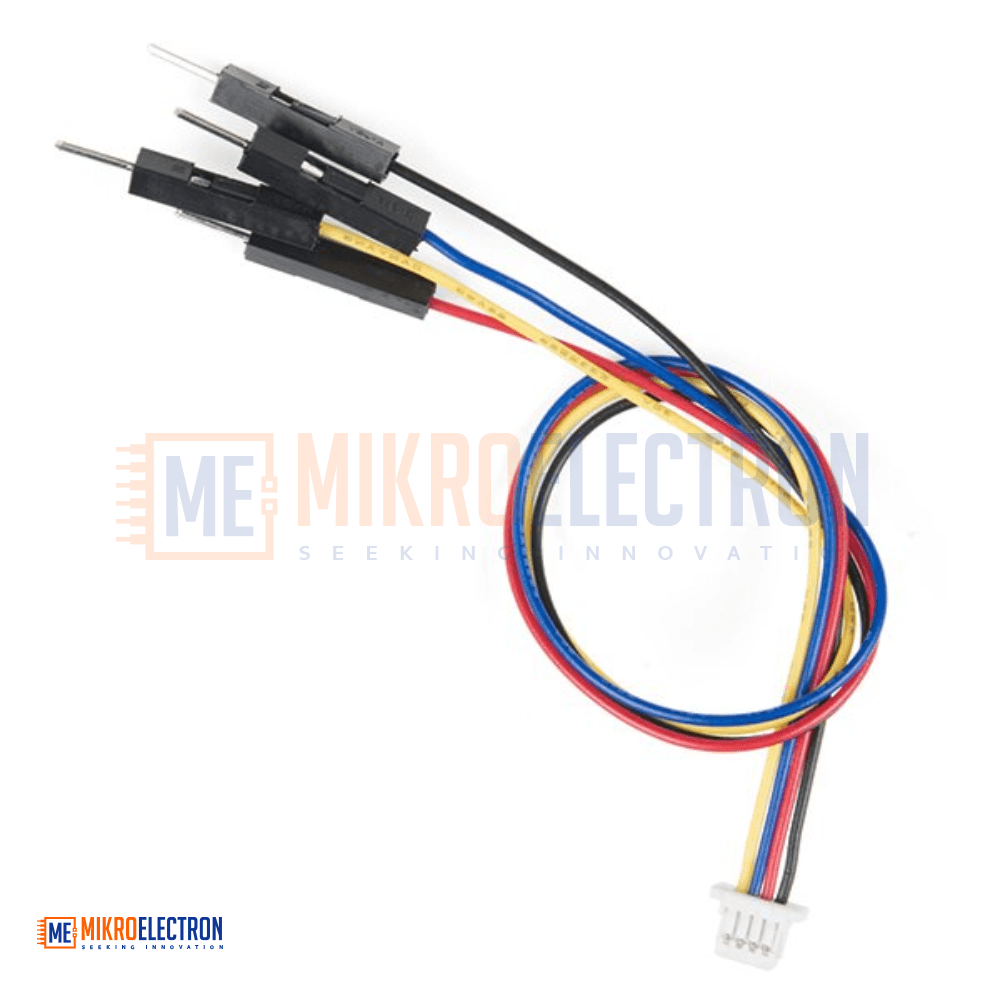

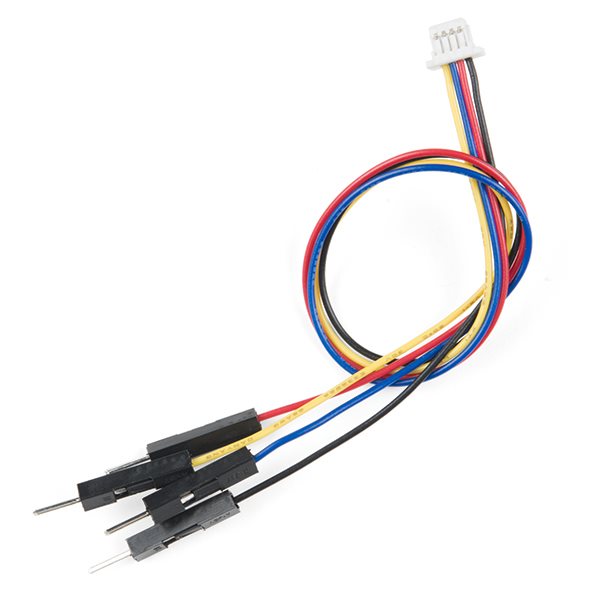

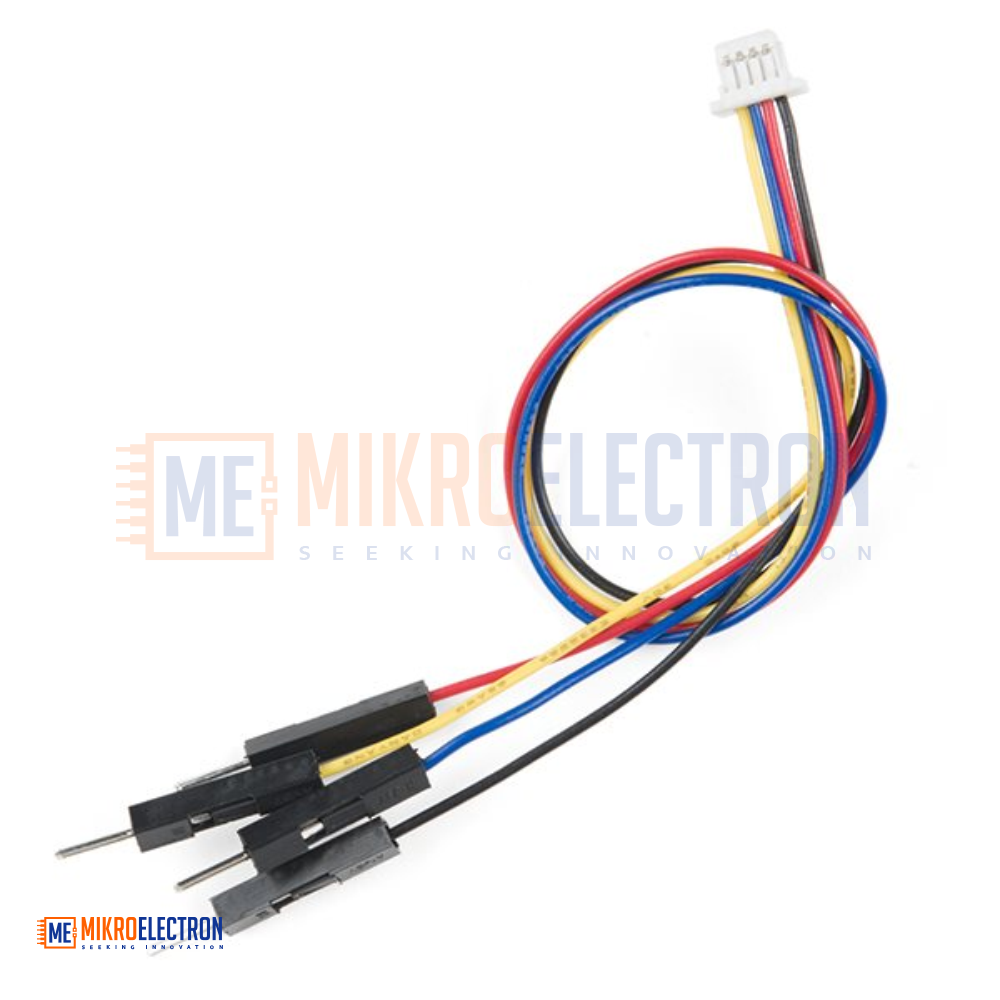

Qwiic Cable - Breadboard Jumper (4-pin)
The Qwiic Cable – Breadboard Jumper (4-pin) is a convenient adapter cable designed to connect Qwiic-enabled I2C devices directly to breadboards or microcontroller pins. It features a 4-pin female Qwiic JST connector on one end and male breadboard jumper pins on the other for easy prototyping. With a 150 mm (5.9-inch) length and durable 28 AWG wires, the cable ensures reliable signal and power transmission. Color-coded wires simplify wiring and reduce connection errors. It is ideal for Arduino, embedded systems, and rapid prototyping applications using the SparkFun Qwiic ecosystem.
كابل Qwiic Cable – Breadboard Jumper (4-pin) هو كابل محول عملي مصمم لربط أجهزة Qwiic المعتمدة على بروتوكول I2C مباشرة مع لوحات التجارب أو أرجل المتحكمات الدقيقة. يحتوي على موصل Qwiic JST أنثى بأربعة أطراف من جهة، وأطراف Jumper ذكر من الجهة الأخرى لتسهيل التوصيل أثناء التطوير. بطول 150 مم (5.9 بوصة) وأسلاك 28 AWG، يوفر نقلًا موثوقًا للطاقة والإشارات. تساعد الألوان المختلفة للأسلاك على تقليل أخطاء التوصيل، مما يجعله مثاليًا للأردوينو والتجارب الإلكترونية السريعة ضمن منظومة SparkFun Qwiic.
The Qwiic Cable – Breadboard Jumper (4-pin) is a versatile adapter cable designed to bridge the gap between Qwiic-compatible devices and traditional prototyping platforms such as breadboards and microcontroller development boards.

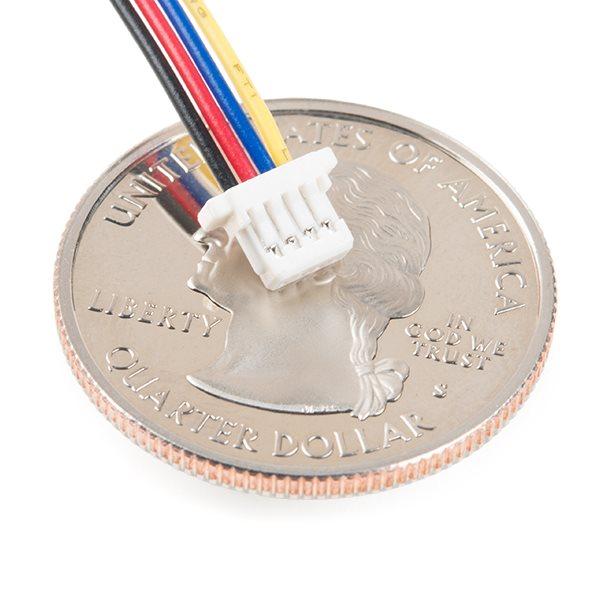

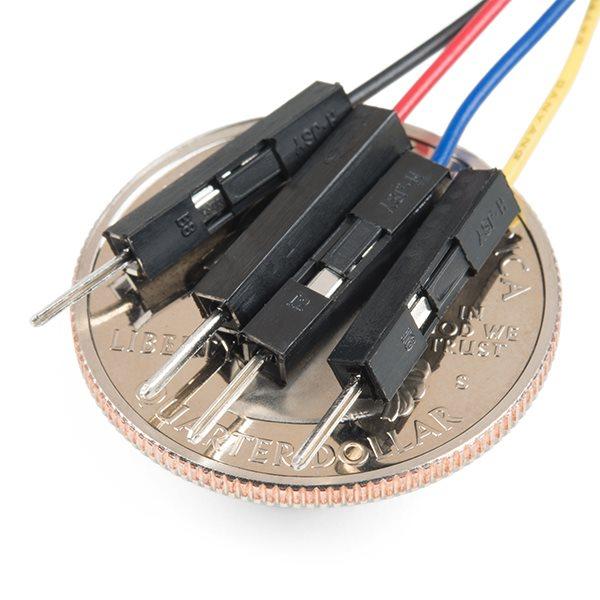

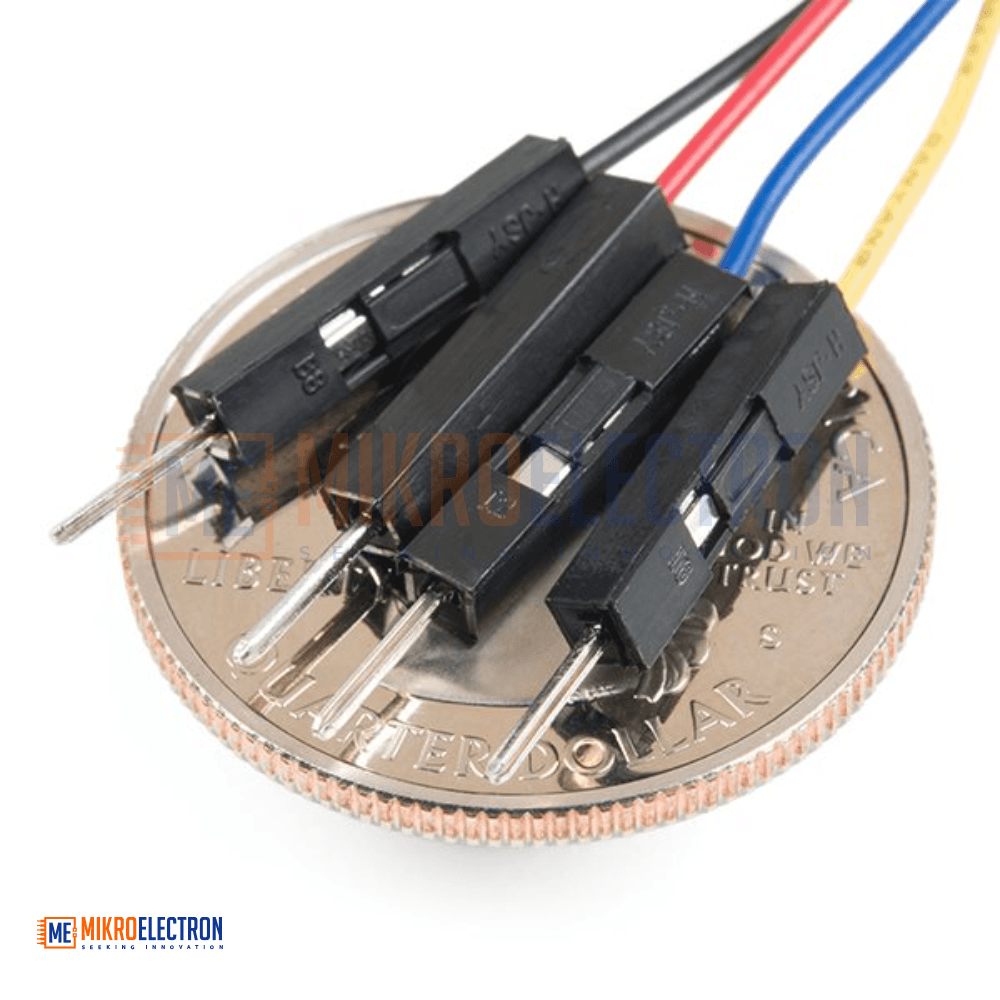

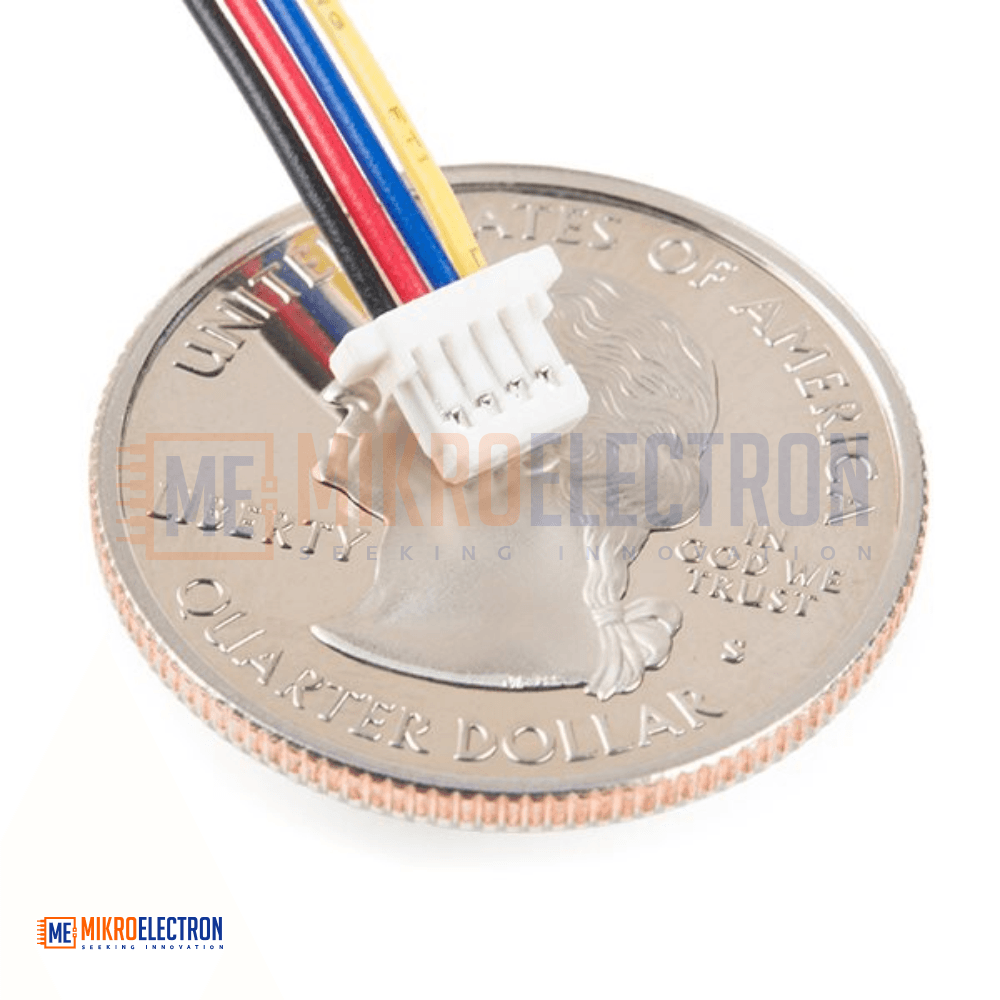

The cable features a female 4-pin Qwiic JST connector with a 1 mm pitch, specifically designed for the SparkFun Qwiic ecosystem, which standardizes I2C connections for sensors, actuators, and expansion modules. On the opposite end, the cable provides male jumper pins compatible with standard 0.1-inch breadboard spacing, enabling direct insertion into breadboards or header sockets.
Built using 28 AWG wires, the cable offers durability and stable electrical performance while maintaining flexibility for easy routing. The wires are color-coded in red, black, blue, and yellow, making it easier to identify power and signal lines during setup.
This cable simplifies prototyping by eliminating manual soldering and reducing wiring errors, especially in I2C-based projects.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Qwiic Cable – Breadboard Jumper |
| Connector Type (End 1) | Female Qwiic JST Connector |
| Connector Type (End 2) | Male Breadboard Jumper Pins |
| Number of Pins | 4 Pins |
| Communication Protocol | I2C |
| Cable Length | 150 mm (5.9") |
| Wire Gauge | 28 AWG |
| Qwiic Connector Pitch | 1 mm |
| Breadboard Pin Pitch | 0.1 inch (2.54 mm) |
| Wire Colors | Red, Black, Blue, Yellow |
| Compatibility | Qwiic Devices / Breadboards / Arduino |
Applications
The Qwiic Breadboard Jumper Cable is commonly used in:
- Arduino prototyping
- I2C sensor integration
- Breadboard testing setups
- Rapid electronics prototyping
- Embedded systems development
- IoT hardware projects
- Educational electronics labs
- Robotics projects
- Sensor debugging and testing
- Qwiic module expansion
