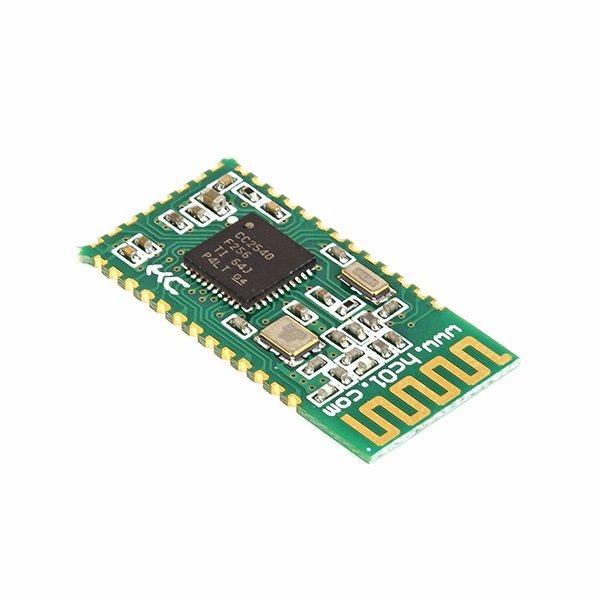

HC08 Bluetooth V4.0 Serial Module
5.0(1 review)
JD14.00
HC08 Bluetooth V4.0 Serial Module ModelHC-08ColorGreenQuantity1SetMaterialFR4SpecificationFrequency2.4GHzWorking Voltage2.0-3.6VWorking Current100mAEffective Range80mTransmission Rate9600bpsEnglish Manual / SpecNoDownload Linkhttp://pan.baidu.com/s/1i3muqFjOther FeaturesOther FeaturesTXD: serial port transmission, 3.3V TTL level; RXD: serial port receiving, 3.3V TTL level.Dimensions &am...
HC08 Bluetooth V4.0 Serial Module
| Model | HC-08 |
| Color | Green |
| Quantity | 1Set |
| Material | FR4 |
| Specification | |
| Frequency | 2.4GHz |
| Working Voltage | 2.0-3.6V |
| Working Current | 100mA |
| Effective Range | 80m |
| Transmission Rate | 9600bps |
| English Manual / Spec | No |
| Download Link | http://pan.baidu.com/s/1i3muqFj |
| Other Features | |

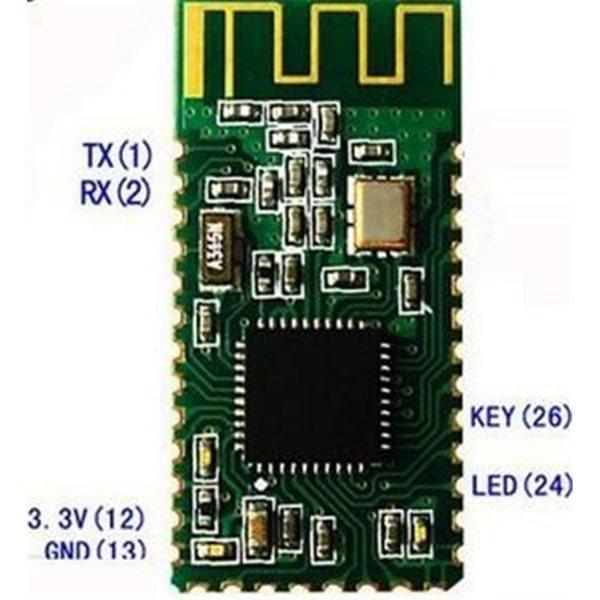

| Other Features | TXD: serial port transmission, 3.3V TTL level; RXD: serial port receiving, 3.3V TTL level. |
| Dimensions & Weight | |
|---|---|
| Dimensions | 1.06 in x 0.51 in x 0.08 in (2.7 cm x 1.3 cm x 0.2 cm) |
| Weight | 0.18 oz (5 g) |
