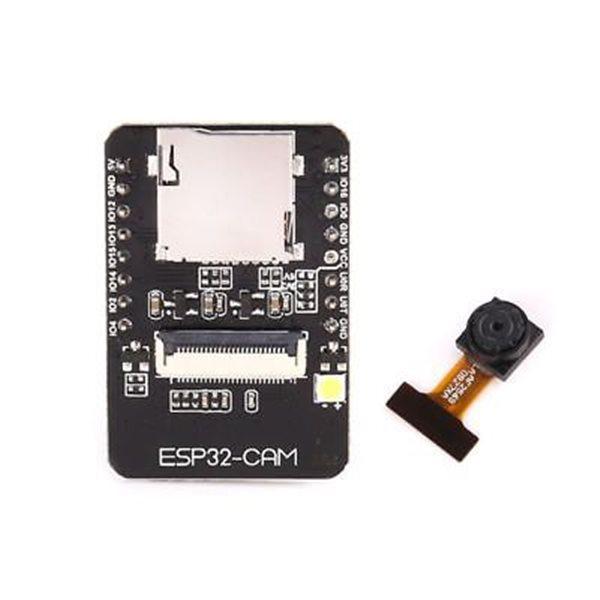

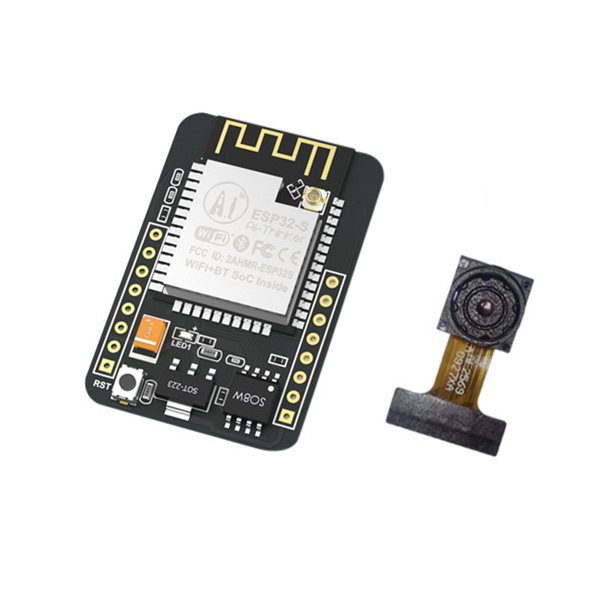

ESP32-CAM WiFi + Bluetooth With Camera Module OV2640 2MP

ESP32-CAM WiFi + Bluetooth Camera Module Development Board ESP32 With Camera Module OV2640 2MP

ESP32-CAM board specifications:

• Wireless Module- ESP32-S WiFi 802.11 b/g/n + Bluetooth 4.2 LE module with PCB antenna, u.FL connector, 32Mbit SPI flash, 4MBit PSRAM
• External Storage – micro SD card slot up to 4GB
• Camera
  • FPC connector
  • Support for OV2640 (sold with board) or OV7670 cameras
  • Image Format – JPEG( OV2640 support only ), BMP, grayscale
  • LED flash light
• Expansion – 16x through-holes with UART, SPI, I2C, PWM
• Misc – Reset button
• Power Supply – 5V via pin header
• Power Consumption
  • Flash LED off – 180mA @ 5V
  • Flash LED on to maximum brightness- 310mA @ 5V
  • Deep-sleep – 6mA @ 5V min.
  • Modem-sleep – 20mA @ 5V min.
  • Light-sleep – 6.7mA @ 5V min.
• Dimensions – 40.5 x 27 x 4.5 mm
• Weight- 10 grams
• Temperature Range – Operating: -20 ℃ ~ 85 ℃; storage: -40 ℃ ~ 90 ℃ @ < 90%RH
