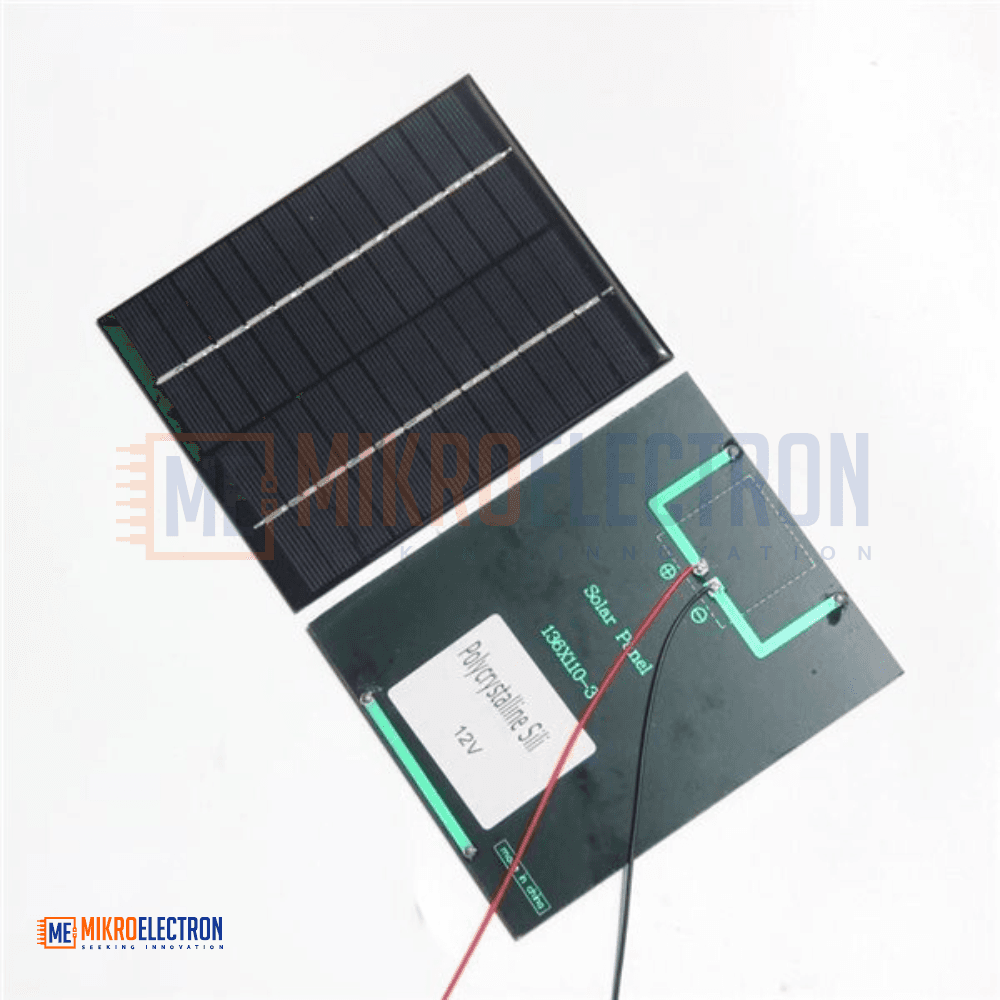

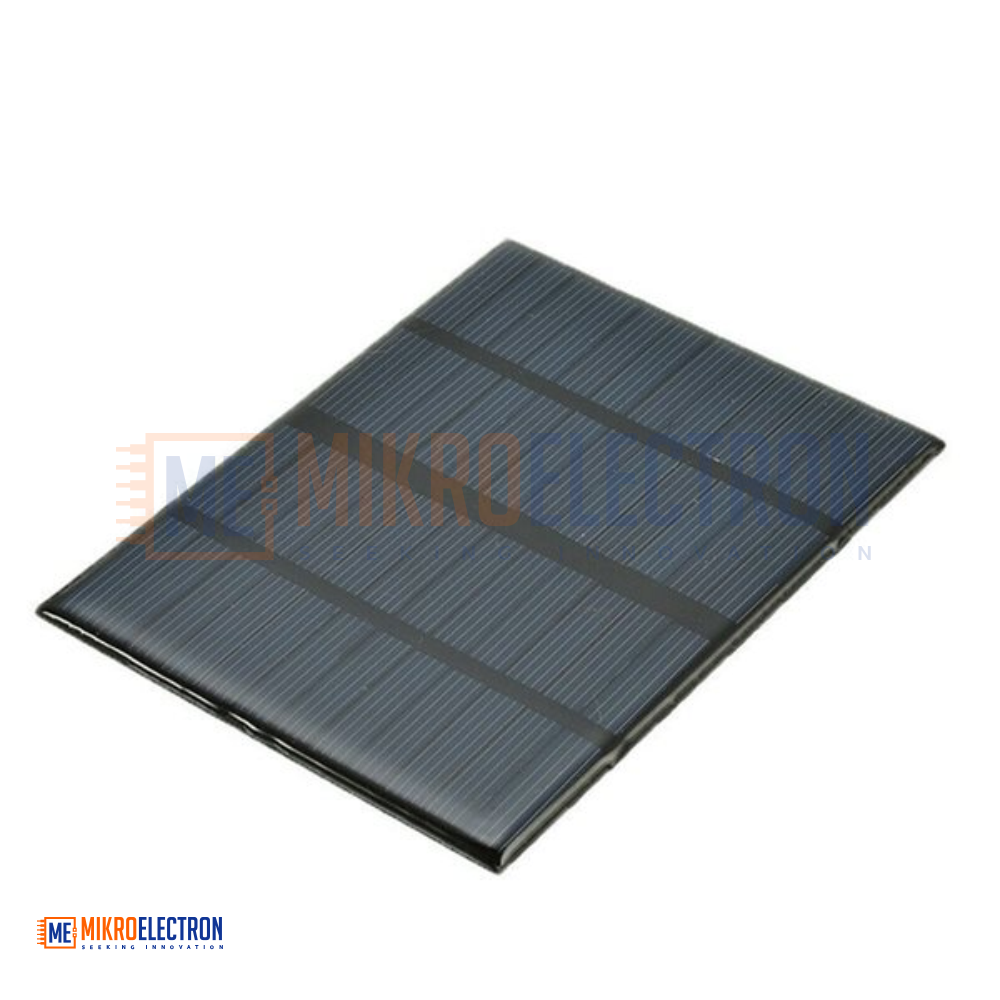

Solar Panel 12V 1.5W (115X90)mm

The 12V 1.5W Mini Solar Panel is a high-quality, compact photovoltaic module designed to harness sunlight and convert it into clean, renewable electrical energy. Despite its small size of just 115 × 90 mm, this panel delivers reliable power output suitable for a wide variety of small-scale electronics, battery-charging applications, and DIY solar projects.

The panel is built using polycrystalline silicon solar cells, which are known for their excellent balance of efficiency, durability, and affordability. The cells are protected by a layer of high-transmittance tempered glass that maximizes sunlight absorption while shielding the cells from physical damage, UV radiation, and weather conditions. The durable outer polymer frame provides structural rigidity and weather protection, ensuring the panel performs reliably in outdoor environments including rain, wind, and snow.

With a maximum working voltage of 6V and a maximum current of 240–280mA, the panel produces approximately 1.3–1.6W of power under ideal sunlight conditions. This output is well-suited for charging small batteries (NiMH, Li-ion, LiFePO4), powering microcontroller-based projects (Arduino, ESP32, ESP8266), driving low-power LEDs and sensors, and running compact IoT devices in remote locations.

A standout feature of this panel is its excellent low-light performance, allowing it to continue generating useful power even in cloudy weather, dawn, dusk, or partial shade — making it a more reliable choice for all-day energy harvesting compared to lower-quality alternatives. The unique encapsulation technology prevents water ingress and freezing-induced deformation, ensuring long-term durability in harsh outdoor conditions.

The panel is RoHS-approved, meaning it complies with European environmental safety standards and contains no hazardous substances such as lead, mercury, or cadmium. Its lightweight construction (a few hundred grams) makes it easy to install on rooftops, garden structures, RVs, boats, sheds, and project enclosures using standard mounting hardware or adhesive backing.

Whether you're building a solar-powered weather station, charging a small battery for camping, prototyping an off-grid IoT sensor, or teaching renewable energy concepts in the classroom, this 12V 1.5W mini solar panel provides a practical, reliable, and affordable entry into the world of solar power.

Specifications

• Type: Mini Polycrystalline Silicon Solar Panel
• Maximum Working Voltage: 6V
• Maximum Working Current: 240 – 280 mA
• Power Output: 1.3 – 1.6 W (typical 1.5W)
• Solar Cell Material: Polycrystalline Silicon
• Front Surface: High-Transmittance Tempered Glass
• Frame Material: Durable Polymer (Plastic)

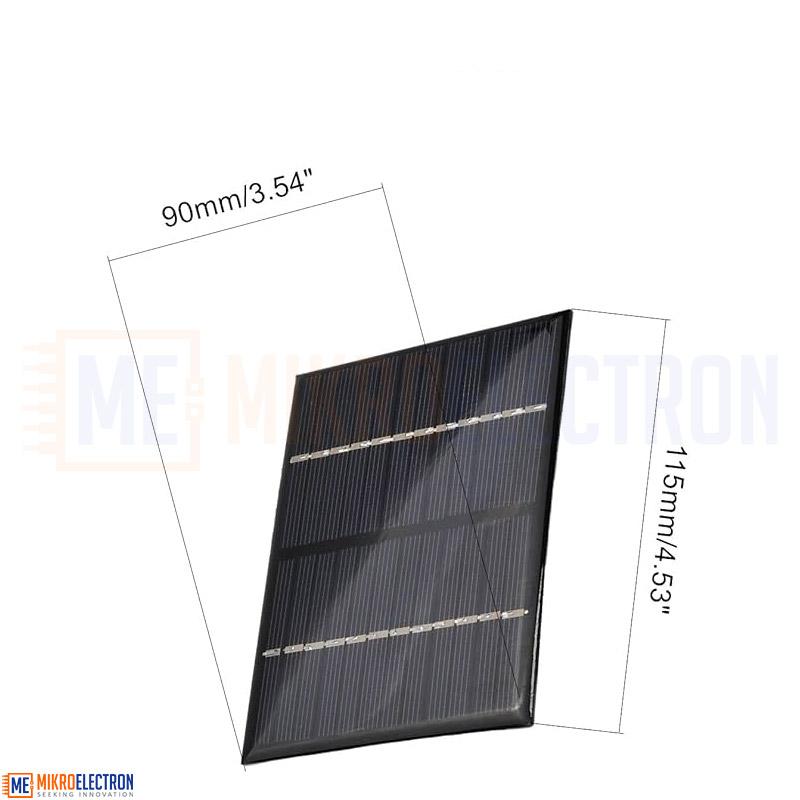

• Dimensions: 115 × 90 mm (approx. 112 × 91 mm panel area)
• Compliance: RoHS Approved
• Application: Small electronics, battery charging, IoT, educational kits
• Operating Conditions: Outdoor (weather-resistant)

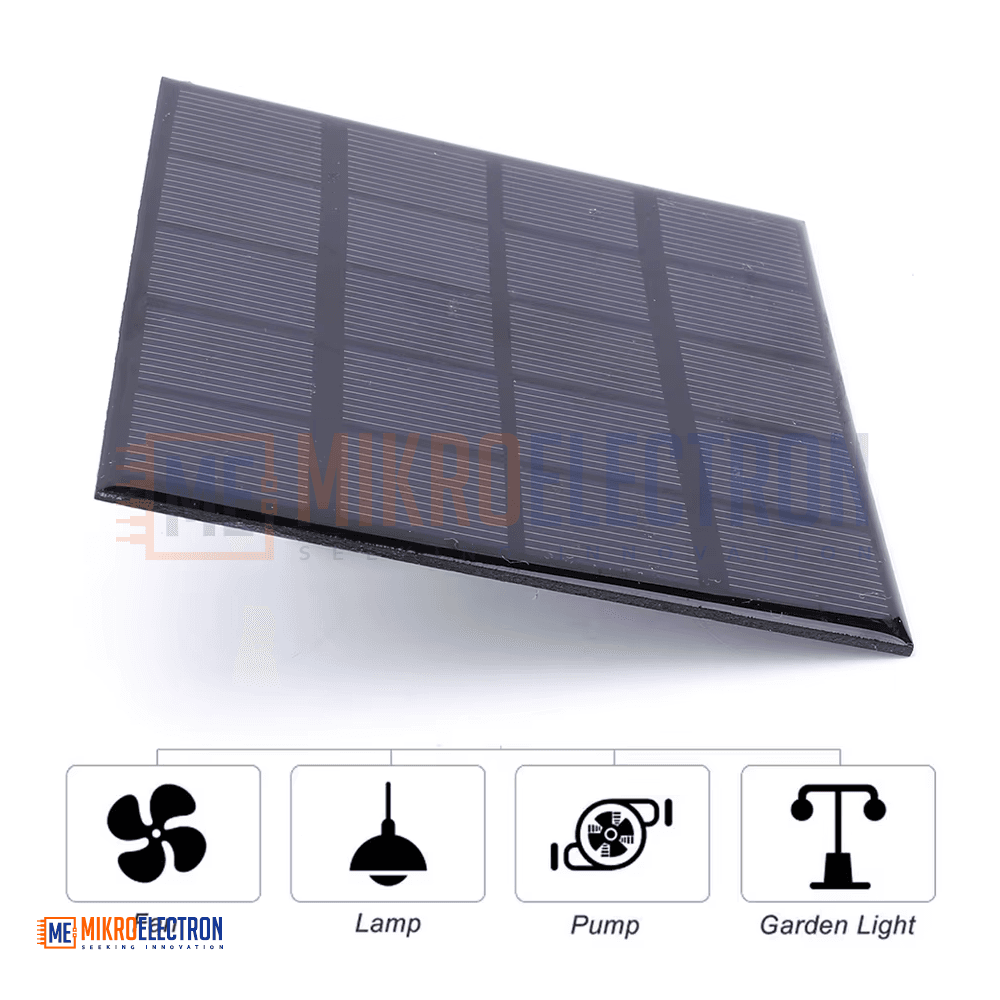

Applications

• Small Electronics Power — running LEDs, sensors, and microcontrollers
• Battery Charging — charging NiMH, Li-ion, LiFePO4 small battery packs
• Educational Kits — STEM and renewable energy classroom projects
• Solar-Powered IoT Devices — outdoor ESP32/ESP8266 sensor nodes
• Garden Lights & Solar Lamps — DIY solar lighting projects
• Weather Stations — powering remote outdoor monitoring devices
• Environmental Monitoring — air quality, water level, and soil sensors
• Wildlife Cameras — remote outdoor camera trap power
• Solar-Powered Calculators & Toys — small consumer device replacement
• Camping & Outdoor Gear — portable charging for small devices
• DIY Solar Projects — breadboard-friendly solar experiments
• Boat & RV Auxiliary Power — small electronics on the go
• Remote Telemetry Stations — agricultural and scientific monitoring
• Smart Home Outdoor Sensors — battery-free or extended-life nodes
• Aquarium & Pond Pumps — small low-power water pumps
• Solar Fountain Pumps — decorative garden fountains
• Bird Feeders & Garden Decor — solar-illuminated outdoor displays
• Educational STEM Kits — teaching solar energy and circuit basics
• Ham Radio & QRP Stations — low-power radio operation
• Replacement Solar Panel — for damaged panels in existing solar gadgets
