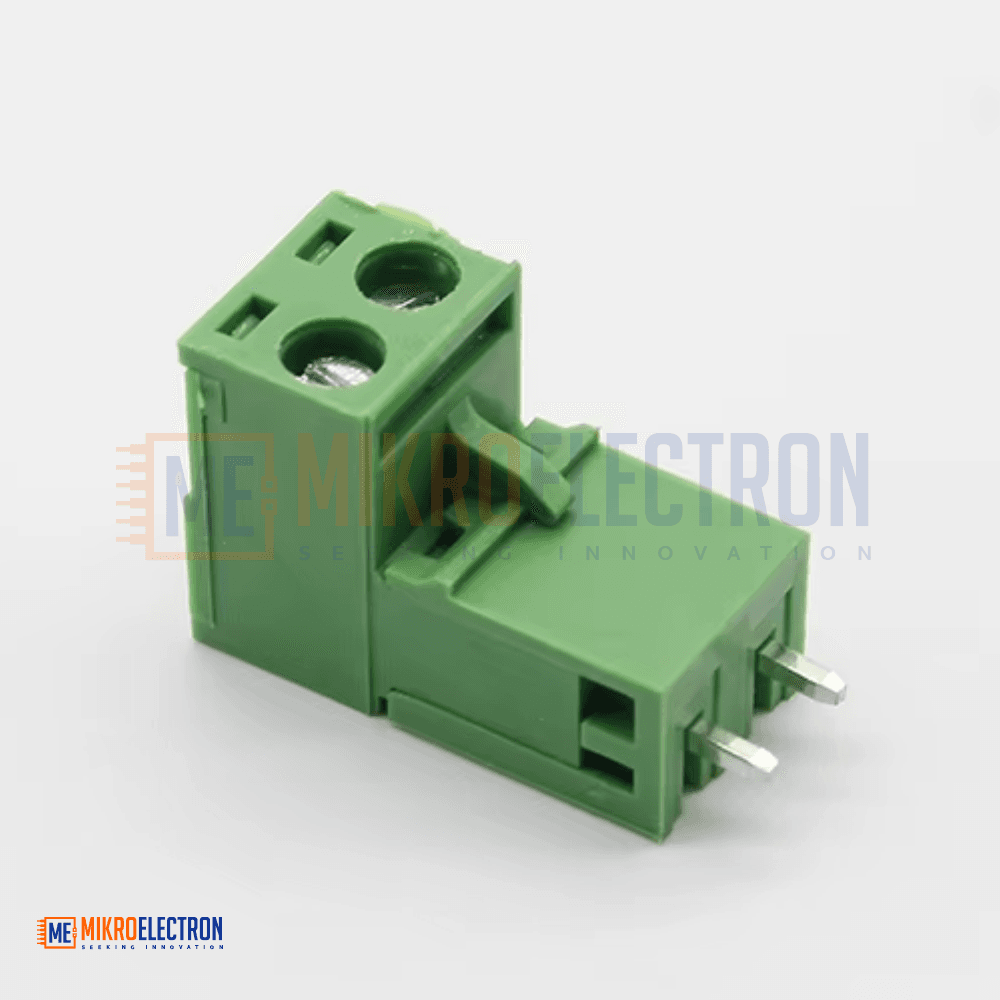

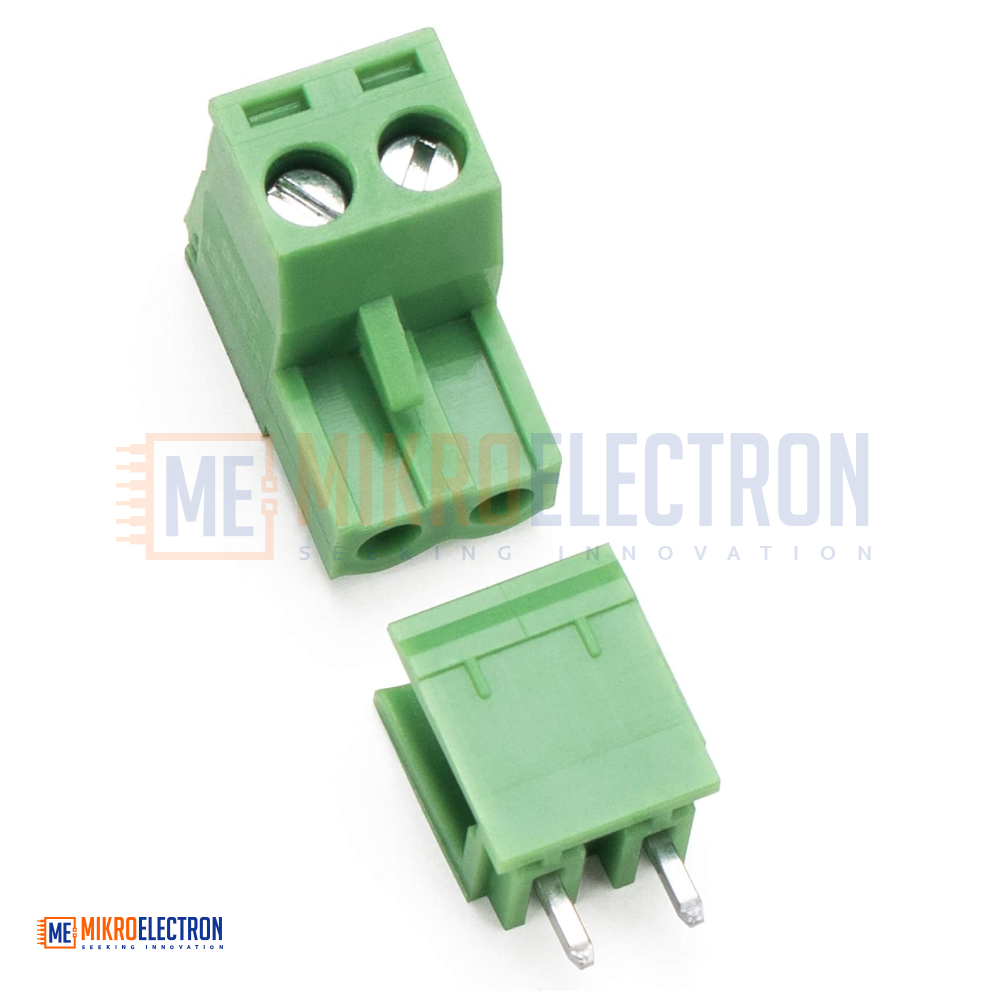

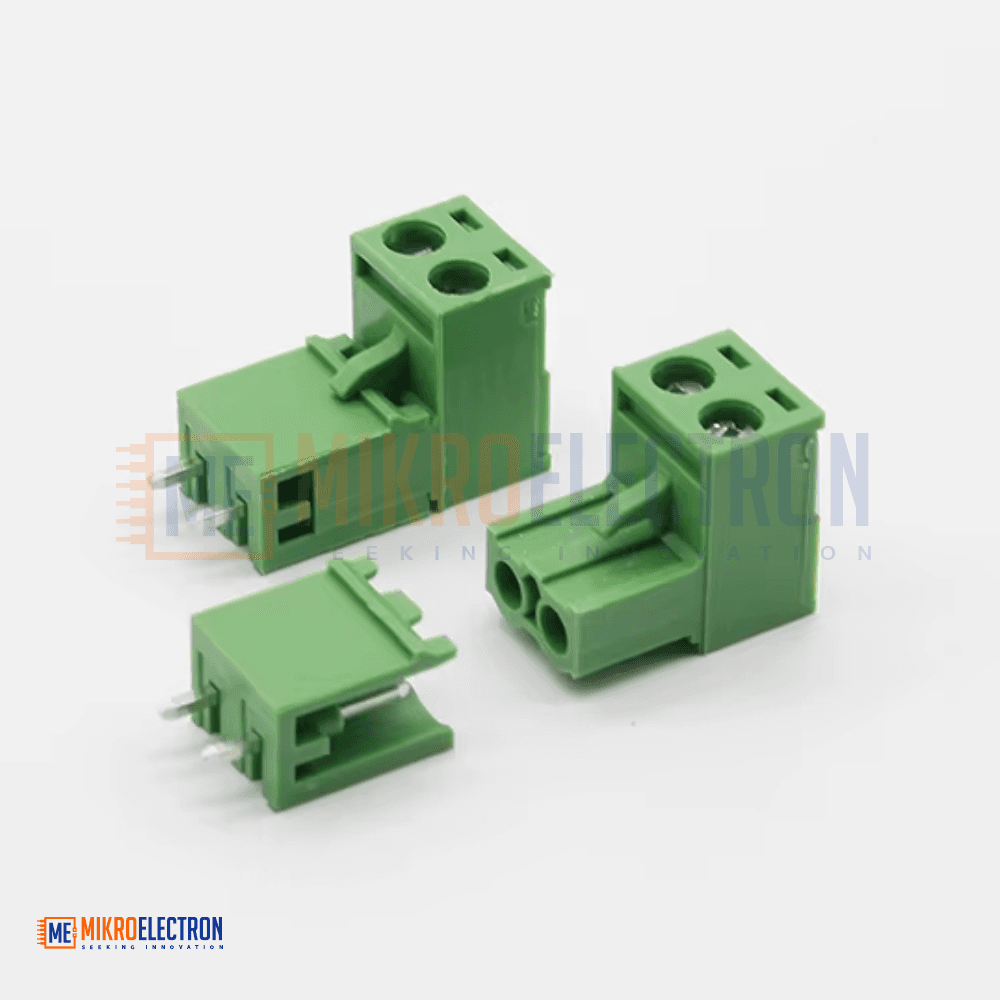

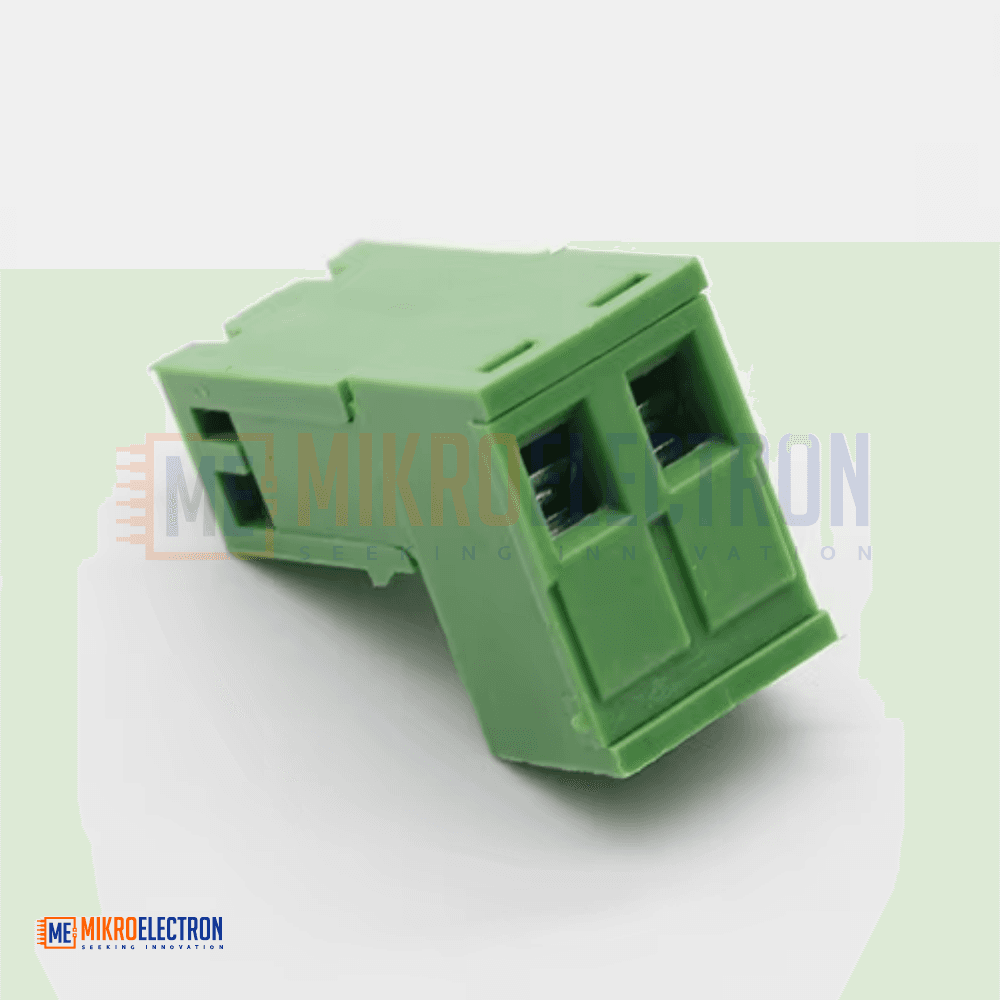

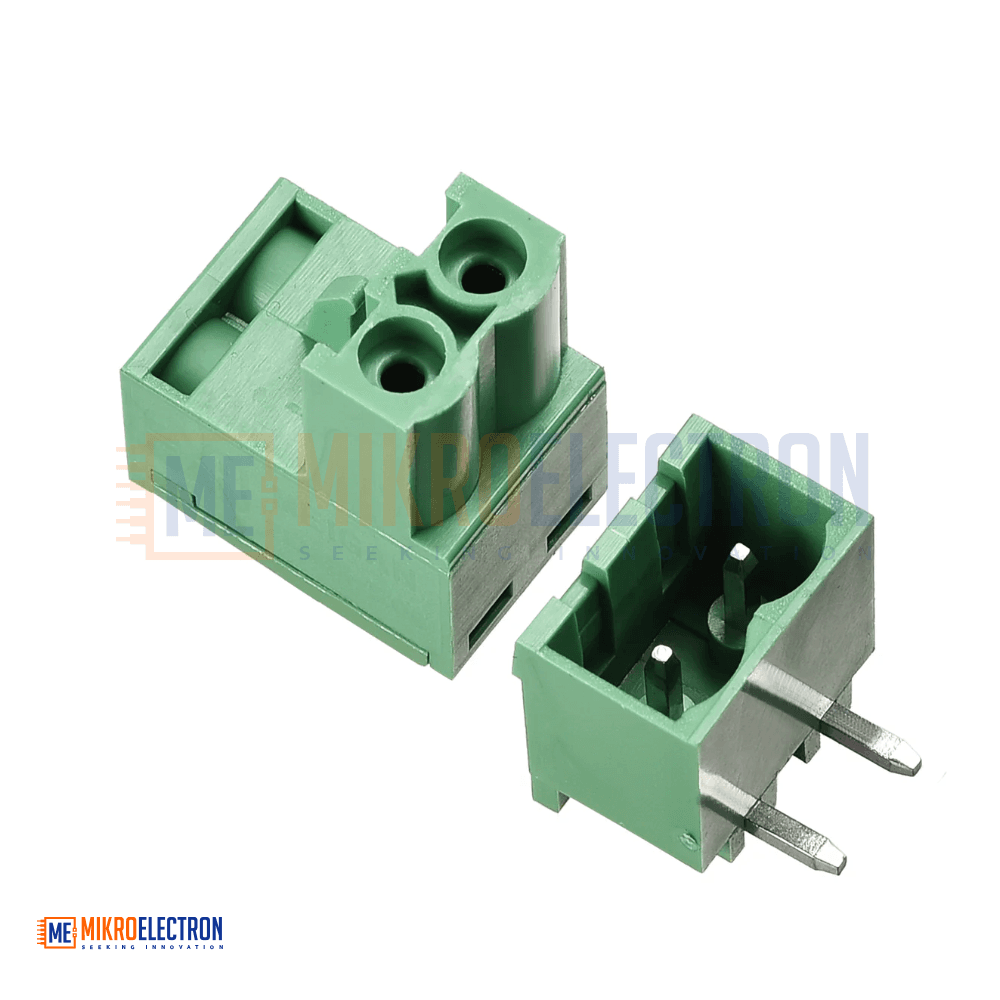

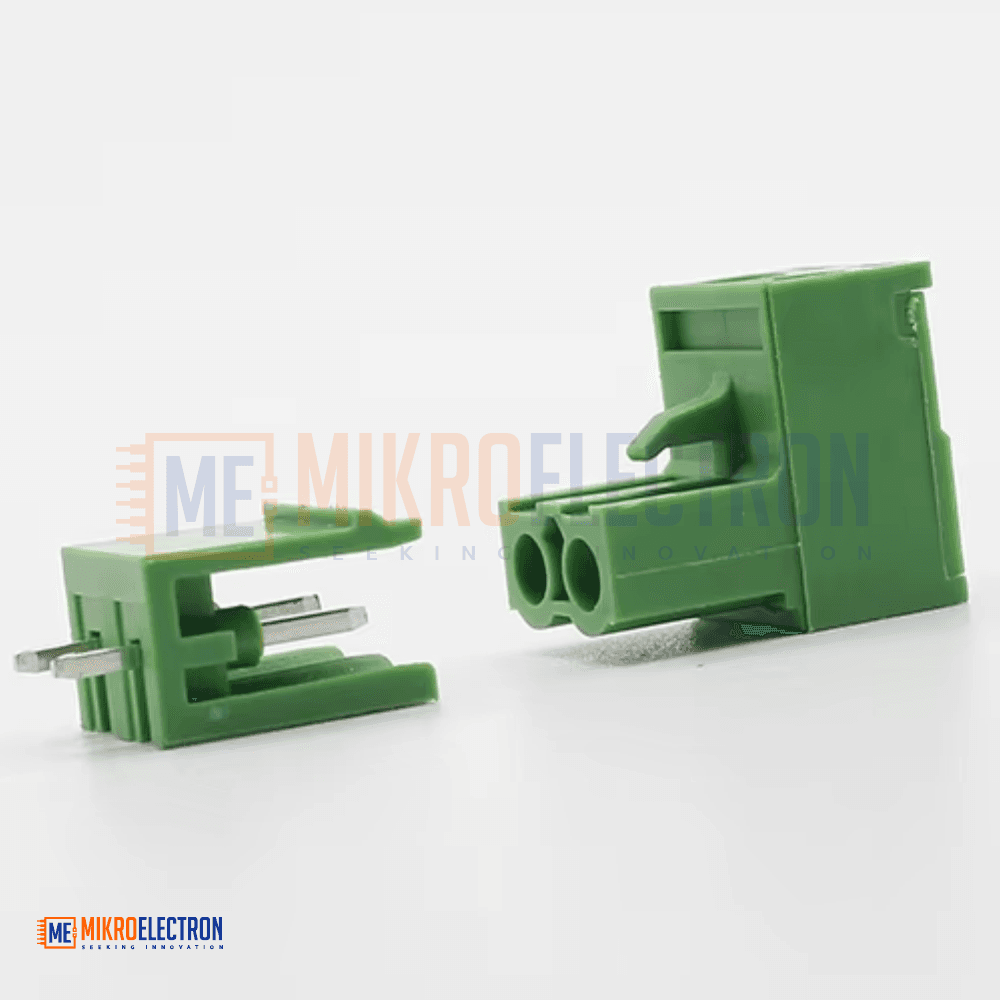

2pin Terminal plug type 300V 10A 5.08mm pitch connector pcb screw terminal block

The 2Pin PCB Screw Terminal Block Connector is a high-quality plug-type terminal designed for secure electrical wire connections on printed circuit boards. Featuring a 5.08mm pitch and durable screw-clamp mechanism, it allows quick and stable wire installation without soldering directly to the board.

Built with high-quality materials including a PBT UL94V-0 flame-retardant housing, brass tin-plated contacts, and zinc-plated steel screws, the connector provides excellent electrical conductivity, durability, and safety.

Rated for 300V and 10A, this terminal block is suitable for industrial electronics, power distribution, automation systems, DIY electronics, and control circuits. The compact design supports easy PCB mounting while ensuring reliable long-term performance.

Specifications

• Product Type: PCB Screw Terminal Block
• Connector Type: Plug Type Terminal
• Number of Poles: 2P
• Pitch: 5.08 mm
• Rated Voltage: 300V
• Rated Current: 10A
• Withstanding Voltage: AC1500V / 1 Minute
• Wire Range: AWG 22–14
• Maximum Wire Size: 2.5mm²
• Screw Type: M2.5 Steel Zinc Plated
• Wire Guard Material: Phosphor Bronze / Stainless Steel
• Pin Header Material: Brass Tin-Plated
• Housing Material: PBT UL94V-0
• Temperature Range: -40°C to +105°C
• Maximum Soldering Temperature: +150°C for 5 Seconds
• Recommended Strip Length: 7–8 mm
• Torque: 0.4 Nm (3.5 lb.in)

Applications

• PCB power connections
• Industrial control systems
• Power supply units
• Arduino and DIY electronics
• Automation equipment
• LED driver connections
• Electrical control panels
• Signal and low-voltage wiring systems
