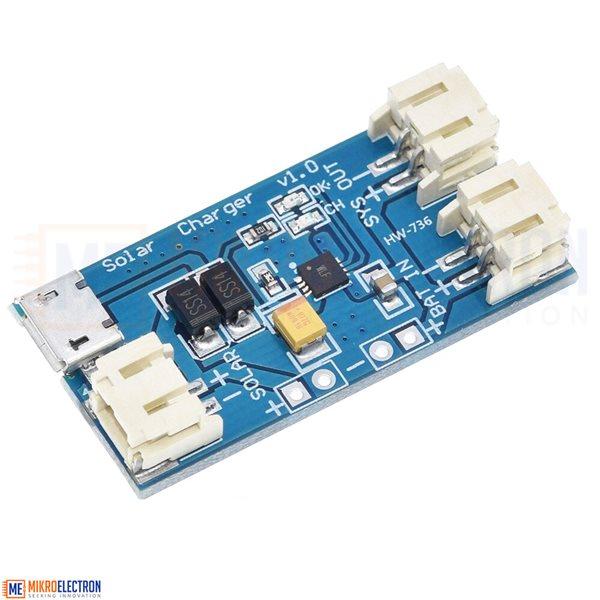

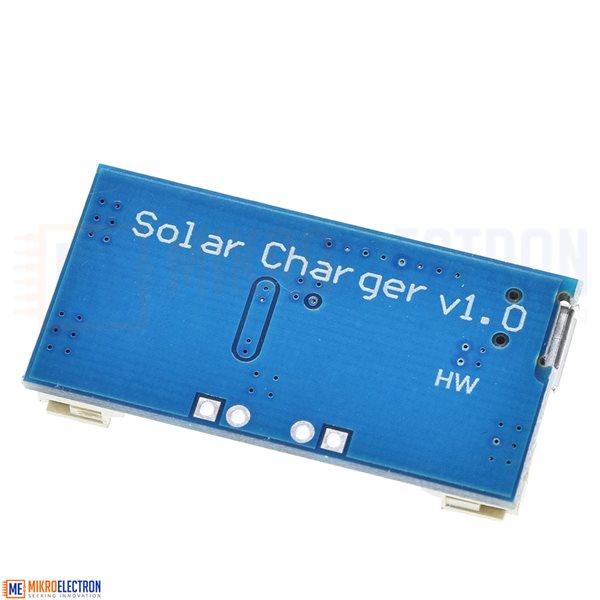

Mini Solar Lipo Charger Board CN3065 6V Lithium Battery Charging Module
The Mini Solar LiPo Charger Board CN3065 is a compact and efficient charging module designed for single-cell 3.7V lithium-ion and lithium-polymer batteries. It utilizes the CN3065 charging management IC to provide safe and reliable charging from solar panels or Mini USB power sources. Supporting input voltages from 4.4V to 6V, the module delivers a maximum charging current of 500mA and includes short-circuit protection for enhanced safety. Integrated status LEDs indicate charging progress, while the 2-pin JST-PH 2.0 connector ensures easy battery connection. Its small size makes it ideal for portable, DIY, and solar-powered applications.
تُعد لوحة شحن بطارية الليثيوم الشمسية المصغرة CN3065 وحدة شحن صغيرة وعالية الكفاءة مصممة لشحن بطاريات الليثيوم أيون والليثيوم بوليمر أحادية الخلية بجهد 3.7 فولت. تعتمد اللوحة على شريحة CN3065 لإدارة عملية الشحن بأمان وموثوقية باستخدام الألواح الشمسية أو منفذ Mini USB كمصدر للطاقة. تدعم جهد دخل يتراوح بين 4.4 و6 فولت مع تيار شحن أقصى يبلغ 500 مللي أمبير، كما توفر حماية من قصر الدائرة الكهربائية لزيادة الأمان. تحتوي على مؤشرات LED لحالة الشحن وموصل JST-PH 2.0 ثنائي السنون لتسهيل توصيل البطارية، مما يجعلها مناسبة للمشاريع المحمولة والتطبيقات المعتمدة على الطاقة الشمسية.
The Mini Solar LiPo Charger Board CN3065 is a lightweight and compact charging solution designed specifically for single-cell 3.7V lithium-ion and lithium-polymer batteries. Built around the reliable CN3065 charging management IC, this module efficiently converts energy from solar panels or Mini USB power sources into a stable charging current.
The module supports an input voltage range of 4.4V to 6V, making it compatible with most small solar panels rated up to 6V. With a preset maximum charging current of 500mA, it provides safe and efficient battery charging while helping to maximize energy harvested from photovoltaic sources.

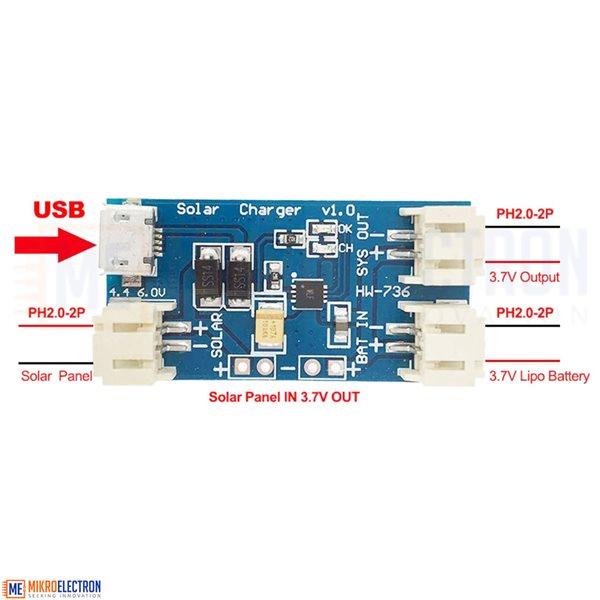

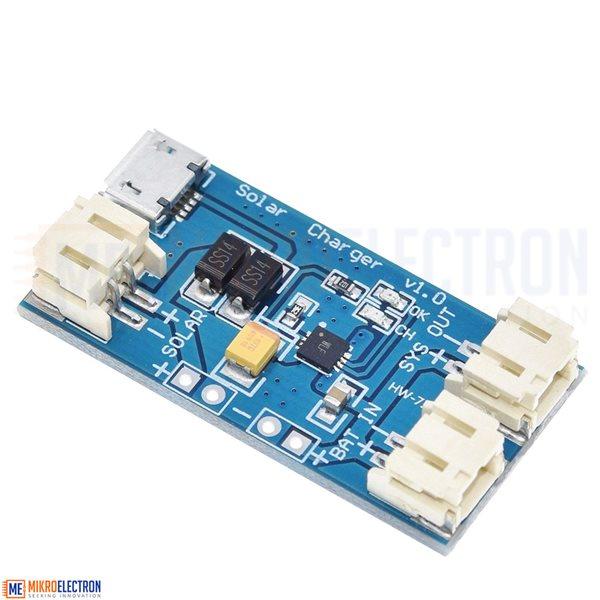

For user convenience, the board features a 2-pin JST-PH 2.0 battery connector and onboard LED indicators that display the charging status. The red LED indicates that charging is in progress, while the green LED signals that the battery is fully charged.
Integrated short-circuit protection enhances operational safety and helps protect connected components. The module is intended solely for charging a single-cell lithium battery, while any external load should be connected in parallel with the battery.
Its ultra-compact dimensions make it an excellent choice for portable electronics, solar-powered IoT devices, DIY projects, remote sensors, and battery-powered embedded systems.
Specifications
| Parameter | Value |
|---|---|
| Charging IC | CN3065 |
| Battery Type | Single-cell Lithium-Ion / Lithium-Polymer |
| Battery Voltage | 3.7V nominal (4.2V fully charged) |
| Input Source | Solar panel or Mini USB |
| Input Voltage Range | 4.4V – 6V DC |
| Recommended Solar Panel Voltage | Up to 6V |
| Maximum Charging Current | 500mA |
| Battery Connector | 2-pin JST-PH 2.0 |
| Protection Features | Short-circuit protection |
| Charging Indicators | Red LED: Charging, Green LED: Fully Charged |

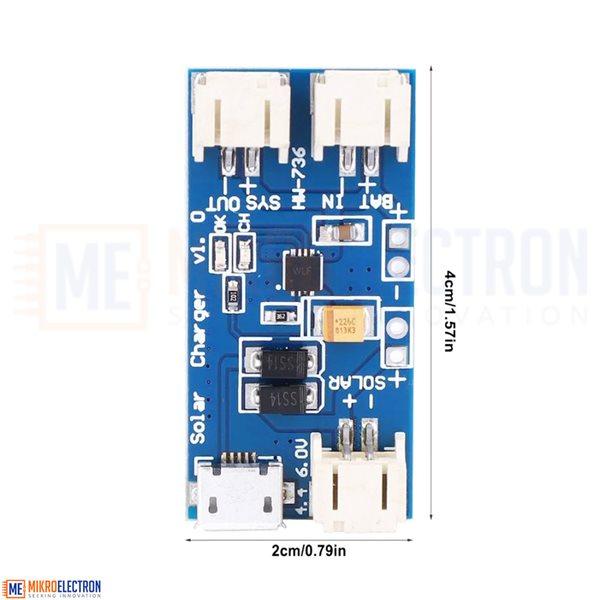

| Board Dimensions | 40 × 20 × 7 mm |
| Package Dimensions | 80 × 60 × 7 mm |
| Weight | 5g |
Applications
- Solar-powered IoT devices
- Portable battery charging systems
- Remote environmental monitoring stations
- DIY solar energy projects
- Wireless sensor nodes
- Battery-powered microcontroller projects
- Outdoor data loggers
- Educational electronics projects
- Emergency backup power systems
- Wearable and portable electronics
