Waveshare Raspberry Pi Li-ion Battery HAT, 5V Regulated Output, Bi-directional Quick Charge

Waveshare Raspberry Pi Li-ion Battery HAT, 5V Regulated Output, Bi-directional Quick Charge

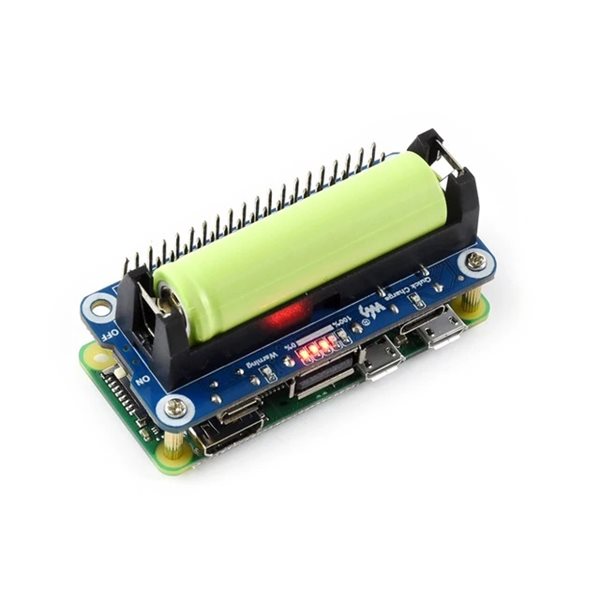

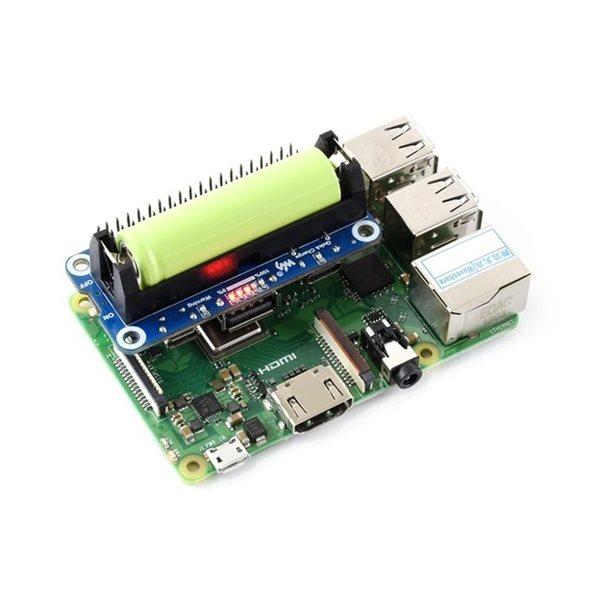

The Li-ion Battery HAT integrates SW6106 power bank management chip, allows providing 5V regulated power supply to your Pi from a 14500 battery, makes the Pi becomes a portable device. It will charge the battery as well, supports bi-directional quick charge. This module can be used as a universal mini power bank, also works with other 5V devices.

Specifications

• Output voltage: 5V
• Applicable battery: 3.7V 14500 lithium battery (4.2V when full charged)
• Dimension: 65mm × 30mm
• Mounting hole size: 3.0mm

What's on Board

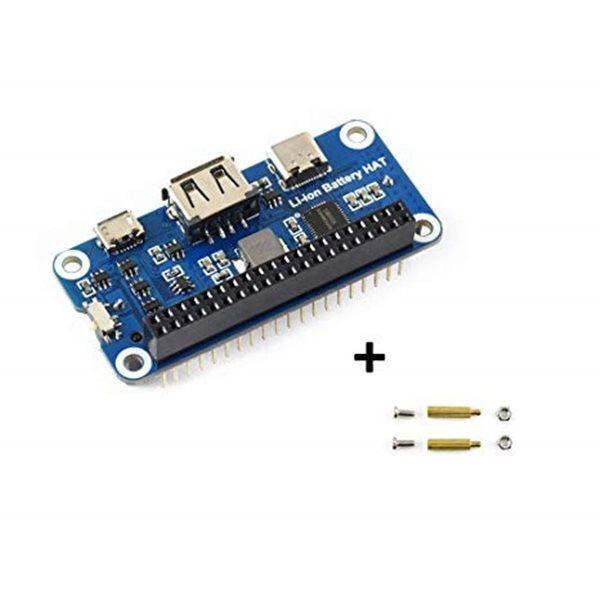

1. Raspberry Pi GPIO connector: for connecting Raspberry Pi
2. SW6106 power management chip
3. USB Type-C connector: battery charge/power output
4. USB Type-A connector:power output
5. Micro USB connector:battery charge
6. Raspberry Pi power switch
7. Battery warning indicator: on when the battery is reverse
8. Battery power capacity indicator: 5x LEDs to indicate the power capacity and charging status
9. Quick charge indicator: on when quick charging
10. 14500 battery holder

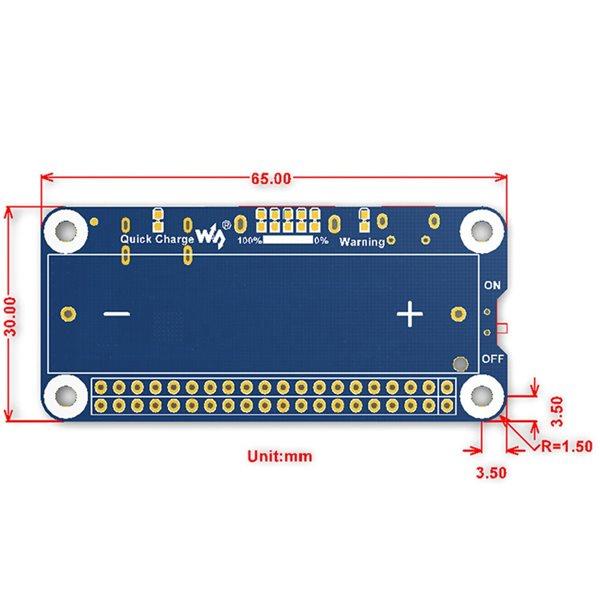

Dimension
