6-0-6 volt 500mA Step Down Ac Transformer

6-0-6 volt 500mA Step Down Transformer

6-0-6 volt 500mA Transformer

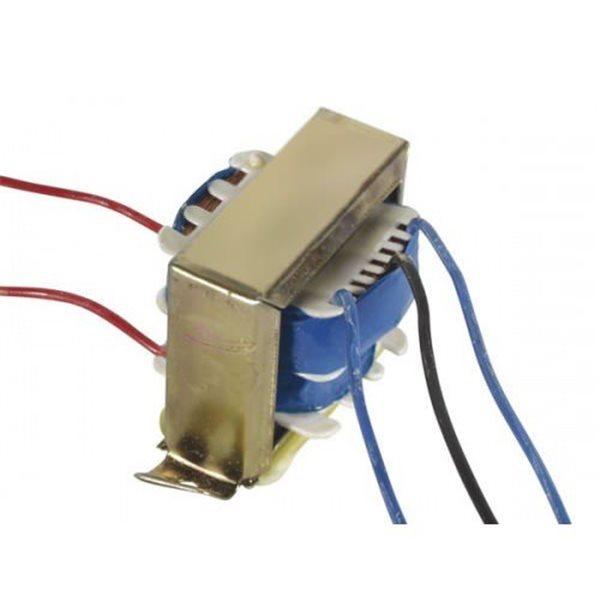

It is a general purpose chassis mounting mains transformer. Transformer has 240 V primary windings and centre tappedsecondary winding. The transformer has flying colored insulated connecting leads ( Approx 100 mm long ). The Transformer act as step down transformer reducing AC - 240V to AC - 6V.

The Transformer gives two outputs of 12V, 6V and 0V. The Transformer's construction is written below with details of Solid Core and Winding.

The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformer's core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding. The transformer has cores made of high permeability silicon steel. The steel has a permeability many times that of free space and the core thus serves to greatly reduce the magnetizing current and confine the flux to a path which closely couples the windings.

Features of 6-0-6 (12Volt) 500 mA Transformer.

Soft Iron Core.

500 mA Current Drain.

Applications of 6-0-6 (12Volt) 500 mA Transformer.

DIY projects Requiring In-Application High current drain.

On chassis AC/AC converter.

Designing a battery Charger.

Also Searched as :6 - 0 - 6 Transformer - 500mA, 6 0 6 volt transformer 500ma,6v transformer,6 volt ac transformer,6 0 6 volt ac transformer 500ma,6 0 6 volt ac 500ma transformer,step down transformer 6-0-6,6 volt step down transformer,6-0-6 step down transformer online India.

Note : Images shown is only for representation. The actual product may vary with the picture shown.
