Gps antenna

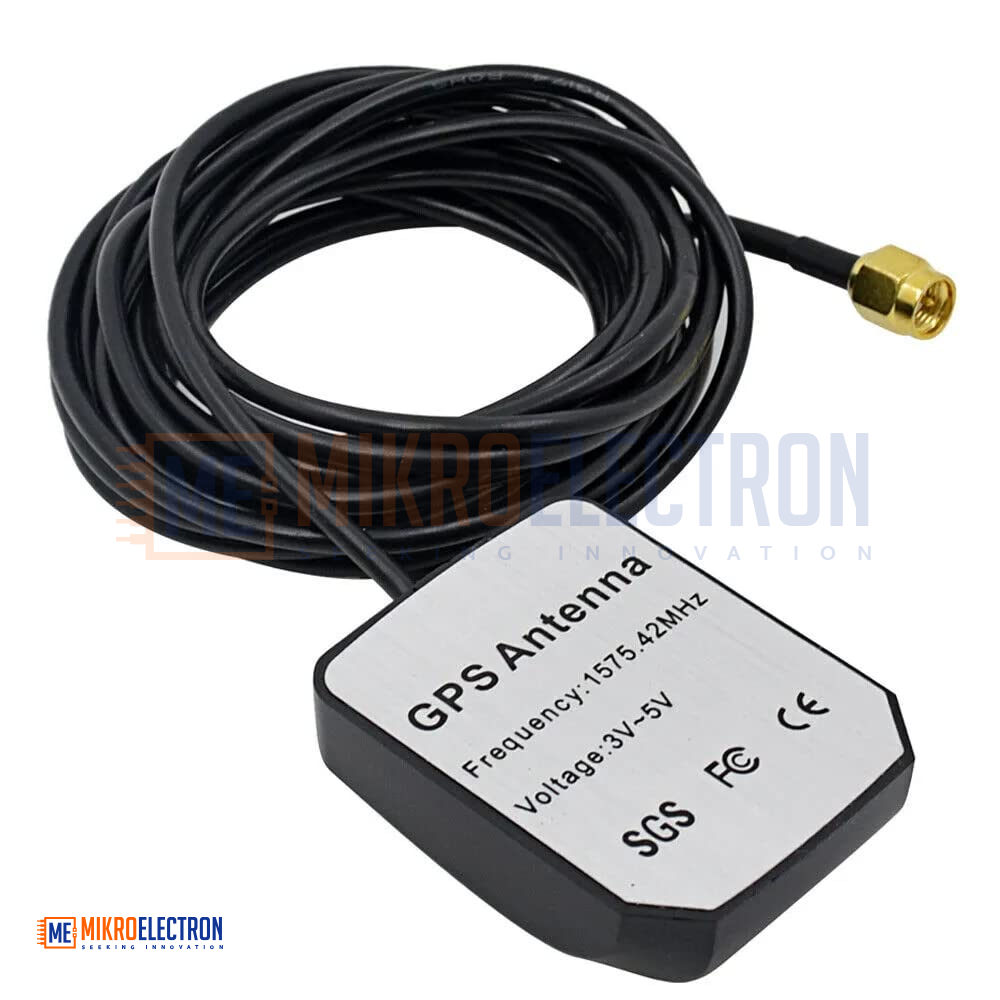

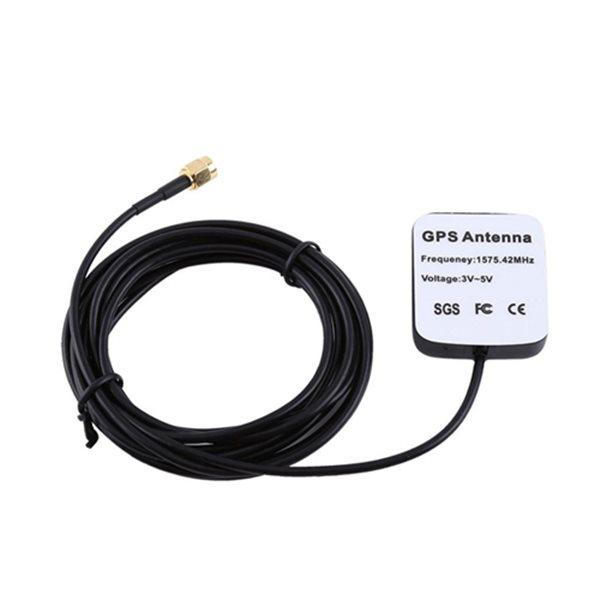

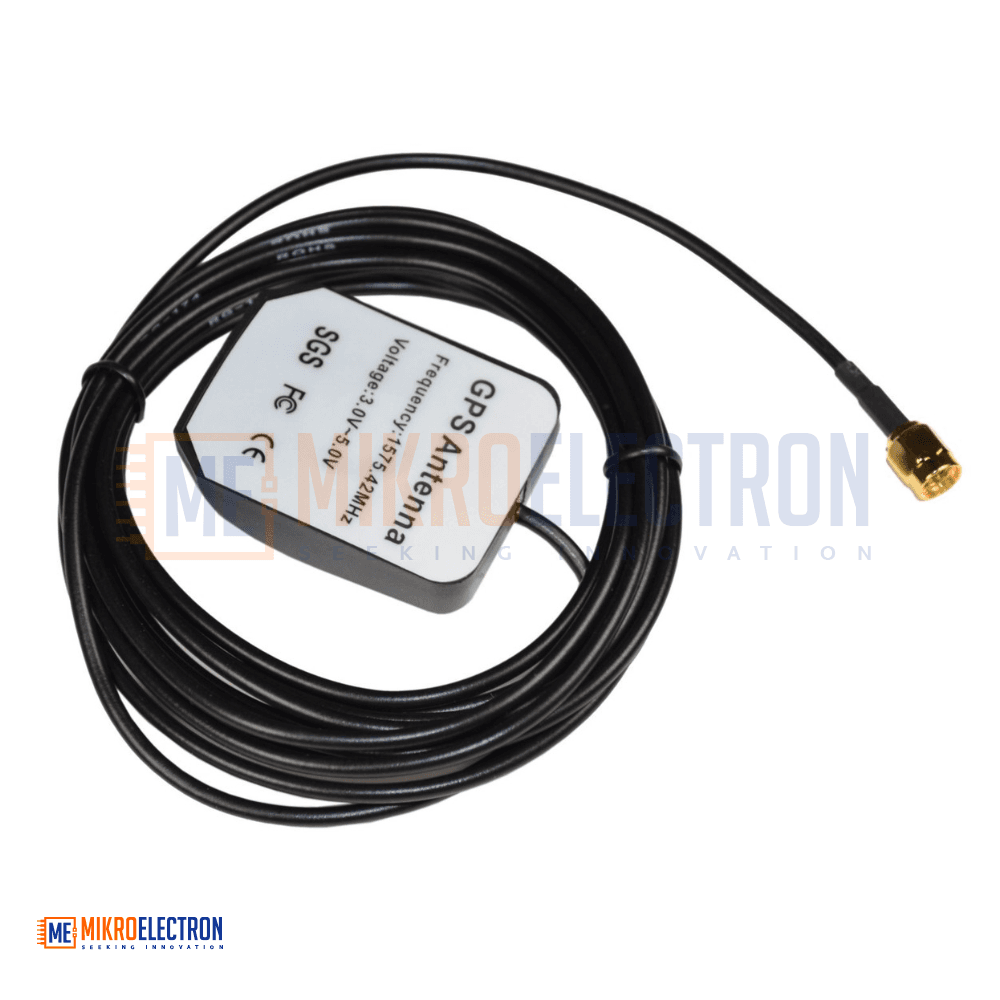

The GPS External Active Antenna is designed to provide reliable and accurate GPS signal reception for navigation, tracking, and positioning applications. Operating at a central frequency of 1575.42 MHz ±2 MHz, it features right-hand circular polarization (RHCP) for optimal satellite signal reception. With an active gain of 27 dB ±1 dB, the antenna enhances signal strength and improves positioning performance. It operates on an input voltage of 3V to 5V, making it compatible with a wide range of GPS devices and modules. The antenna includes a 2.5-meter cable with SMA connector, a built-in magnet for easy mounting, and a waterproof design for dependable outdoor use.
تم تصميم هوائي GPS الخارجي النشط لتوفير استقبال موثوق ودقيق لإشارات GPS في تطبيقات الملاحة والتتبع وتحديد المواقع. يعمل عند تردد مركزي 1575.42 ميجاهرتز ±2 ميجاهرتز، ويتميز باستقطاب دائري يميني (RHCP) لضمان استقبال مثالي لإشارات الأقمار الصناعية. يوفر كسباً نشطاً يبلغ 27 ديسيبل ±1 ديسيبل لتعزيز قوة الإشارة وتحسين دقة تحديد الموقع. يعمل بجهد إدخال يتراوح بين 3 إلى 5 فولت، مما يجعله متوافقاً مع العديد من أجهزة ووحدات GPS. كما يأتي مزوداً بـ كابل بطول 2.5 متر مع موصل SMA، ومغناطيس مدمج لسهولة التثبيت، بالإضافة إلى تصميم مقاوم للماء للاستخدام الخارجي الموثوق.
The GPS External Active Antenna is a high-performance positioning antenna engineered to deliver strong and stable GPS signal reception in various environments. Operating at the standard GPS L1 frequency of 1575.42 MHz ±2 MHz, it is optimized for use with GPS receivers, navigation systems, vehicle tracking devices, IoT solutions, and embedded GPS modules.
Featuring Right-Hand Circular Polarization (RHCP), the antenna effectively receives satellite signals while minimizing signal degradation caused by multipath interference. The built-in active amplifier provides 27 dB ±1 dB gain, improving signal quality and enabling more reliable positioning even in challenging conditions.

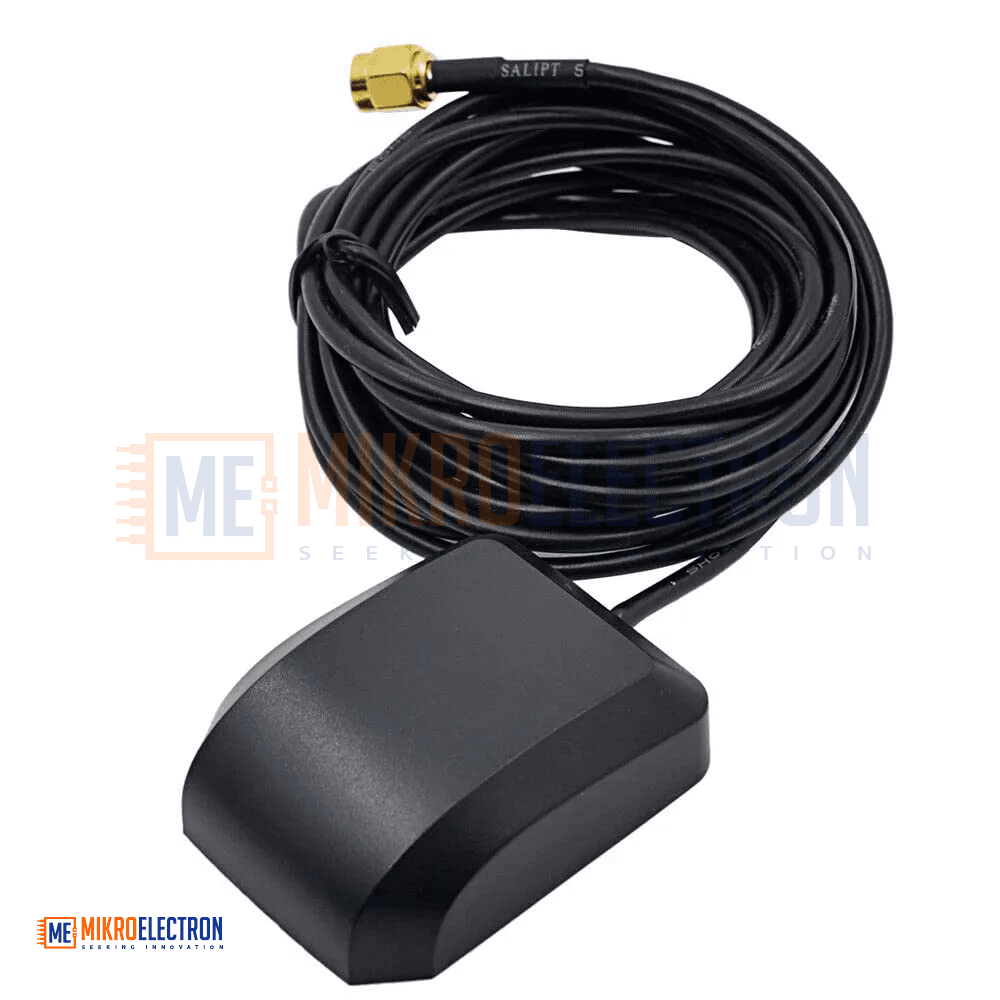

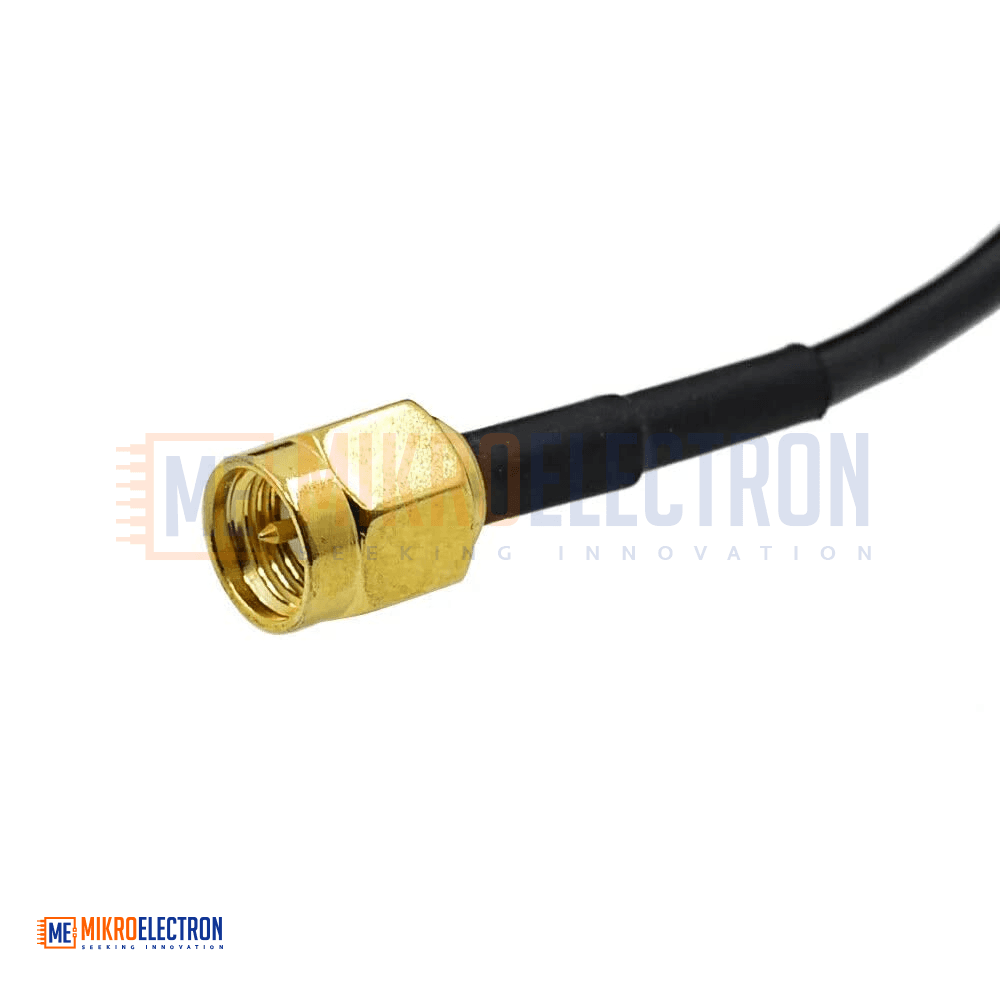

Designed for durability and convenience, the antenna includes a waterproof housing for outdoor installations and an embedded magnetic base that allows quick and secure mounting on metal surfaces. The included 2.5-meter cable with SMA connector offers installation flexibility and compatibility with a wide range of GPS equipment.
This antenna is an excellent solution for applications requiring enhanced GPS reception, stable performance, and long-term reliability.
Specifications
| Specification | Details |
|---|---|
| Product Name | GPS External Active Antenna |
| Central Frequency | 1575.42 MHz ±2 MHz |
| Frequency Band | GPS L1 |
| Polarization | RHCP (Right-Hand Circular Polarization) |
| Gain | 27 dB ±1 dB |
| Input Voltage | 3V – 5V DC |
| Connector Type | SMA Connector |
| Cable Length | 2.5 m |
| Mounting Method | Embedded Magnetic Base |
| Water Resistance | Waterproof Design |
| Application | GPS Signal Reception and Positioning |
Applications
- GPS navigation systems
- Vehicle tracking and fleet management
- GPS receivers and modules
- IoT positioning devices
- Marine navigation equipment
- Agricultural guidance systems
- Asset tracking solutions
- Surveying and mapping equipment
- Industrial monitoring systems
- Outdoor GPS communication projects
