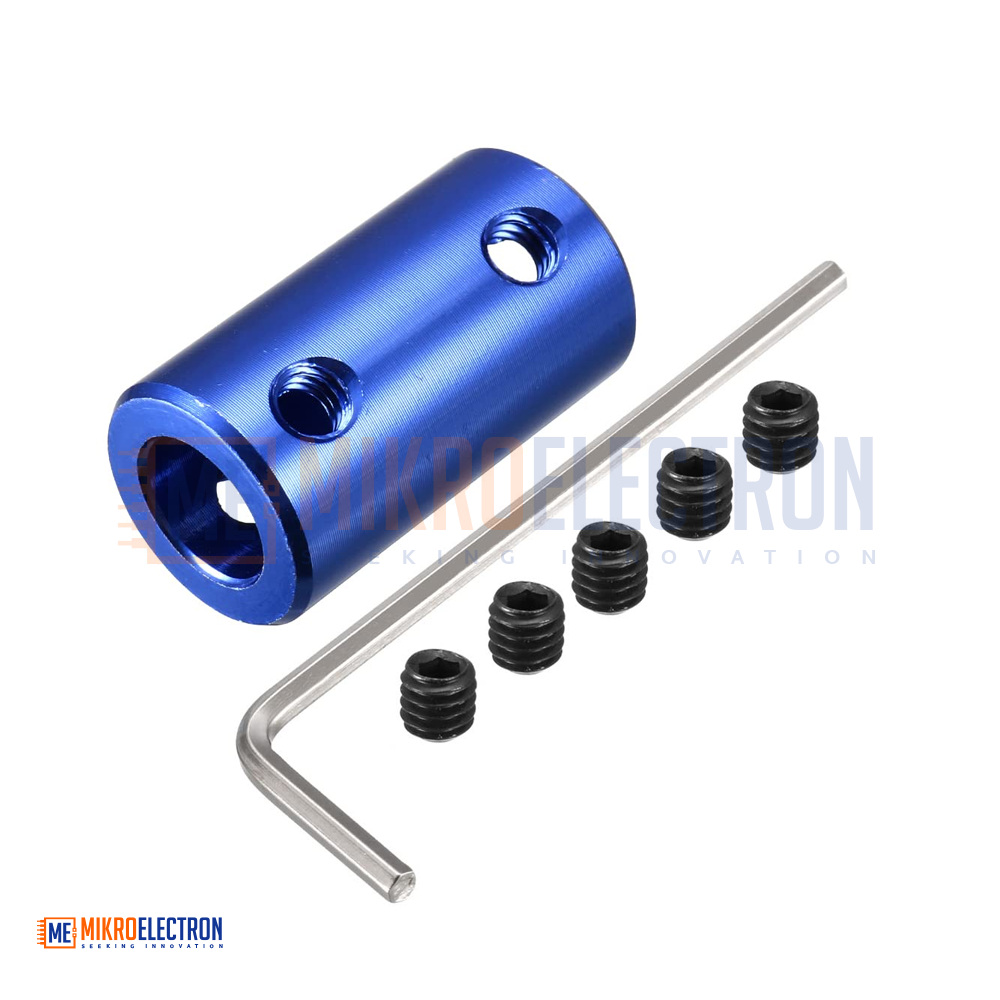

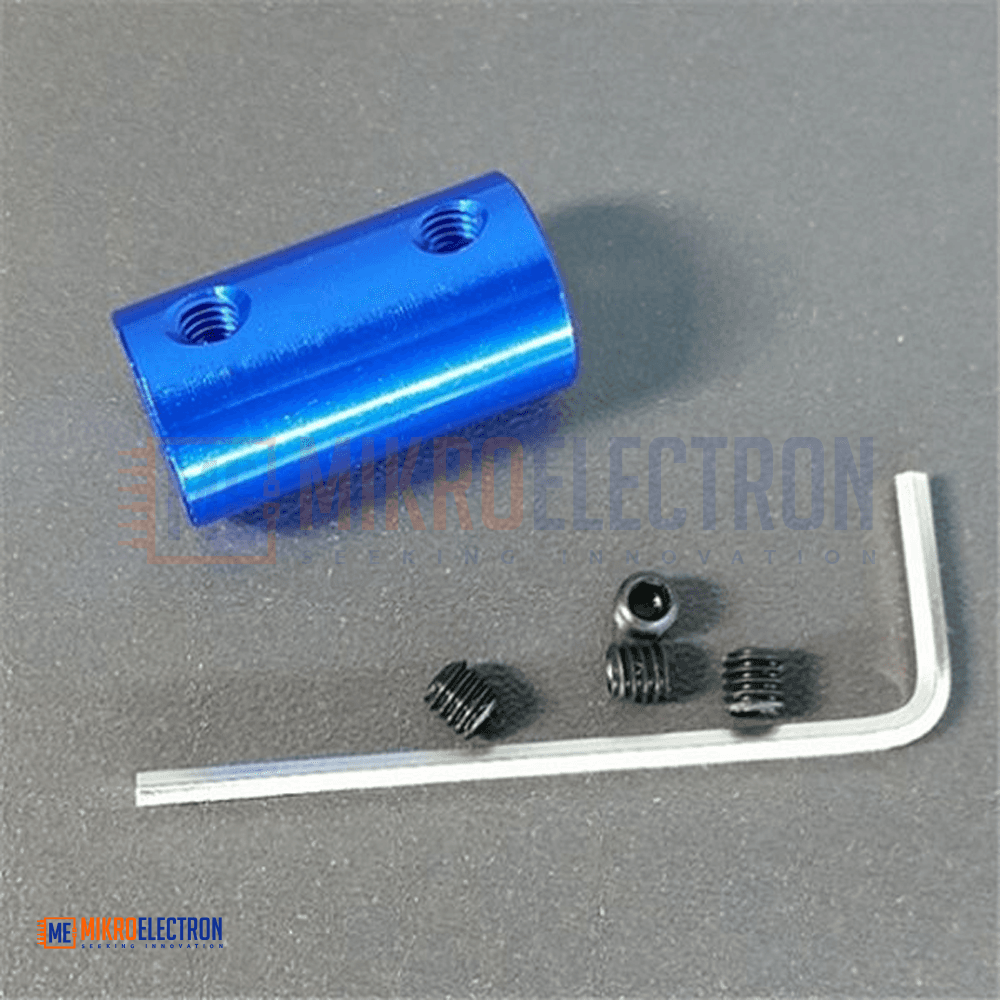

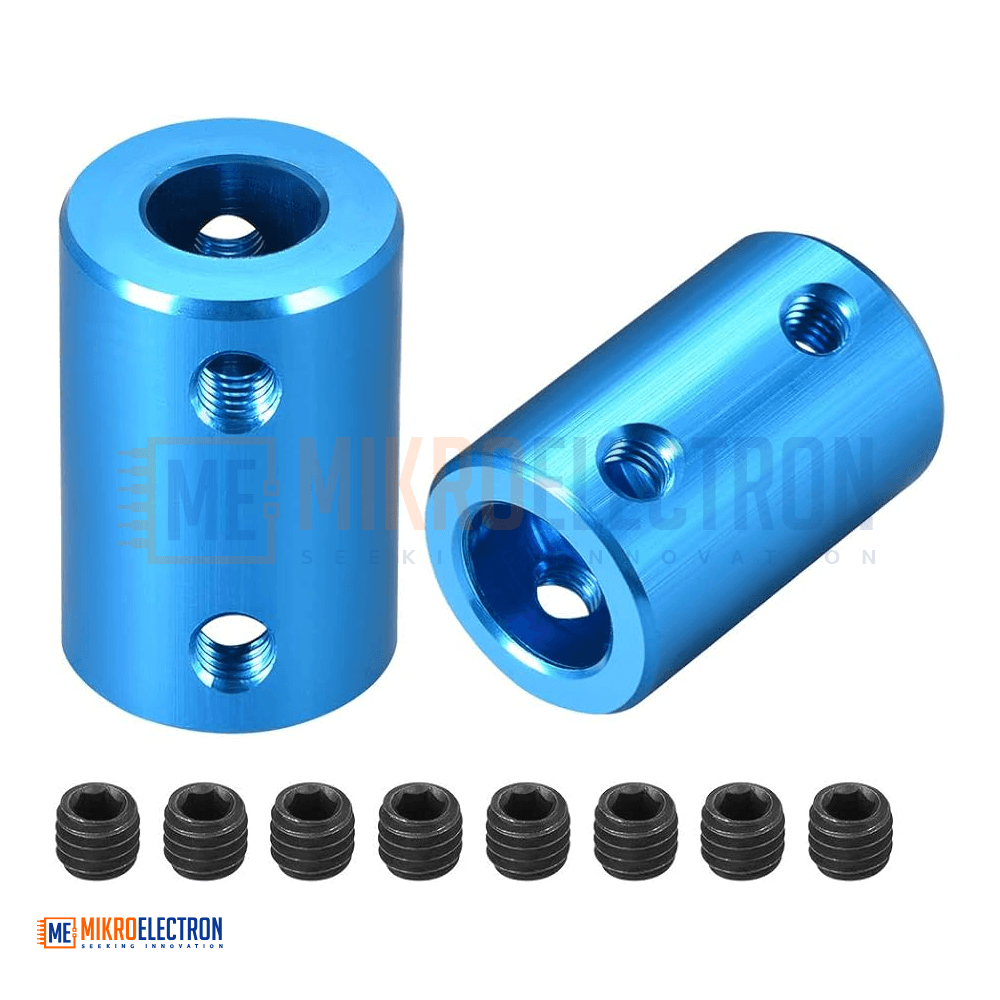

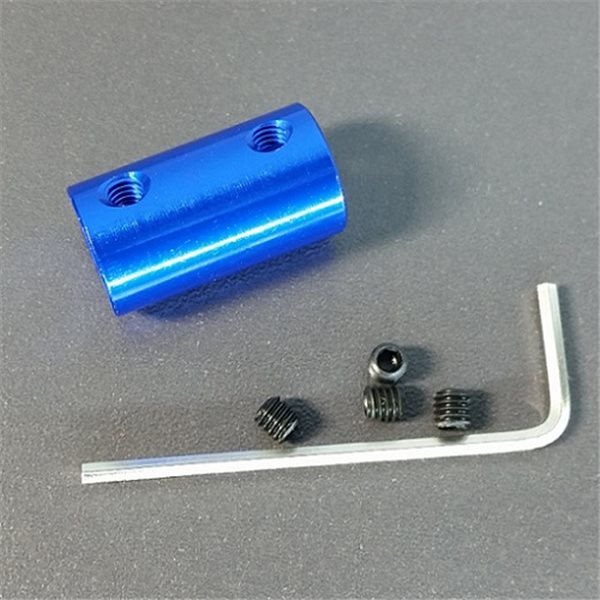

10mm X 8mm Coupler Rigid Coupling OD
The 10mm x 8mm Rigid Coupling is a precision-machined mechanical connector designed to securely join two shafts with diameters of 10mm and 8mm. Manufactured from durable materials such as aluminum alloy or steel, it provides a solid, backlash-free connection for efficient torque transmission. Its rigid construction ensures accurate alignment and consistent rotational performance, making it ideal for CNC machines, 3D printers, stepper motors, robotics, automation systems, and power transmission applications. The compact design and set-screw fastening mechanism allow for quick installation while maintaining reliable operation in demanding industrial and DIY projects.
يُعد القارن الصلب 10 مم × 8 مم وصلة ميكانيكية دقيقة مصممة لربط عمودين بأقطار 10 مم و8 مم بشكل آمن وثابت. يتم تصنيعه عادةً من سبائك الألمنيوم أو الفولاذ لتوفير متانة عالية ونقل فعال للعزم دون فقدان أو ارتخاء. يضمن تصميمه الصلب محاذاة دقيقة وأداءً مستقراً أثناء الدوران، مما يجعله مناسباً لماكينات CNC والطابعات ثلاثية الأبعاد والمحركات الخطوية والروبوتات وأنظمة الأتمتة المختلفة. كما يساهم تصميمه المدمج وآلية التثبيت بالبراغي في سهولة التركيب والحفاظ على موثوقية التشغيل في التطبيقات الصناعية والمشاريع الإلكترونية.
The 10mm x 8mm Rigid Shaft Coupling is engineered to provide a secure and precise connection between two shafts of different diameters. Featuring an inner bore size of 10mm on one side and 8mm on the other, this coupling enables efficient torque transfer without slippage or backlash.
Unlike flexible couplings, rigid couplings do not compensate for shaft misalignment. Therefore, they are best suited for applications where both shafts are accurately aligned. The one-piece construction ensures maximum torsional stiffness, making it an excellent choice for motion control systems that require high positional accuracy.
Typically manufactured from high-strength aluminum alloy or steel, the coupling offers excellent durability, corrosion resistance, and lightweight performance. Multiple set screws firmly lock the shafts in place, ensuring reliable operation even under continuous use.
Its compact design makes it suitable for space-constrained installations, including CNC machinery, stepper motor assemblies, linear motion systems, robotics, and industrial automation equipment.
Specifications
| Specification | Details |
|---|---|
| Product Type | Rigid Shaft Coupling |

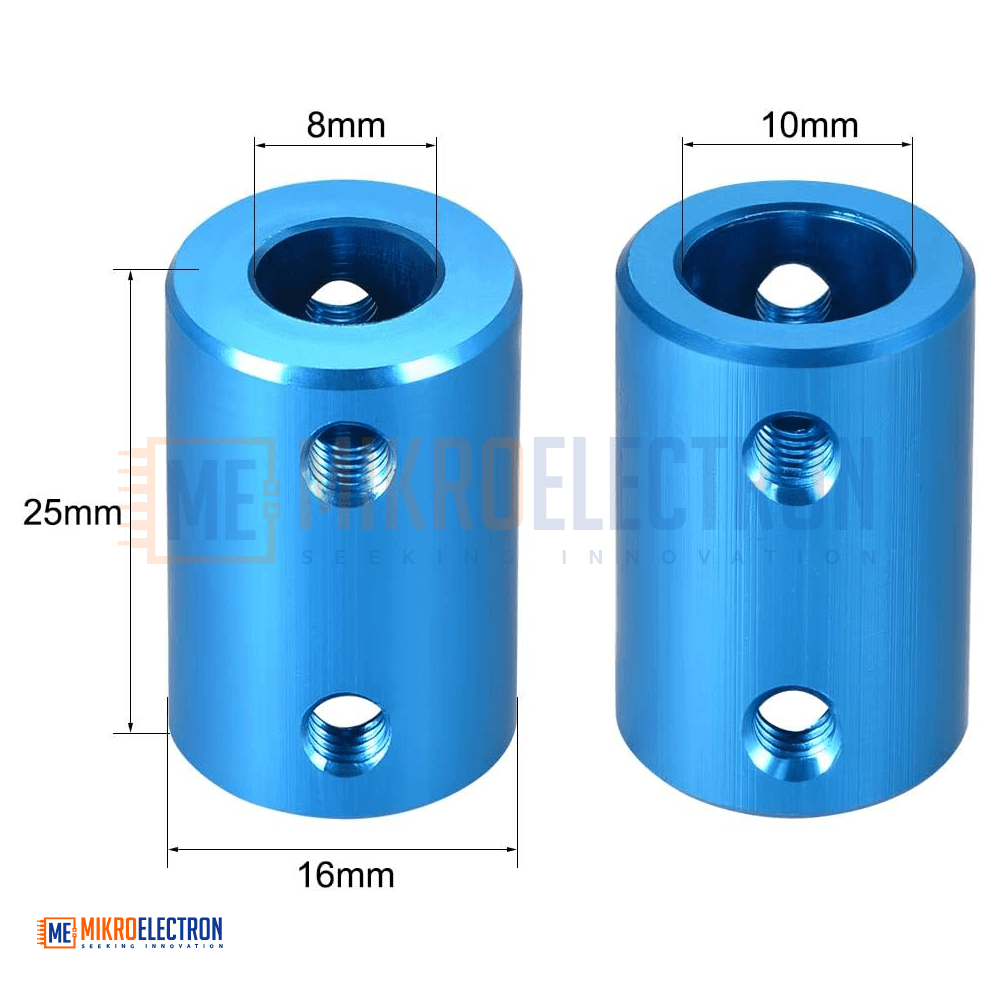

| Inner Bore Diameter | 10mm × 8mm |
| Outer Diameter (OD) | Varies by model |
| Material | Aluminum Alloy / Steel |
| Connection Type | Set Screw Locking |
| Structure | One-Piece Rigid Design |
| Torque Transmission | Backlash-Free |
| Misalignment Compensation | Not Supported |
| Surface Finish | Anodized or Machined Finish |
| Corrosion Resistance | Yes |
| Installation | Easy Set Screw Mounting |
Applications
| Application | Description |
|---|---|
| CNC Machines | Connects stepper or servo motors to lead screws and drive shafts. |
| 3D Printers | Ensures precise motion transfer in linear movement systems. |
| Robotics | Provides accurate shaft coupling for robotic mechanisms. |
| Industrial Automation | Used in conveyors, actuators, and motion control equipment. |
| Stepper Motor Systems | Delivers direct torque transmission without backlash. |
| Linear Motion Systems | Couples motors with ball screws or threaded rods. |
| Packaging Equipment | Maintains synchronized shaft movement in automated machinery. |
| DIY Engineering Projects | Ideal for custom mechanical and prototyping applications. |
