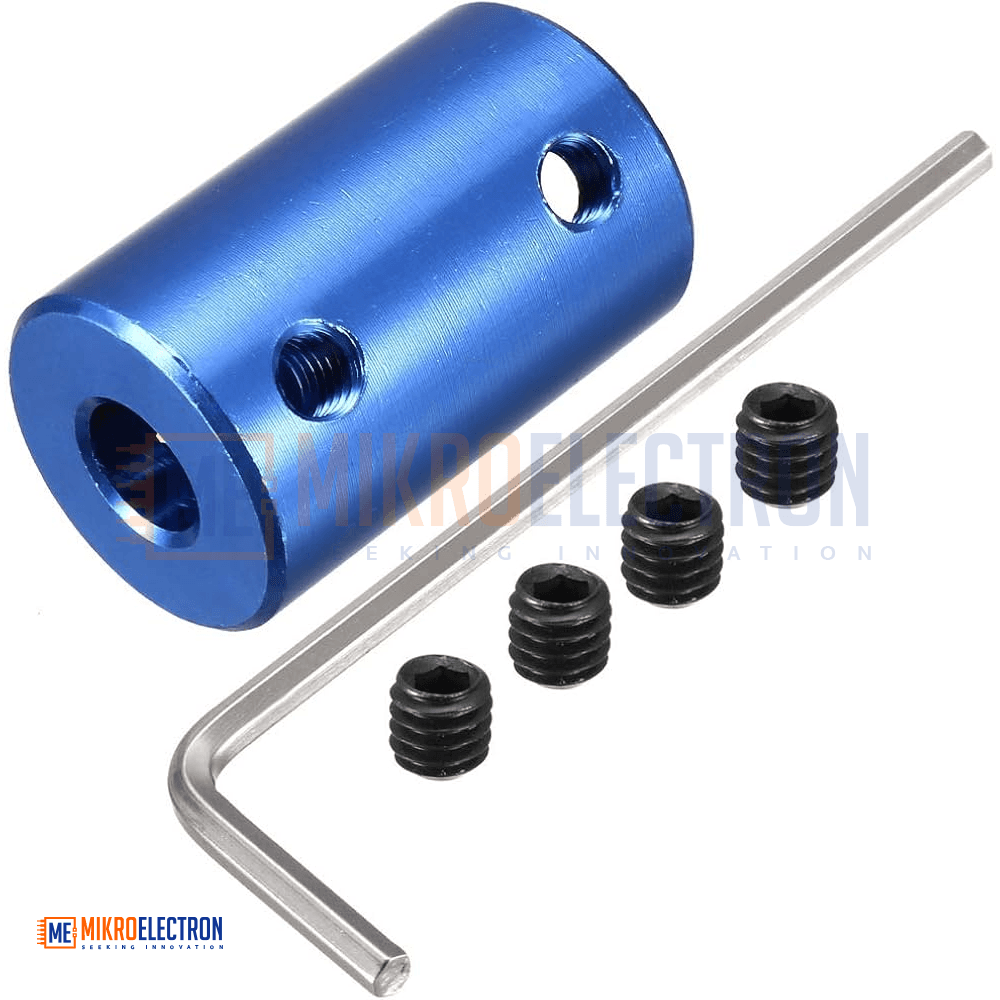

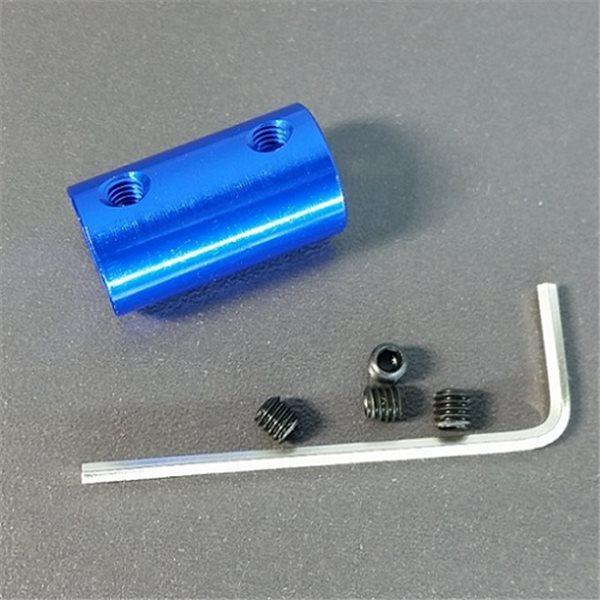

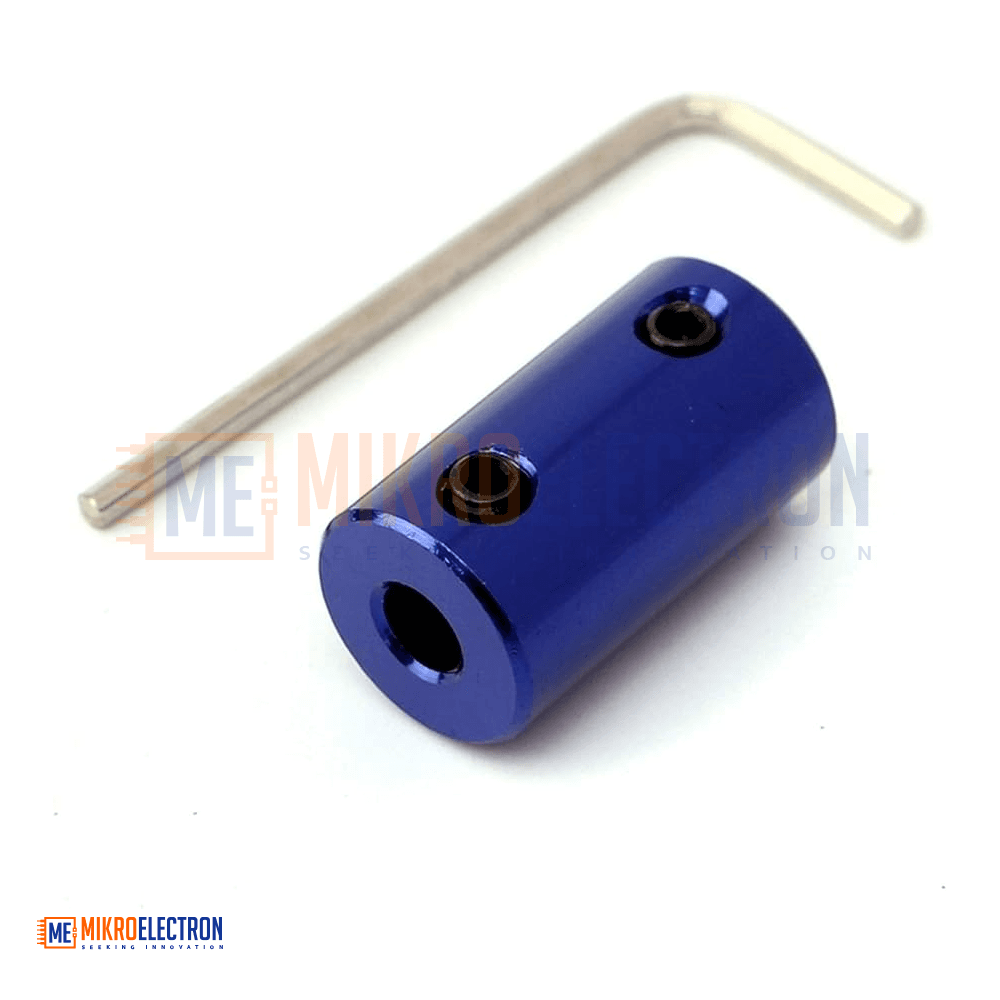

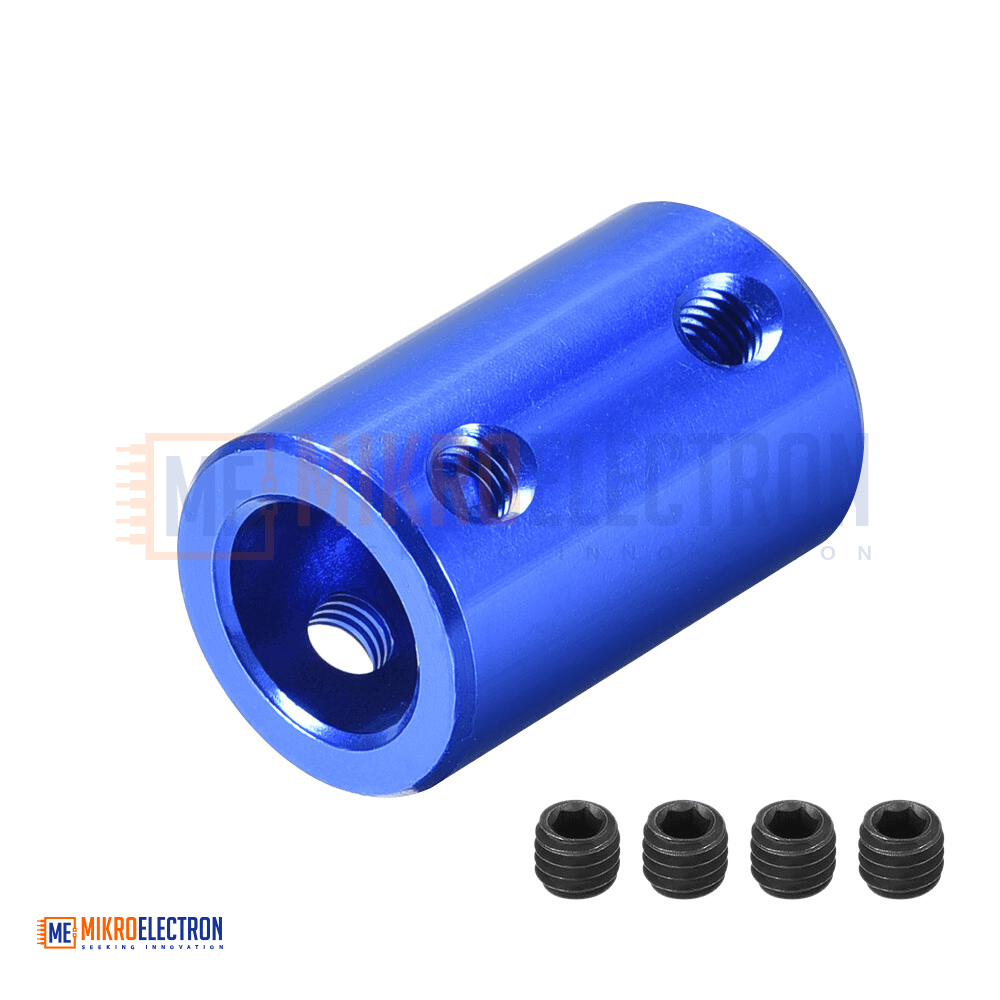

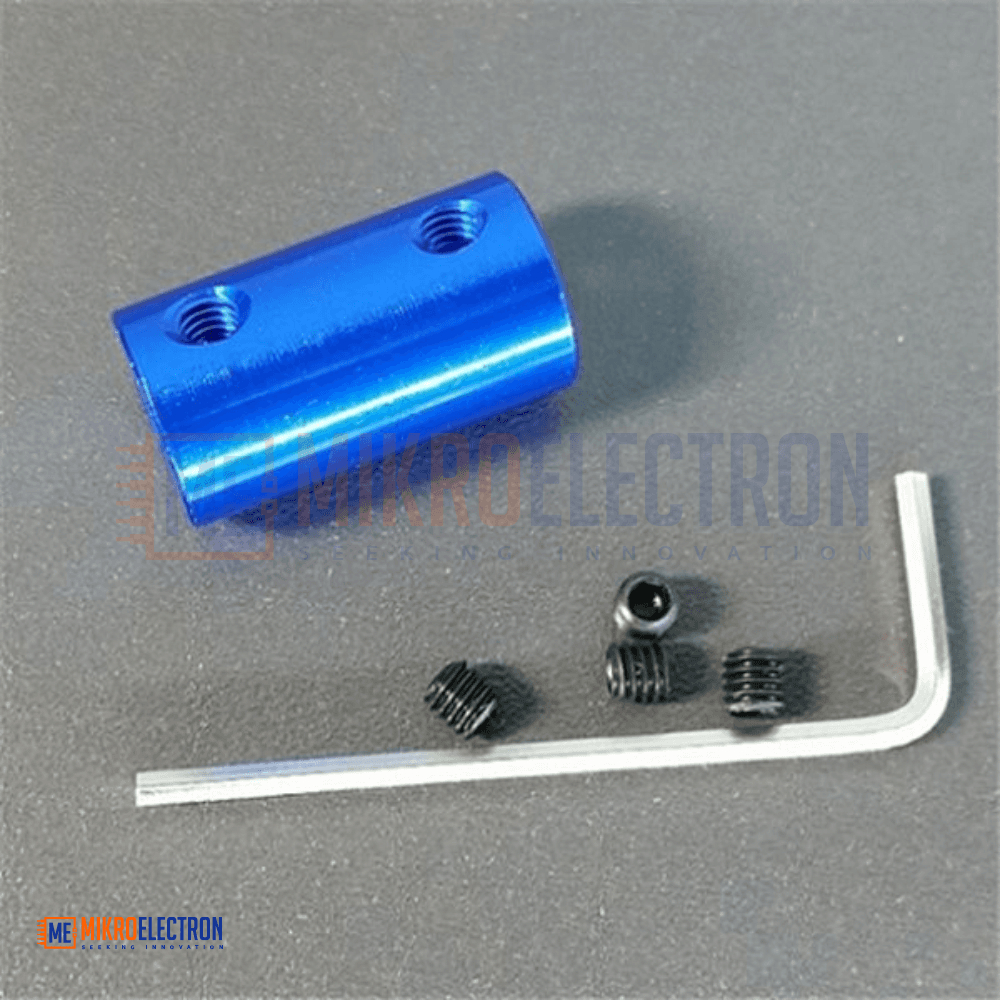

7mm X 6mm COUPLER RIGID COUPLING OD
The 7mm x 6mm Rigid Coupler is a precision shaft coupling designed to connect two shafts with diameters of 7mm and 6mm while transmitting torque accurately and efficiently. This rigid coupling provides a solid, backlash-free connection, making it suitable for applications requiring precise shaft alignment and stable rotational performance. Manufactured from high-quality materials such as aluminum alloy or stainless steel, it offers excellent durability, corrosion resistance, and long service life. The coupling is widely used in CNC machinery, robotics, stepper motor systems, automation equipment, and motion control applications, ensuring reliable power transmission and dependable mechanical performance.
إن القارنة الصلبة 7 مم × 6 مم هي وصلة ميكانيكية دقيقة مصممة لربط عمودين بأقطار 7 مم و6 مم مع نقل العزم بكفاءة ودقة عالية. توفر هذه القارنة اتصالاً صلباً وخالياً من الخلوص، مما يجعلها مثالية للتطبيقات التي تتطلب محاذاة دقيقة للأعمدة وأداء دوران مستقراً. يتم تصنيعها من سبائك الألمنيوم أو الفولاذ المقاوم للصدأ لتوفير المتانة العالية ومقاومة التآكل وعمر تشغيلي طويل. تستخدم على نطاق واسع في آلات CNC والروبوتات وأنظمة المحركات الخطوية ومعدات الأتمتة وتطبيقات التحكم بالحركة لضمان نقل قدرة موثوق وأداء ميكانيكي ثابت.
The 7mm x 6mm Rigid Coupler (Rigid Shaft Coupling) is designed to provide a secure and precise connection between two shafts of different diameters, specifically 7mm and 6mm. The coupling creates a rigid mechanical link that transfers rotational motion and torque without backlash or torsional flexibility.
Because it does not compensate for shaft misalignment, this coupling is best suited for systems where the shafts are accurately aligned. Its robust construction ensures high torque transmission efficiency and stable performance in demanding applications.
Manufactured from premium materials such as aluminum alloy or stainless steel, the coupling offers excellent resistance to wear, corrosion, and mechanical stress. The shafts are secured by set screws or clamping mechanisms, preventing slipping and ensuring reliable long-term operation.
Specifications
| Parameter | Specification |
|---|---|
| Product Type | Rigid Shaft Coupling |
| Shaft Bore Diameter | 7mm x 6mm |
| Coupling Type | Rigid |
| Outer Diameter (OD) | Varies by manufacturer (typically 16–20mm) |
| Material | Aluminum Alloy / Stainless Steel |
| Mounting Method | Set Screw or Clamp Type |
| Backlash | Zero Backlash |
| Corrosion Resistance | Yes |
| Operating Function | Torque Transmission |
| Application Environment | Precision Motion Systems |
Applications
- CNC machines and precision machinery
- 3D printers and positioning systems

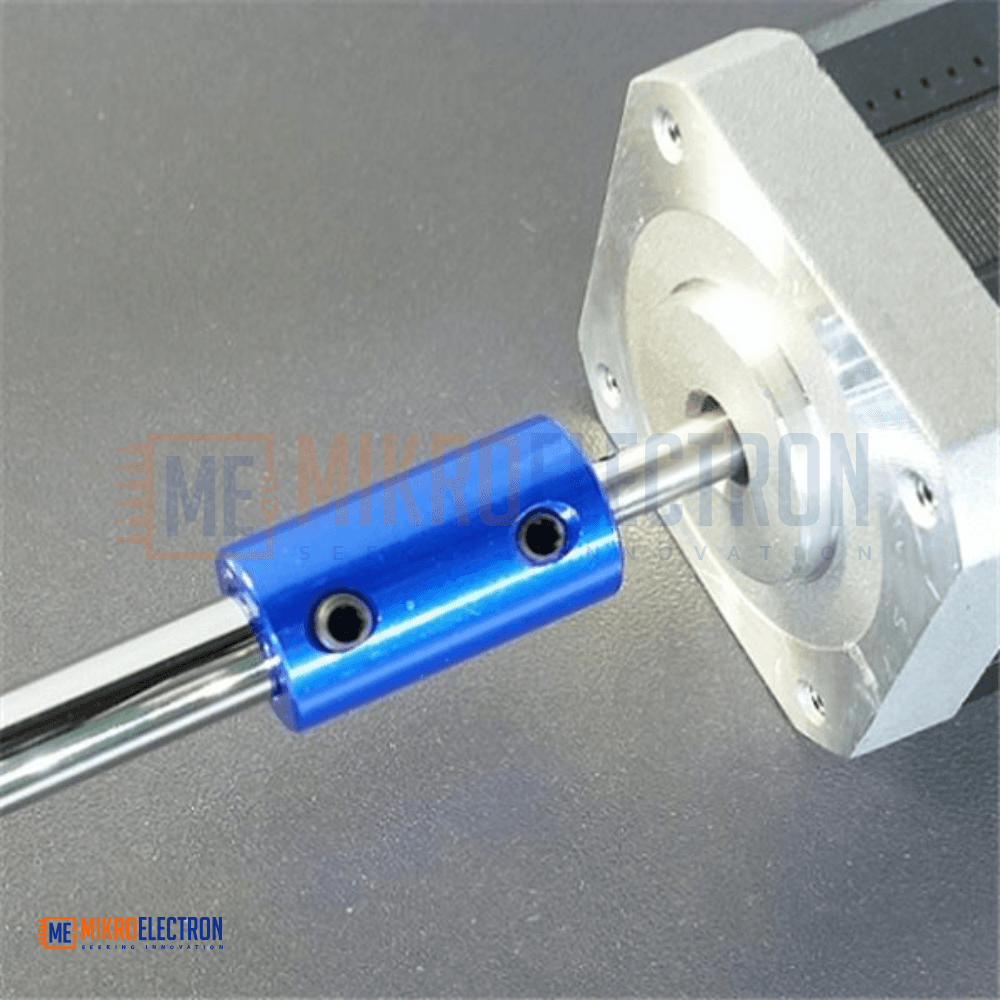

- Stepper motor and servo motor assemblies
- Robotics and automation equipment
- Linear motion and lead screw mechanisms
- Packaging and conveyor systems
- Industrial control equipment
- Testing and measurement instruments
