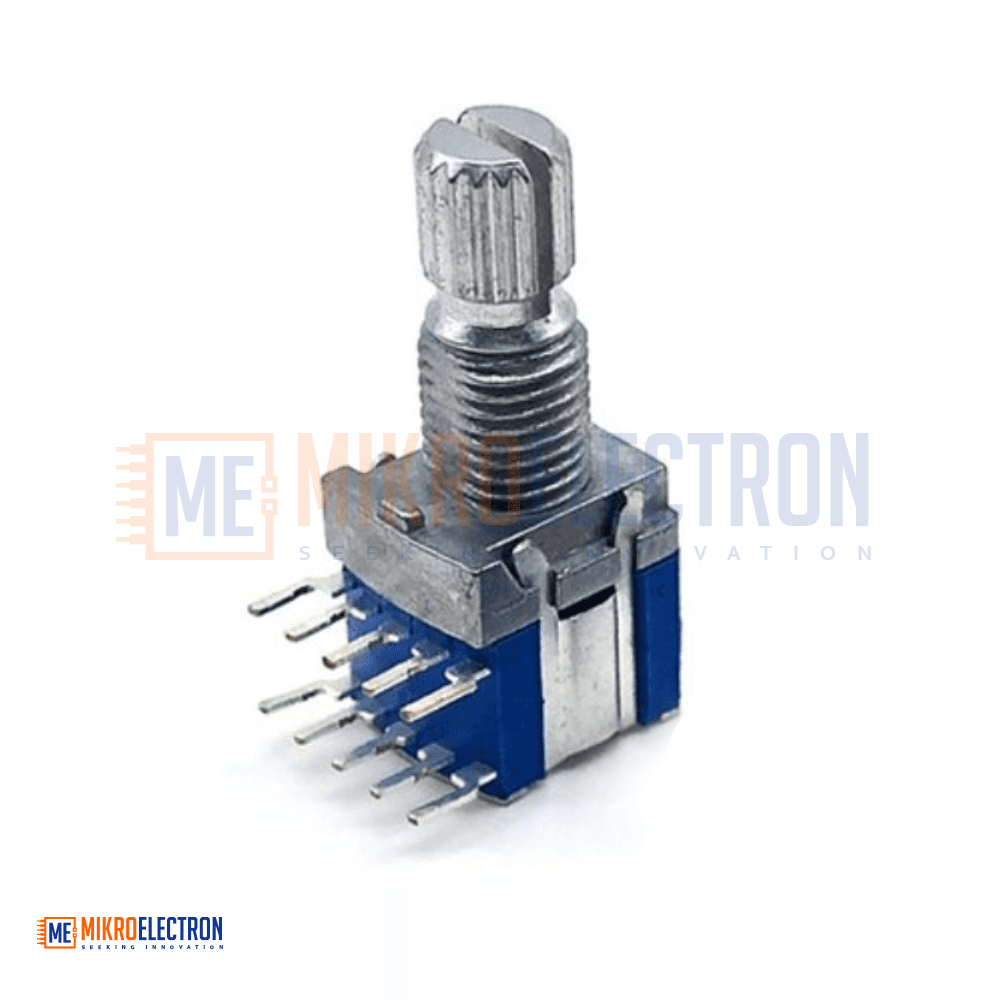

band switch rotary switch gear change switch 2 pole 4 position 2P4T RS1010

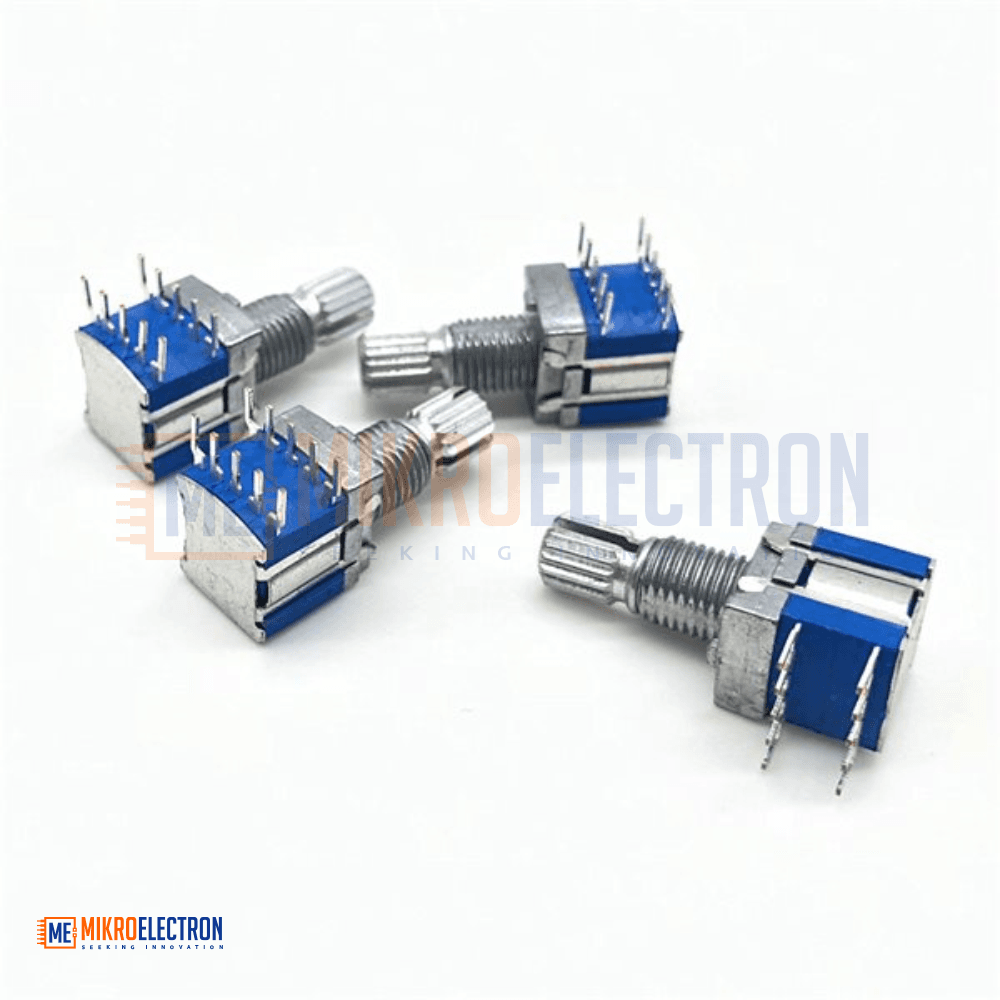

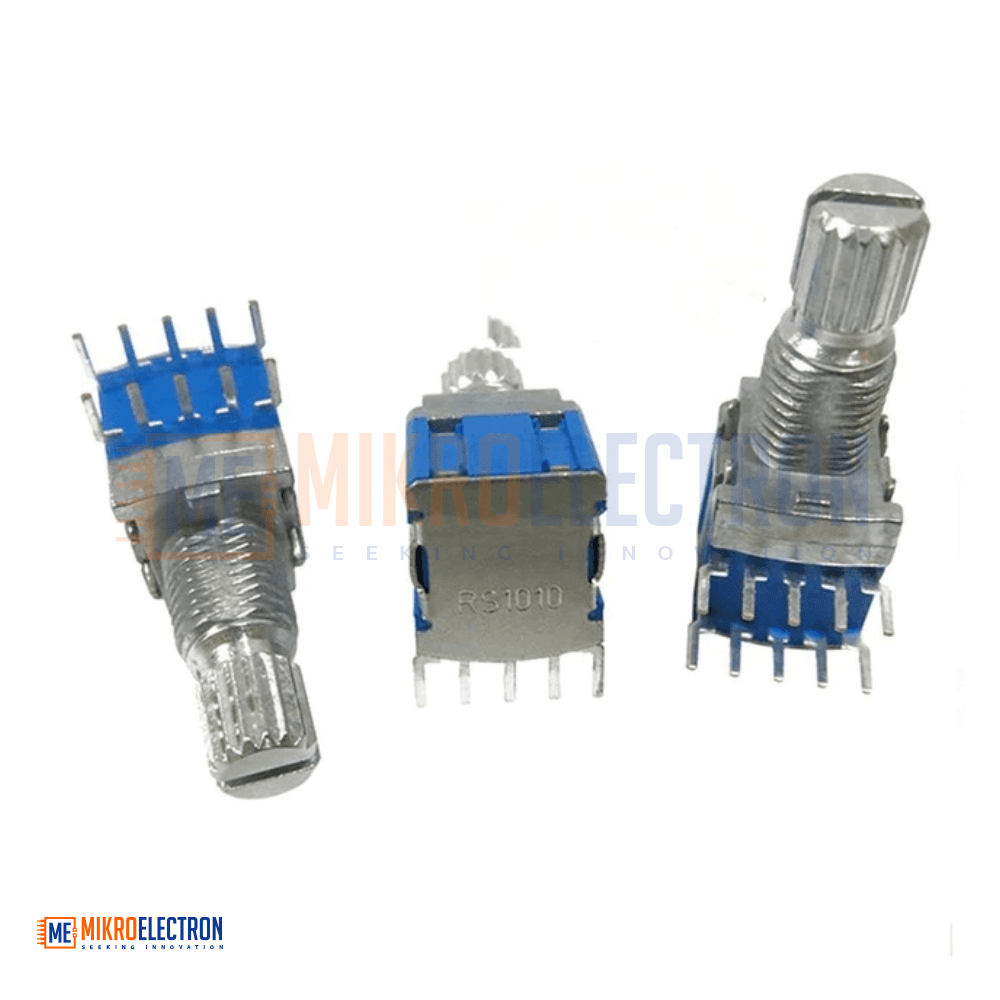

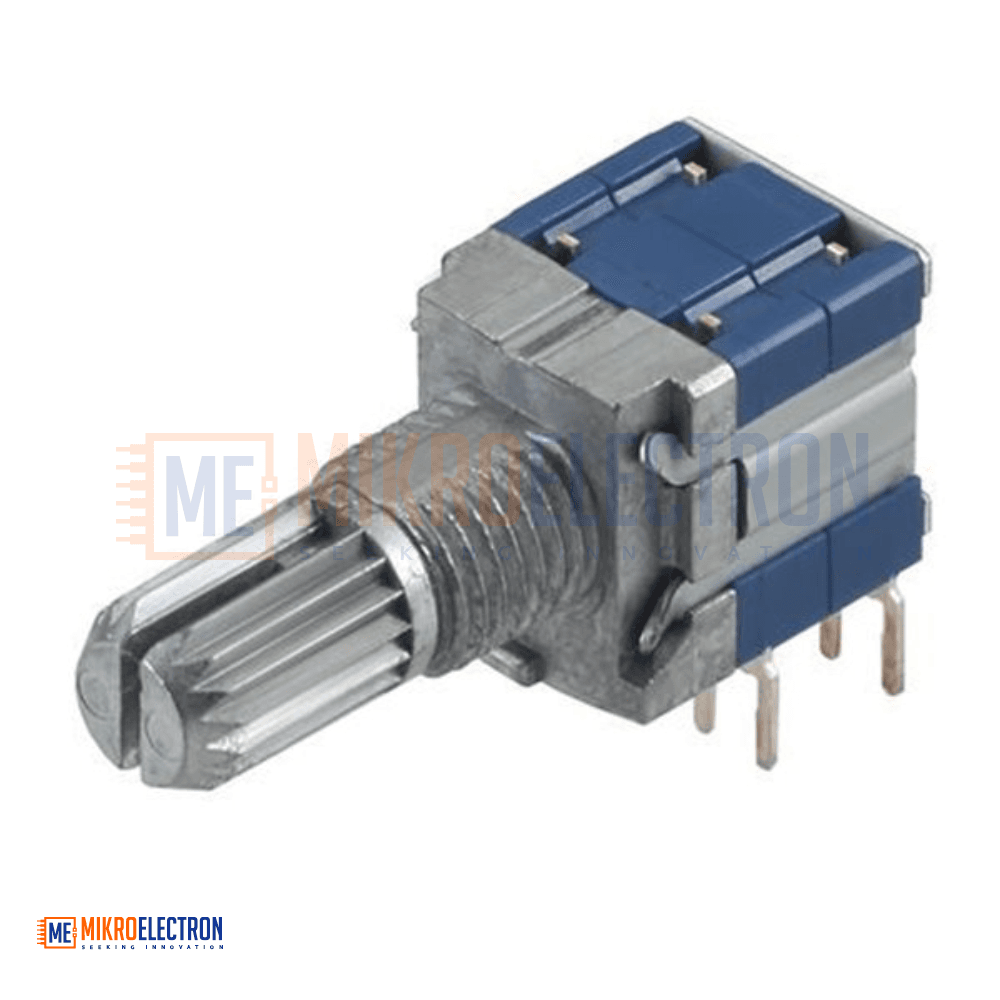

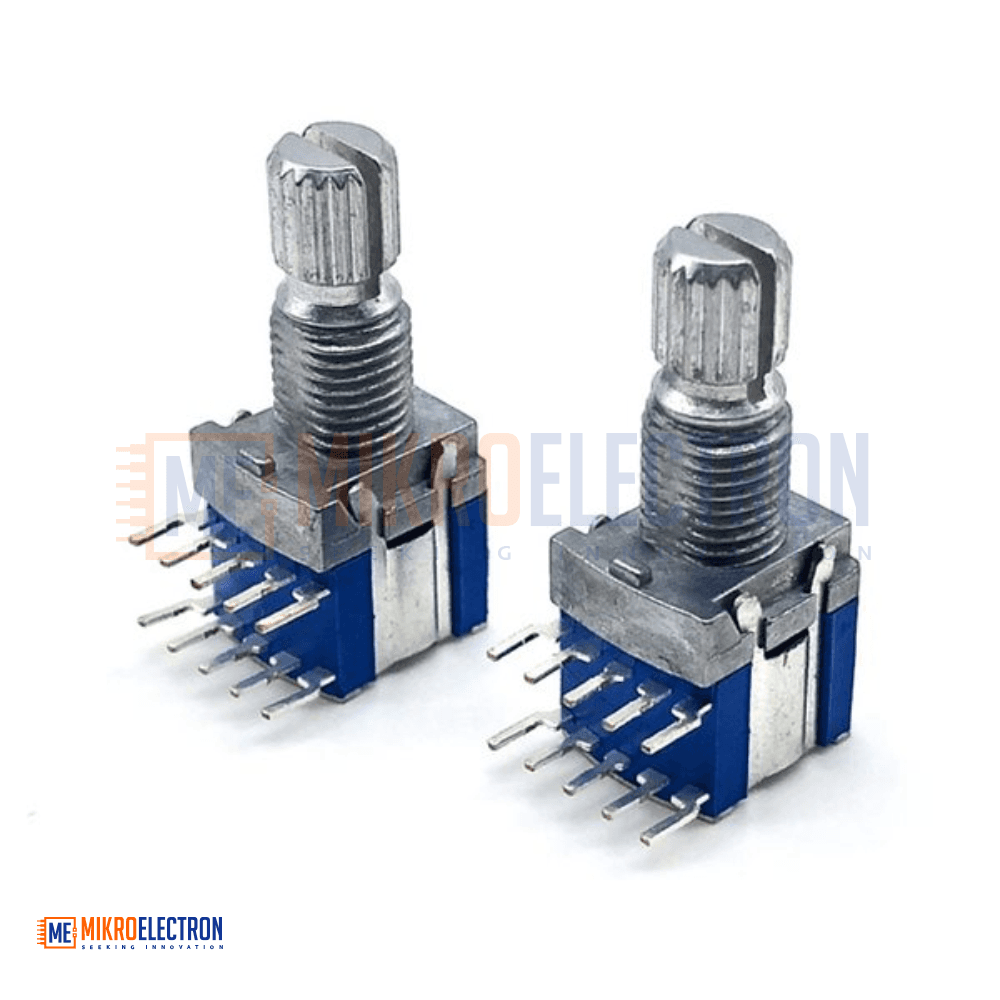

RS1010 2P4T Rotary Band Switch is a compact and reliable 2-pole, 4-position rotary selector switch designed for signal routing, mode selection, and circuit switching applications. Built with a durable metal construction, it offers smooth rotational operation and stable electrical performance. With a mechanical life expectancy of more than 10,000 cycles, the switch is suitable for professional audio equipment, mixers, headphones, instrumentation, sports devices, and general electronic products. Its compact design allows easy panel mounting while providing precise position selection. The RS1010 rotary switch is an excellent choice for projects requiring dependable multi-position manual control.
مفتاح دوار RS1010 نوع 2P4T هو مفتاح اختيار دوار مدمج وموثوق يحتوي على قطبين وأربع وضعيات تشغيل، ويستخدم لتبديل الإشارات واختيار الأنماط والتحكم في الدوائر الإلكترونية. يتميز بهيكل معدني متين يوفر أداءً مستقراً وحركة دوران سلسة. يتمتع بعمر تشغيلي يزيد عن 10,000 دورة تشغيل، مما يجعله مناسباً للمعدات الصوتية الاحترافية، وأجهزة المزج الصوتي، ومعدات السماعات، والأجهزة الرياضية، والعديد من التطبيقات الإلكترونية العامة. يوفر تصميمه المدمج سهولة التركيب والتحكم الدقيق بين أوضاع التشغيل المختلفة، مما يجعله خياراً ممتازاً للمشاريع الإلكترونية والصناعية.
The RS1010 Rotary Band Switch (2P4T) is a high-quality mechanical rotary selector switch designed for applications requiring reliable multi-position switching. Featuring a 2-pole, 4-position (2P4T) configuration, the switch allows users to select between four different circuit positions with precise rotary action.
Manufactured with durable metal components, the RS1010 provides long-term reliability and excellent electrical performance. It offers a mechanical life of over 10,000 switching operations, making it suitable for frequent use in professional and consumer electronic equipment.
The switch is commonly used in audio systems, signal routing circuits, mixers, headphone equipment, instrumentation, and various electronic control applications where dependable position selection is required.

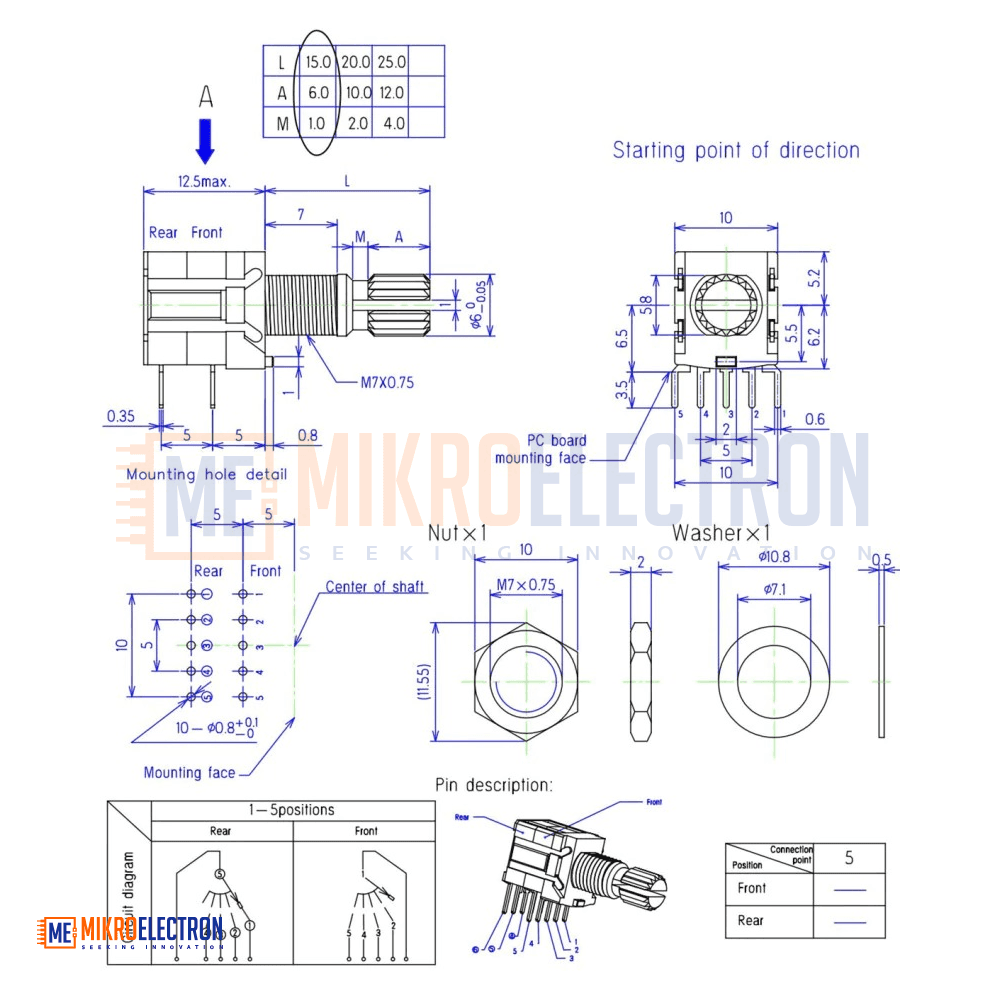

Specifications
| Specification | Details |
|---|---|
| Model | RS1010 |
| Switch Type | Rotary Band Switch |
| Configuration | 2 Pole 4 Position (2P4T) |
| Operating Positions | 4 Positions |
| Rated Voltage | DC 16V |
| Rated Current | 0.1A |
| Mechanical Life | More than 10,000 Cycles |
| Contact Resistance | 50mΩ Max |
| Insulation Resistance | 100MΩ Min (DC 500V) |
| Withstand Voltage | AC 500V for 1 Minute |
| Operating Torque | 400 ± 200 gf·cm |
| Material | Metal |
| Color | Silver & Blue |
| Mounting Type | Panel Mount |
| Switch Action | Rotary Selector |
Applications
- Audio equipment
- Professional mixers and amplifiers
- Headphone systems
- Signal routing circuits
- Band selection circuits
- Electronic control panels
- Measurement and test equipment
- Sports and fitness equipment
- DIY electronics projects
- General electrical equipment
- Mode and function selectors
- Communication devices
