CD4066BE logic chip bi-directional switch Original
The CD4066BE is a quad bilateral switch logic IC designed for analog and digital signal switching. Each channel can conduct signals in both directions with low resistance and minimal distortion. Widely used in audio, video, and control circuits, it ensures reliable performance, making it ideal for original and professional applications.
يُعد CD4066BE شريحة منطقية تحتوي على أربعة مفاتيح ثنائية الاتجاه مصممة للتحكم في الإشارات التناظرية والرقمية. يتيح كل مسار تمرير الإشارات في كلا الاتجاهين بمقاومة منخفضة وتشويه قليل. يُستخدم على نطاق واسع في دوائر الصوت، الفيديو، والتحكم، ويوفر أداءً موثوقاً يجعله مثالياً للتطبيقات الأصلية والاحترافية.

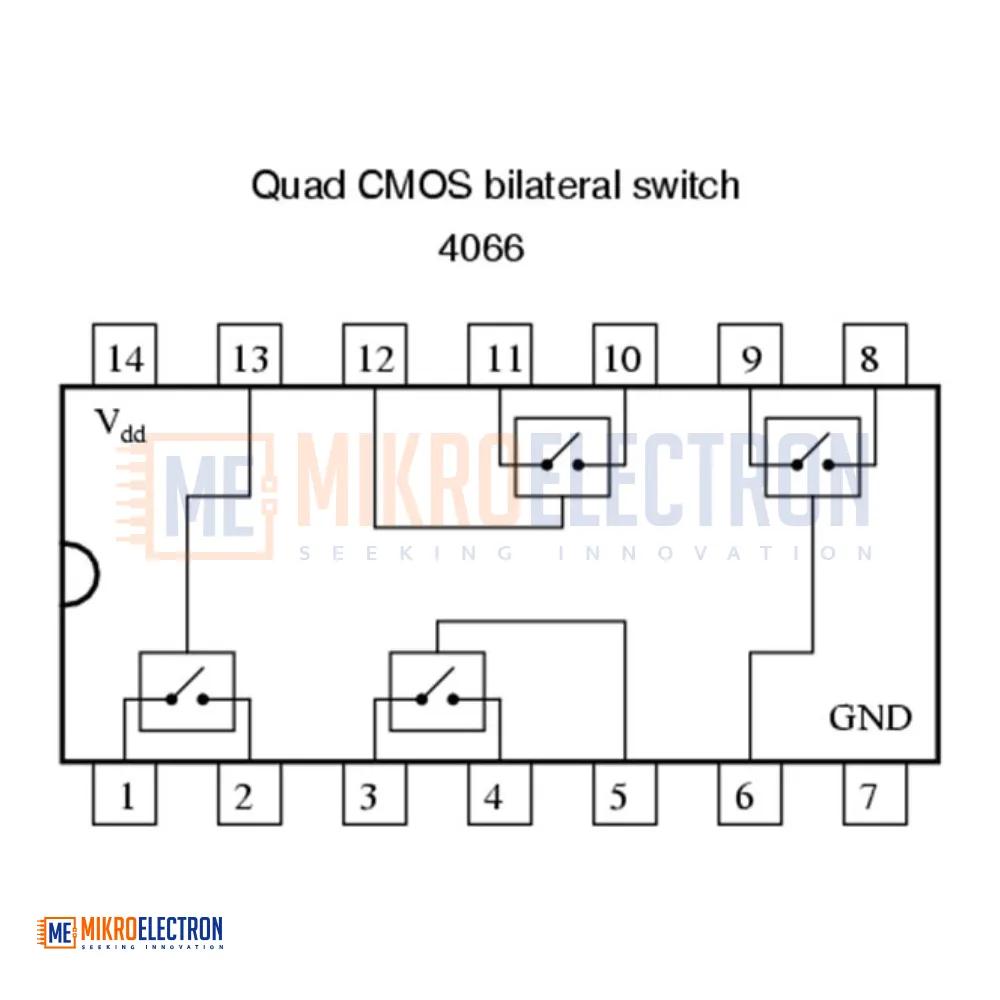

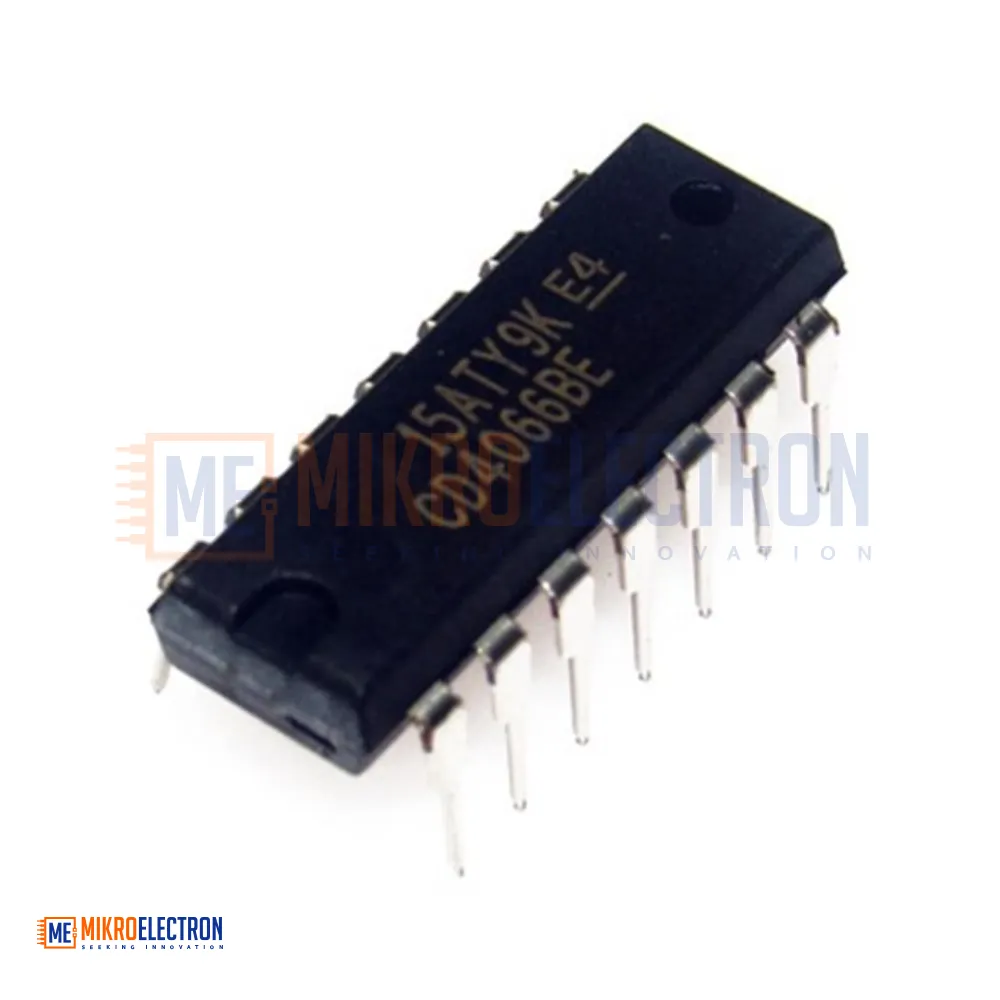

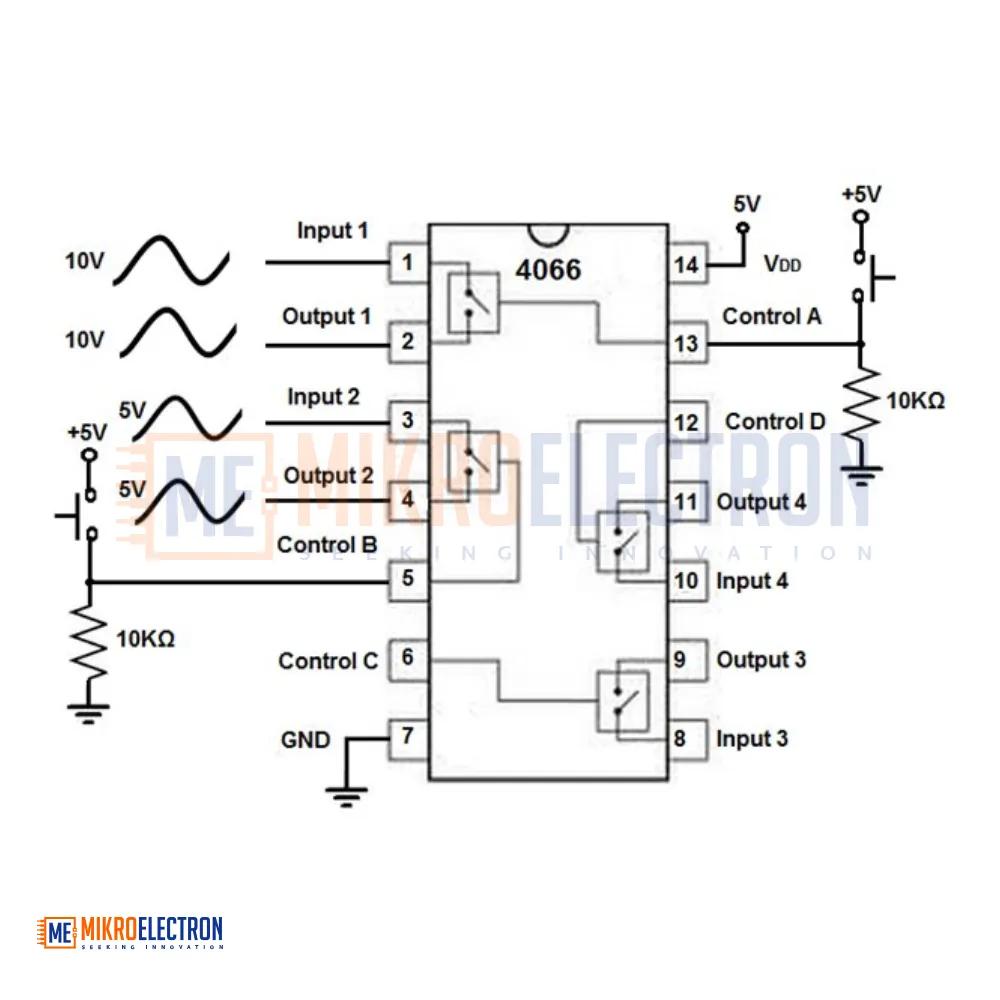

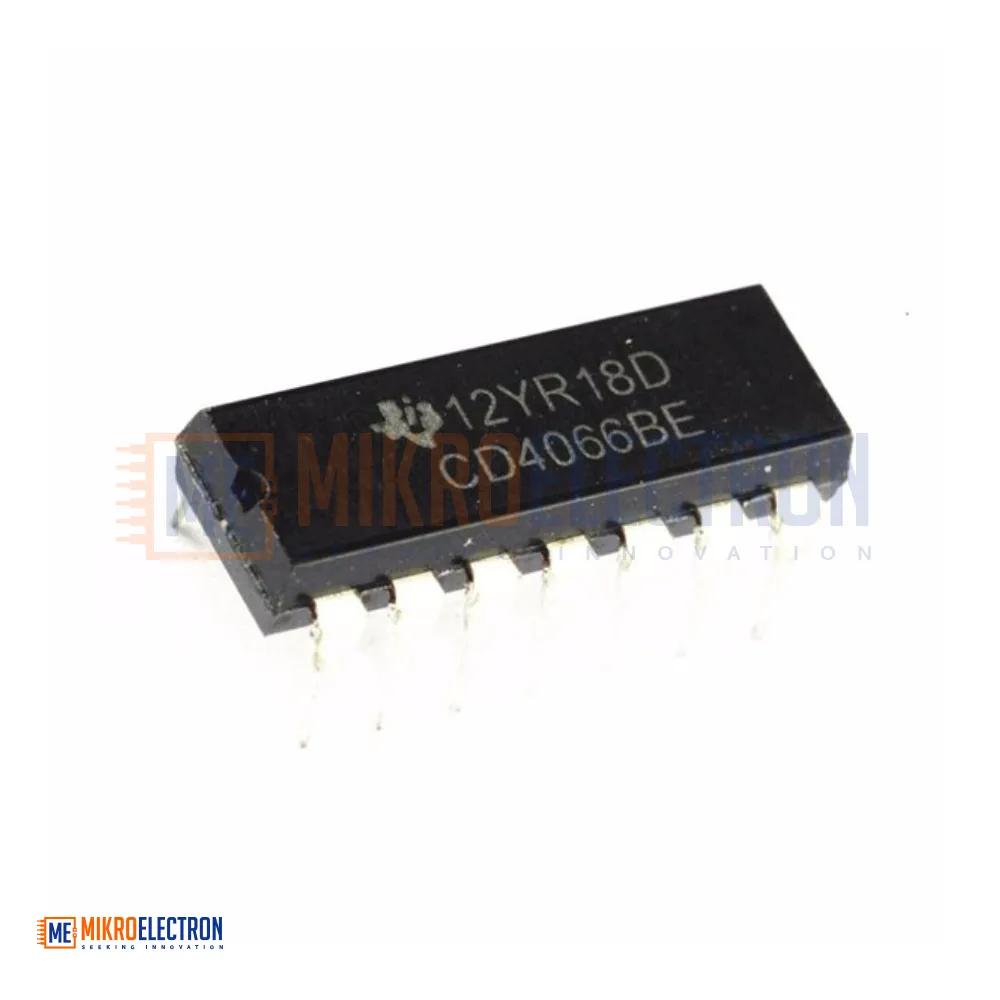

CD4066 CD4066BE DIP-14 logic chip bi-directional switch Original
The CD4066BE is a CMOS quad bilateral switch in 14 pin DIP package. This switch is intended for transmission or multiplexing of analogue or digital signals. It is pin to pin compatible with CD4016B but exhibits much lower on state resistance. The on state resistance is relatively constant over full input signal range. The CD4066B consists of four bilateral switches with independent controls. Both P and N device in given switch are biased on or off simultaneously by control signal. The advantages over single channel switches include peak input signal voltage swings equal to full supply voltage and more constant on state impedance over input signal range.
- 15V digital or ±7.5V peak to peak switching
- 125ohm typical on state resistance for 15V operation
- Switch on state resistance matched to within 5 over 15V signal input range
- On state resistance flat over full peak to peak signal range
- Meets all requirements of JEDEC tentative standard JESD 13B
- 5V, 10V and 15V parametric ratings
- Matched control input to signal output capacitance reduces output signal transients
- Supply voltage range from 3V to 18V
- Operating temperature range from -55°C to 125°C
Applications
Signal Processing, Communications & Networking
