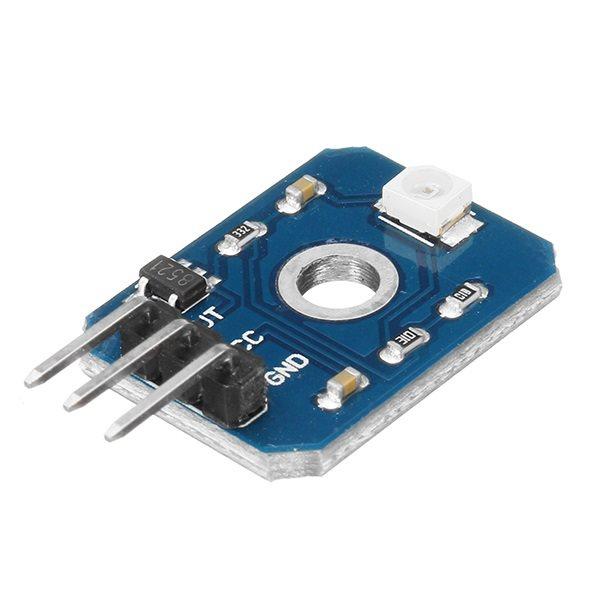

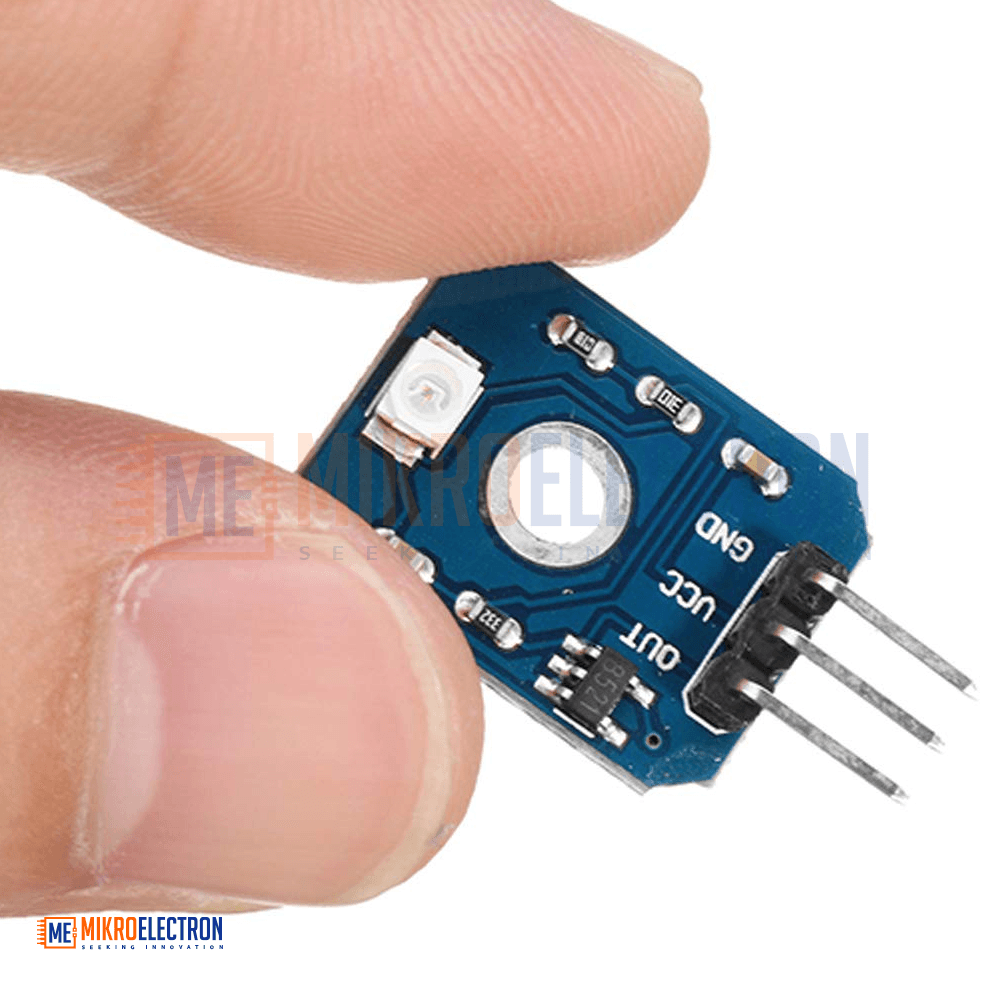

UV Detection Sensor Module Ultraviolet Ray Module Sensor
The UV Detection Sensor Module is a compact ultraviolet light sensor designed for measuring UV radiation levels in environmental monitoring and embedded applications. Operating at 3.3V to 5V DC, it provides an analog output voltage proportional to the detected UV intensity, enabling easy integration with microcontrollers such as Arduino, ESP32, ESP8266, and Raspberry Pi. With a detection range covering 200–375nm wavelengths and a measurement accuracy of ±1 UV Index, the module is suitable for weather stations, wearable devices, smart agriculture, and UV exposure monitoring systems. Its compact size allows seamless integration into space-constrained projects.
وحدة استشعار الأشعة فوق البنفسجية (UV Detection Sensor Module) هي مستشعر مدمج مصمم لقياس مستويات الأشعة فوق البنفسجية في تطبيقات المراقبة البيئية والأنظمة المدمجة. تعمل بجهد 3.3 إلى 5 فولت تيار مستمر وتوفر خرجًا تناظريًا يتناسب مع شدة الأشعة فوق البنفسجية المكتشفة، مما يسهل دمجها مع متحكمات مثل Arduino وESP32 وESP8266 وRaspberry Pi. يغطي المستشعر نطاق أطوال موجية من 200 إلى 375 نانومتر مع دقة قياس تبلغ ±1 UV Index، مما يجعله مناسبًا لمحطات الطقس، والأجهزة القابلة للارتداء، والزراعة الذكية، وأنظمة مراقبة التعرض للأشعة فوق البنفسجية.
The UV Detection Sensor Module is an analog ultraviolet radiation sensor designed to detect and measure UV light intensity within the 200nm to 375nm wavelength range. The module converts ultraviolet radiation into a corresponding analog voltage output, allowing microcontrollers to estimate UV exposure levels and calculate the UV Index.
Operating from a 3.3V to 5V DC power supply, the module is compatible with a wide range of development platforms, including Arduino, ESP8266, ESP32, STM32, and Raspberry Pi.
With an output voltage range of 0V to 1V, the sensor can be connected directly to an analog input pin for real-time monitoring and data logging. Its compact dimensions make it ideal for portable and embedded applications where space is limited.
The module is designed for environmental sensing projects, UV monitoring systems, weather stations, and smart devices that require awareness of ultraviolet radiation levels.
Specifications
| Parameter | Details |
|---|---|
| Product Name | UV Detection Sensor Module |
| Sensor Type | Ultraviolet Light Sensor |
| Operating Voltage | 3.3V – 5V DC |
| Output Type | Analog Voltage |
| Output Voltage Range | 0 – 1V DC |
| Detection Wavelength Range | 200 – 375nm |
| Measurement Accuracy | ±1 UV Index |
| Operating Temperature | -20°C to +85°C |

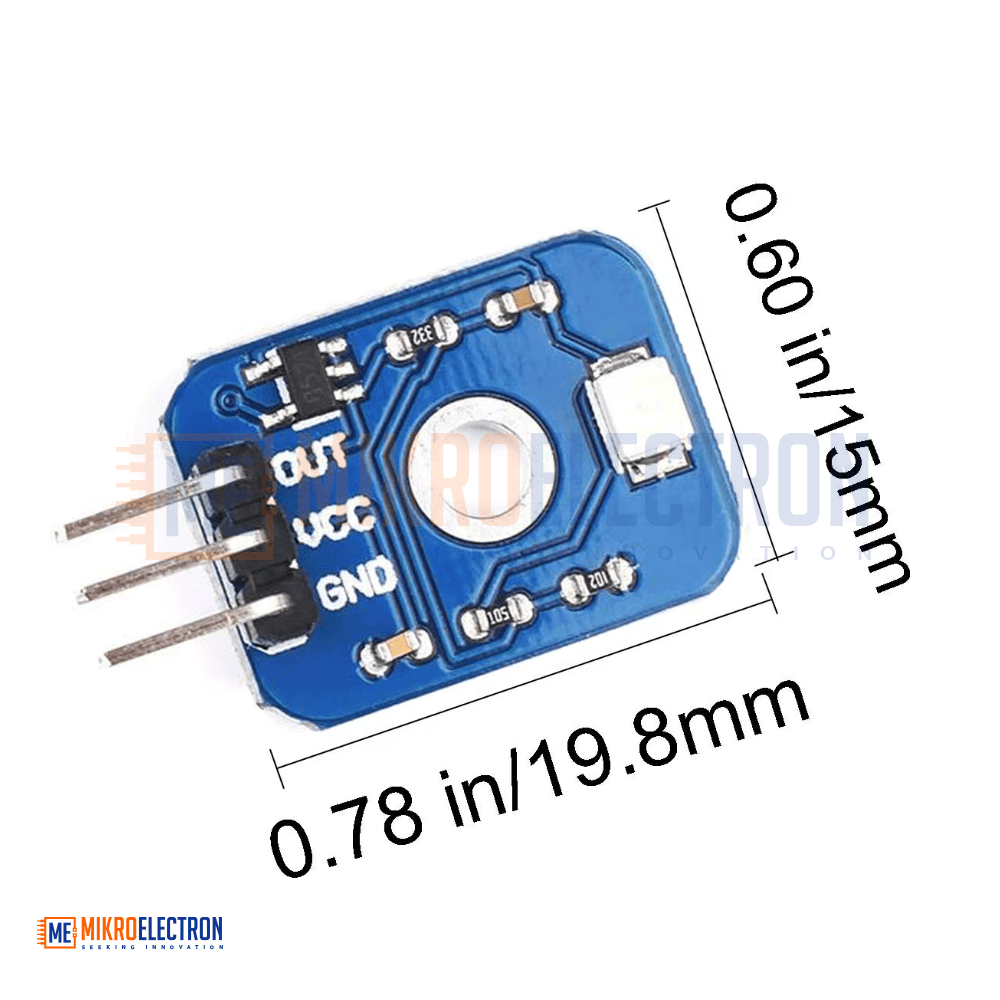

| Module Dimensions | 19.8 × 15 mm |

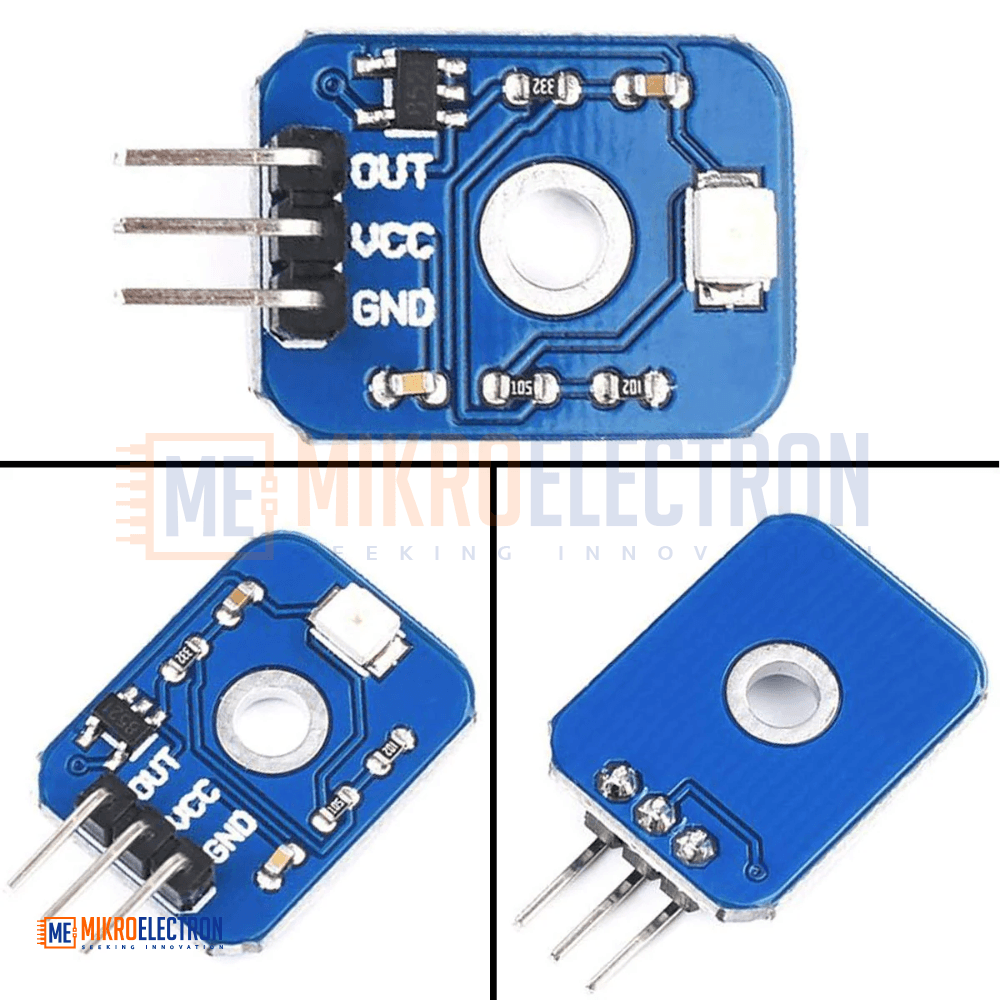

| Interface | VCC, GND, Analog Output |
| Microcontroller Compatibility | Arduino, ESP32, ESP8266, STM32, Raspberry Pi |
Applications
- UV Index monitoring systems
- Weather stations
- Environmental monitoring devices
- Smart agriculture solutions
- Wearable UV exposure monitors
- Outdoor safety equipment
- Portable health monitoring devices
- IoT and smart city applications
- Educational and research projects
- Solar radiation analysis systems
