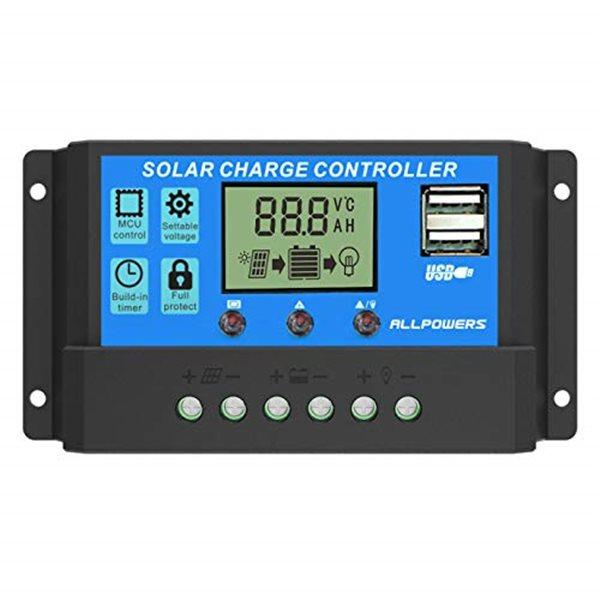

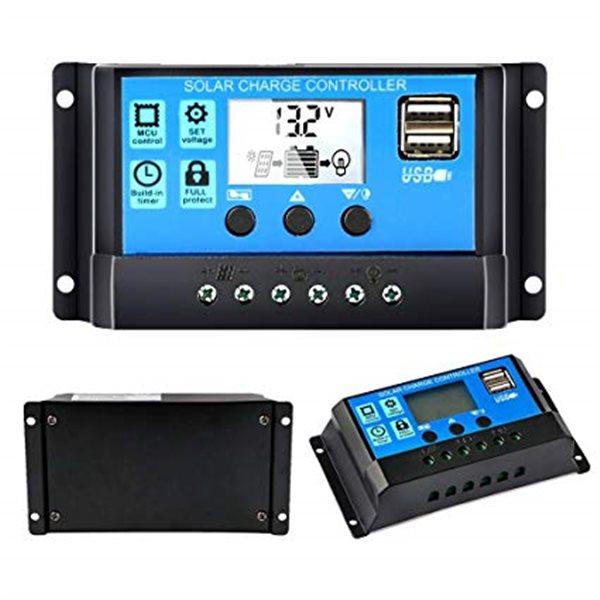

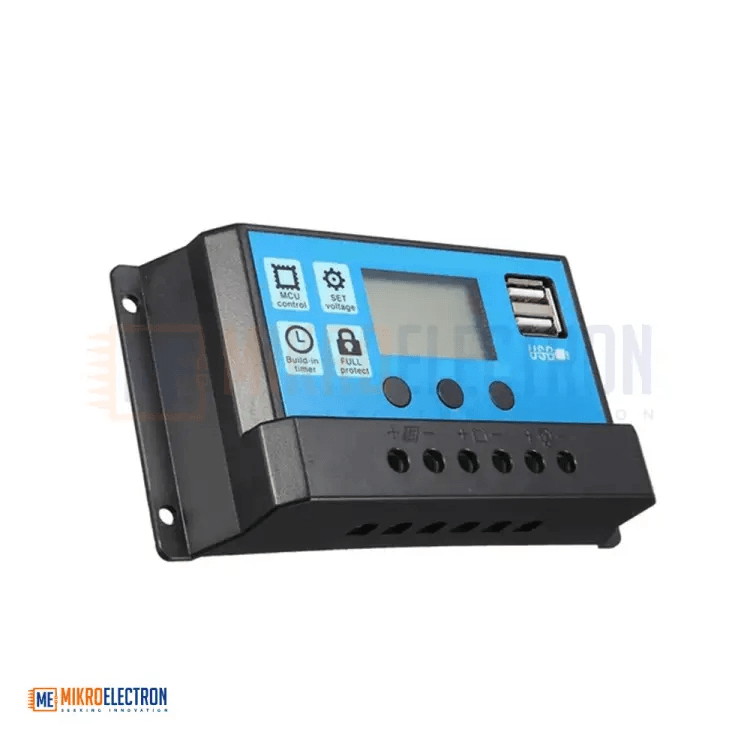

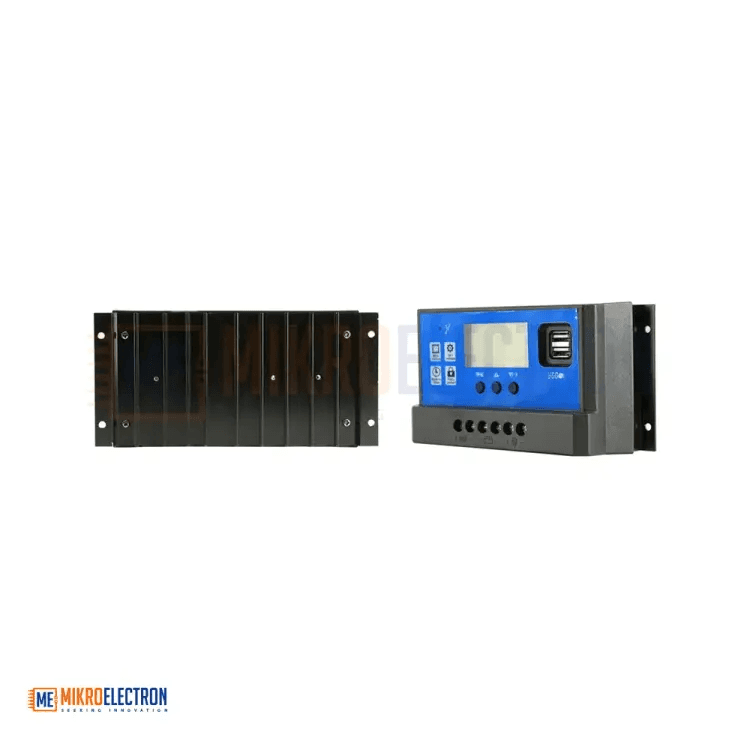

SOLAR CHARGE CONTROLLER 30A
The Solar Charge Controller 30A is a reliable device designed to manage and protect solar power systems efficiently. It features a built-in industrial microcontroller and a large LCD display for easy monitoring and adjustment of parameters. With advanced 4-stage PWM charging, it ensures optimal battery performance and longer lifespan. The controller supports 12V and 24V systems automatically and includes multiple protections such as short circuit, overload, reverse polarity, and overcharge. Dual MOSFET technology reduces heat generation. It also provides USB outputs for device charging, making it ideal for small to medium solar applications.
منظم الشحن الشمسي 30 أمبير هو جهاز موثوق مصمم لإدارة وحماية أنظمة الطاقة الشمسية بكفاءة عالية. يحتوي على متحكم صناعي مدمج وشاشة LCD كبيرة لسهولة المراقبة وضبط الإعدادات. يعتمد على تقنية الشحن PWM ذات الأربع مراحل لضمان أداء مثالي للبطارية وإطالة عمرها. يدعم أنظمة 12 و24 فولت بشكل تلقائي، ويحتوي على عدة أنظمة حماية مثل الحماية من القصر، الحمل الزائد، عكس القطبية، والشحن الزائد. تقنية MOSFET المزدوجة تقلل من الحرارة، كما يوفر مخارج USB لشحن الأجهزة، مما يجعله مناسبًا للتطبيقات الشمسية الصغيرة والمتوسطة.
The Solar Charge Controller 30A (Model: AN-SC-DS-30A) is an advanced and efficient solution for regulating solar energy systems. It ensures safe and optimized charging and discharging of batteries while extending battery life. Equipped with a built-in industrial microcontroller and large LCD display, users can easily monitor system performance and adjust parameters.
Specifications
Model: AN-SC-DS-30A
Battery Voltage: 12V / 24V Auto Detection
Charging Current: 30A
Discharging Current: 10A
Max Solar Input:
24V (for 12V battery)
48V (for 24V battery)
Equalization Voltage:
14.4V (Sealed)
14.2V (Gel)
14.6V (Flooded)
Float Charge Voltage: 13.7V (adjustable)
Discharge Stop Voltage: 10.7V (adjustable)
Discharge Reconnect Voltage: 12.6V (adjustable)
Charge Reconnect Voltage: 13V
USB Output: 5V / 2A × 2 ports
Self Consumption: <10mA
Operating Temperature: -35°C to +60°C

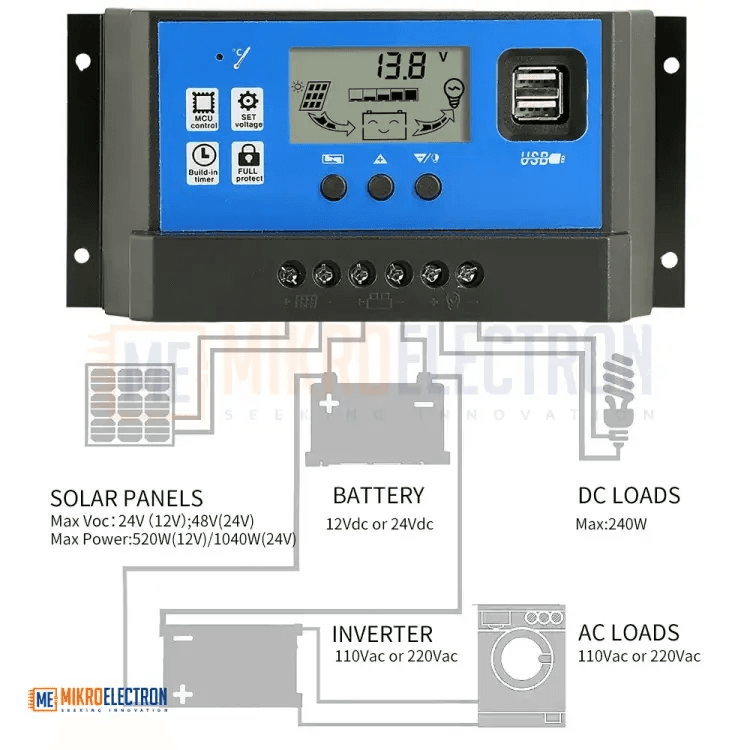

Applications
Home solar power systems
Small off-grid systems
Solar lighting systems
Rural electrification projects
Caravans and RV solar setups
Backup power systems
