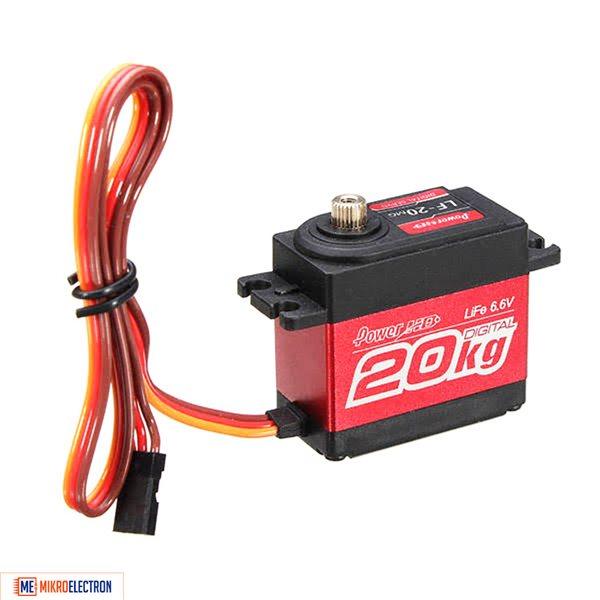

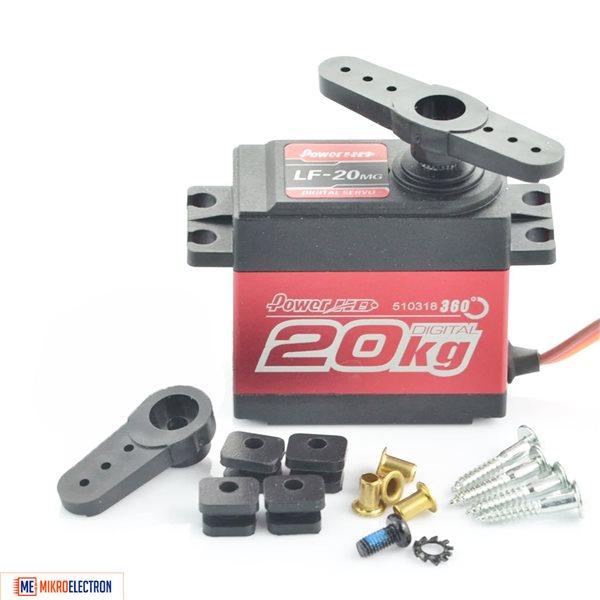

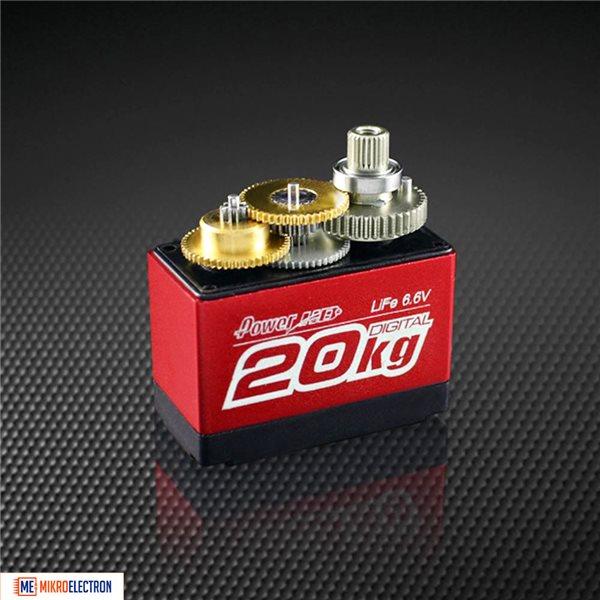

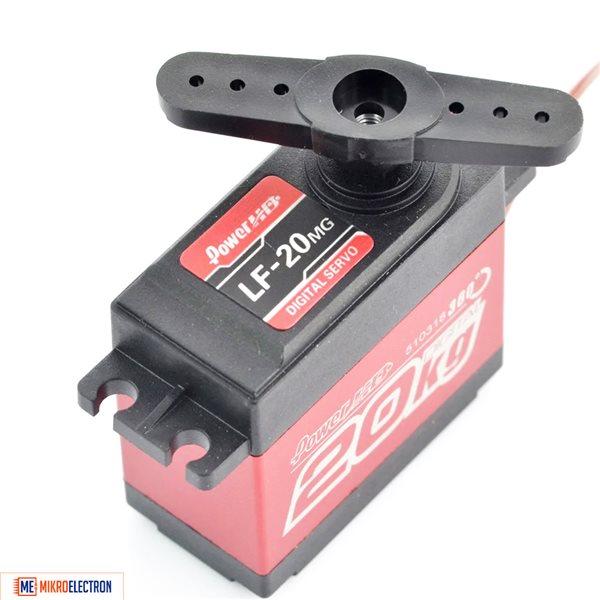

LF-20MG Power HD Servo 20kg.cm Metal Gear Servo 180
5.0(1 review)
JD30.00
Brand: PowerHDModel: LF-20MGSpline: 25T/ ψ5.80Torque @ 6.6V: 20.0 kg-cmLimit Angle: 180°Neutral Position: 1500 μsecRunning current (at no load): 400 mAIdle current stationary:: 5 mASpeed: 0.18 sec (4.8V) │ 0.16 sec (6.6V)Operating Voltage：4.8 ~ 6.6 DC VoltsWeight: 60 g (2.12 oz)Operating Temperature：-20℃~60℃Working frequence：1520μs / 333hzSize：40.7 x 20.5 x 39.5 mm
- Brand: PowerHD
- Model: LF-20MG
- Spline: 25T/ ψ5.80
- Torque @ 6.6V: 20.0 kg-cm
- Limit Angle: 180°
- Neutral Position: 1500 μsec
- Running current (at no load): 400 mA
- Idle current stationary:: 5 mA
- Speed: 0.18 sec (4.8V) │ 0.16 sec (6.6V)
- Operating Voltage：4.8 ~ 6.6 DC Volts
- Weight: 60 g (2.12 oz)
- Operating Temperature：-20℃~60℃
- Working frequence：1520μs / 333hz

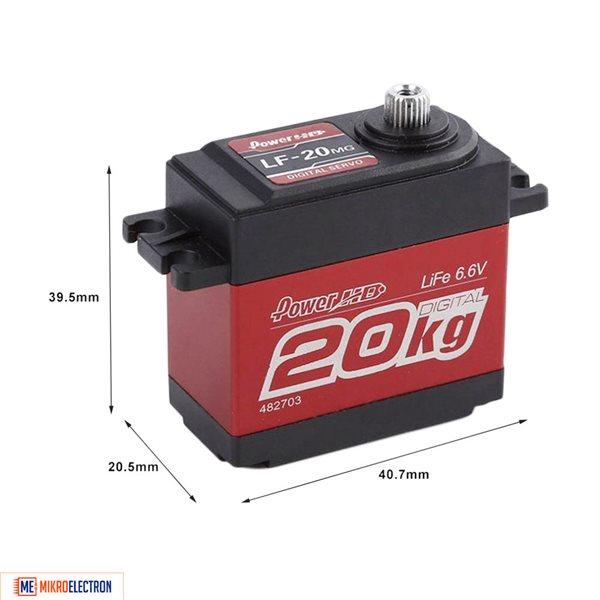

- Size：40.7 x 20.5 x 39.5 mm
