High Voltage Igniter Kit Arc Ignition Parts Electric Arc Generator DC 3-5V 3A DIY-Manual

5.0(1 review)
SKU: ME-3628
JD4.00JD7.00

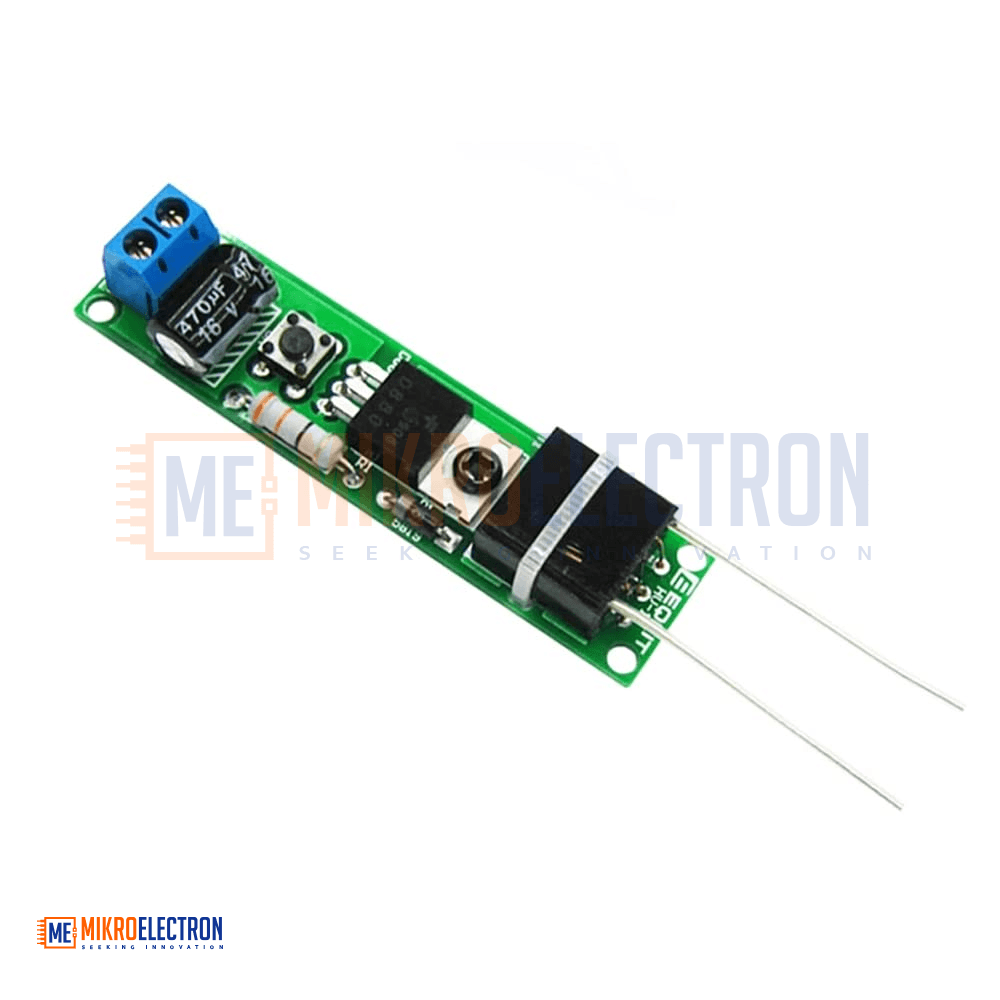

The HV-1 High Voltage Igniter Kit Arc Ignition Module is a compact electric arc generator designed for DIY ignition and high-voltage applications. Operating on DC 3–5V, it uses a self-excitation oscillating boost circuit to generate a powerful high-voltage arc with up to 5 mm arc length. The module works at 20 kHz frequency with an input current of 3A and operating current below 2.5A. Equipped with an ignition switch, it provides reliable arc generation for short-duration use. Its compact size makes it suitable for portable electronics, ignition systems, educational experiments, and custom engineering projects.

وحدة HV-1 High Voltage Igniter Kit هي مولد قوس كهربائي عالي الجهد مدمج، مصمم لتطبيقات الإشعال والمشاريع الإلكترونية اليدوية. تعمل بجهد DC من 3 إلى 5 فولت وتستخدم دائرة رفع جهد ذاتية التذبذب لإنتاج قوس كهربائي عالي الجهد بطول يصل إلى 5 مم. تعمل الوحدة بتردد 20 كيلوهرتز مع تيار دخل 3 أمبير وتيار تشغيل أقل من 2.5 أمبير. مزودة بمفتاح تشغيل للإشعال وتوفر أداءً موثوقًا لفترات تشغيل قصيرة. حجمها الصغير يجعلها مناسبة للتجارب التعليمية وأنظمة الإشعال والمشاريع الهندسية.

Other Modules

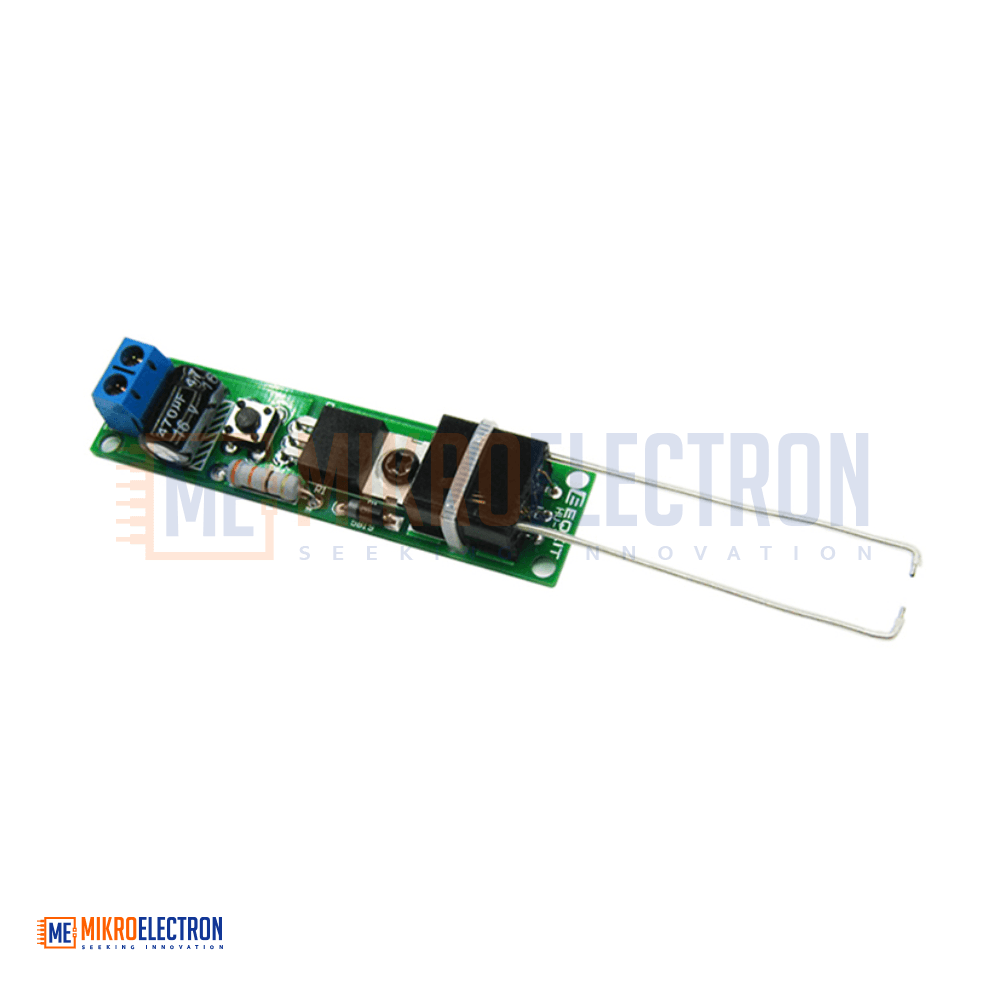

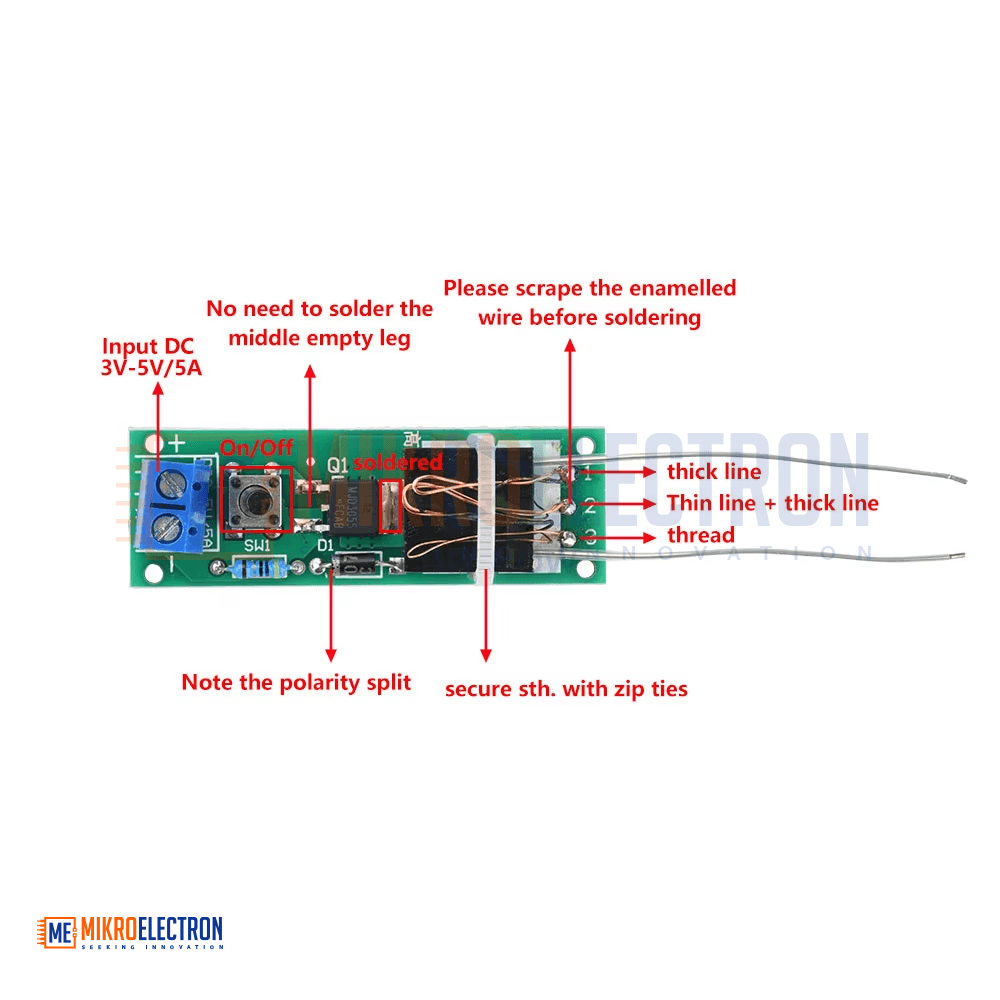

The HV-1 High Voltage Igniter Kit is a compact high-voltage arc generation module designed for applications requiring fast and efficient electric ignition. It converts low-voltage DC 3–5V input into a high-voltage output using a self-excitation oscillating boost circuit, producing a strong electric arc capable of ignition and spark generation.

Operating at a frequency of 20 kHz, the module delivers stable arc output with high efficiency while maintaining relatively low power consumption. It supports a maximum input current of 3A, with typical operating current staying below 2.5A.

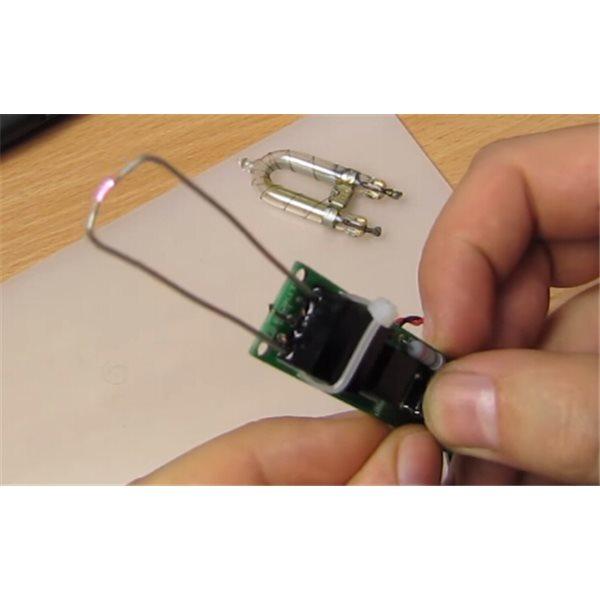

The device can generate an electric arc with a maximum length of 5 mm, making it suitable for ignition systems and controlled high-voltage experiments. For safety and performance, the recommended continuous operation time is limited to 10 seconds per cycle.

Its lightweight and compact form factor, along with the included ignition switch, makes it easy to integrate into portable and custom-built electronic systems.

Specifications

ParameterSpecification
ModelHV-1 High Voltage Igniter
Input VoltageDC 3–5V
Input Current3A
Operating Current≤ 2.5A
Operating MethodSelf-excitation oscillating boost
Operating Frequency20 kHz
Continuous Operating Time10 seconds
Arc Length5 mm
Ignition SwitchYes
Dimensions71 × 18 × 12 mm

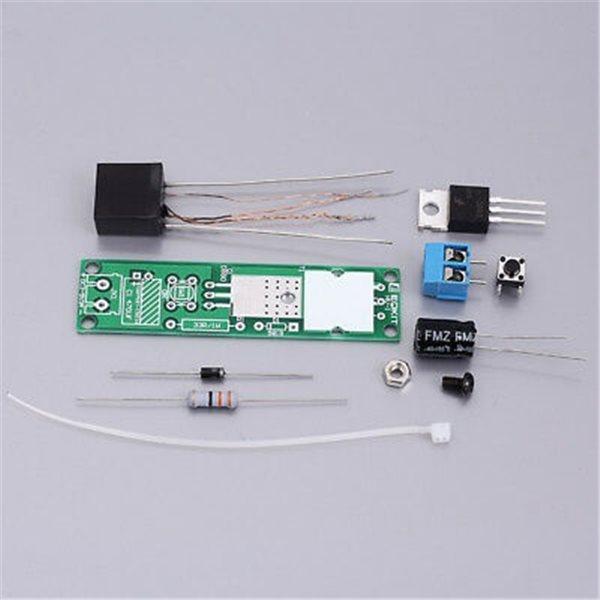

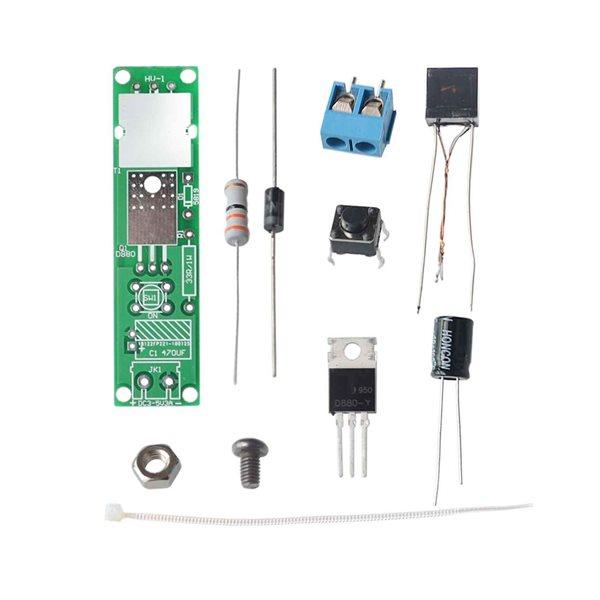

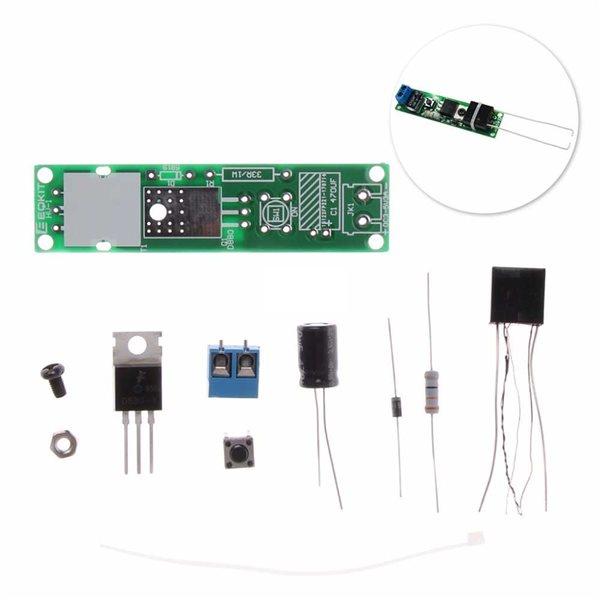

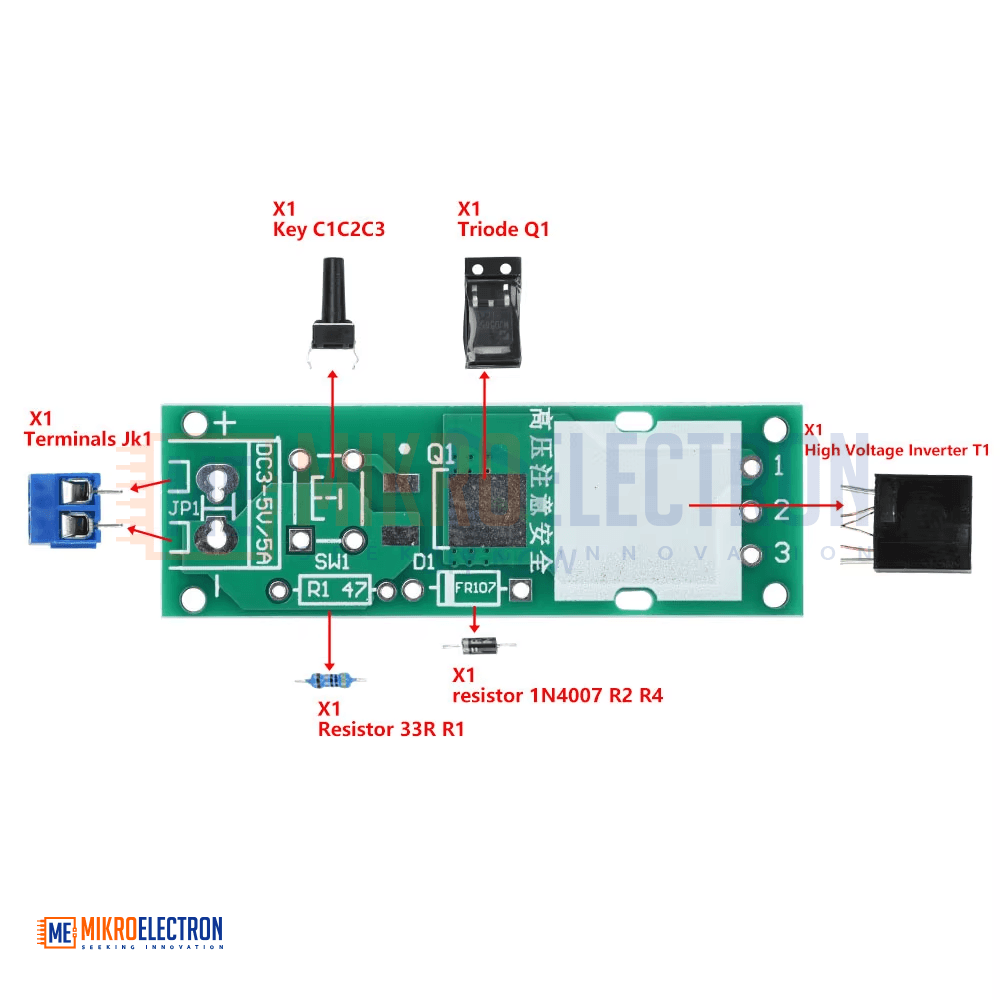

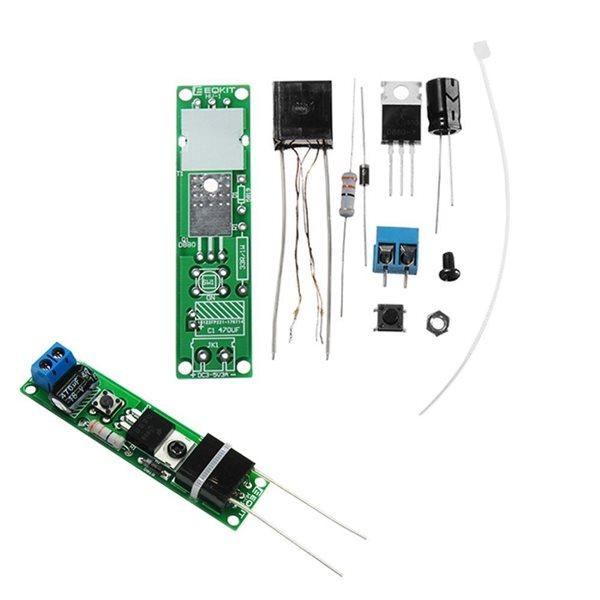

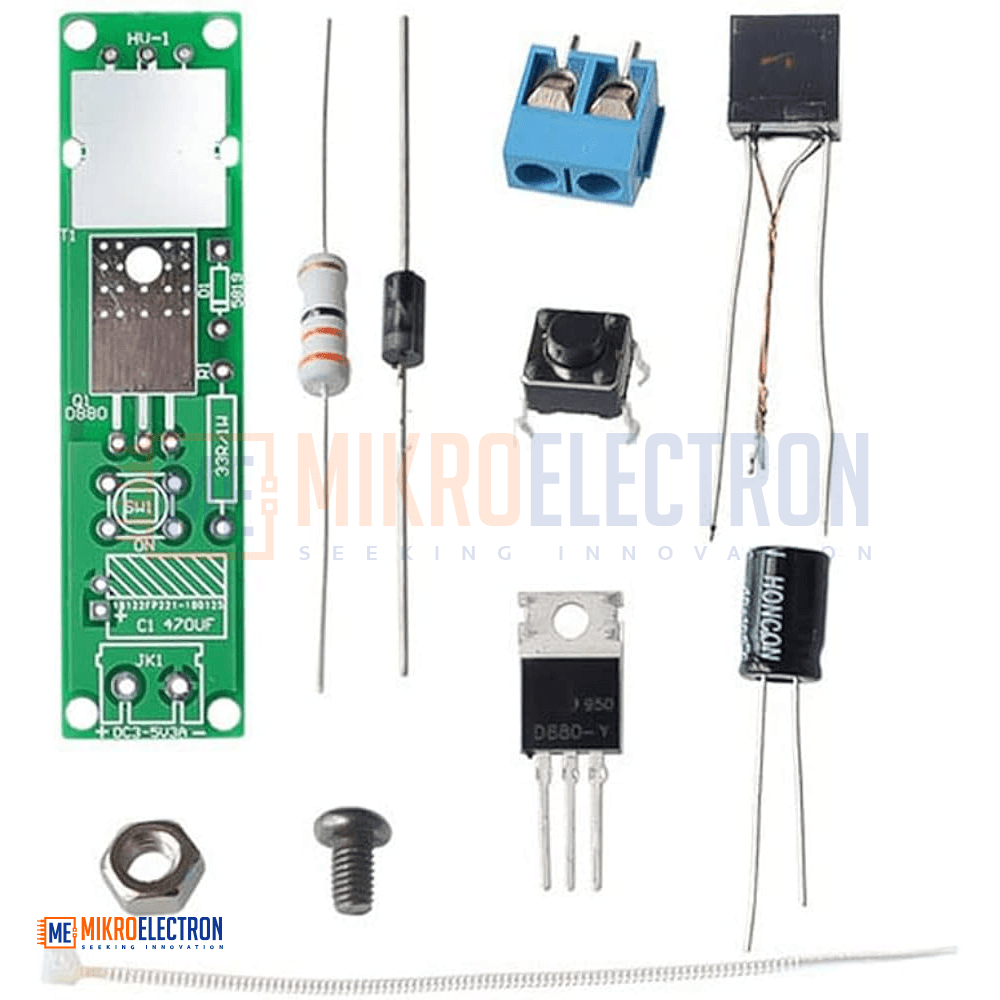

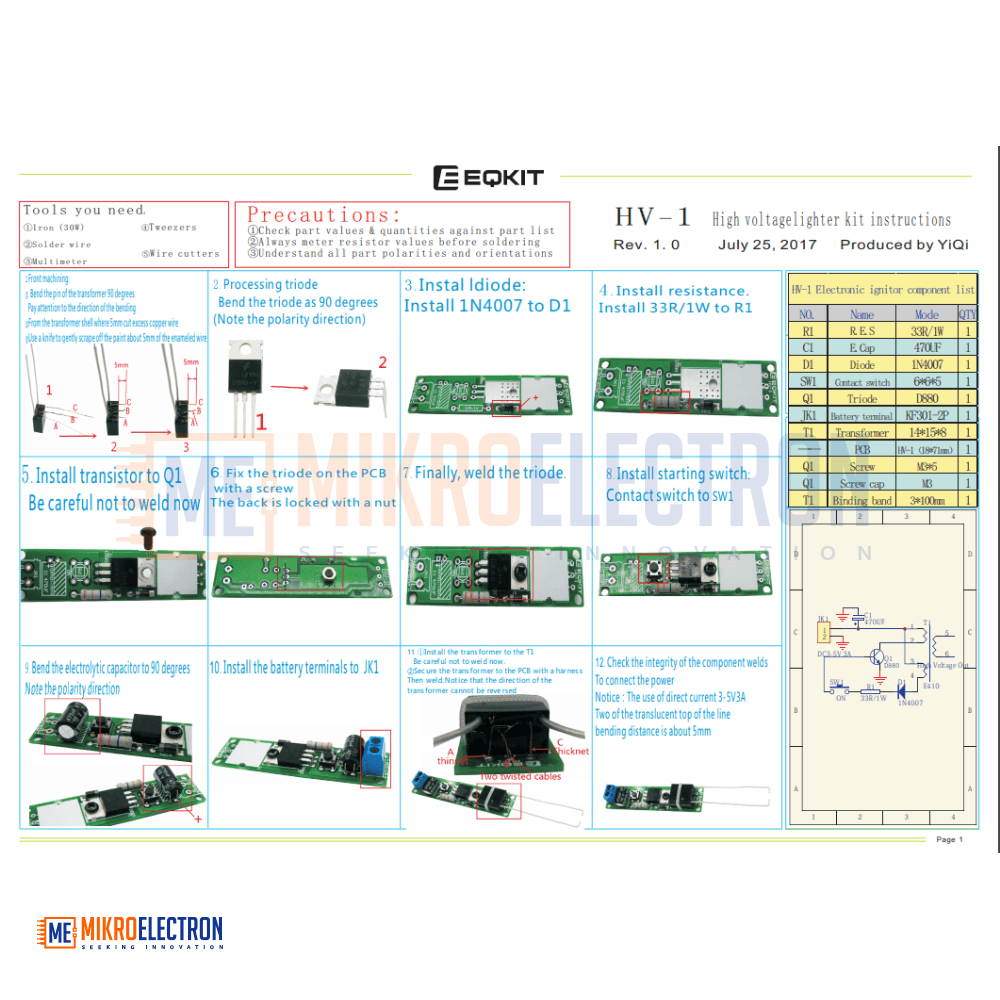

Component List:

NO.Component NamePCB MarkerParameterQTY
1Carbon film resistorsR133R/1W1
2Electrolytic capacitorC1470UF1
3DiodeD11N58191
4ButtonSW16*6*5mm1
5TransistorQ1D8801
6Battery terminalJK1KF301-2P1
7TransformerT114*15*81

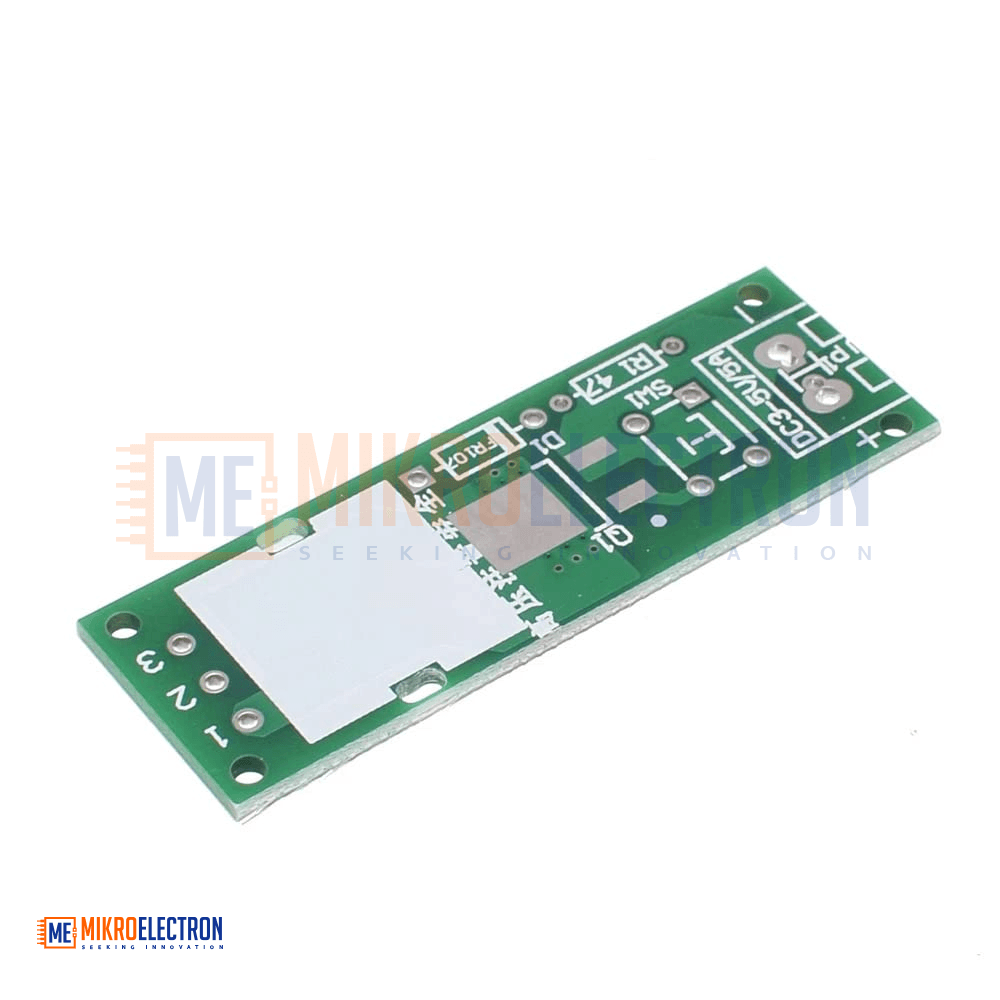

8PCB——18*71mm1
9ScrewQ1M3*51
10NutQ1M31
11TieT13*100mm1

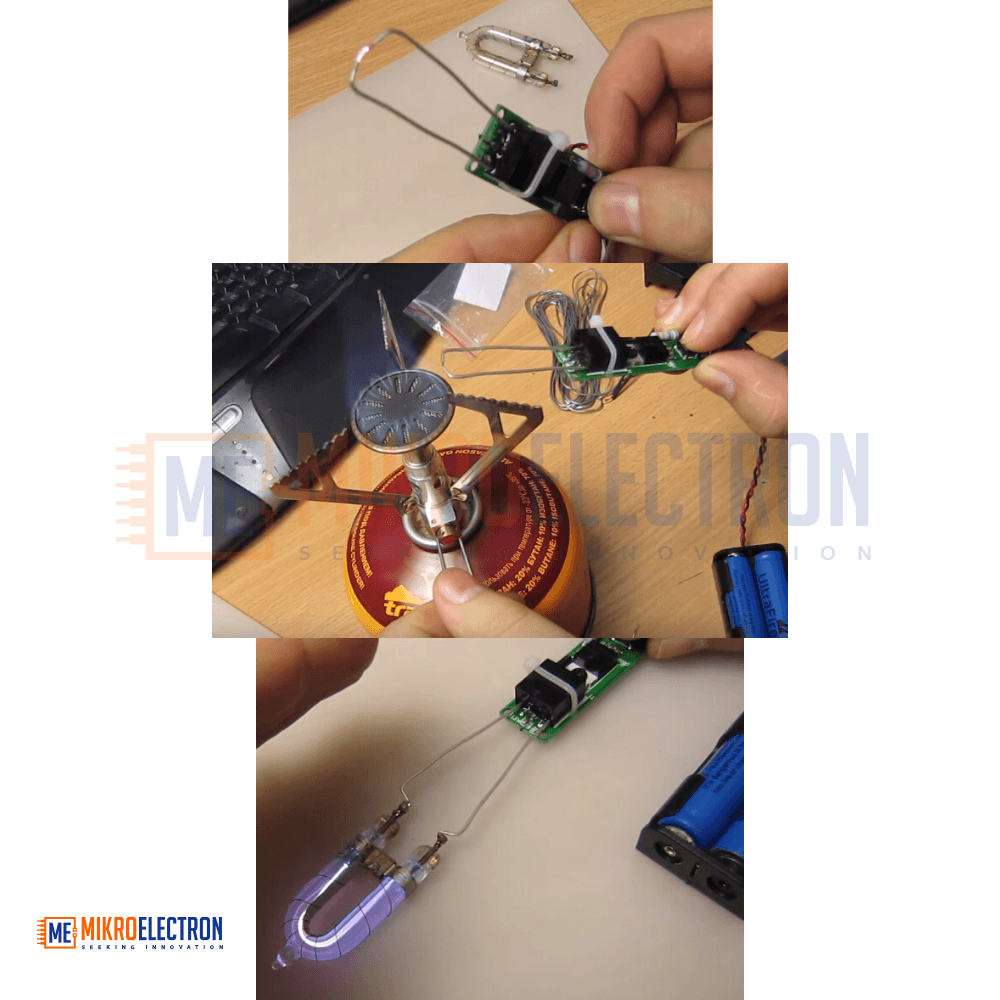

Applications

The HV-1 High Voltage Igniter Kit is commonly used in:

  • Electronic ignition systems
  • DIY plasma arc projects
  • Gas stove ignition circuits
  • Scientific demonstrations
  • Educational high-voltage experiments
  • Portable spark generators
  • Custom engineering prototypes
  • Arc discharge testing
  • Fire starter devices
  • Laboratory testing systems
