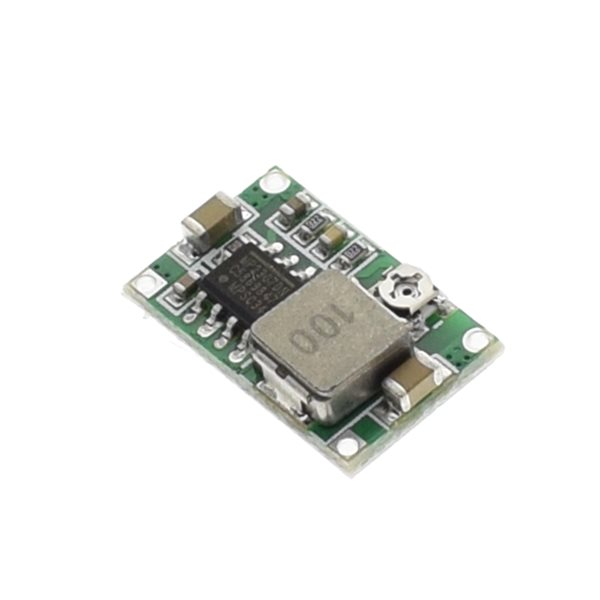

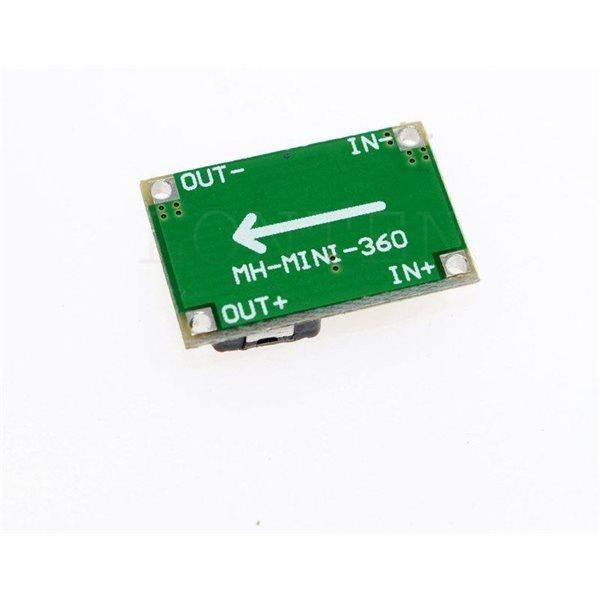

Mini 360 DC-DC Buck Converter Step Down Module 4.75V-23V to 1V-17V
Out Of Stock
The Mini 360 DC-DC Buck Converter Step Down Module is a compact and highly efficient voltage regulator designed to convert higher DC input voltage into a stable lower output voltage. Supporting an input range of 4.75V–23V and adjustable output from 1V–17V, it delivers reliable power conversion with up to 96% efficiency. Built with synchronous rectification technology and an integrated molded inductor, this module offers excellent performance in a miniature size. Ideal for RC devices, embedded systems, battery-powered electronics, and DIY projects, it ensures stable and efficient power management in limited spaces.
وحدة Mini 360 DC-DC Buck Converter هي محول خافض للجهد صغير الحجم وعالي الكفاءة، مصمم لتحويل جهد التيار المستمر المرتفع إلى جهد خرج أقل ومستقر. تدعم جهد دخل من 4.75 إلى 23 فولت مع جهد خرج قابل للتعديل من 1 إلى 17 فولت، وتوفر كفاءة تحويل تصل إلى 96%. بفضل تقنية التقويم المتزامن والملف الحثي المدمج عالي الجودة، تقدم أداءً ممتازًا ضمن حجم صغير جدًا. تعتبر مثالية لأجهزة التحكم، المشاريع الإلكترونية، أنظمة البطاريات، وتطبيقات الطاقة التي تتطلب إدارة طاقة فعالة.
The Mini 360 DC-DC Buck Converter Step Down Module is an ultra-compact power conversion module engineered to efficiently reduce DC voltage while maintaining stable output performance. Designed with synchronous rectifier technology, it minimizes power loss and improves overall conversion efficiency, reaching up to 96% under optimal conditions.

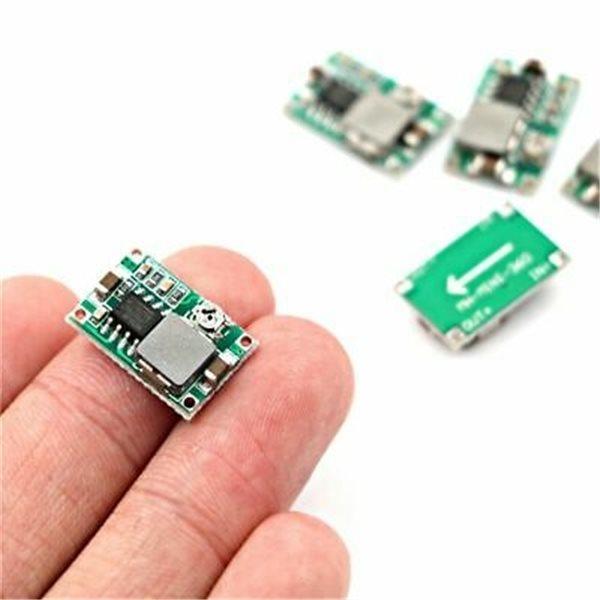

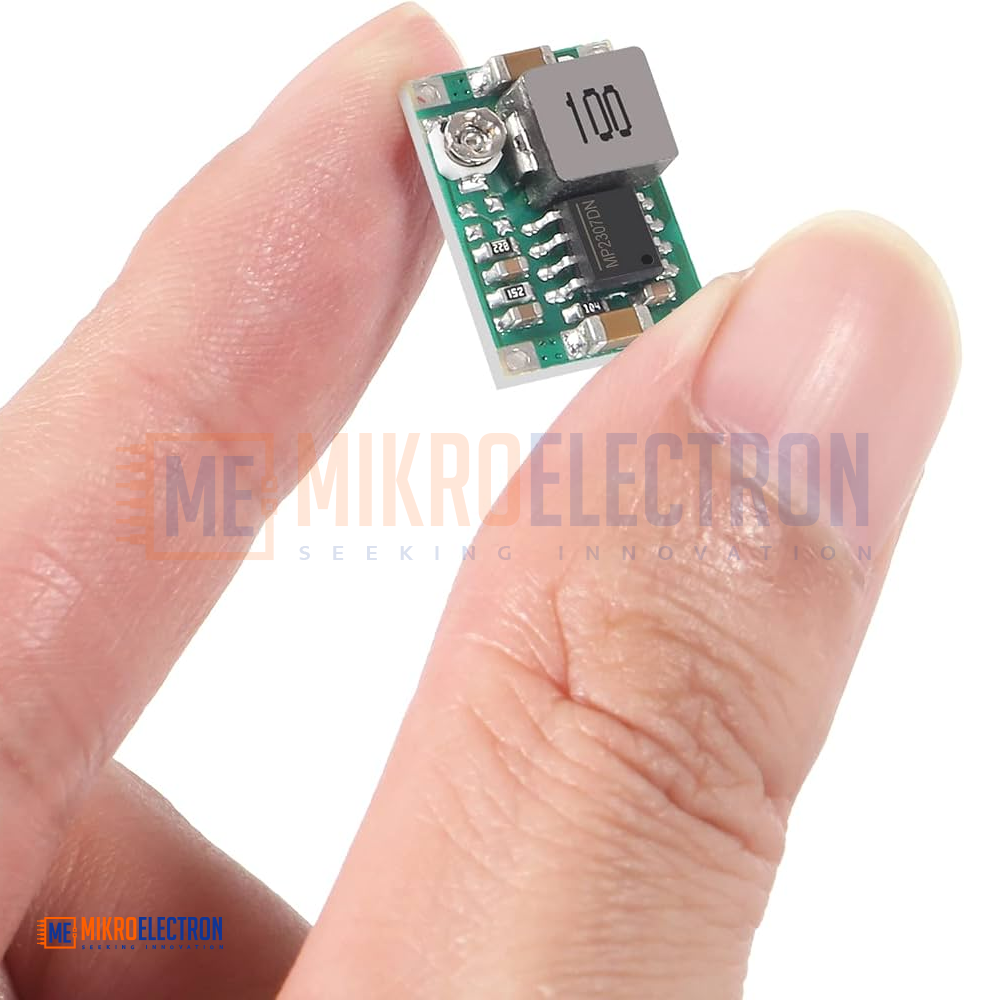

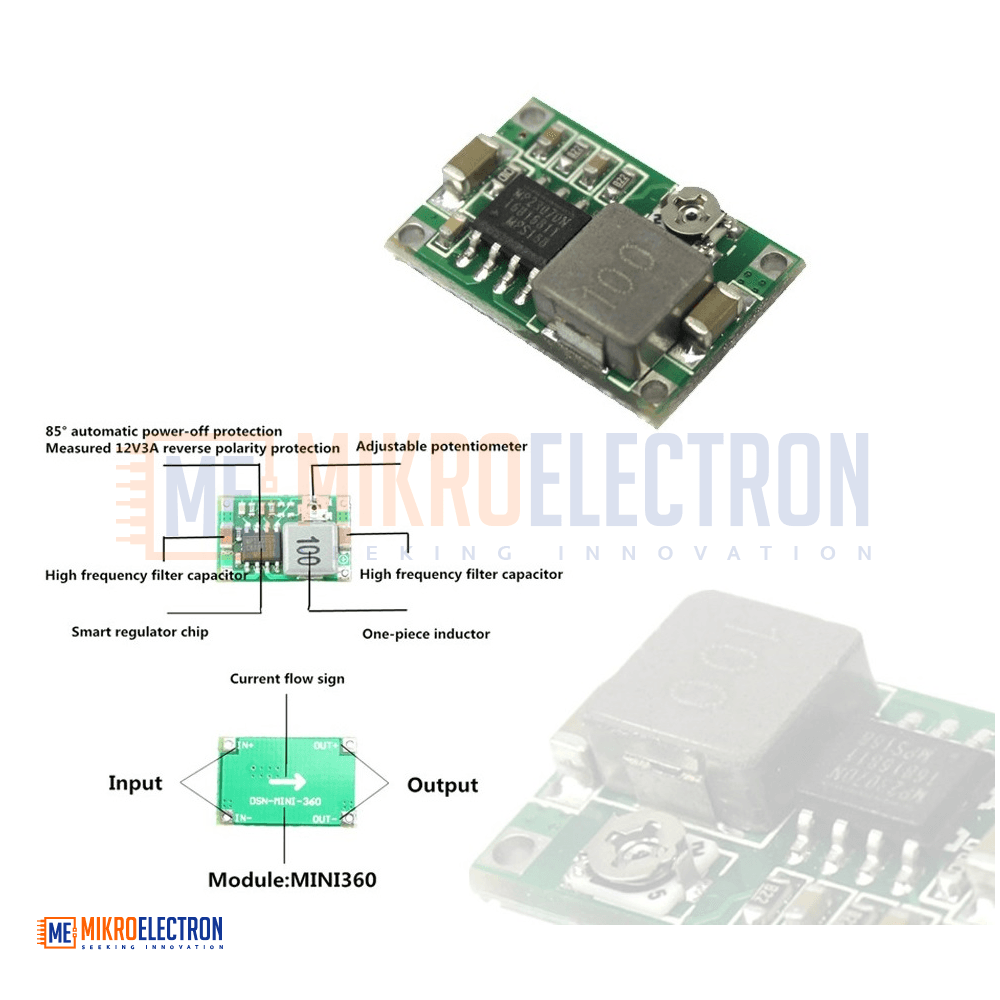

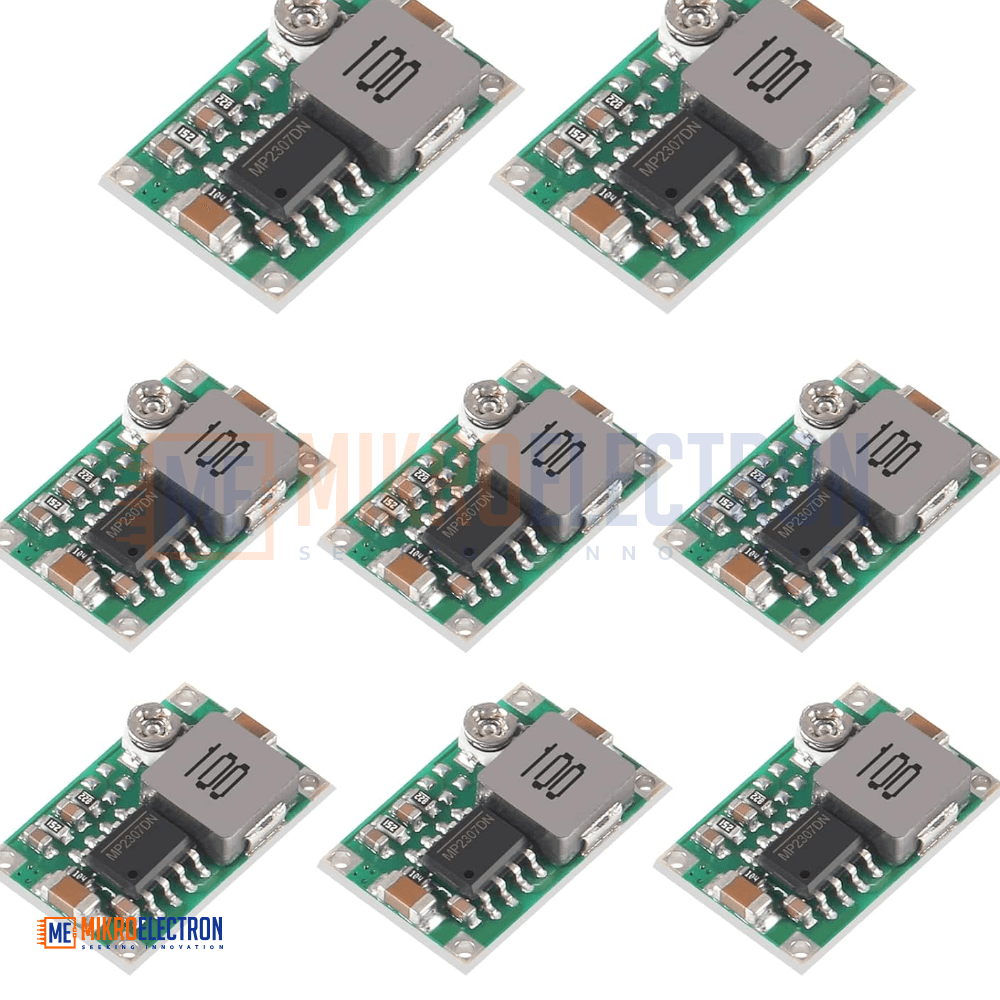

Its miniature size of only 17 × 11 × 3.8 mm makes it ideal for applications where space is limited, such as RC airplanes, drones, portable devices, and embedded systems. The module uses an integrally molded power inductor combined with a high-performance control chip to ensure stable voltage regulation and low output ripple.
With adjustable output voltage and support for currents up to 3A peak (1.8A continuous recommended), this converter is suitable for powering sensitive electronic components requiring reliable DC voltage conversion. It operates across a wide temperature range, ensuring dependable performance even in demanding environments.
Specifications
| Specification | Details |
|---|---|
| Model | Mini-360 |
| Module Type | DC-DC Buck Converter |
| Conversion Type | Non-Isolated Step Down |
| Rectification | Synchronous Rectification |
| Input Voltage | 4.75V – 23V |
| Output Voltage | 1V – 17V (Adjustable) |
| Peak Output Current | 3A |
| Recommended Continuous Current | 1.8A |
| Maximum Efficiency | 96% |
| Switching Frequency | 340 KHz |
| Output Ripple | 30 mV (No Load) |
| Load Regulation | ±0.5% |
| Voltage Regulation | ±2.5% |
| Operating Temperature | -40°C to +85°C |

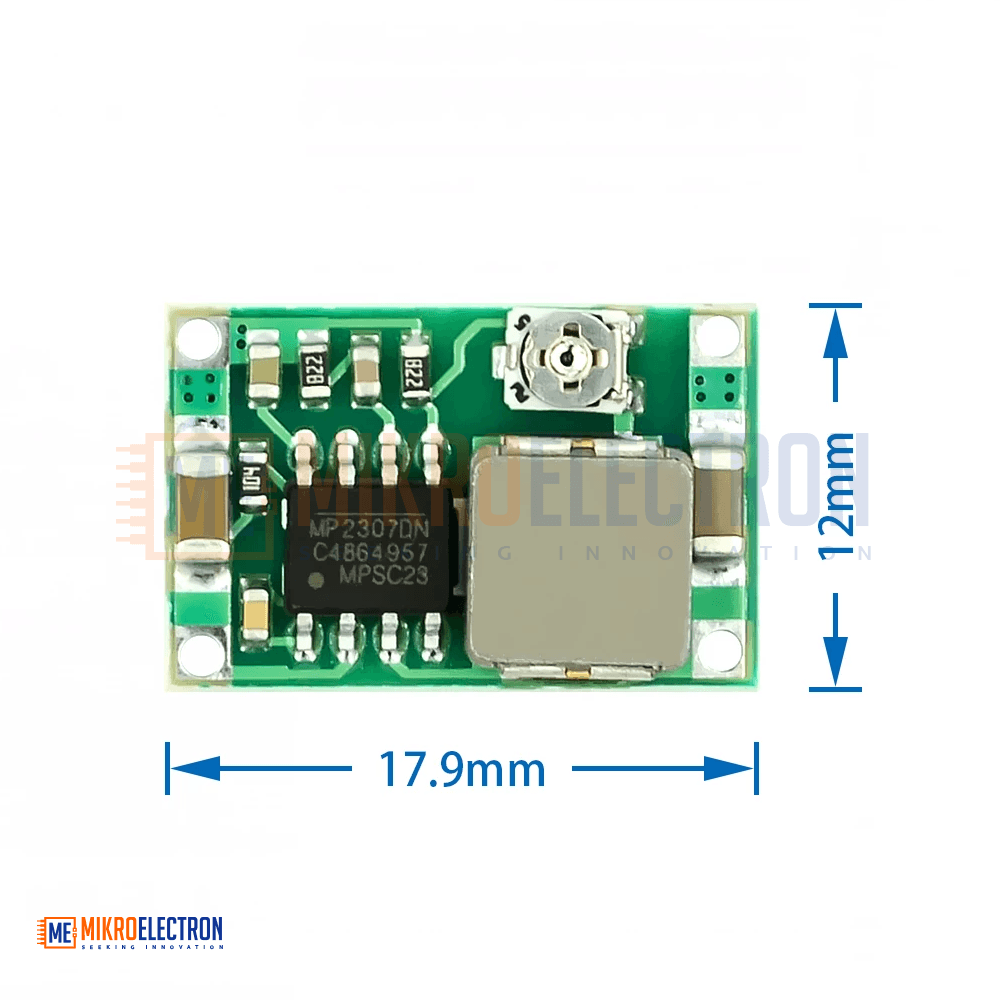

| Dimensions | 17 × 11 × 3.8 mm |
Applications
- RC airplanes and drones
- Battery-powered electronics
- Arduino and microcontroller projects
- Portable DIY power supplies
- Embedded systems
- LED power regulation
- Automotive electronics
- Industrial control circuits
