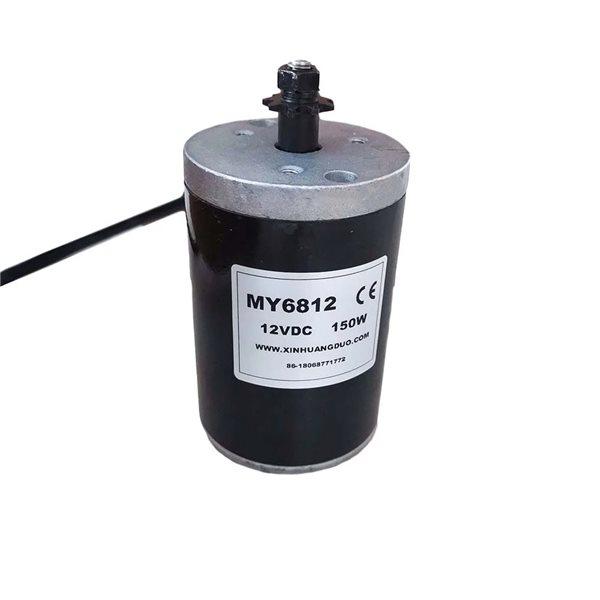

Dc Motor my6812 24V 150W high speed motor / scooter small brush motor
5.0(1 review)
JD35.00
Out Of Stock
MY6812 150W DC high speed brush motor for electric tricycle, Electric Scooter motor that support Belt Performance data:power output :150 W / 24 Vrated current : < 8,5 Arated speed (rpm) :2500 +/- 5 %max. speed (rpm) :3500 +/- 5 %current without load : < 0,9 Arated torque :0,56 Nmtransmission :belt pulley , metalshaft diameter :8 mm (mille...
MY6812 150W DC high speed brush motor for electric tricycle, Electric Scooter motor that support Belt
Performance data:
power output :150 W / 24 V
rated current : < 8,5 A
rated speed (rpm) :2500 +/- 5 %
max. speed (rpm) :3500 +/- 5 %
current without load : < 0,9 A
rated torque :0,56 Nm
transmission :belt pulley , metal
shaft diameter :8 mm (milled groove one-sided 1 mm)
efficiency : > 68%
