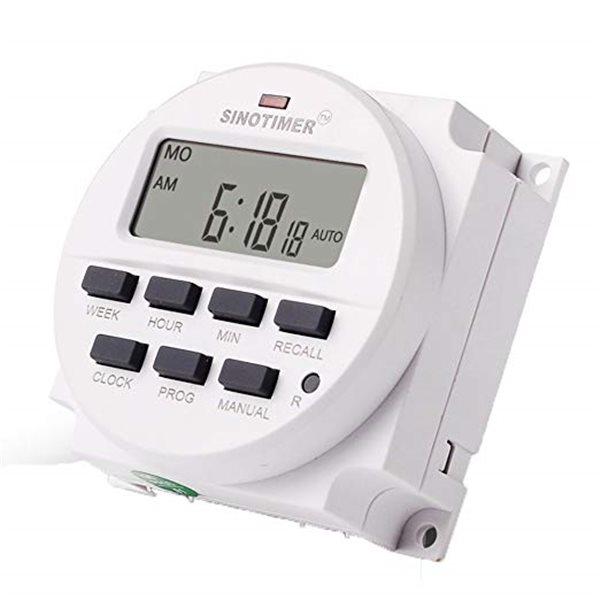

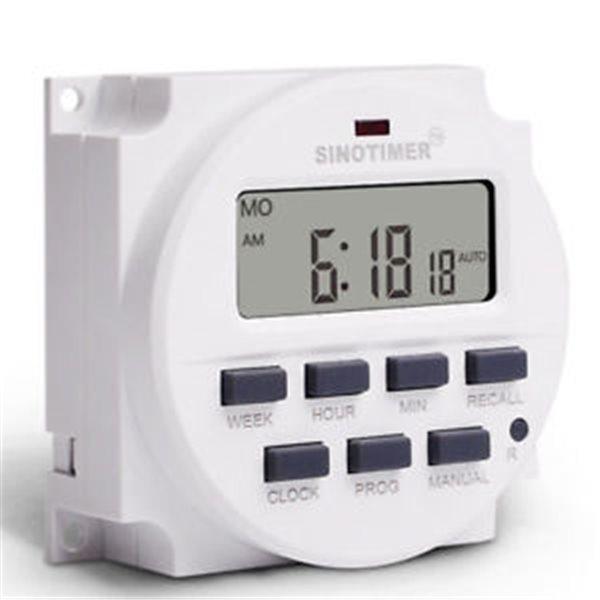

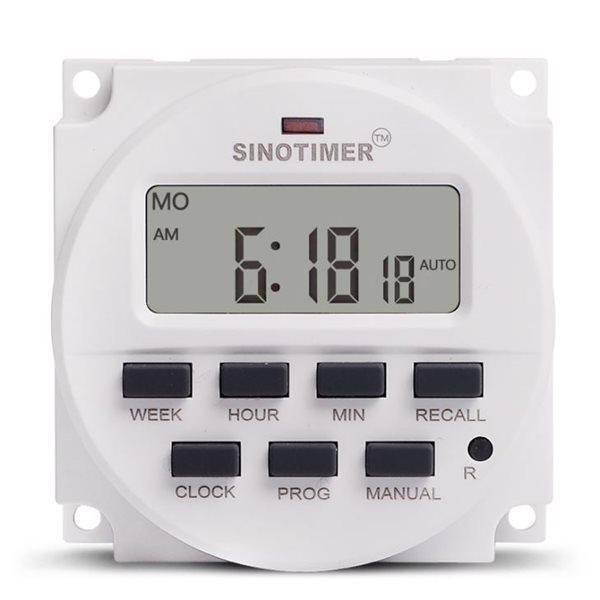

SINOTIMER TM618N-2 220V-16A 7 Days Programmable Timer Switch Relay
The SINOTIMER TM618N-2 is a 220V, 16A programmable timer switch designed for weekly scheduling. It features a digital display, up to 16 on/off settings, and battery backup, making it ideal for automating lights, appliances, or industrial equipment.
TM618N-2 220V AC MULTIPURPOSE 7 DAYS PROGRMMALBE TIMER SWITCH HAS FIVE FUNCTIONS:
1. CLOCK DISPLAY
2. TIMER
3. COUNTDOWN OFF
4. AUTO TIME DEFLECTION CORRECTION, WEEKLY
5. SLEEP MODE
Usage:

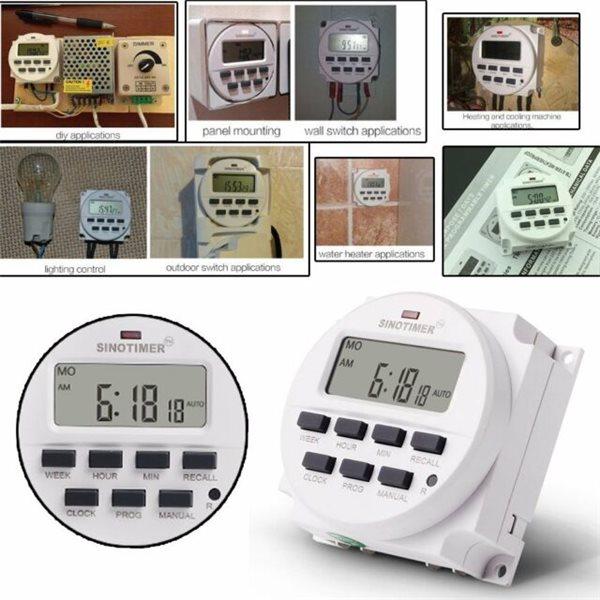

Weekly SinoTimer TM618 is used whenever electrical equipment must be periodically switched on and off at preprogrammed daily or weekly times.The programmed evernts are then repeated during the next periods accordingly.They find broad application used in Solar, Gate, LED, Garden, Lighting and Feeder (especially DC type), also heating and refrigerating systems, boiler, overns, dryers, defrosting equipments,swimming pools, hatcheries,illumination,etc.
Why choose SinoTimer TM618?
1. 1.6 inch big screen LCD display.
2. Excellent load capacity, voltage-free output. 16amp@250Vac
3. Easy program, everyone can program it after he reads the manual JUST one time.
4. Stable performance because of professional manufacturing in power saver since 2002.
5. Confirm to CE standard, and with LVD, EMC certificate passed
Characteristics:
* You can use the timer to SWITCH ON/OFF any electrical equipments at a preset timer
* 16 ON/OFF programs per day, 15 combinations to a week.
* 24 hours / 7 days a week programmable.
* Countdown OFF time range 1 minute to 24 hours
* Built-in rechargeable battery for backup the memory (save the programs you set) when power failure
* Auto time error correction +/- 30 sec, weekly
* Repeat programs with 16 on/off settings, and setting on/off manually,
* Easy to read LCD display, LED indicators.
Techanical Data:
Model: TM618N-2
Power Supply: 220V AC 50/60Hz
Temp. range: -20°C+50°C
Display: LCD
Power consumption 4.5 VA (MAX)
Programs:16 on/off each day or week

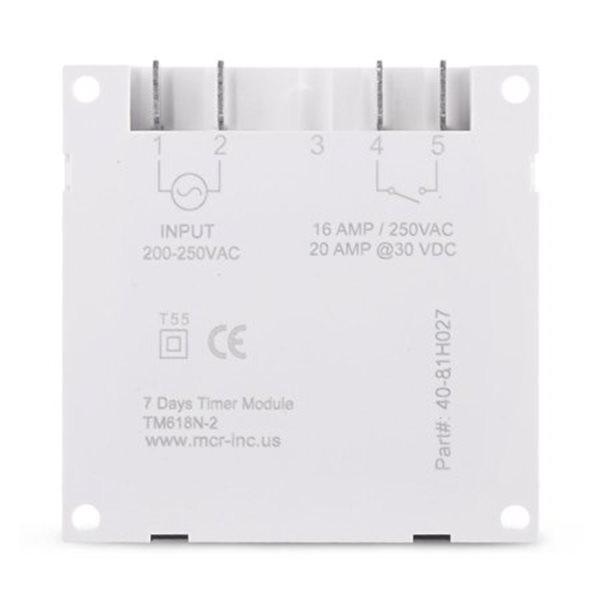

Switching contact: 1 changeover switch
Mini interval: 1 minute
Timer range: 1min~168hr
Countdown OFF time range:1 min ~ 24 hours
Capacity: 16(8) 250V AC
Hysteresis 2 sec/day (25°C)
Black-out: 60 days
Built-in Recharge battery: 1.2V 40Ma
Average error: 1s/24h, 25°C
Weight: 0.08kg
Dimensions of Timer: 60*60*30mm
Length of Wires: 12cm
Dimensions of Enclosure: 70*70*35mm
