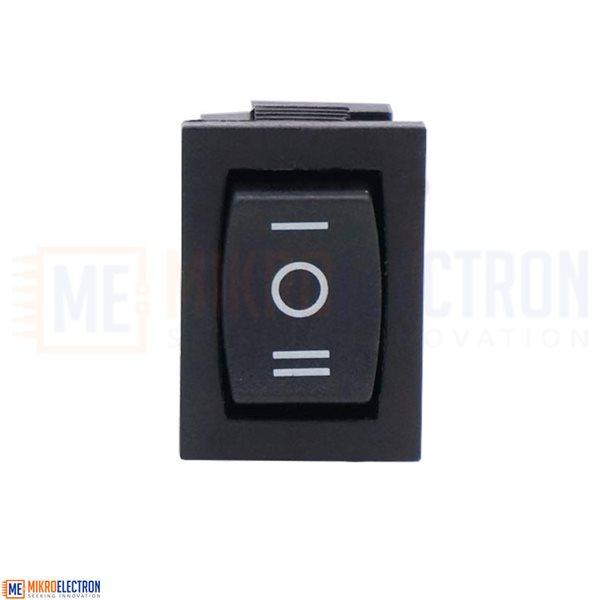

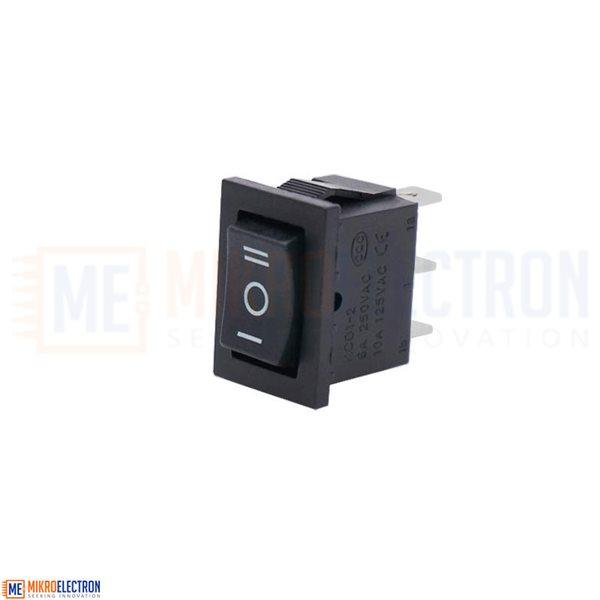

3 Way Momentary Black Boat Switch SPDT KCD1
The KCD1 3-Way Momentary Rocker Switch is a compact SPDT (Single Pole Double Throw) switch designed for temporary switching applications. Featuring a 3-position (ON)-OFF-(ON) configuration, the switch automatically returns to the center OFF position when released, making it ideal for momentary control functions. Rated at 6A 250V AC and 10A 125V AC, it can also be used in low-voltage DC circuits such as 12V systems. Built with durable plastic and metal contacts, the KCD1 rocker switch offers long mechanical and electrical life, making it suitable for control panels, automotive systems, industrial equipment, and DIY electronics projects.
يُعد مفتاح الروكر اللحظي KCD1 ثلاثي الاتجاهات مفتاح SPDT (أحادي القطب ثنائي الرمي) مصممًا لتطبيقات التحكم المؤقت. يتميز بتكوين (ON)-OFF-(ON) ثلاثي الوضعيات، حيث يعود تلقائيًا إلى وضع الإيقاف الأوسط عند تحريره، مما يجعله مثاليًا لوظائف التحكم اللحظية. يتحمل تيار 6 أمبير عند 250 فولت AC و10 أمبير عند 125 فولت AC، كما يمكن استخدامه في دوائر الجهد المنخفض مثل 12 فولت DC. يتميز ببنية متينة من البلاستيك والمعدن، ويوفر عمر تشغيل ميكانيكي وكهربائي طويل لمختلف التطبيقات الإلكترونية والصناعية.
The KCD1 3-Way Momentary Rocker Switch is a versatile and durable control switch designed for applications requiring temporary directional control. It features a Single Pole Double Throw (SPDT) contact arrangement with a 3-position (ON)-OFF-(ON) operation.
Unlike latching rocker switches, this model is momentary, meaning it automatically returns to the center OFF position when released. This functionality makes it ideal for motor direction control, actuator systems, industrial controls, automotive electronics, and other applications where temporary activation is required.
The switch is rated for 6A at 250V AC and 10A at 125V AC, while also being suitable for low-voltage DC systems such as 12V circuits. Manufactured using durable plastic housing and high-quality metal contacts, it provides reliable performance with a long operational lifespan.
Its compact panel-mount design allows easy installation into control panels, enclosures, and equipment housings.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | KCD1 Momentary Rocker Switch |
| Switch Type | Rocker Switch |
| Contact Type | SPDT (Single Pole Double Throw) |

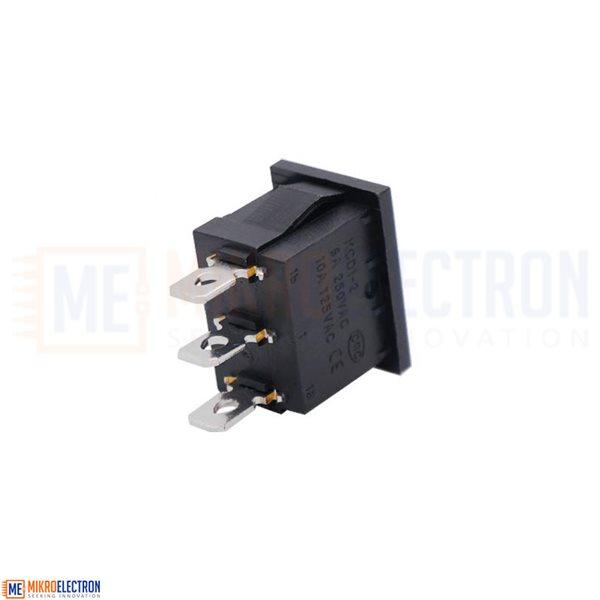

| Terminal Count | 3 Pins |
| Switch Positions | (ON)-OFF-(ON) |
| Operation Type | Momentary (Spring Return) |
| Current Rating | 6A @ 250V AC |
| Current Rating | 10A @ 125V AC |
| Low Voltage Compatibility | Suitable for 12V DC applications |
| Mechanical Life | More than 80,000 Cycles |
| Electrical Life | More than 10,000 Cycles |
| Overall Dimensions | 21 × 14.7 × 26.5 mm |
| Panel Cut-Out Size | 20 × 12 mm |
| Housing Color | Red |
| Material | Plastic & Metal |
Applications
- Motor forward/reverse control
- Linear actuator control systems
- Automotive electrical systems
- Industrial control panels
- Machinery operation controls
- Robotics projects
- DIY electronics projects
- Power switching circuits
- Testing and control equipment
- Custom control boxes and enclosures
