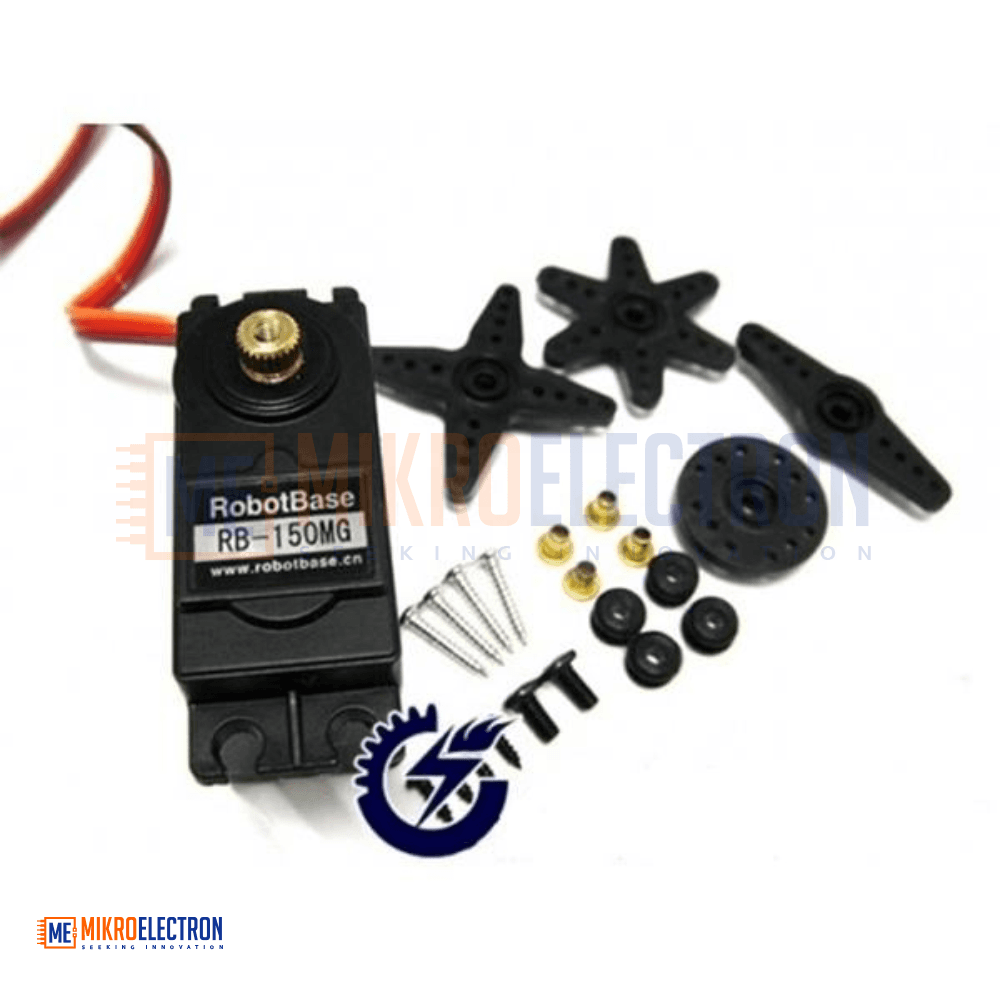

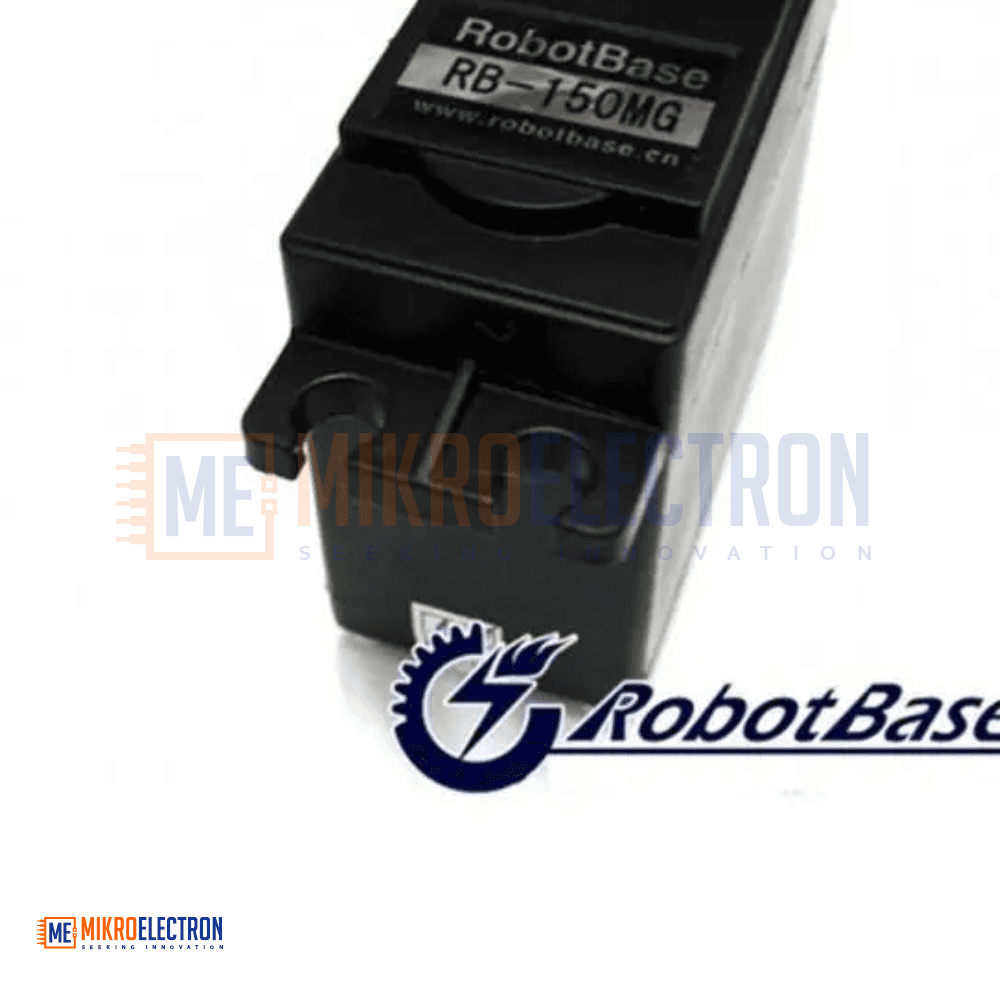

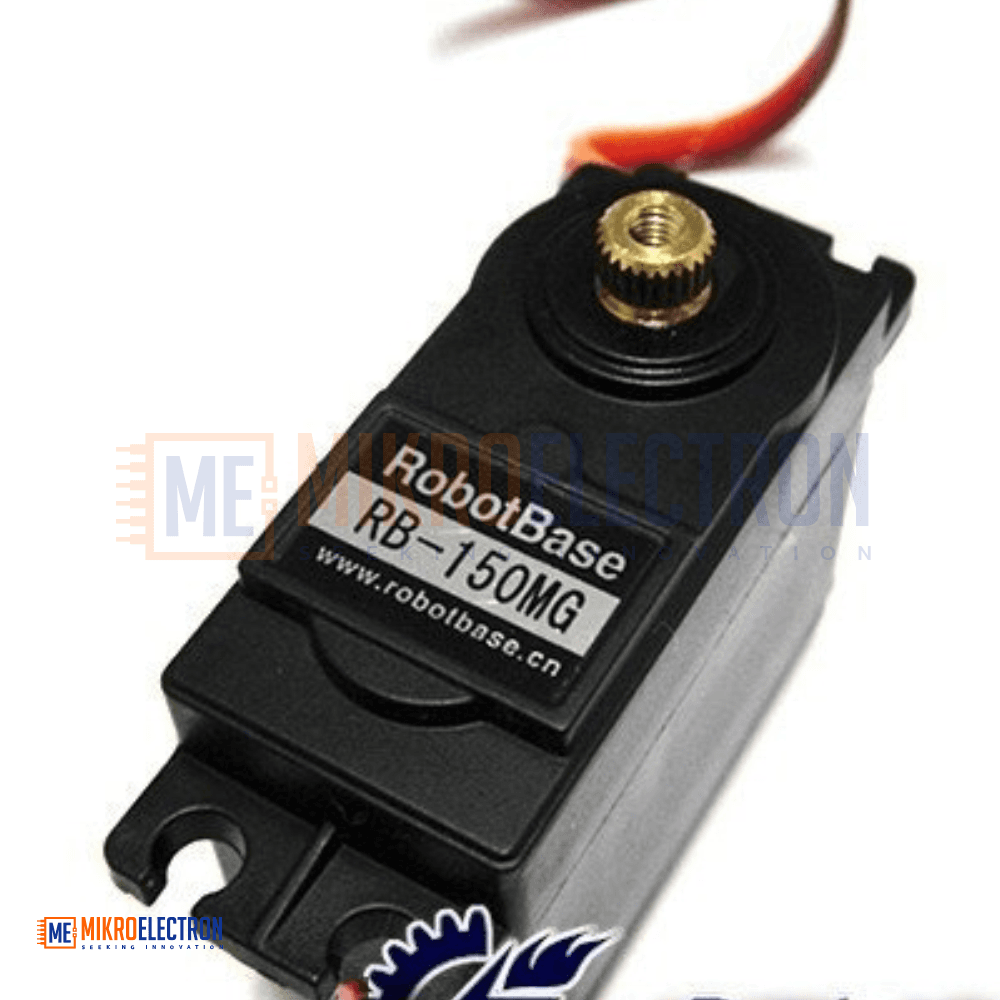

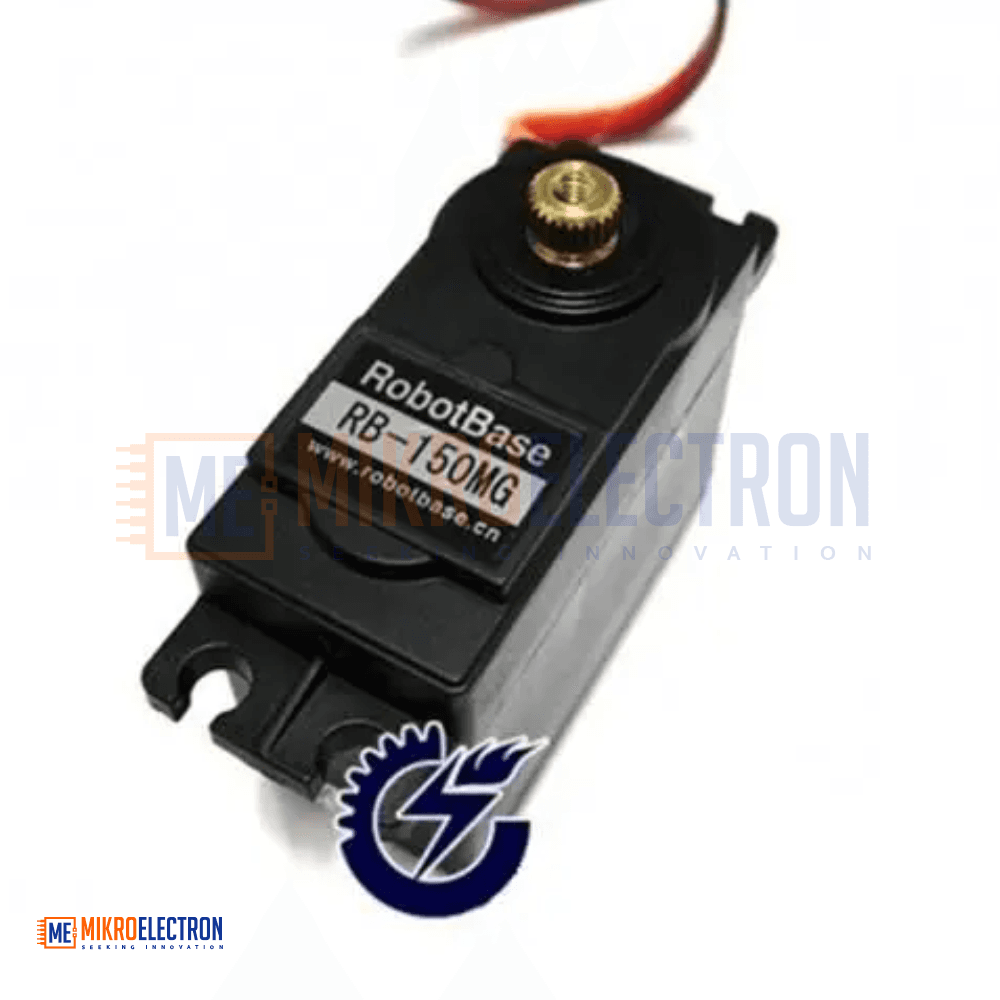

RB-150MG 180 degree Metal Servo
The RB-150MG 180° Metal Gear Servo is a high-performance digital servo featuring a coreless brush DC motor and all-metal gears for superior torque, precision, and durability. Delivering up to 16 kg-cm at 7.2V with a tight 10µs dead band, it offers fast response and accurate positioning. Designed for robotics, RC airplanes, and precision motion control, it provides excellent stability, low electromagnetic interference, and seamless integration with Arduino, microcontrollers, and standard RC receivers.
محرك السيرفو RB-150MG بزاوية 180 درجة بتروس معدنية هو محرك رقمي عالي الأداء يضم محرك DC بدون قلب حديدي وتروس معدنية بالكامل لعزم ودقة ومتانة فائقة. يوفر عزم يصل إلى 16 كغ.سم عند 7.2 فولت مع منطقة خمول ضيقة 10 ميكروثانية، مما يضمن استجابة سريعة وتموضعاً دقيقاً. مصمم لـ الروبوتات وطائرات التحكم عن بُعد وأنظمة الحركة الدقيقة، ويوفر ثباتاً ممتازاً وتداخلاً كهرومغناطيسياً منخفضاً وتكاملاً سلساً مع الأردوينو وأجهزة الاستقبال القياسية.
The RB-150MG Metal Gear Servo Motor is the newest generation 180-degree precision servo built around a coreless brush DC motor with a non-iron internal rotor. This advanced motor design delivers high energy conversion efficiency, fast braking and activation response, and smooth, stable operation — making the RB-150MG one of the most reliable servos in its class for demanding robotics and RC applications.
Internally, the servo uses an integrated digital control IC combined with a power switch H-bridge circuit running in bipolar driver mode. This translates into fast response, an extremely narrow dead band of just 10µs, high positioning accuracy, and excellent anti-jamming performance. A high-quality conductive plastic potentiometer provides reliable position feedback over thousands of cycles.
The mechanical structure is reinforced with all-metal gears, giving the servo high stall torque — up to 16 kg-cm at 7.2V — along with strong shock resistance. Despite its power, the servo remains compact and lightweight, with low electromagnetic interference, making it well suited for sensitive electronics environments.
The RB-150MG is fully compatible with standard PWM control signals (1500µs neutral) and works with most RC receivers and microcontrollers including Arduino, Raspberry Pi, ESP32, and STM32-based platforms. With a heavy-duty 300mm connector wire, it integrates easily into robotic arms, RC models, gimbals, and automation projects.
Specifications
- Model: RB-150MG
- Type: 180° Digital Metal Gear Servo
- Motor Type: Coreless Brush DC Motor (non-iron rotor)
- Gear Type: All Metal Gears
- Control System: PWM — 1500µs Neutral
- Operating Voltage: 5V – 7.2V
- Operating Temperature: 0°C to +60°C
- Operating Speed @ 6.0V: 0.16 sec / 60° (no load)
- Operating Speed @ 7.2V: 0.14 sec / 60° (no load)
- Stall Torque @ 5.0V: 13 kg-cm
- Stall Torque @ 6.0V: 15 kg-cm
- Stall Torque @ 7.2V: 16 kg-cm
- Current Drain @ 6.0V: 7.9 mA idle / 180 mA no-load operating
- Current Drain @ 7.2V: 15.8 mA idle / 220 mA no-load operating
- Dead Band Width: 10 µs
- Feedback Element: Conductive Plastic Potentiometer
- Driver Mode: Bipolar H-Bridge (Digital IC)
- Connector Wire Length: 300 mm
- Connector Type: Universal 3-pin servo connector
Applications
- Robotic arms and manipulators — joint actuation with high precision
- Humanoid, hexapod, and quadruped robots — leg and arm joints
- RC airplanes — control surfaces (ailerons, elevators, rudders, flaps)
- RC helicopters — swashplate and tail control
- RC cars and trucks — steering systems
- Pan-tilt camera gimbals and surveillance mounts
- Educational STEM and robotics kits
- Animatronics and moving displays
- DIY Arduino, Raspberry Pi, and ESP32 projects requiring high accuracy
- Industrial prototyping and automation systems
- University-level engineering and research projects
