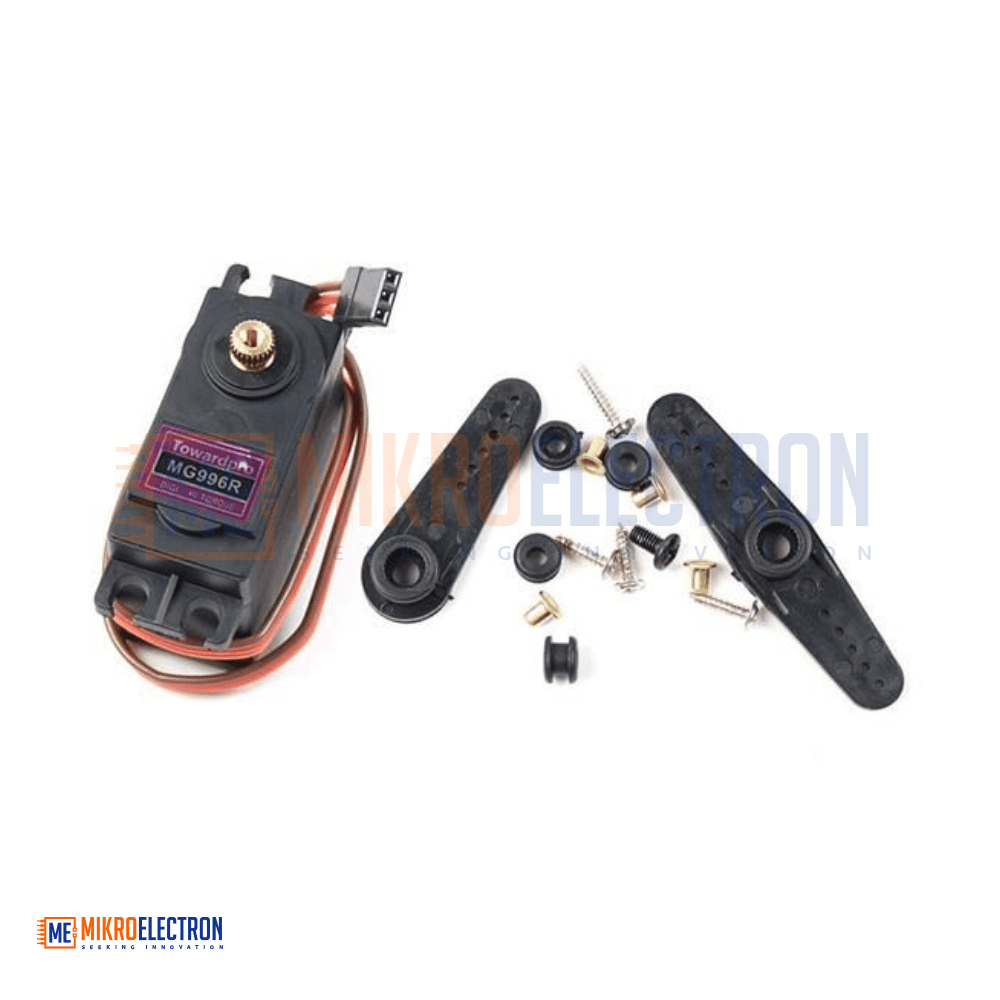

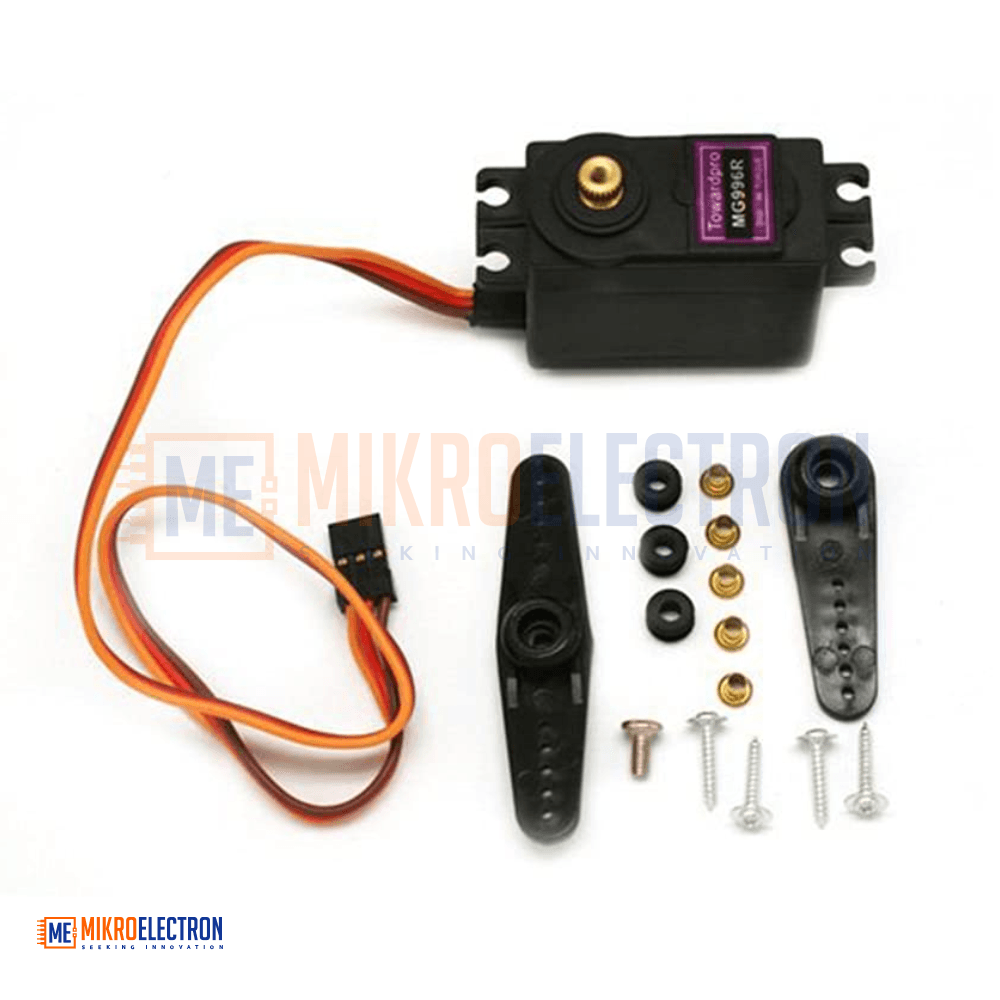

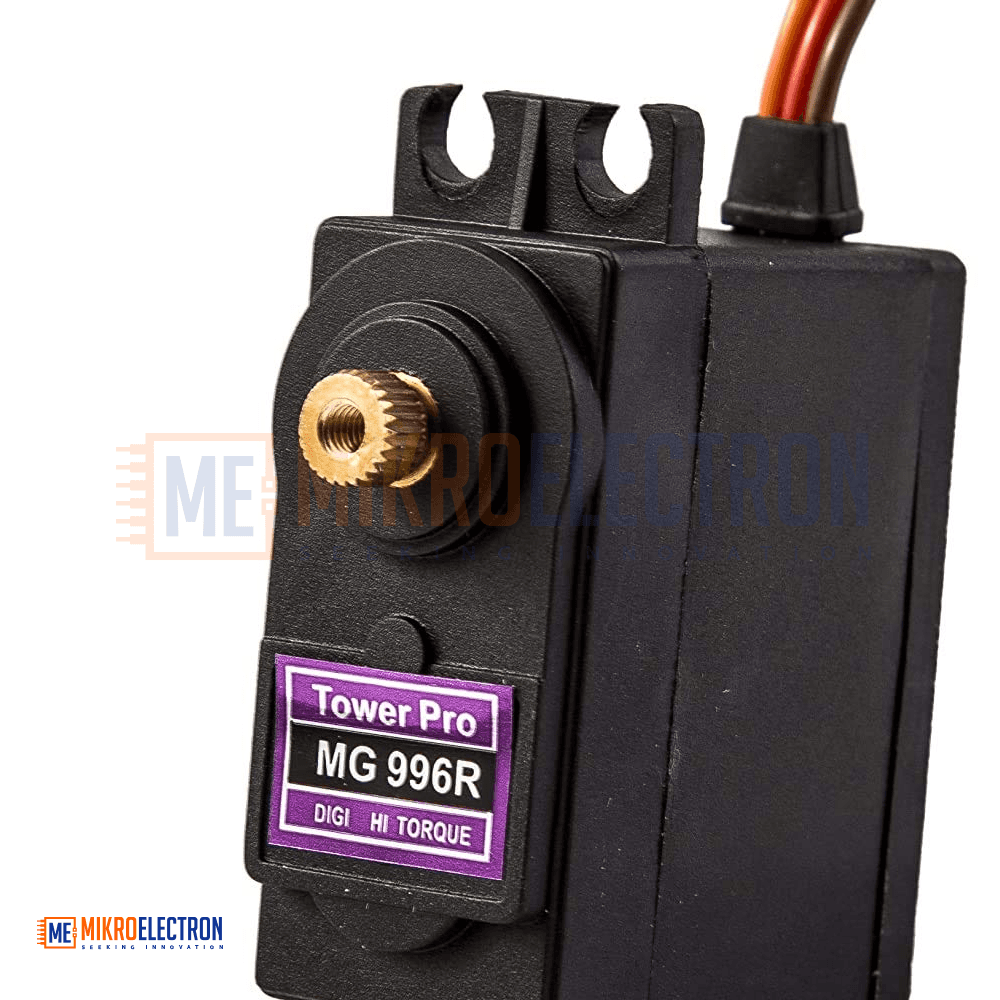

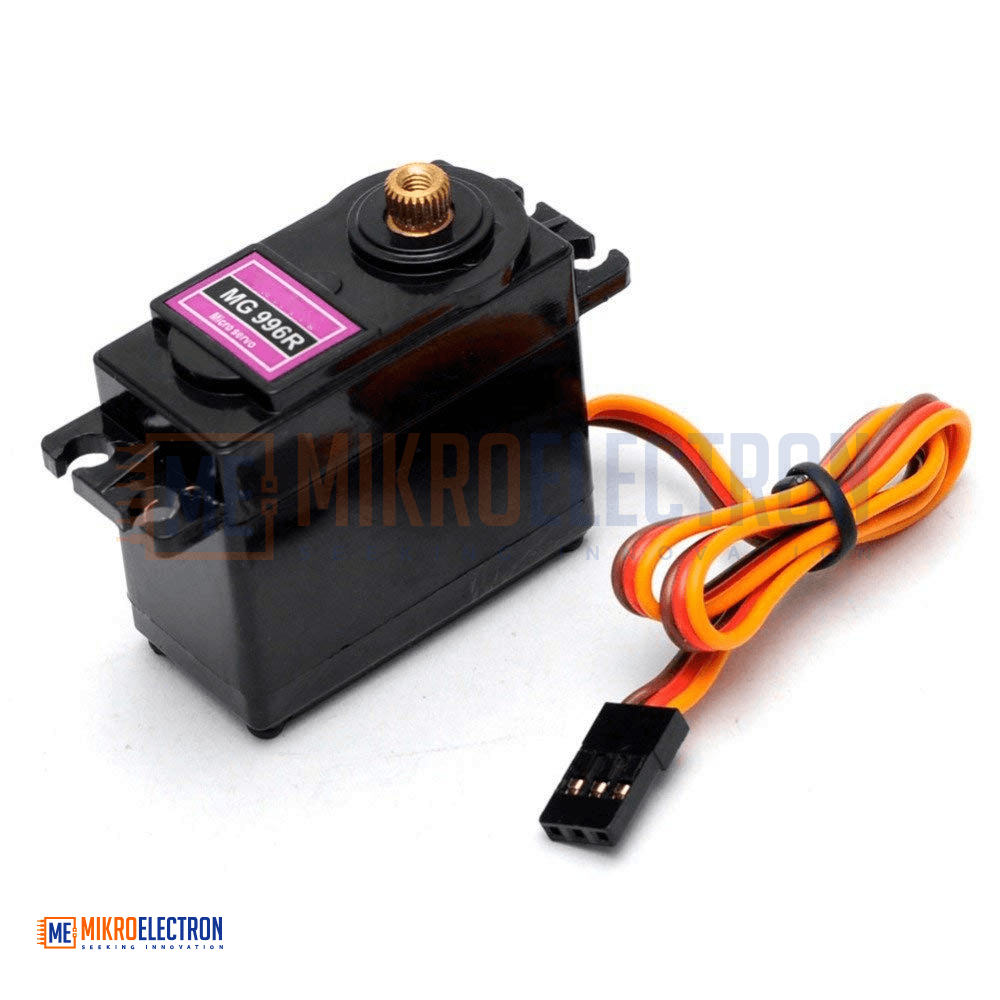

Servo Metal Gear MG996 13KG 180 degree ( normal quality )

The MG996R Servo Motor is a high-performance, high-torque digital servo widely used in robotics, RC vehicles, and automation projects. It is essentially an upgraded version of the famous MG995 servo, featuring a redesigned PCB and IC control system that significantly improves accuracy, response time, and centering precision. The internal gearing and motor have also been upgraded, resulting in a tighter dead bandwidth and smoother movement under load.

Built with all-metal gears and supported by dual ball bearings, the MG996R is engineered for durability and stable operation, even under continuous load or vibration. The robust mechanical construction makes it shock-resistant and well-suited for demanding applications such as aircraft control surfaces, robotic joints, and steering systems where precise positioning is critical.

The servo provides a standard 180-degree rotation range and is compatible with most common receiver and microcontroller signals, including Futaba, Hitec, Sanwa, and GWS systems, as well as Arduino, Raspberry Pi, ESP32, and other PWM-capable controllers. With a heavy-duty 300mm connector wire, it can be easily integrated into a wide variety of project setups.

Note: This is the normal quality version of the MG996R. For high-load continuous applications, ensure proper power supply through an external adapter to maintain stable performance and prolong service life.

Specifications

• Model: MG996R (180° Standard Version)
• Gear Type: All Metal Gears
• Bearings: Double Ball Bearing
• Operating Voltage: 4.8V – 7.2V
• Stall Torque @ 4.8V: 13 kg-cm (180.5 oz-in)
• Stall Torque @ 6.0V: 15 kg-cm (208.3 oz-in)
• Operating Speed @ 4.8V: 0.17 sec / 60° (no load)
• Operating Speed @ 6.0V: 0.13 sec / 60° (no load)
• Rotation Range: 180 degrees
• Dimensions: 40 x 19 x 43 mm
• Weight: 55 g
• Connector Wire Length: 300 mm (11.81") — Heavy Duty
• Power Supply: Via External Adapter (recommended)
• Compatibility: Futaba, Hitec, Sanwa, GWS, and other standard receivers/PWM controllers

Applications

• RC Cars and Trucks — steering and throttle control
• RC Boats — rudder and throttle servos
• RC Helicopters and Airplanes — control surfaces (ailerons, elevators, rudders)
• Robotic Arms and Manipulators — joint actuation
• Humanoid and Hexapod Robots — leg and arm joints
• Pan-Tilt Camera Mounts — surveillance and photography rigs
• Arduino, Raspberry Pi, and ESP32 projects requiring high-torque actuation
• DIY Automation Systems — door locks, valve actuators, animatronics
• Educational Robotics Kits and university-level engineering projects
