Magnetic Sensor Switch Normally Open Proximity Sensor / Reed Switch Aleph PS-3150

Name: Magnetic Sensor Switch Normally Open Proximity Sensor / Reed Switch Aleph PS-3150 | Magnetic, Sensor, Switch, Normally, Open, Proximity, Sensor, Reed, Switch, Aleph, PS, 3150
Brand: Mikroelectron
SKU: me-4726
Price: 4.00 JOD
Availability: InStock
Rating: 5.0 (1 reviews)

5.0(1 review)

SKU: ME-4726

JD4.00

Normally Open Proximity Magnetic Sensor / Reed Switch Aleph PS-3150Model: C PS-3150　Operating Characteristics:Scope of work AT10-30Release range ATMin 5Working time (maximum) (energized) ms1.0Bounce time (maximum) (energized) ms1.5Release time (maximum) (energized) ms1.0Resonant frequency (typical) Hz4000 　Electrical Characteristics:Switching power (maximum) W10DC switching voltage (maximum...

Proximity & Distance Sensors

Switches

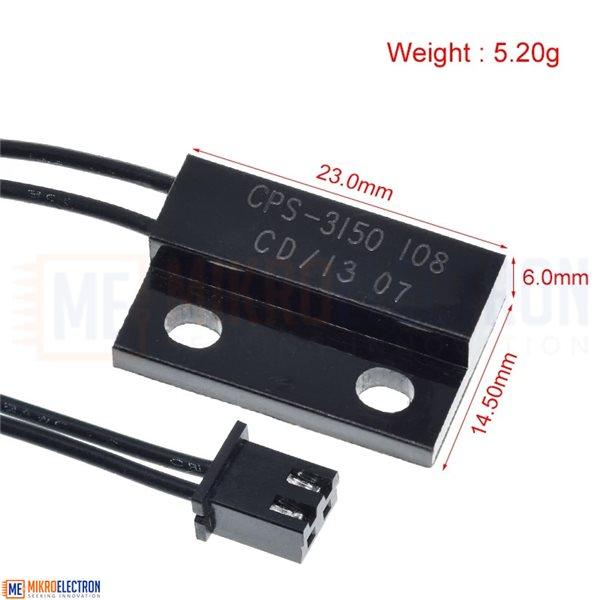

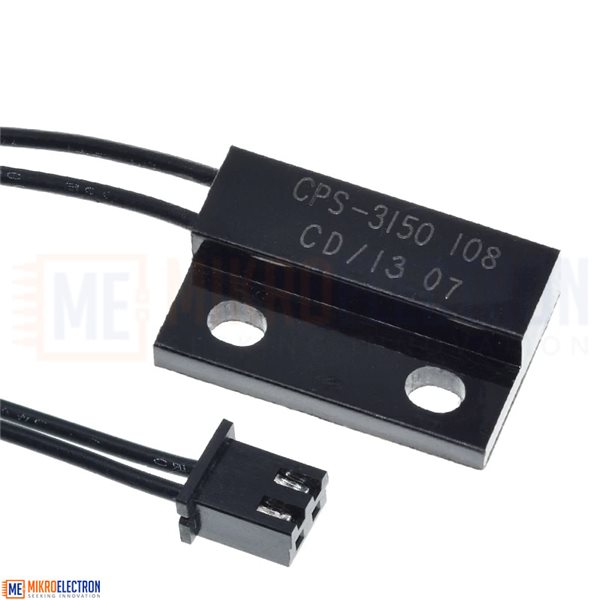

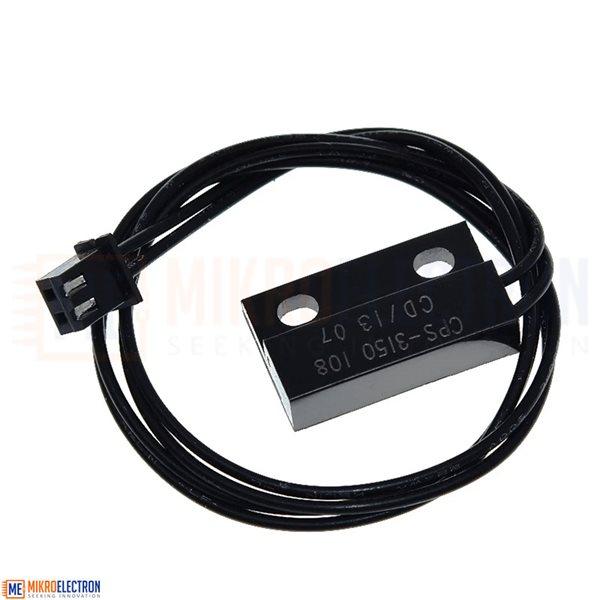

Normally Open Proximity Magnetic Sensor / Reed Switch Aleph PS-3150

Model: C PS-3150

Operating Characteristics:

Scope of work AT10-30

Release range ATMin 5

Working time (maximum) (energized) ms1.0

Bounce time (maximum) (energized) ms1.5

Release time (maximum) (energized) ms1.0

Resonant frequency (typical) Hz4000

Electrical Characteristics:

Switching power (maximum) W10

DC switching voltage (maximum) V220

AC switching voltage, RMS (maximum) V220

DC switching current (maximum) mA500

AC switching current, RMS (maximum) mA500

Breakdown Voltage (Minimum) V250

Contact Resistance (initial max) m W200

Contact Resistance (initial typ) m W100

Contact Capacitance (maximum) without test coil pF0.7

Insulation Resistance (Min) RH ￡ 45% M W103
