XKC-Y25-NPN Waterproof Non-Contact Liquid Level Sensor Switch Signal Output DC 5-24V

XKC-Y25-NPN Waterproof Non-Contact Liquid Level Sensor Switch Signal Output DC 5-24V

The non-contact liquid level sensor utilizes advanced signal processing technology by using a powerful chip with high-speed operation capacity to achieve non-contact liquid level detection. No contact with liquid makes the module suitable for hazardous applications such as detecting toxic substances, strong acid, strong alkali and all kinds of liquid in an airtight container under high pressure. And there is no need to open pore on the container tested, so it is easy to install and use this sensor detection.

Specifications:

Model: XKC-Y25-NPN

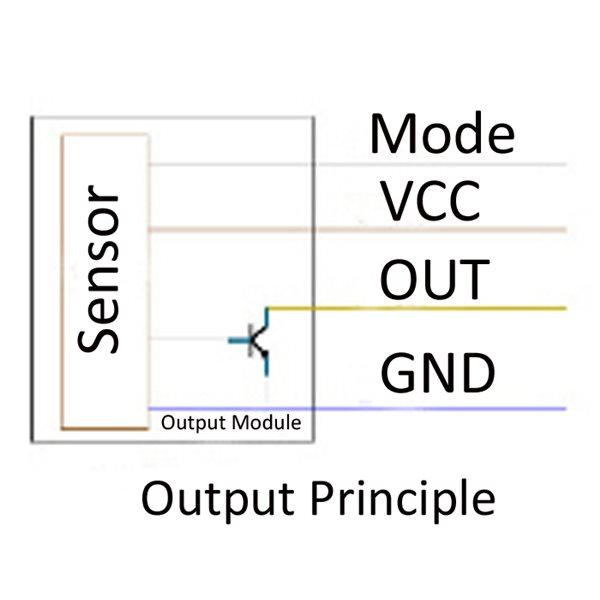

Output: NPN

Input Voltage (InVCC): DC 5~24V

Current: 5mA

Output Voltage (high level): InVCC

Output Voltage (low level): 0V

Output Current: 1~100mA

Response Time: 500mS

Operating Temperature: 0~105℃

Induction Thickness (sensitivity): 0~13 mm

Communication: RS485

Humidity: 5% ~ 100%

Material: ABS

Ingress Protection: IP67
