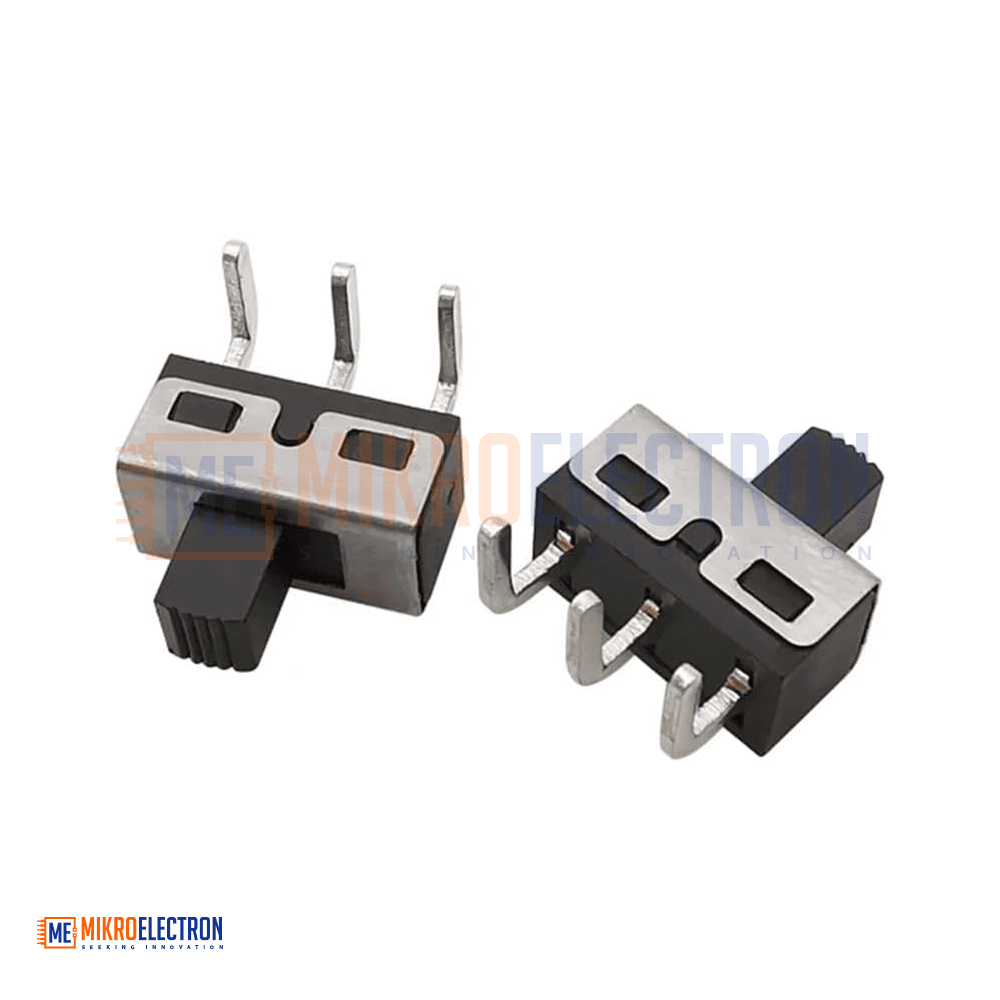

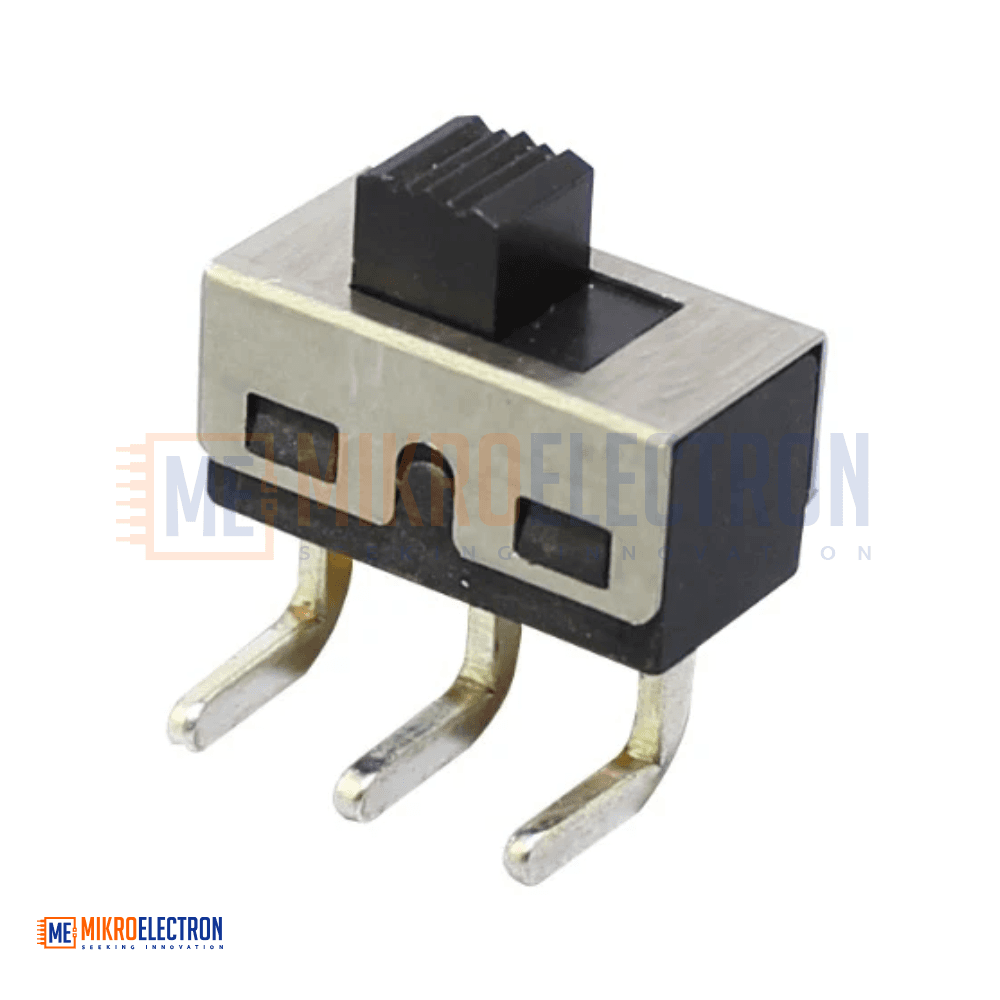

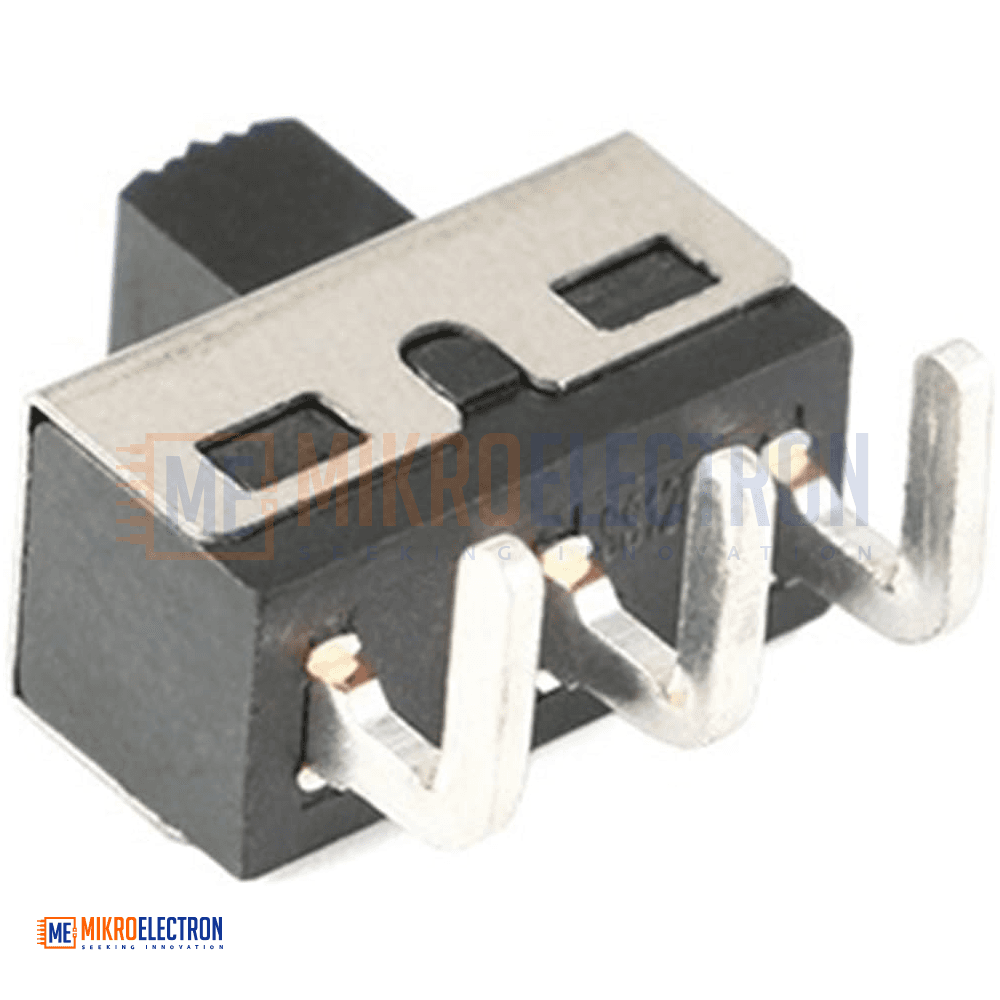

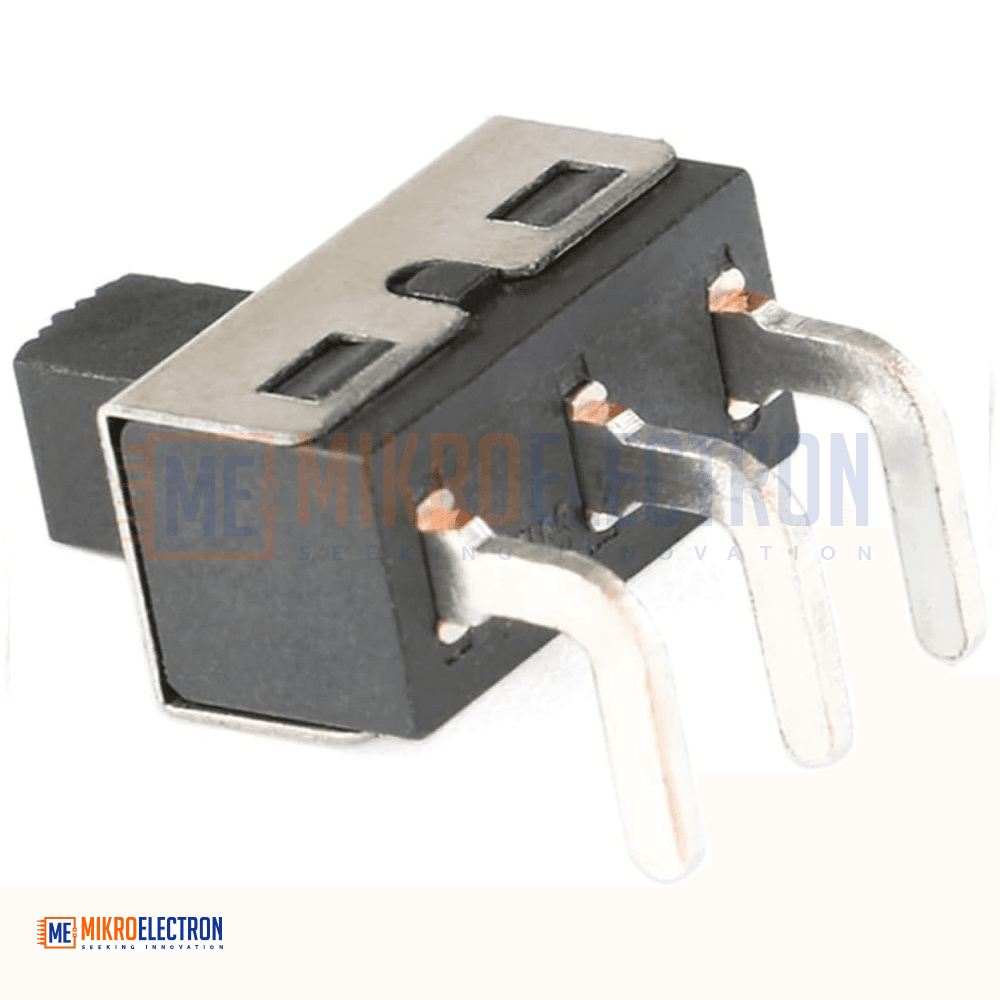

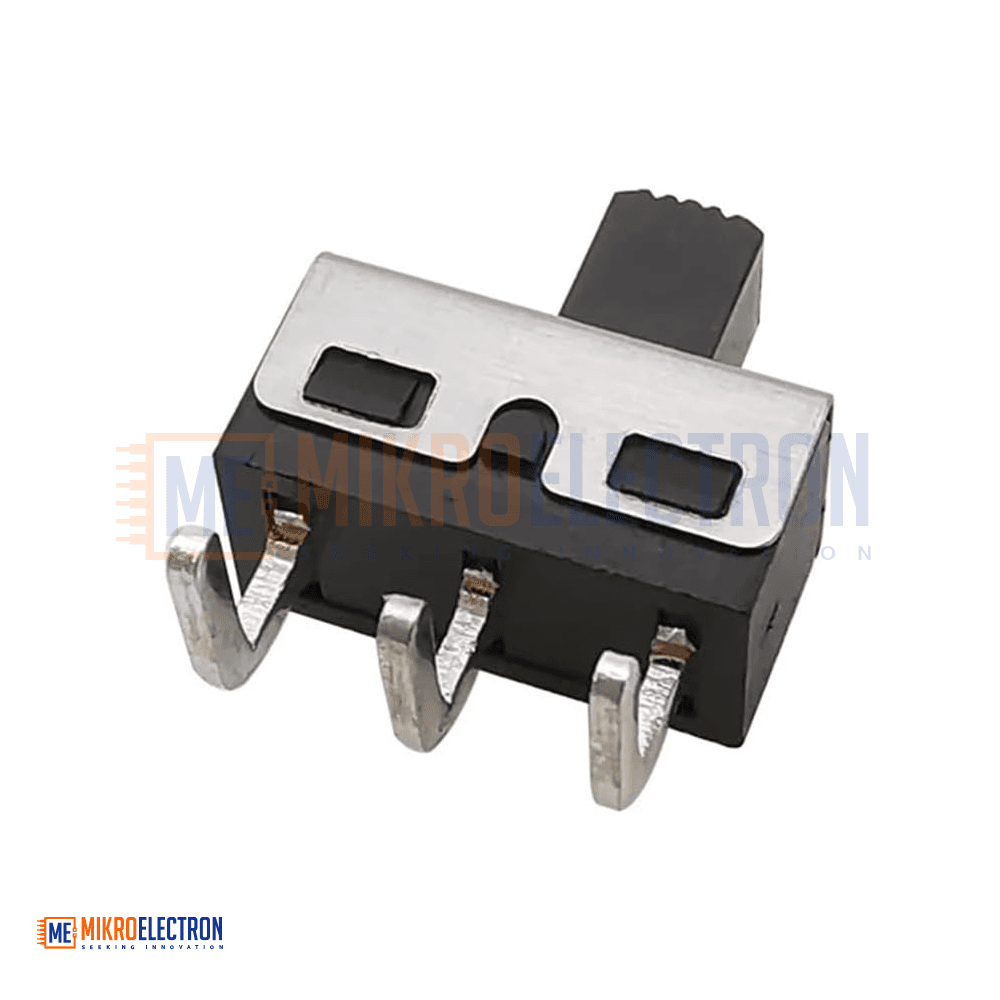

3pin Right Angle Spdt 2 Way Slide Switch

The 3Pin Right Angle SPDT 2-Way Slide Switch is a compact and durable electrical switch designed for PCB mounting in electronic devices and DIY projects. It operates as a Single Pole Double Throw (SPDT) switch, allowing the user to route a signal between two different outputs or simply turn a circuit ON and OFF.

Its right-angle design makes it ideal for space-constrained PCB layouts, ensuring a low-profile installation. The switch supports low-current applications and is built for long-term reliability with a mechanical life of more than 50,000 switching cycles.

This component is widely used in small electronic devices, prototyping boards, audio equipment, battery-operated circuits, and control systems where compact and reliable switching is required.

Specifications

• Product Type: Slide Switch
• Switch Type: SPDT (Single Pole Double Throw)
• Pins: 3 Pin
• Position: 2-way switching
• Mounting Type: Right Angle PCB Mount
• Current Rating: 0.5A
• Breaking Capacity: Low-current applications
• Mechanical Life: >50,000 cycles
• Certification: RoHS compliant
• Operation Type: Slide mechanism

Applications

• PCB electronic circuits
• DIY electronics projects
• Battery-powered devices
• Signal routing systems
• Small control panels
• Arduino and prototyping circuits
• Audio and low-power devices
• Educational electronics kits
