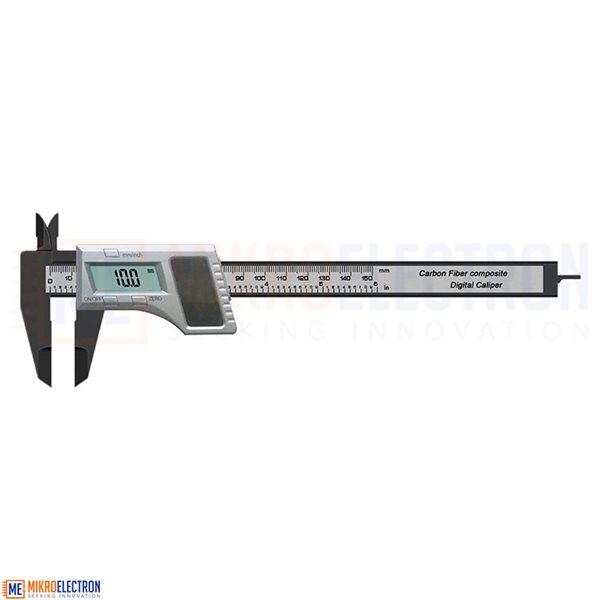

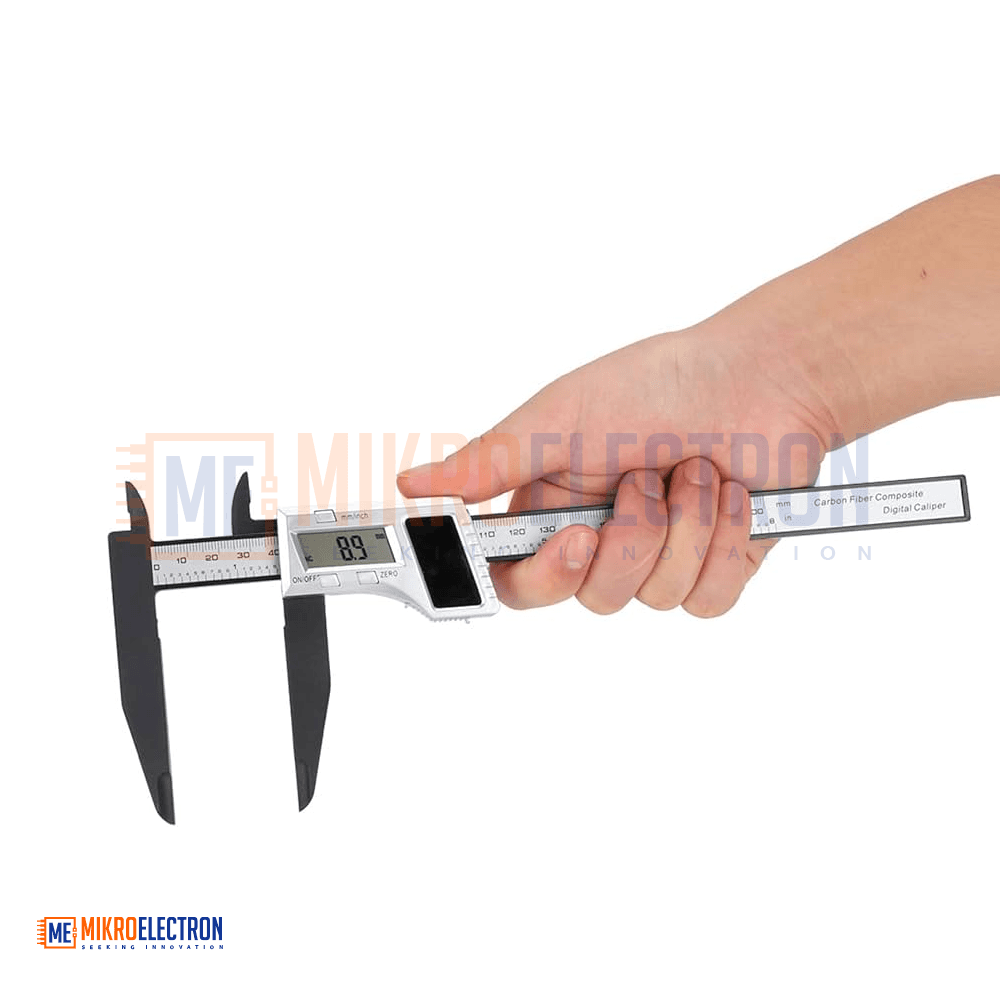

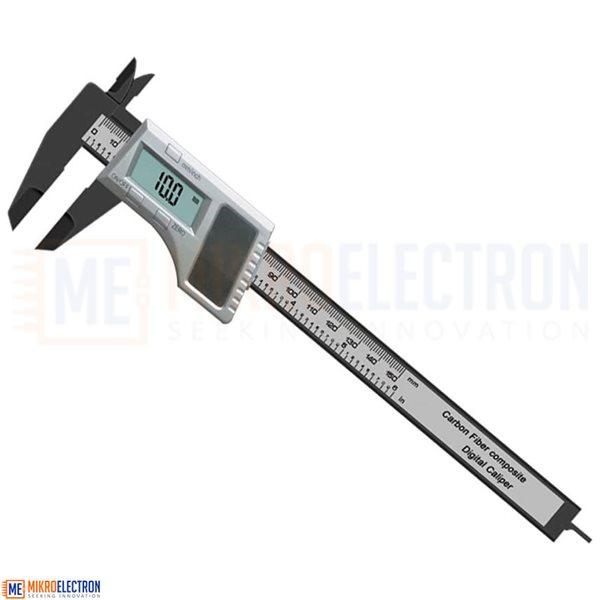

Solar Digital Caliper 150mm - plastic

The Solar Digital Caliper 150mm is a versatile and environmentally friendly precision instrument designed for accurate measurement across a wide range of applications. Manufactured from high-strength plastic, the caliper is lightweight, non-magnetic, and resistant to rust and corrosion, making it especially suitable for use in workshops, laboratories, and field environments where metal calipers may not be ideal.

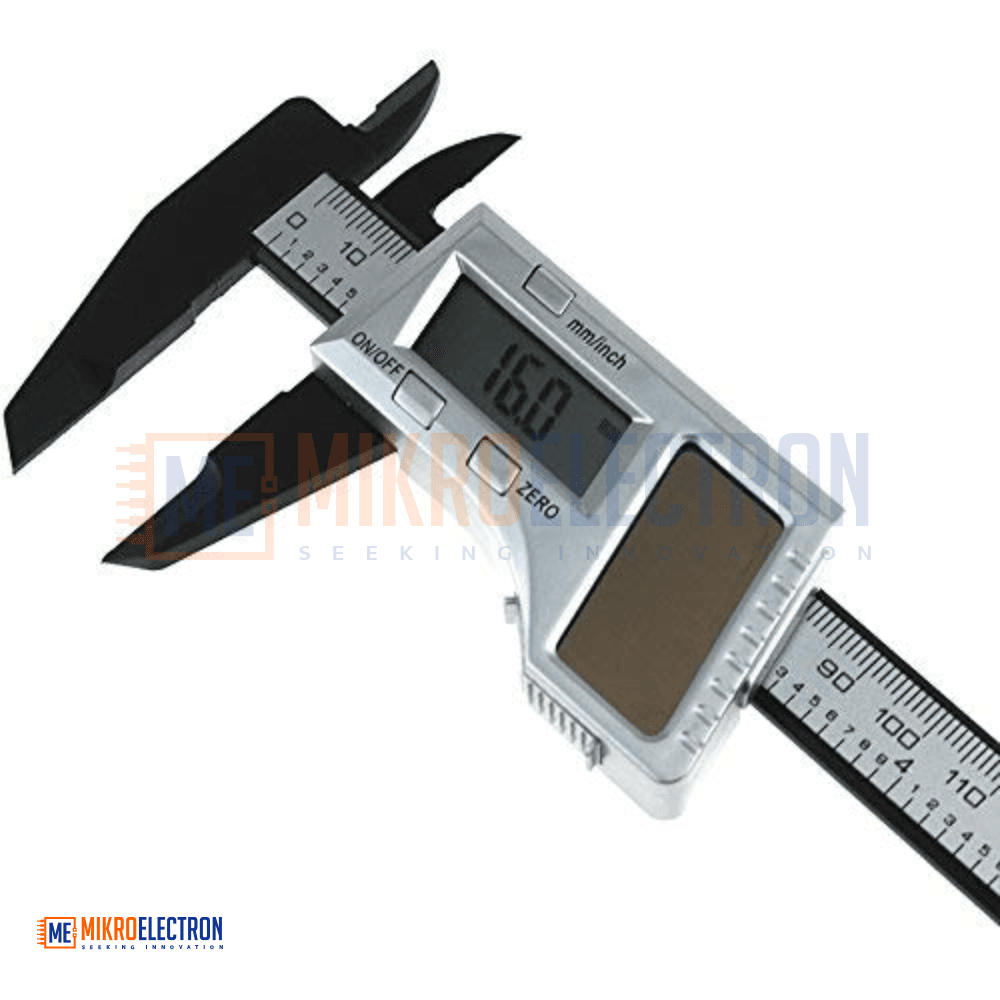

A standout feature of this tool is its dual power system: a built-in solar panel automatically powers the display when ambient light exceeds 200 LUX, while a 3V backup battery kicks in seamlessly during low-light conditions. This hybrid energy design dramatically extends battery life and ensures continuous operation in any working environment.

The caliper supports four measuring modes — outside, inside, step, and depth — making it a complete dimensional measurement solution. It offers a measuring range of 0 to 150mm (6 inches) with an accuracy of ±0.2mm and a resolution of 0.1mm / 0.01". The large, easy-to-read LCD display shows measurements in both metric and imperial units, with instant conversion at the press of a button. A zero-setting function allows for relative measurements at any position along the scale.

Designed for stable and accurate readings, the caliper supports a maximum measuring speed of 1.5mm/second and operates reliably in temperatures from 0°C to +40°C, with humidity tolerance up to 80% RH. Its compact dimensions (235 × 75 × 10 mm) make it easy to carry and store.

Specifications

• Material: High-strength plastic (non-magnetic, anti-corrosive)
• Measuring Range: 0 – 150mm / 0 – 6"
• Accuracy: ±0.2mm / ±0.01"
• Resolution: 0.1mm / 0.01"
• Repeatability: 0.1mm / 0.01"
• Maximum Measuring Speed: 1.5 mm/sec (60"/sec)
• Measuring Functions: Outside, Inside, Step, Depth
• Display: LCD digital readout (mm / inch)
• Power Source:
  • Solar panel (active when light > 200 LUX)
  • 3V backup battery (active when light < 200 LUX)
• Operating Temperature: 0°C to +40°C
• Storage Temperature: -20°C to +70°C
• Humidity Tolerance: 0 – 80% RH (no influence on accuracy)
• Dimensions: 235 × 75 × 10 mm (L × W × H)

Applications

• Mechanical Engineering for shaft, bore, and component measurement
• 3D Printing and Prototyping to verify printed part dimensions
• Electronics Assembly for measuring PCBs, components, and enclosures
• Jewelry Making to measure stones, beads, rings, and small parts
• Woodworking and Carpentry for fine joinery and component fitting
• Education and STEM Labs teaching precision measurement
• DIY and Hobbyist Projects including model making and crafts
• Quality Control for inspecting small manufactured parts
• Medical and Dental Labs where non-magnetic tools are required
• Field Engineering where lightweight, durable tools are essential
• Lab Research involving sensitive equipment that must remain unmagnetized
