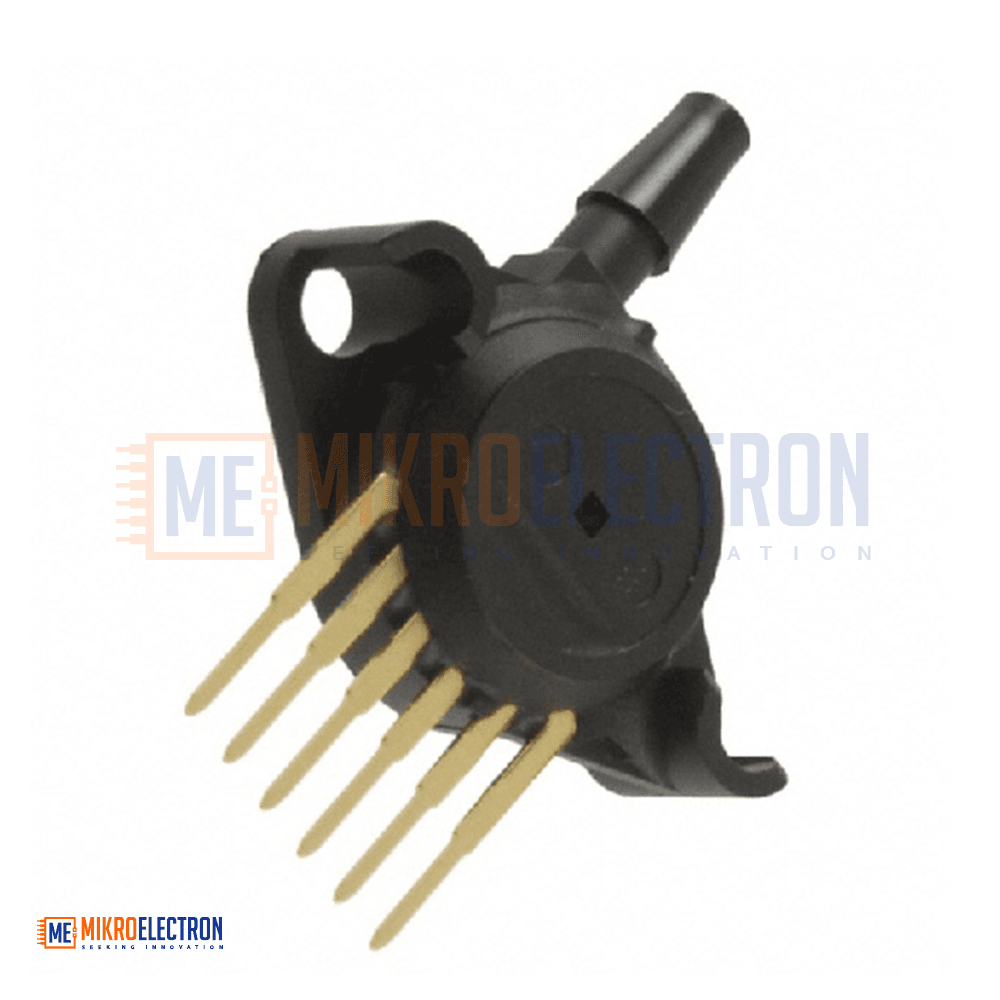

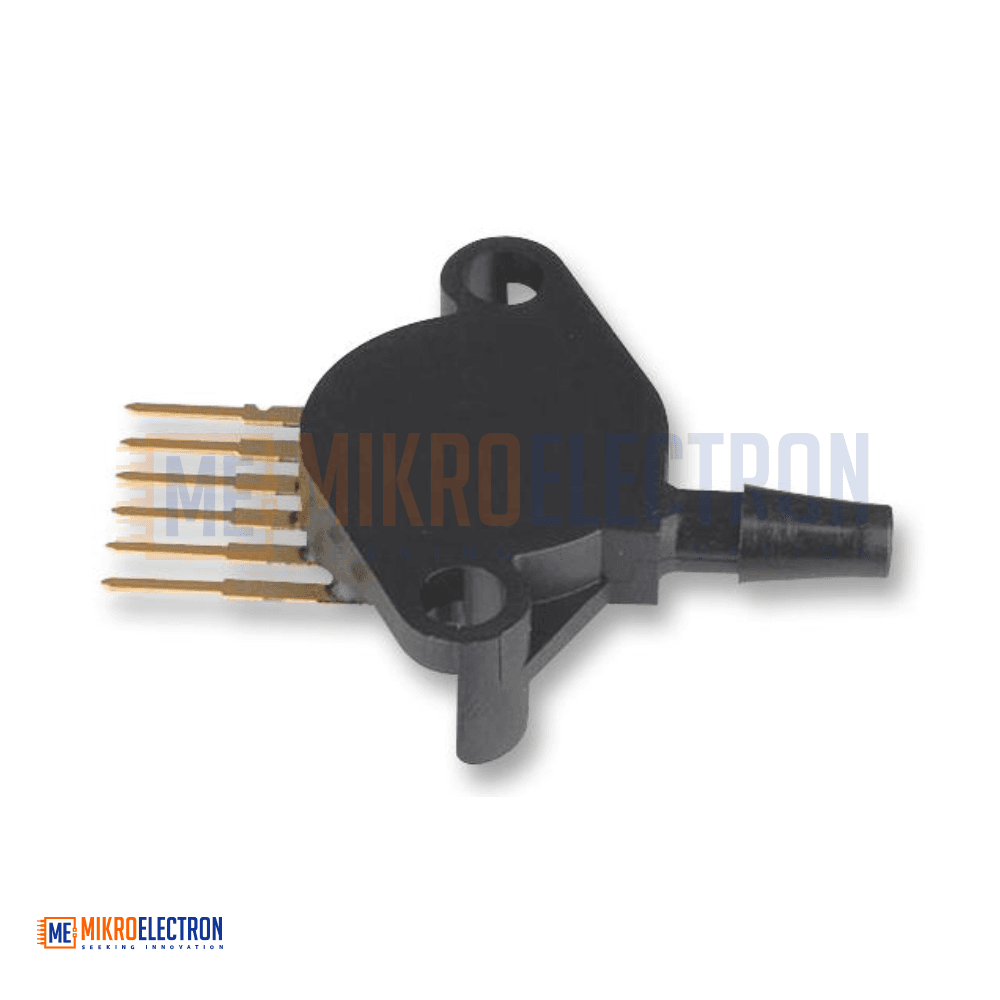

MPX5050GP Pressure Sensor 5V 0/50kPa

The MPX5050GP Gauge Pressure Sensor is a high-accuracy, piezoresistive silicon pressure transducer featuring on-chip signal conditioning, calibration, and temperature compensation. Manufactured on a single monolithic silicon die, this sensor delivers a highly linear analog output voltage that is directly proportional to the applied pressure, making it one of the most popular pressure sensing solutions for embedded systems, industrial automation, and DIY electronics projects.

The MPX5050GP is a gauge-type sensor, meaning it measures pressure relative to atmospheric pressure, making it ideal for applications where differential measurements with respect to ambient conditions are needed. It has a measurement range of 0 to 50 kPa (approximately 0 to 7.25 PSI), with a typical sensitivity of 90 mV/kPa, providing excellent resolution even for small pressure variations.

Operating from a single 5V supply (4.75V to 5.25V) with only 7 mA of current draw, the sensor outputs a clean analog voltage that can be read directly by any microcontroller's ADC pin (such as Arduino, ESP32, STM32, PIC, or Raspberry Pi via an external ADC). The integrated temperature compensation circuit ensures stable performance across a wide operating temperature range of -40°C to +125°C, making it suitable for demanding industrial and automotive environments.

Housed in a 6-pin 867B-04 through-hole package with a single-port pressure inlet, the MPX5050GP is easy to integrate into PCB designs, prototype boards, and final products. Its combination of accuracy, robustness, and ease of use makes it a top choice for respirators, blood pressure monitors, water level sensors, vacuum control systems, and a wide range of fluid and gas pressure applications.

Specifications

• Manufacturer: Freescale / NXP
• Model: MPX5050GP
• Pressure Type: Gauge (relative to atmosphere)
• Operating Pressure Range: 0 kPa to 50 kPa (approx. 0 to 7.25 PSI)
• Sensitivity (V/P): 90 mV/kPa
• Output Type: Analog voltage (linear with pressure)
• Supply Voltage Range: 4.75V to 5.25V
• Supply Current: 7 mA
• Operating Temperature Range: -40°C to +125°C

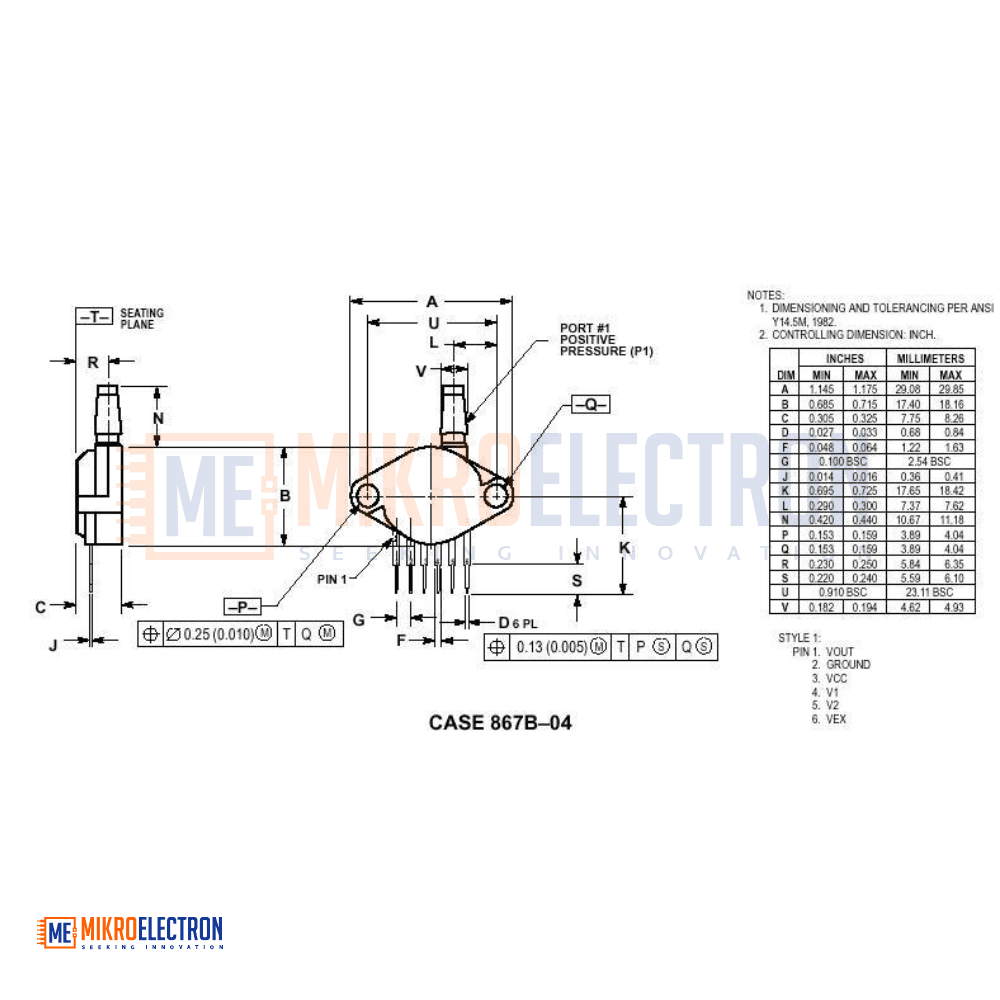

• Package / Case Style: 867B-04
• Number of Pins: 6
• Termination Type: Through-Hole
• Port Style: Single Port
• Connection Size: 4.93 mm
• Compliance: No SVHC (20-Jun-2011)
• Base Number: 5050

Applications

• Medical Devices — blood pressure monitors, respiratory equipment, ventilators
• HVAC and Air Conditioning systems for air pressure monitoring
• Industrial Pressure Control Systems in factories and process plants
• Pneumatic and Hydraulic Equipment for force and flow regulation
• Vacuum Cleaners and Suction Devices for performance monitoring
• Water Level Measurement in tanks and reservoirs
• Automotive Diagnostics including manifold and vacuum line testing
• Weather and Environmental Stations
• Process Automation and Robotics requiring precise pressure feedback
• Arduino and Raspberry Pi Projects for IoT-based pressure monitoring
• Smart Home Devices such as water leak and pump control systems
• Educational Lab Experiments demonstrating pressure-to-voltage conversion
• Aquarium and Hydroponic Systems for water column pressure measurement
