Quadcopter Kit
Out Of Stock

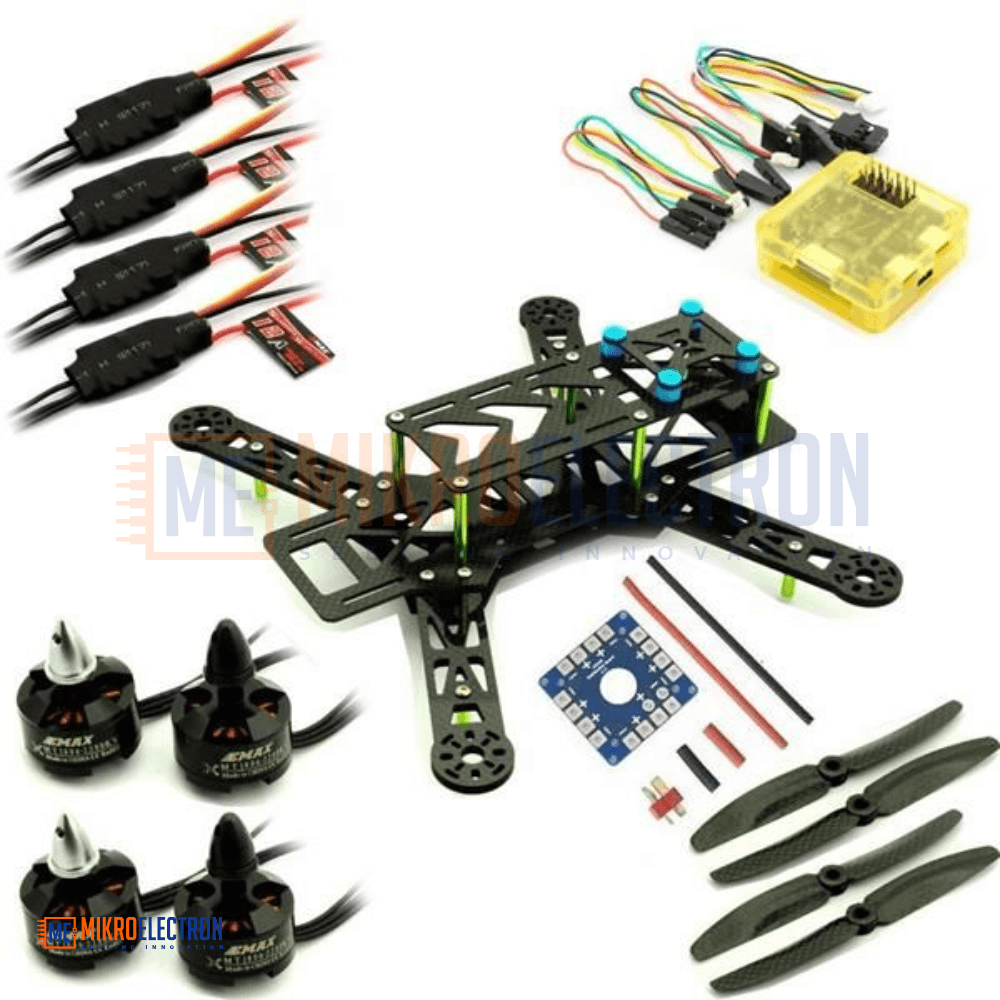

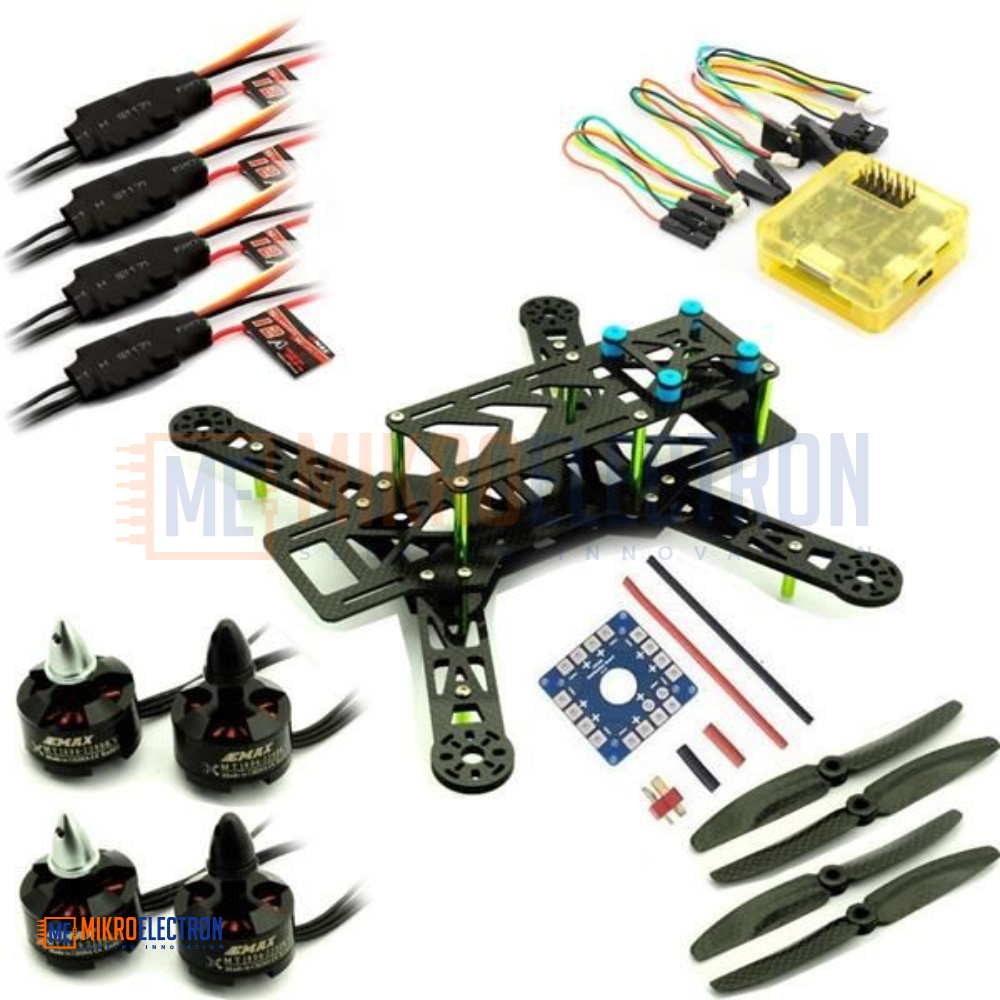

The Mini 250 FPV Quadcopter Kit is a lightweight carbon fiber drone platform designed for FPV racing, robotics, and aerial projects. The kit includes a durable 250-size frame, MT1806 2280KV brushless motors, 12A SimonK ESCs, and a CC3D flight controller for stable and responsive flight control. Supporting 2–3S LiPo batteries and 5–6 inch propellers, this quadcopter kit delivers high performance, smooth maneuverability, and easy customization for hobbyists and developers.
تُعد مجموعة Mini 250 FPV Quadcopter Kit منصة طائرة خفيفة الوزن مصنوعة من ألياف الكربون ومناسبة لسباقات FPV والمشاريع الجوية والروبوتية. تتضمن المجموعة هيكل 250 متين، ومحركات MT1806 2280KV Brushless، ووحدات تحكم سرعة 12A SimonK ESC، بالإضافة إلى متحكم الطيران CC3D لتوفير تحكم واستقرار عالي أثناء الطيران. تدعم بطاريات 2–3S LiPo ومراوح 5–6 إنش، مما يوفر أداءً سريعاً واستجابة ممتازة مع إمكانية التخصيص والتطوير بسهولة.
The Mini 250 FPV Quadcopter Kit is a complete drone platform designed for FPV flying, racing, aerial experimentation, and robotics development. Built around a strong and lightweight 3K woven carbon fiber frame, the kit provides excellent durability while maintaining low weight for improved flight performance and maneuverability.
The kit includes MT1806 2280KV brushless motors, offering efficient thrust and fast response for stable and agile flight. Combined with Emax SimonK 12A ESCs, the system delivers smooth motor control and reliable performance using 2–3S LiPo batteries.
At the center of the system is the CC3D Flight Controller, featuring advanced stabilization technology with a 3-axis gyroscope and accelerometer. The controller supports multiple RC receiver types, telemetry functions, GPS connectivity, camera stabilization, and flexible configuration through USB using OpenPilot GCS software.
The compact 250-size frame supports 5–6 inch propellers and is suitable for FPV racing drones, autonomous flight projects, educational UAV systems, and custom aerial applications.
Specifications

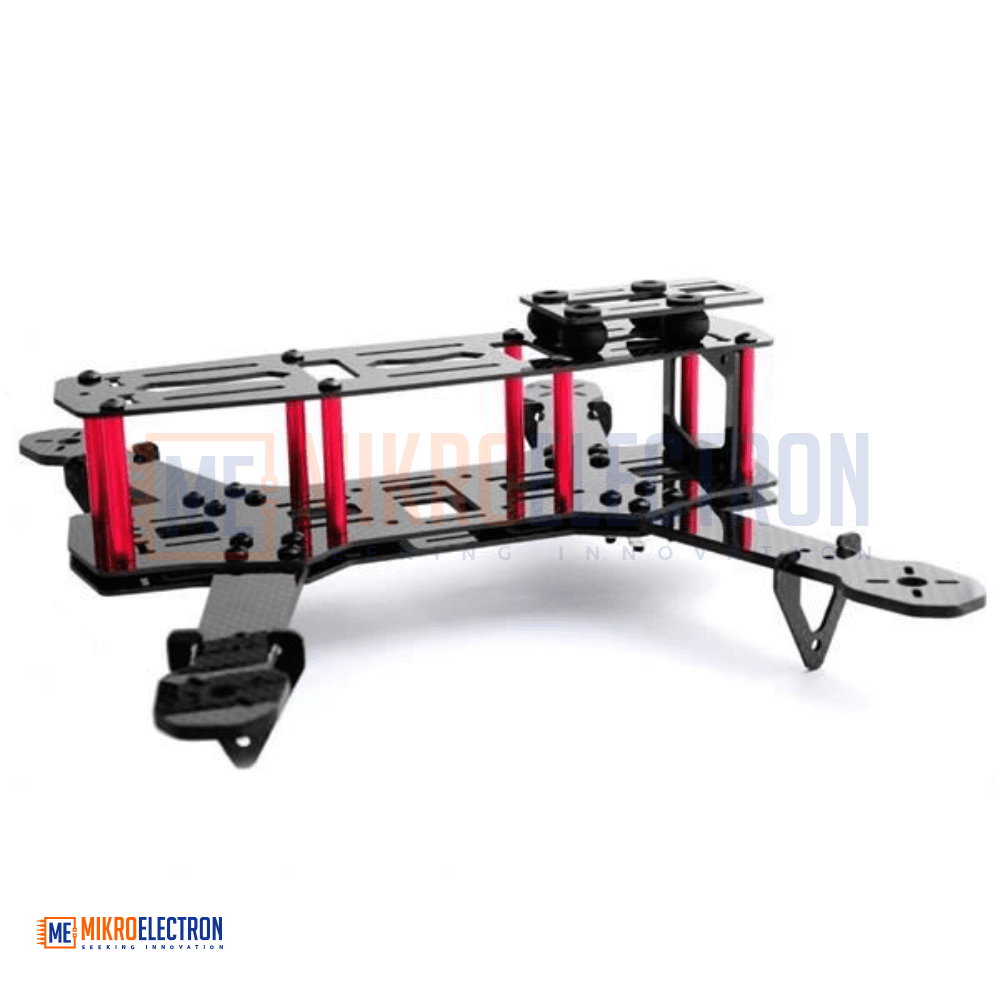

Quadcopter Frame
- Frame Type: Mini 250 FPV Quadcopter Frame
- Material: 3K Weave Carbon Fiber
- Fasteners: Stainless Steel & Black Nylon 6/6
- Frame Size: 220 mm diagonal
- Width: 175 mm
- Length: 130 mm motor-to-motor
- Maximum Propeller Size: 5 inch
- Motor Mount: M2 12–16 mm
- Flight Controller Mount: 30.5 × 30.5 mm
- Board Camera Mount: 32 × 32 mm

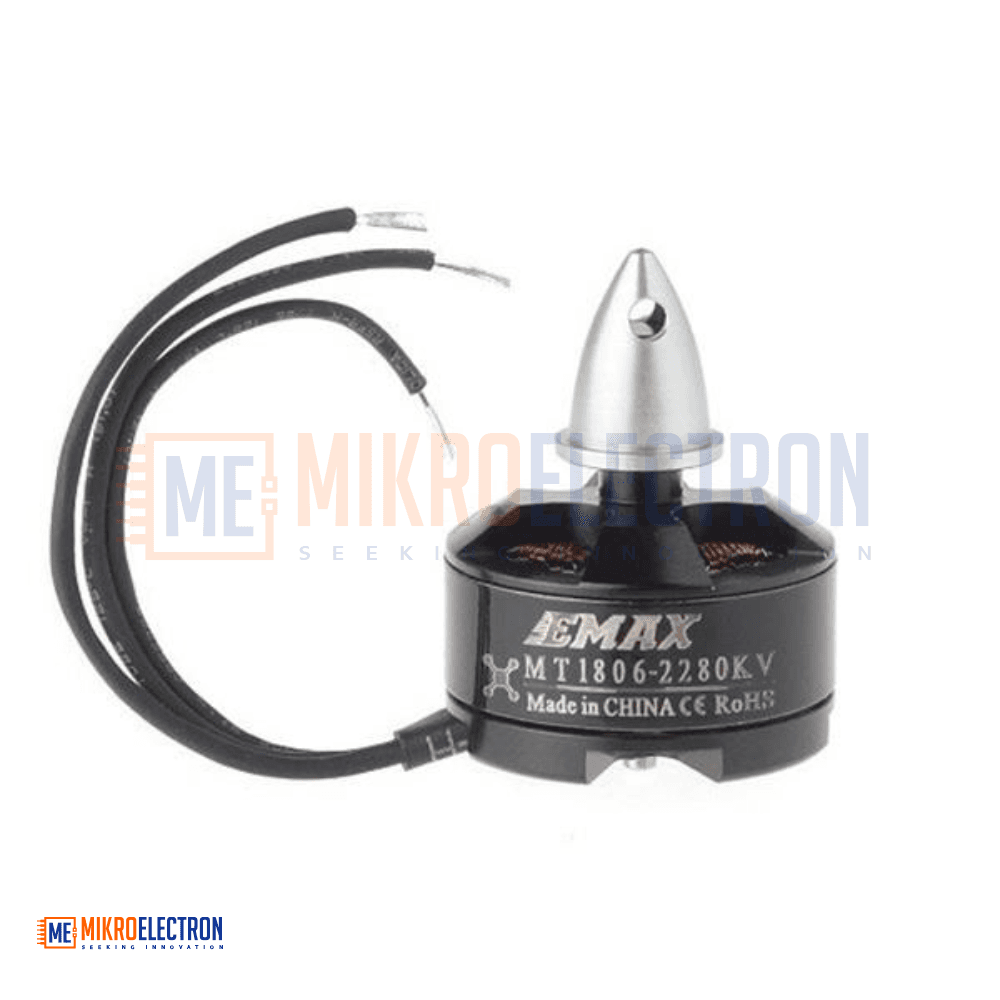

MT1806 Brushless Motor
- Motor KV Rating: 2280KV
- Maximum Thrust: 460 g
- Battery Support: 2–3S LiPo
- Framework: 12N14P
- Recommended Propeller: 5" – 6"
- Motor Length: 26.7 mm
- Shaft Diameter: 2 mm
- Motor Diameter: 23 mm
- Weight: 18 g
SimonK 12A ESC
- Brand: Emax
- ESC Type: SimonK Series
- Current Rating: 12A
- Battery Input: 2–3S LiPo
CC3D Flight Controller
- Gyroscope & Accelerometer: MPU-6000
- RC Receiver Support: PWM, PPM, DSM2, DSMX, S.Bus
- PWM Outputs: Up to 10 channels
- USB Connectivity: Supported
- Telemetry Support: Yes
- GPS Support: Yes
- Camera Stabilization: Up to 3-axis stabilization
- Onboard Memory: 4 Mbit
- Filter Frequency: 500Hz Quaternion-based filter
- Software Support: OpenPilot GCS
Applications
- FPV racing drones
- Educational UAV projects
- Robotics and autonomous flight systems
- DIY drone development
- Aerial photography experiments
- Flight controller testing
- Remote sensing projects
- Embedded systems and telemetry learning
