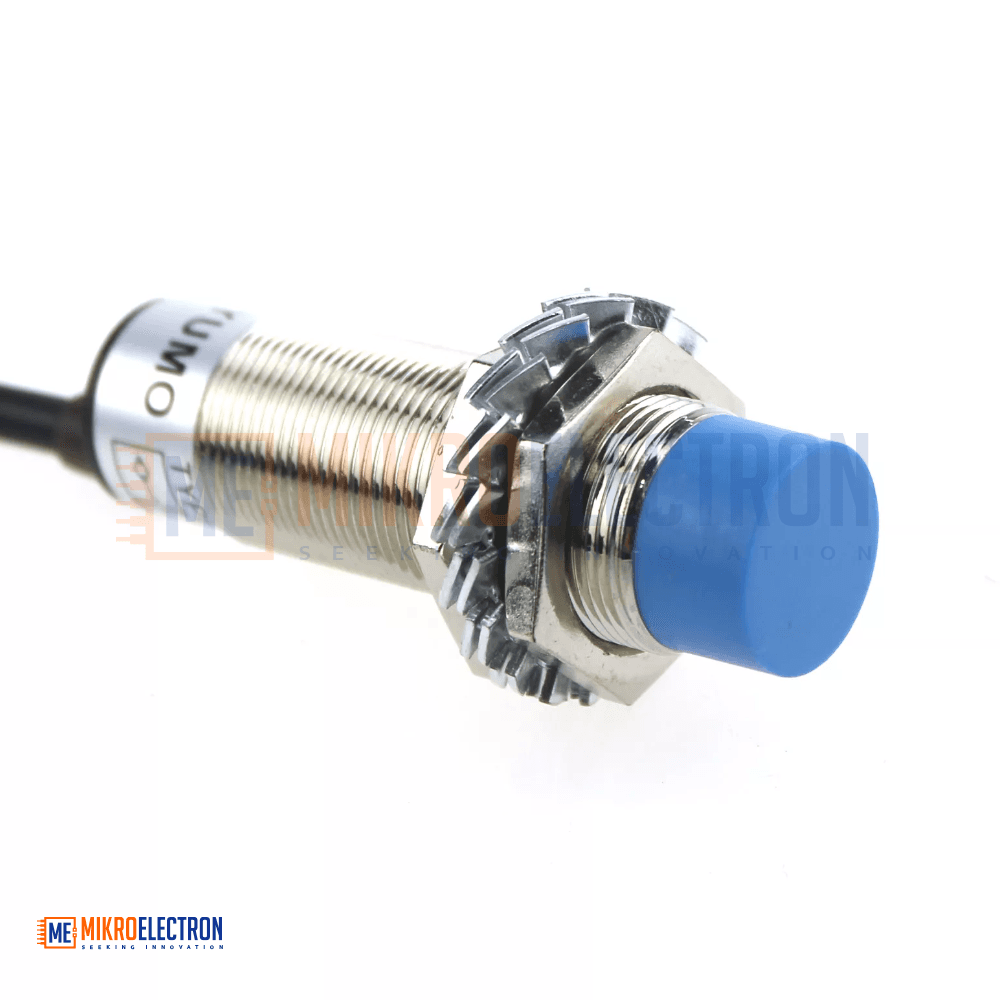

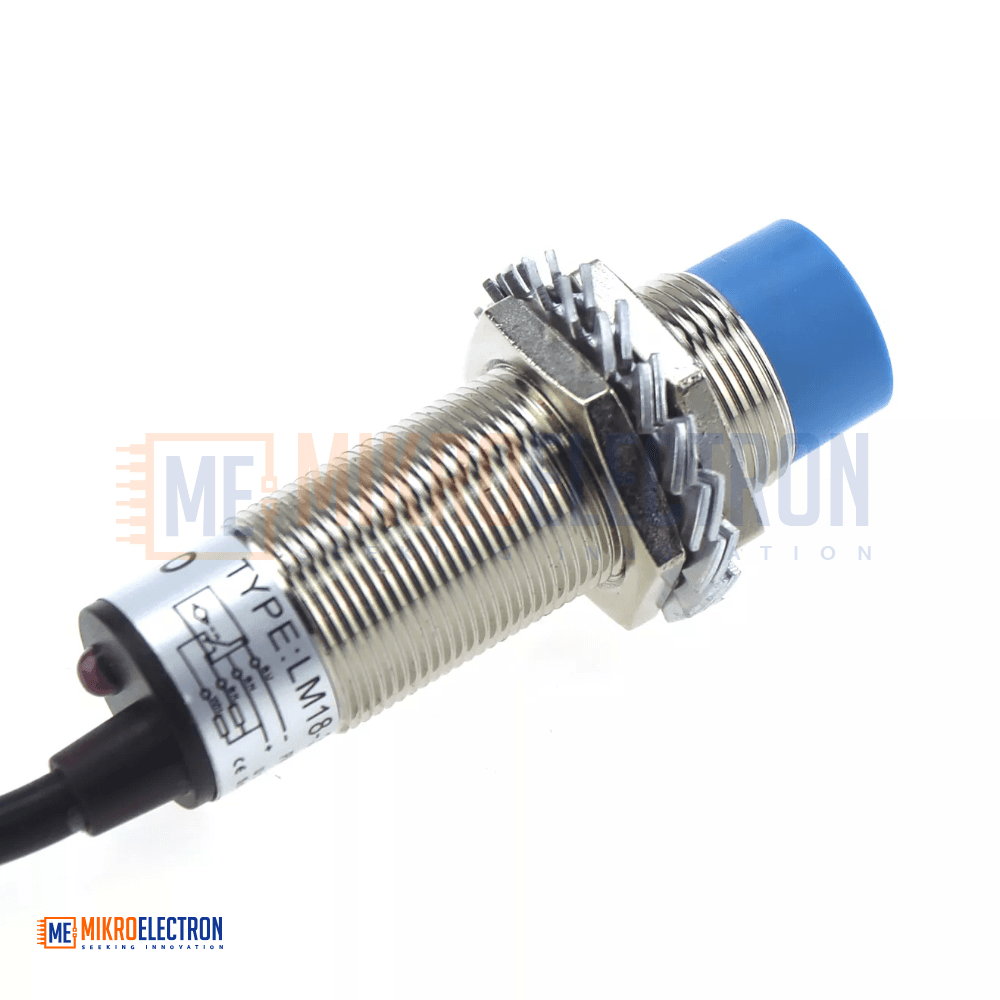

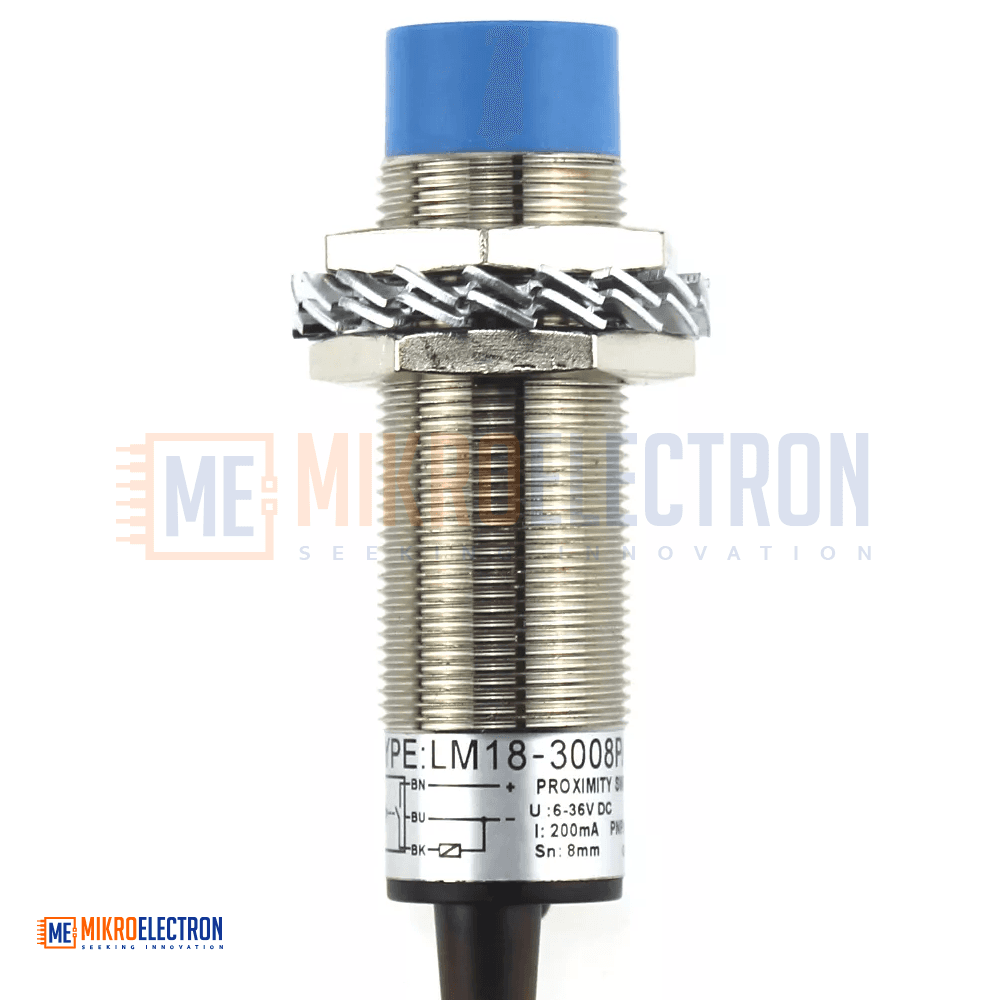

Inductive Proximity Sensor NO (lm18-3008pa)
The LM18-3008PA Inductive Proximity Sensor is a reliable non-contact sensor designed for detecting metallic objects in industrial and automation systems. It operates with 6–36V DC power and features a PNP Normally Open (NO) output configuration. Using electromagnetic induction technology, the sensor accurately detects conductive targets within a 4mm sensing range. Its durable M18 threaded housing ensures easy installation, making it suitable for CNC machines, robotics, conveyor systems, and industrial automation applications.
يُعتبر حساس القرب الحثي LM18-3008PA حساساً عملياً وموثوقاً لاكتشاف الأجسام المعدنية بدون تلامس في الأنظمة الصناعية ومشاريع الأتمتة. يعمل بجهد 6–36V DC ويحتوي على خرج PNP Normally Open (NO). يعتمد على تقنية الحث الكهرومغناطيسي لاكتشاف الأجسام المعدنية ضمن مدى استشعار يبلغ 4 مم. يتميز بهيكل ملولب M18 متين لسهولة التركيب، مما يجعله مناسباً لماكينات CNC والروبوتات وأنظمة السيور الناقلة وتطبيقات التحكم الصناعي.
The LM18-3008PA Inductive Proximity Sensor is a high-quality non-contact sensor designed for reliable metal object detection in industrial automation systems. It uses inductive sensing technology, where electromagnetic waves are generated to detect conductive metallic objects approaching the sensing surface.
This sensor features a PNP Normally Open (NO) output type and operates over a wide 6V–36V DC voltage range, making it compatible with PLC controllers, microcontrollers, CNC equipment, and automation systems.
The robust M18 threaded housing provides durability and easy mounting in industrial environments. With a detection distance of 4 mm, the sensor offers stable and accurate switching performance for motion control, positioning, and object detection tasks.
The LM18-3008PA is widely used in automation projects, conveyor systems, robotics, machine tools, and industrial safety applications requiring dependable metal detection without physical contact.
Specifications
- Model: LM18-3008PA
- Sensor Type: Inductive Proximity Sensor
- Detection Method: Electromagnetic Induction
- Detection Target: Conductive / Metallic Objects
- Output Type: PNP Normally Open (NO)
- Operating Voltage: DC 6–36V
- Maximum Output Current: 300mA
- Detection Distance: 4 mm
- Housing Size: M18 × 10 × 55 mm
- Wiring Type: 3-Wire Configuration
- Housing Material: Metal
- Part Number: LM18-3008PA

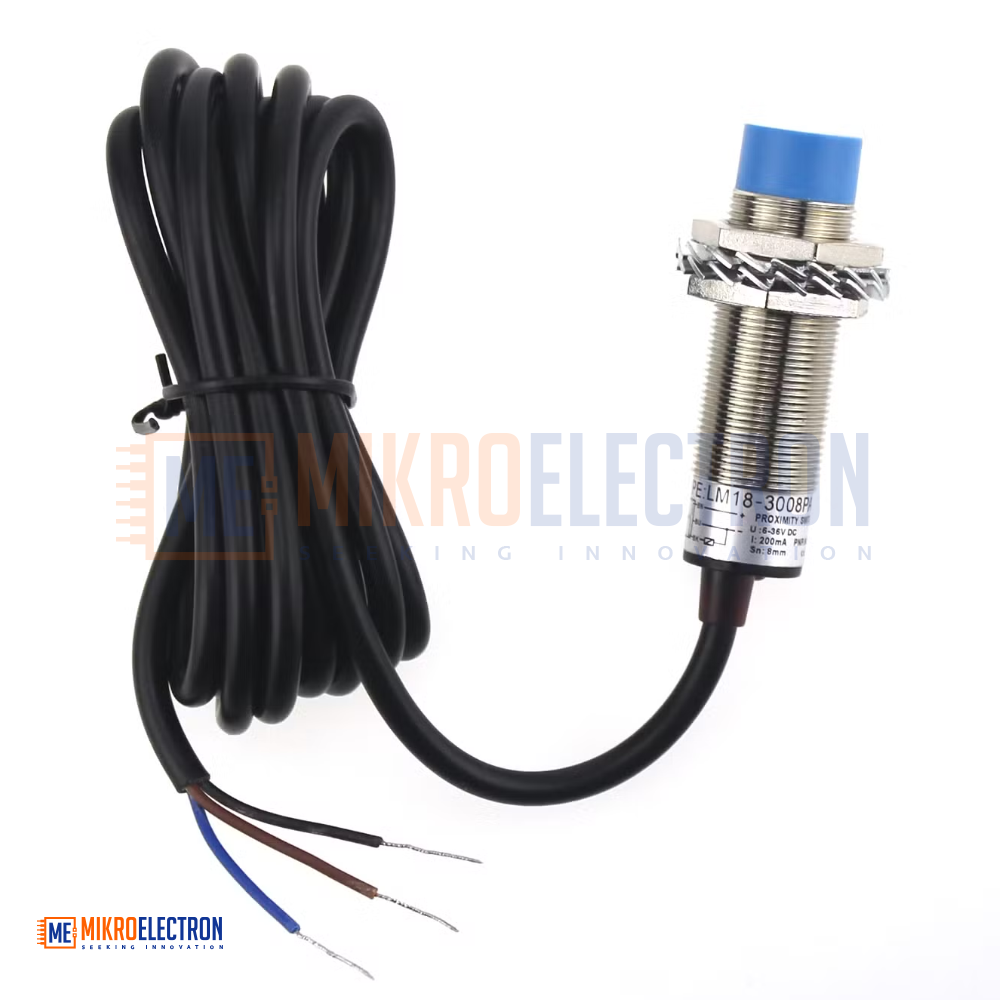

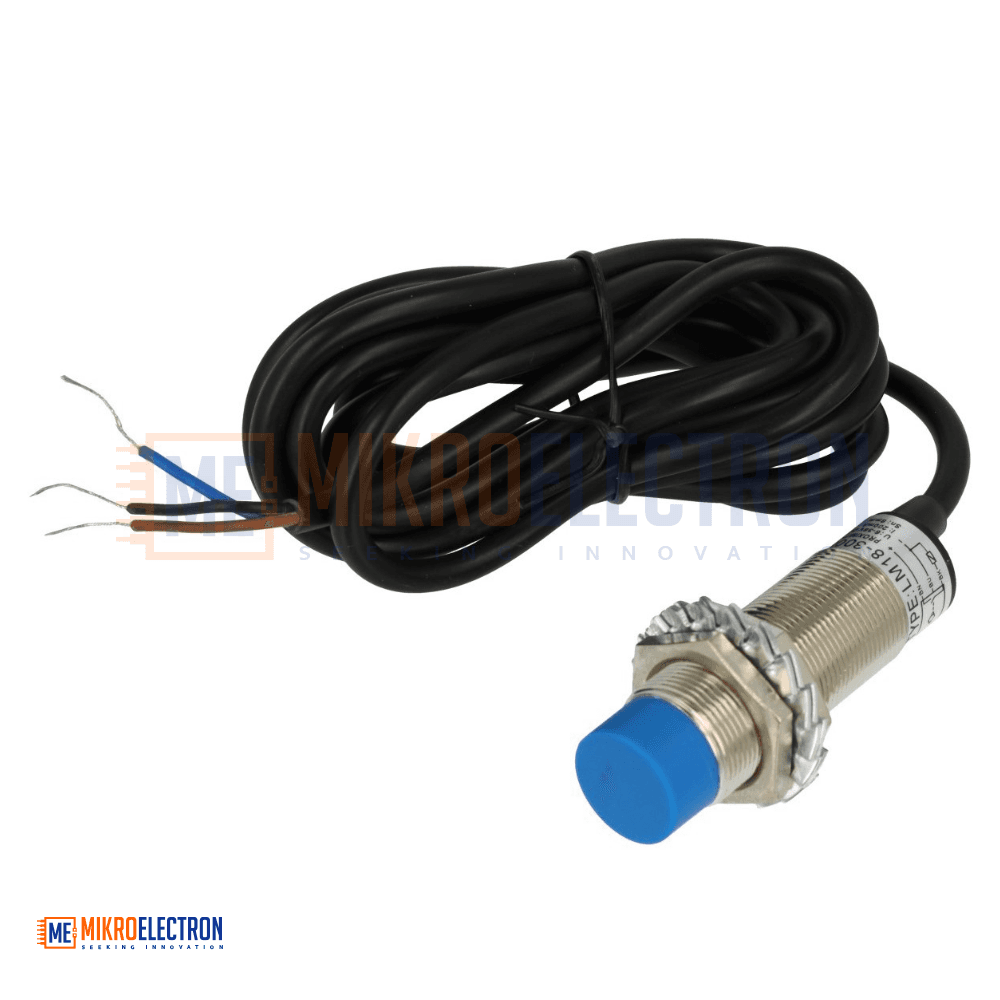

Wiring Connection
- Brown Wire: Positive Power Supply (VCC)
- Blue Wire: Ground (GND)
- Black Wire: Signal Output
Applications
- Metal object detection
- CNC machine automation
- Conveyor belt sensing systems
- Robotics and smart machines
- Industrial position sensing
- Safety and limit switch systems
- Automated production lines
- Motion and process control systems
