Inductive Proximity Sensor NC (LJ12A3-4-Z/AX)

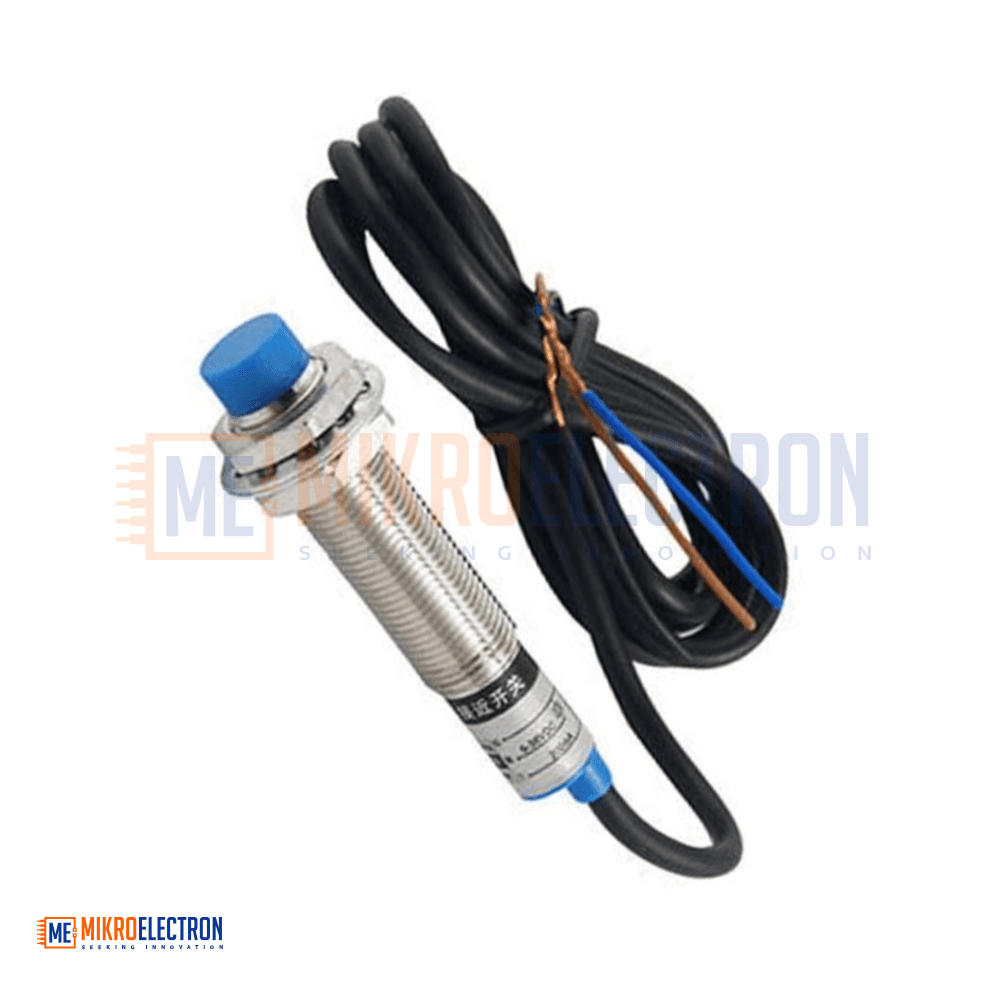

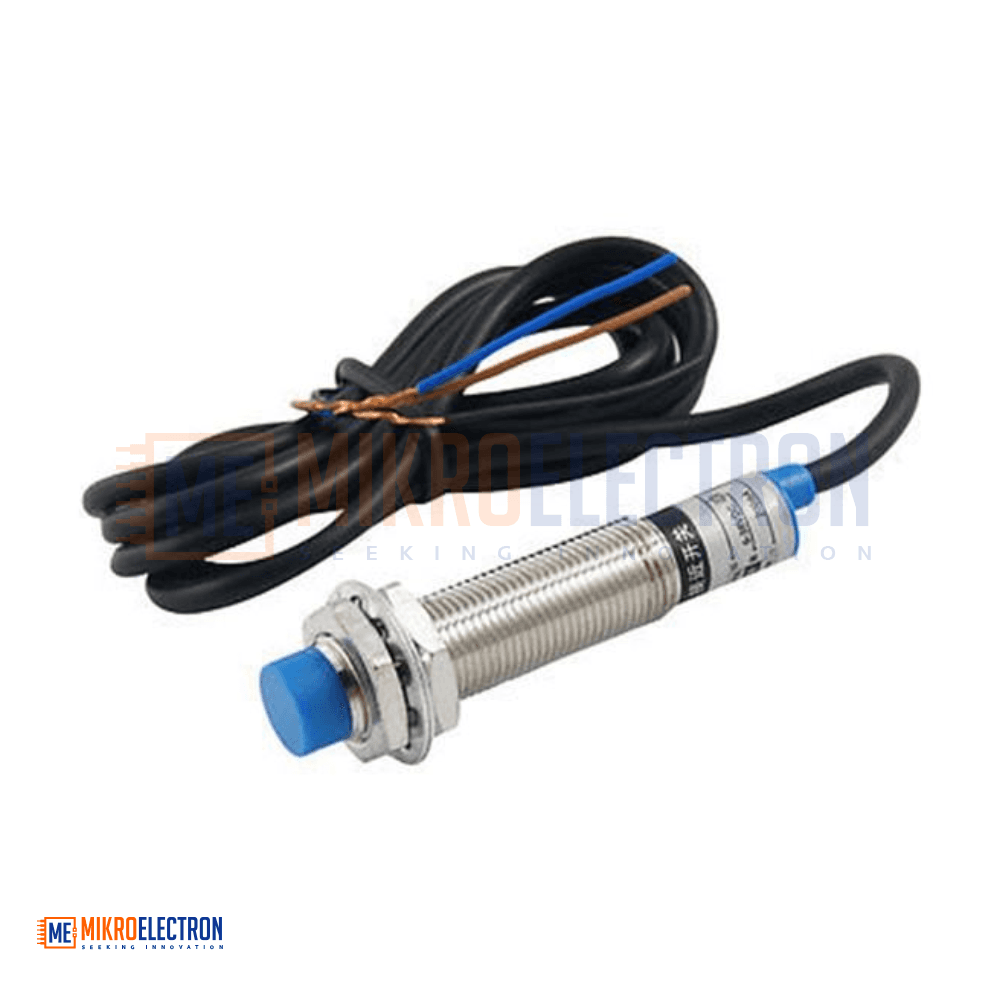

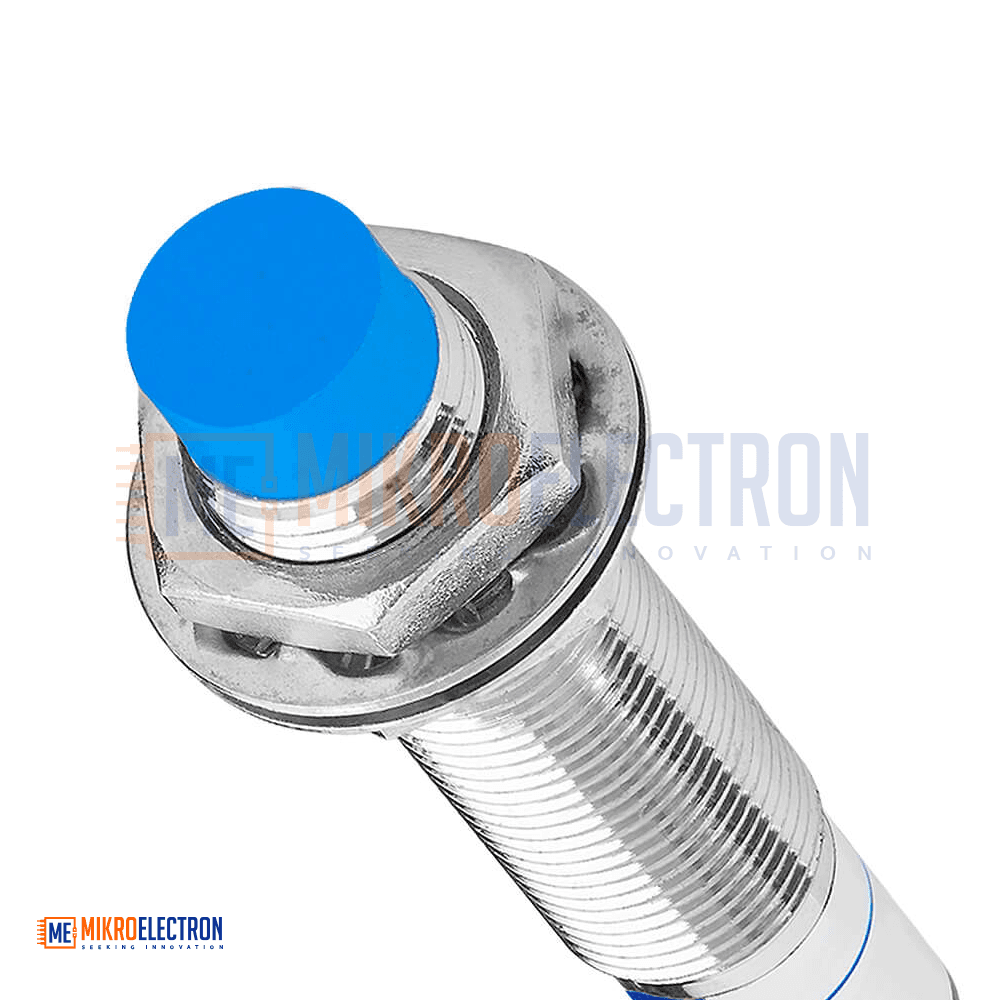

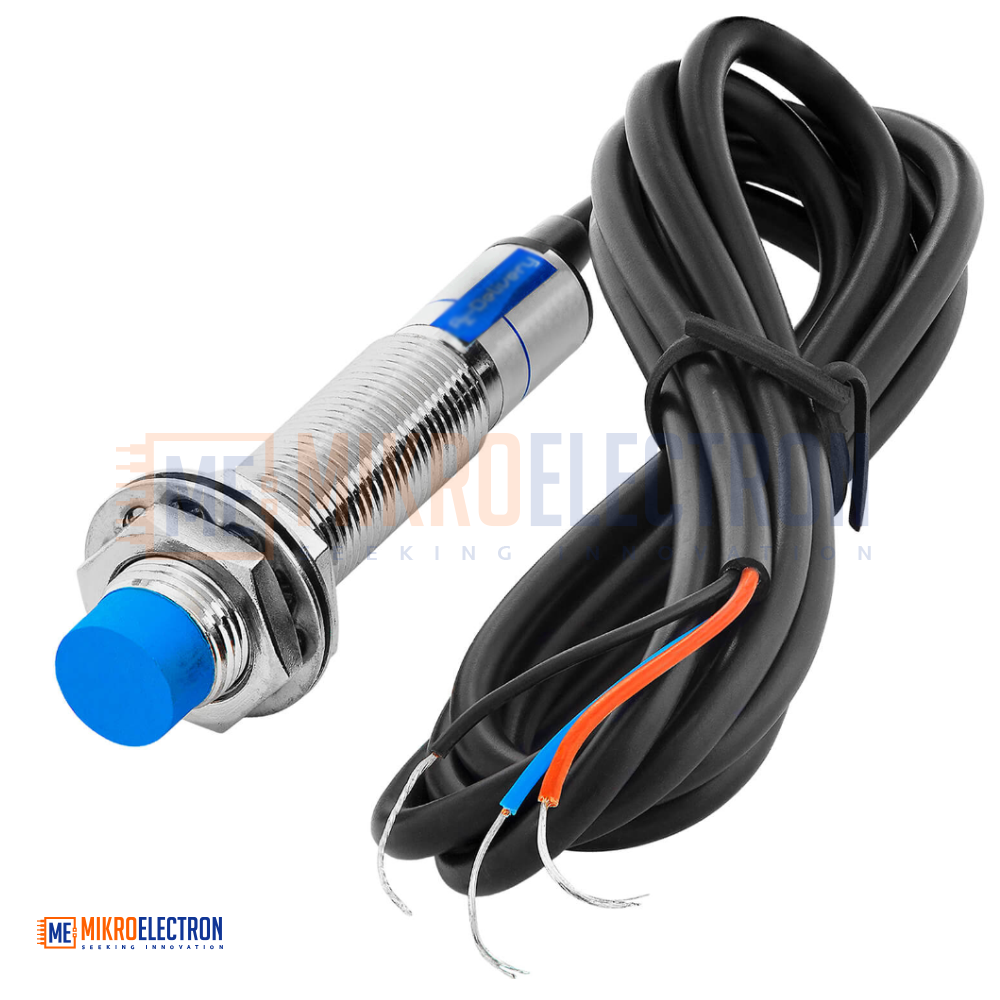

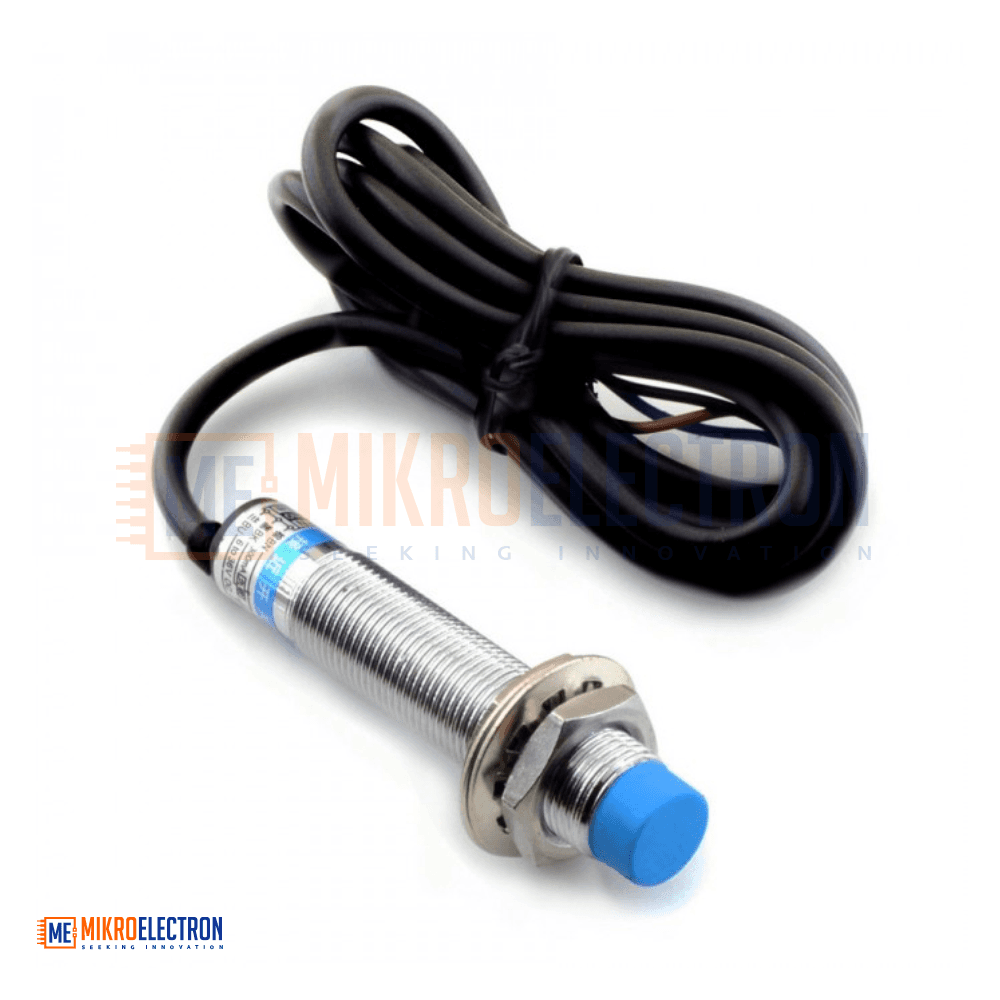

The LJ12A3-4-Z/AX Inductive Proximity Sensor is a reliable non-contact metal detection sensor designed for industrial automation and electronic projects. Operating with 6–36V DC, it uses an NPN Normally Closed (NC) output and detects metallic objects within a 4mm range. Its durable M12 threaded metal housing allows easy installation in machines and robotics systems. The sensor provides stable performance, fast response speed, and simple 3-wire connectivity for various automation applications.
يُعد حساس القرب الحثي LJ12A3-4-Z/AX حساساً عملياً وموثوقاً لاكتشاف الأجسام المعدنية بدون تلامس، ومناسباً للتطبيقات الصناعية والمشاريع الإلكترونية. يعمل بجهد 6–36V DC ويستخدم خرج NPN Normally Closed (NC) مع مدى استشعار يصل إلى 4 مم. يتميز بهيكل معدني ملولب M12 لسهولة التركيب داخل الأنظمة والماكينات. يوفر أداءً مستقراً واستجابة سريعة مع توصيل سهل عبر ثلاثة أسلاك لمختلف تطبيقات الأتمتة والتحكم.
- DC 6-36V Inductive Proximity Sensor Detection Switch NPN LJ12A3-4-Z/AX
- Brand New!!!
- Case material: Metal / Copper
- Color: Like the picture show
- Quantity: 1 pc
- Ouput Status: Normally Close
- Detection objects: Conductor
- Voltage: DC 6-36V
- Output Current: 300mA
- Polarity: NPN
- Dimention: M12x1x55mm
- Detection Distance: 4 mm
- 3 Wires length: 118 cm
- Part number: LJ12A3-4-Z/AX
Three wires wiring connection:
- Brown is connected to the positive power supply.
- Blue is connected to the negative power supply.
- Black is connected to the load.
