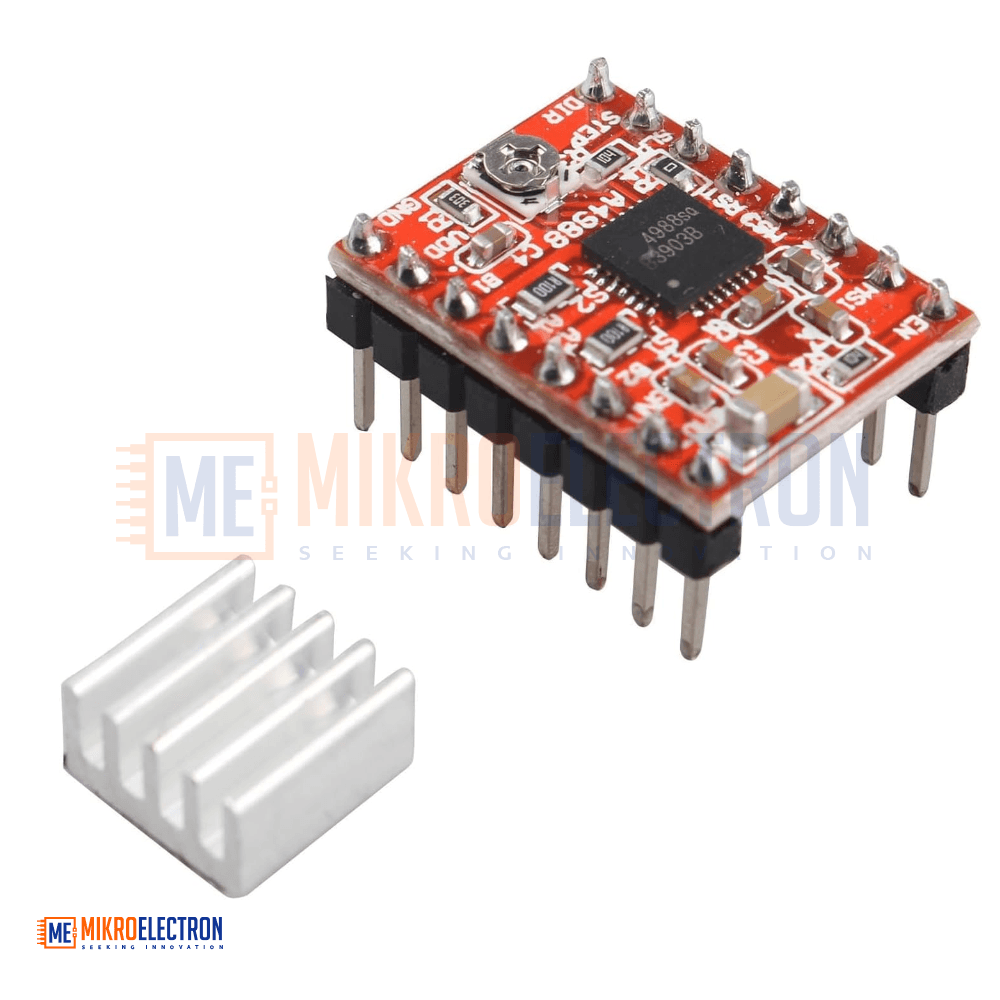

STEPSTICK A4988 STEPPER DRIVER
Out Of Stock
The A4988 StepStick Stepper Driver is a compact microstepping motor driver designed for precise control of bipolar stepper motors in CNC machines, 3D printers, and robotics projects. Supporting up to 1/16 microstepping, it offers smooth motor movement, adjustable current limiting, and simple step-and-direction control. With built-in thermal shutdown, short-circuit protection, and intelligent current decay control, the A4988 provides reliable and efficient motor driving for Arduino and embedded motion-control systems.
يُعتبر مشغل المحركات الخطوية A4988 StepStick وحدة تحكم مدمجة مصممة للتحكم الدقيق بالمحركات الخطوية الثنائية القطب في الطابعات ثلاثية الأبعاد وماكينات CNC ومشاريع الروبوتات. يدعم حتى 1/16 Microstepping لتوفير حركة سلسة ودقيقة، مع إمكانية ضبط التيار بسهولة والتحكم عبر إشارات Step وDirection. يحتوي على حماية حرارية وحماية من القصر الكهربائي وتحكم ذكي بالتيار، مما يجعله حلاً موثوقاً لأنظمة التحكم بالحركة والمشاريع الإلكترونية.
The A4988 StepStick Stepper Motor Driver is a high-performance microstepping driver module designed for controlling bipolar stepper motors in precision motion applications. Based on the reliable A4988 driver IC, the module simplifies motor control using a straightforward STEP and DIRECTION interface, eliminating the need for complex phase sequence programming.
The driver supports multiple stepping resolutions including full-step, half-step, quarter-step, eighth-step, and sixteenth-step modes, allowing smoother movement, reduced vibration, and improved positioning accuracy. The integrated translator automatically handles microstepping sequences internally.
The A4988 supports motor supply voltages up to 35V and output currents up to 2A with proper cooling. An onboard potentiometer allows adjustable current limiting, enabling the use of higher motor voltages for improved high-speed performance.
Advanced protection features include thermal shutdown, undervoltage lockout, crossover-current protection, and short-circuit protection for reliable operation. Intelligent current chopping automatically selects slow or mixed decay modes to reduce audible motor noise and improve efficiency.
The A4988 StepStick is widely used in 3D printers, CNC machines, robotics, laser engravers, and Arduino-based motion control projects.
Specifications
- Driver IC: A4988
- Motor Type: Bipolar Stepper Motors
- Control Interface: Step and Direction
- Operating Voltage: Up to 35V
- Maximum Output Current: Up to 2A (with cooling)
- Microstepping Modes:
- Full Step
- Half Step
- 1/4 Step
- 1/8 Step
- 1/16 Step
- Current Limiting: Adjustable via potentiometer
- Decay Modes: Slow Decay / Mixed Decay
- PWM Current Control: Supported
Protection Features
- Thermal shutdown protection
- Undervoltage lockout (UVLO)
- Crossover-current protection
- Short-to-ground protection
- Shorted-load protection
Applications
- 3D printers
- CNC machines
- Laser engravers
- Robotics projects
- Arduino motion control systems
- DIY automation projects
- Camera sliders and positioning systems
- Embedded motor control applications
