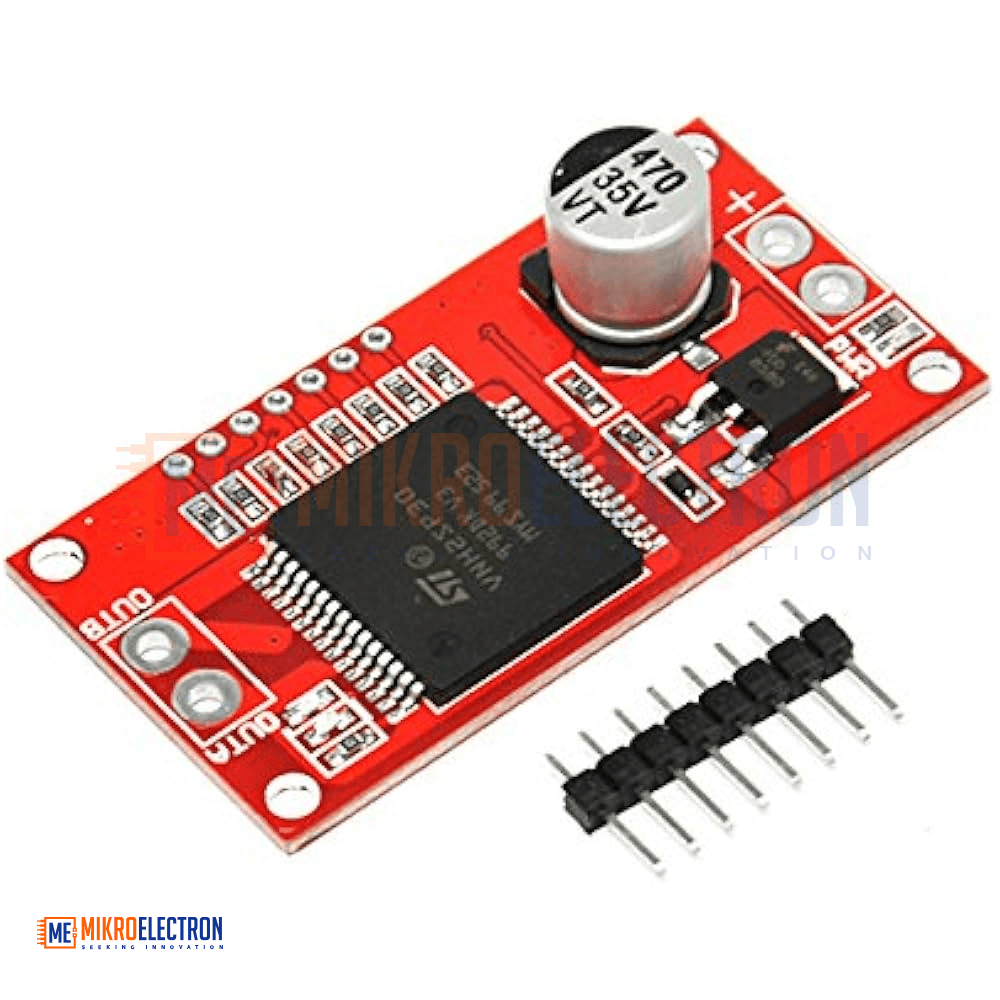

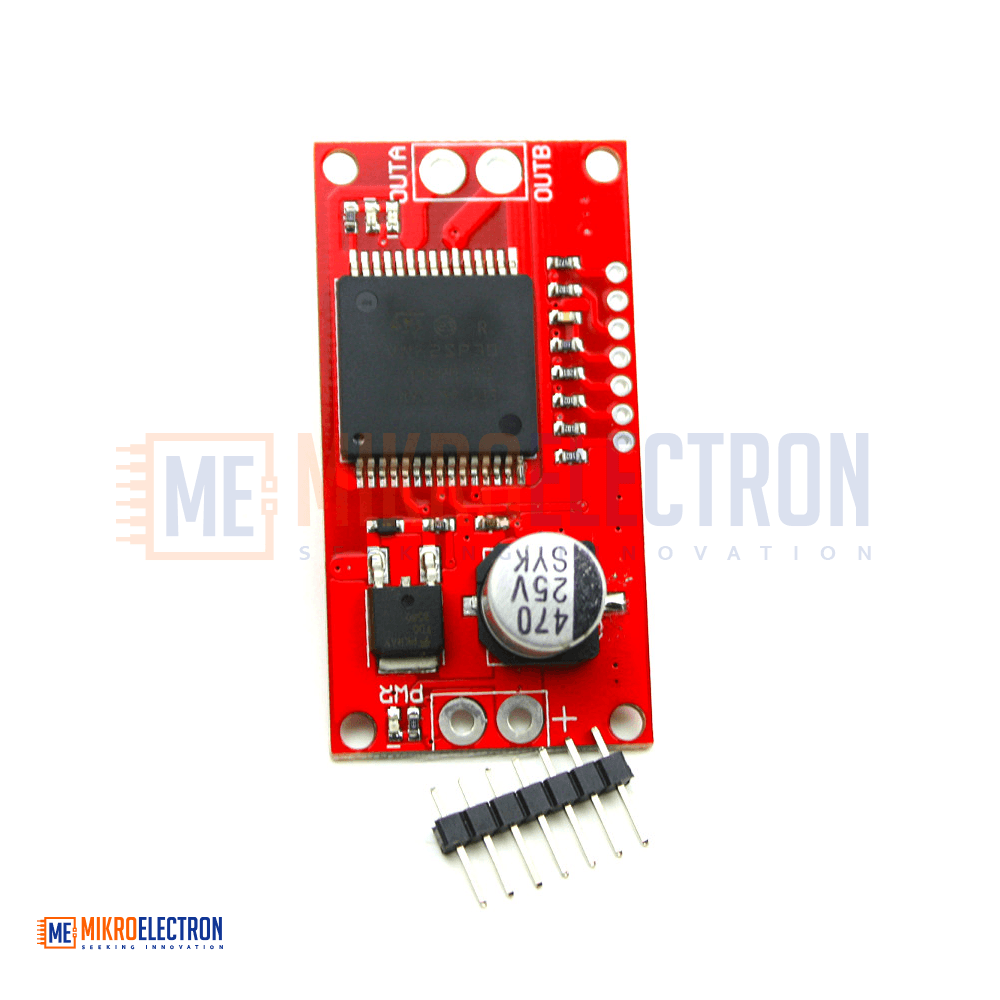

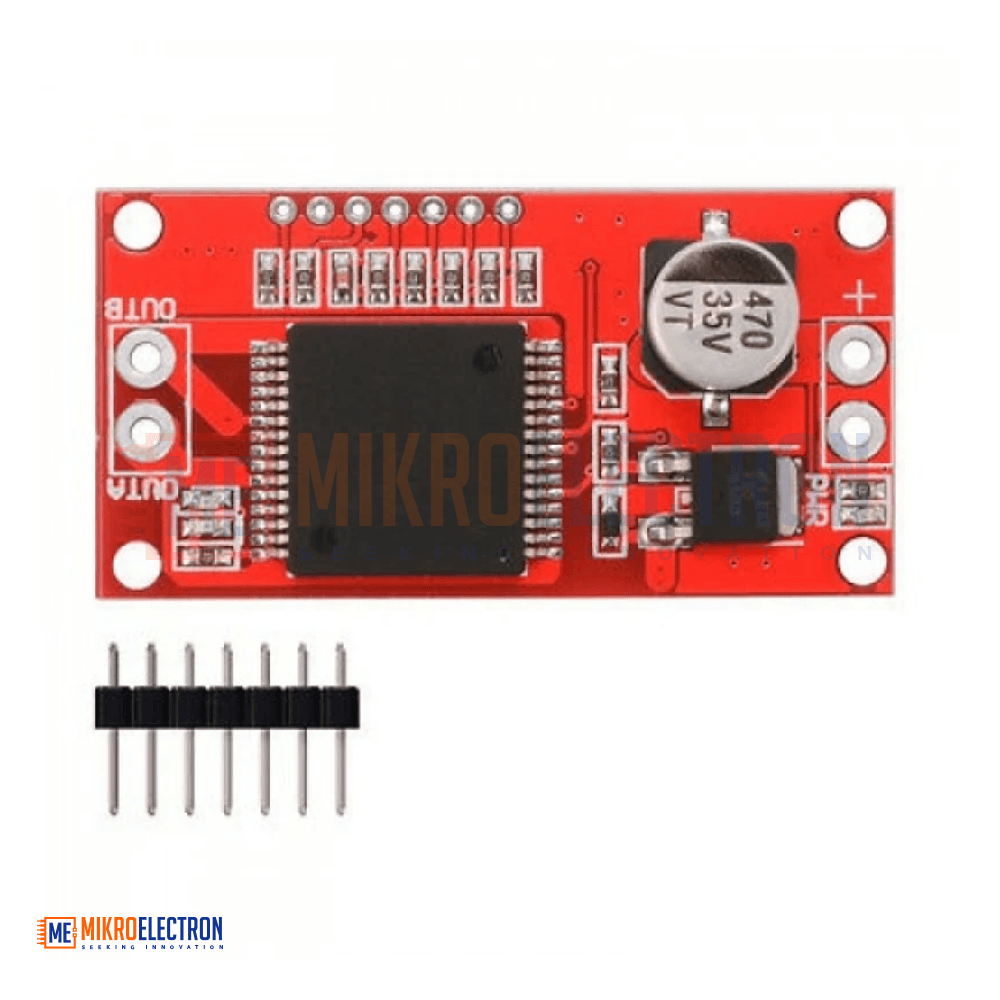

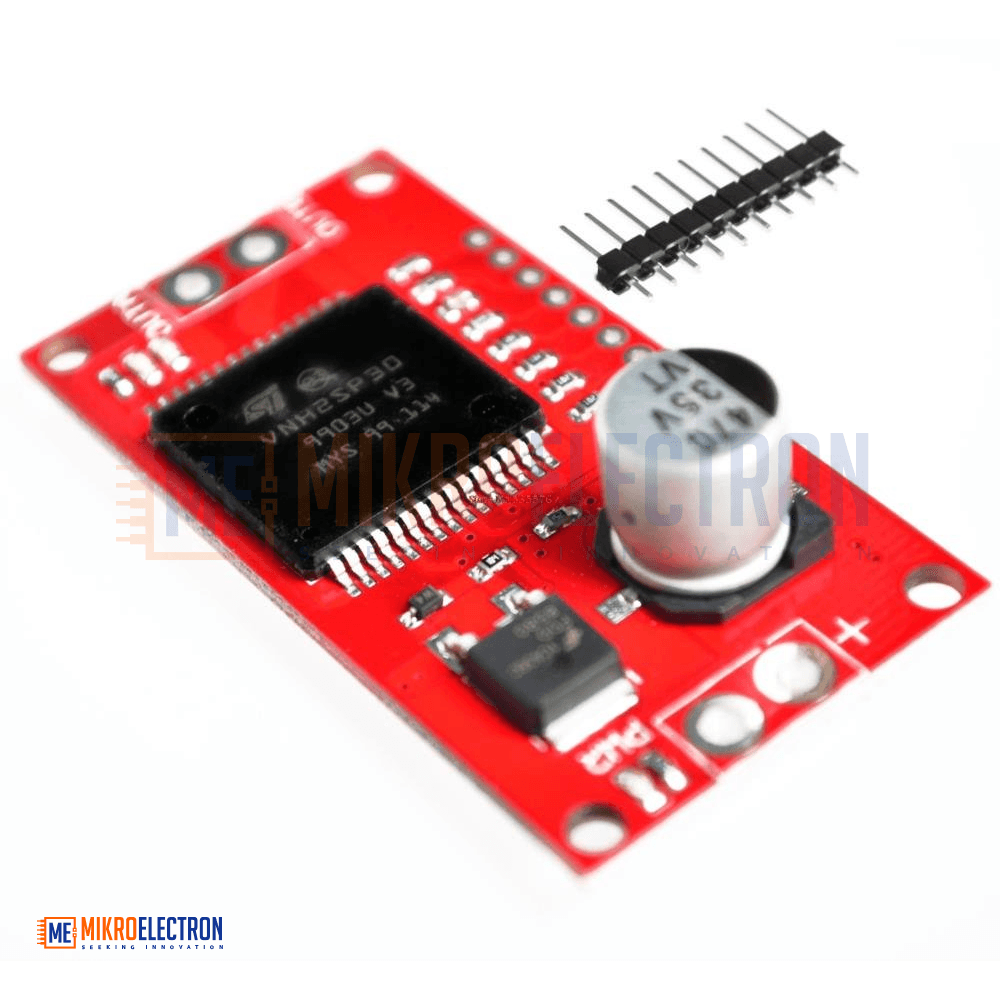

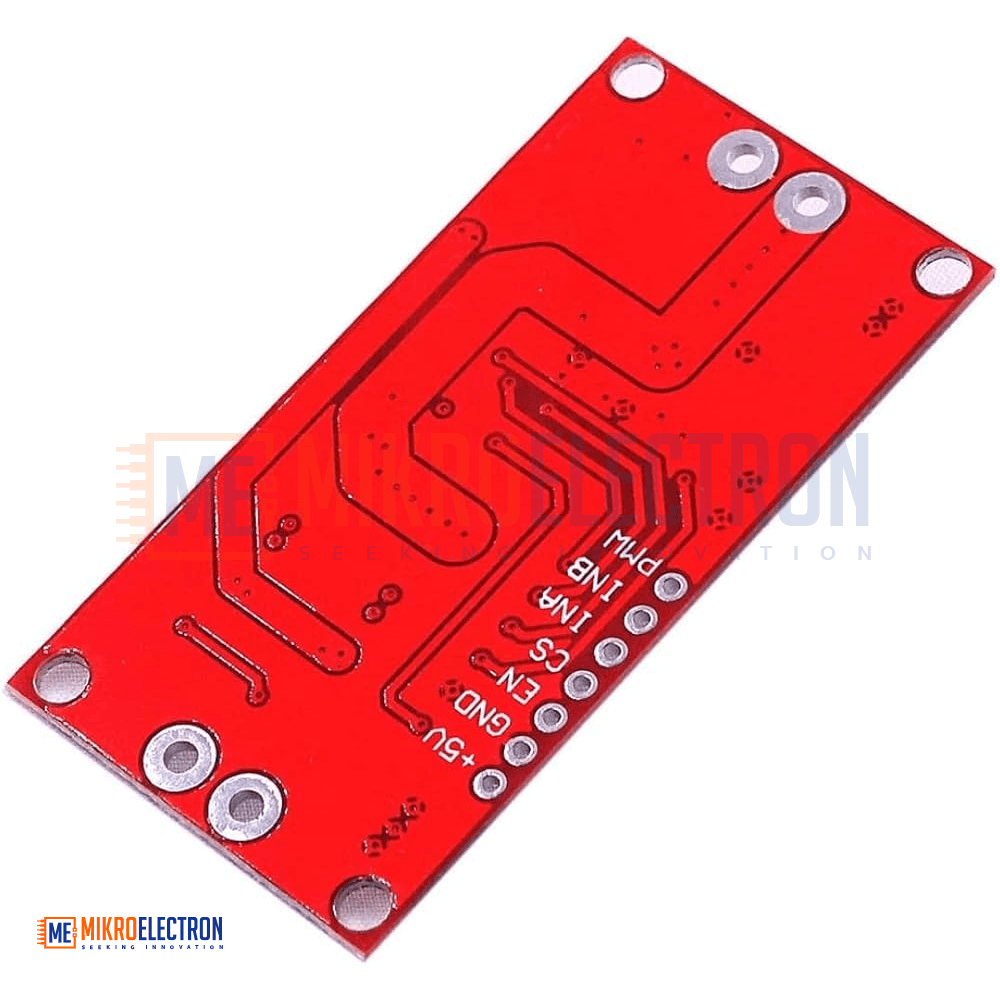

30A VNH2SP30 DC Motor Driver
The Monster Moto Shield VNH2SP30 is a high-current DC motor driver designed for Arduino-based projects requiring reliable and powerful motor control. Capable of delivering up to 14A continuous current per motor and 30A peak, it is ideal for robotics, automation, and motion-control applications.
درع المحرك العملاق Monster Moto Shield VNH2SP30 هو مشغِّل (دوار) لمحركات التيار المستمر عالية التيار، صُمم للمشاريع القائمة على Arduino والتي تحتاج إلى تحكم موثوق وقوي في المحركات. قادر على توفير تيار مستمر يصل إلى 14 أمبير لكل محرك، وتيار ذروة يصل إلى 30 أمبير، مما يجعله مثاليًا لتطبيقات الروبوتيات، والأتمتة، والتحكم في الحركة.
The Monster Moto Shield VNH2SP30 is an upgraded and high-performance alternative to the standard Ardumoto motor driver shield. It replaces the traditional L298 H-bridge with VNH2SP30 bridge motor driver ICs, significantly improving current handling, efficiency, and thermal performance.
This shield is designed to drive high-current DC motors with stable and efficient power delivery. Enhanced support circuitry ensures reliable operation under heavy loads. The VIN and motor output connections are laid out for 5mm screw terminals (not included), allowing the use of thicker wires suitable for high-power applications. Built-in current sensing provides feedback to Arduino analog inputs for monitoring motor load and system performance.
Technical Specifications
Maximum Operating Voltage: 16V
Maximum Peak Current: 30A
Practical Continuous Current: 14A
Motor Driver IC: VNH2SP30 Bridge
MOSFET On-Resistance: 34 mΩ
Maximum PWM Frequency: 10 kHz
Current Sensing: Available to Arduino analog pin
Protection Functions:
Thermal shutdown
Undervoltage shutdown
Overvoltage shutdown
Applications
Robotics and mobile robot platforms
High-power motor control systems
DIY automation and mechatronics projects
Motorized vehicles and actuators
Educational and research projects
