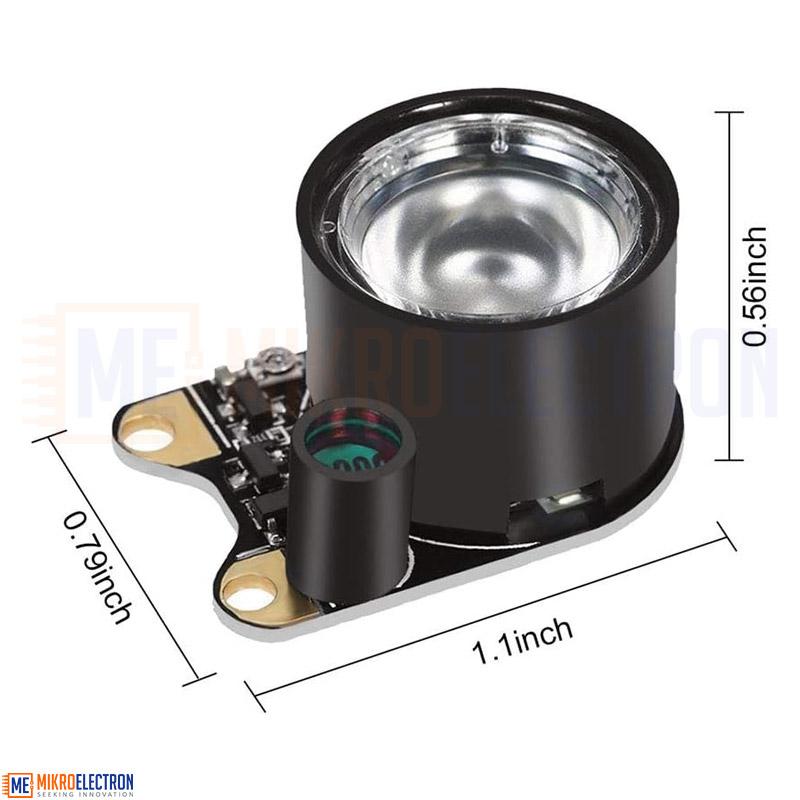

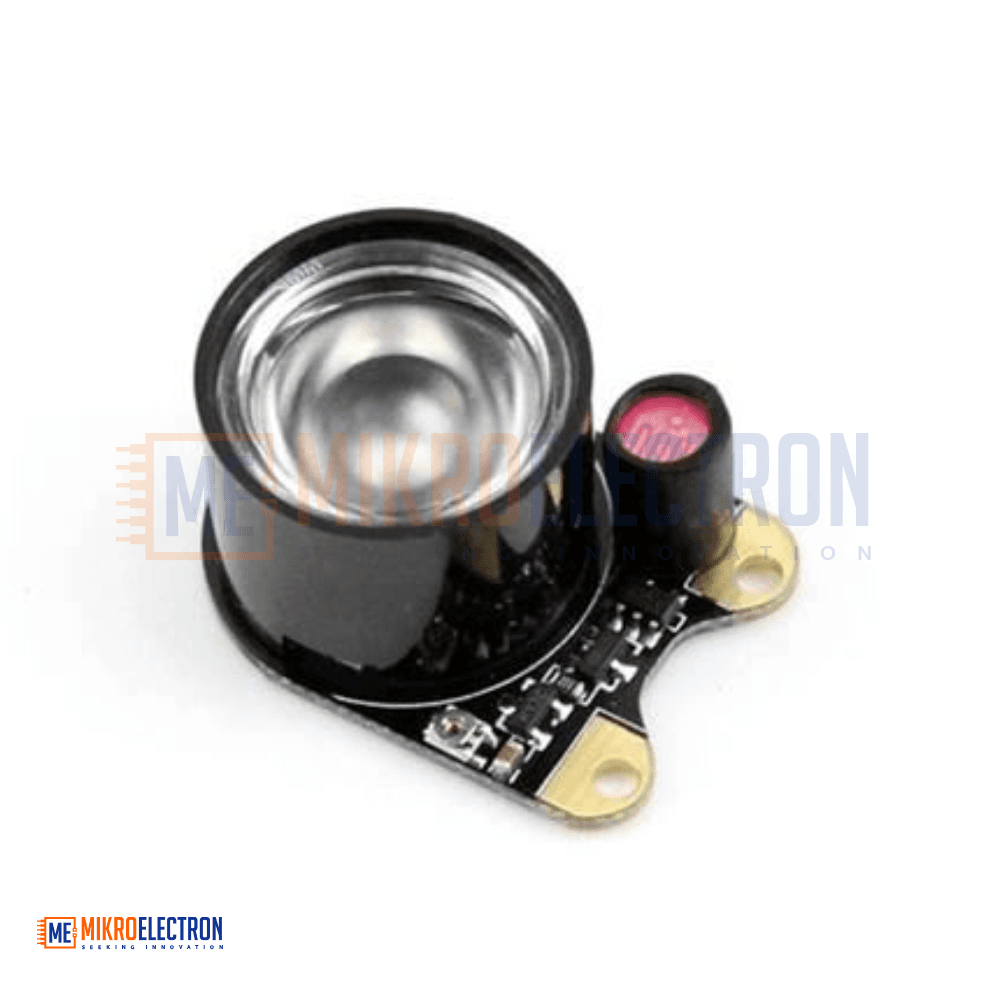

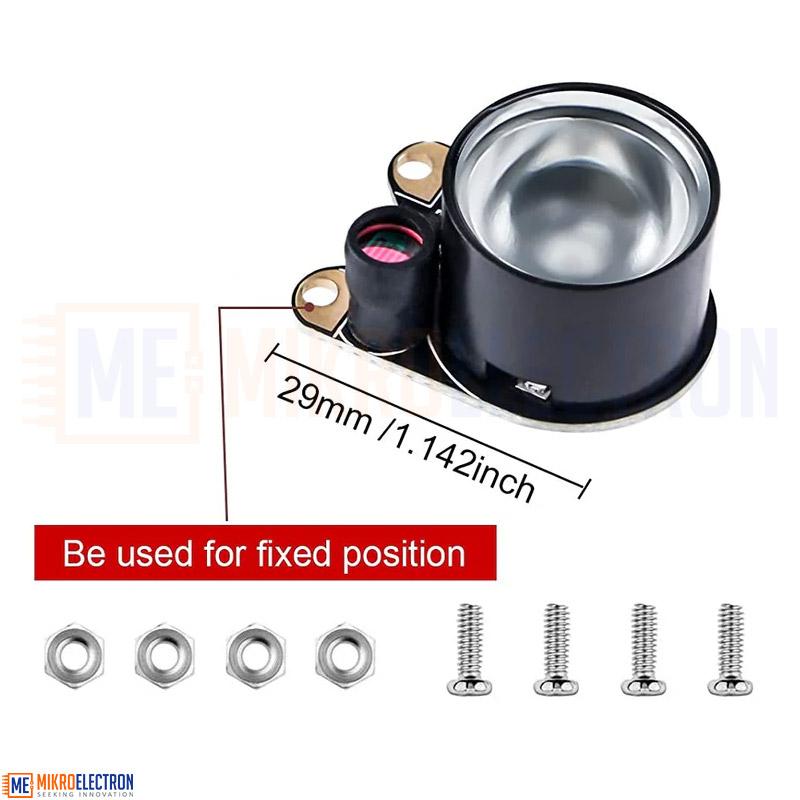

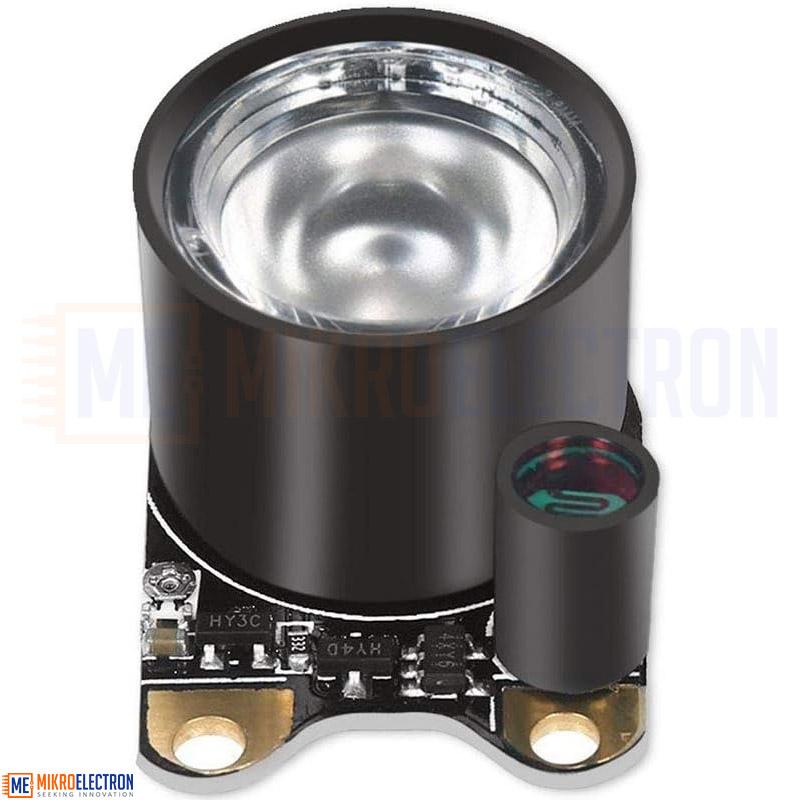

Night Vision Flash LED For Raspberry Pi Camera

The Night Vision Flash LED for Raspberry Pi Camera is a high-performance infrared illumination module developed for Raspberry Pi camera systems. It provides enhanced visibility in dark environments by using a 3W 850nm infrared LED, enabling night vision capability without visible light emission.

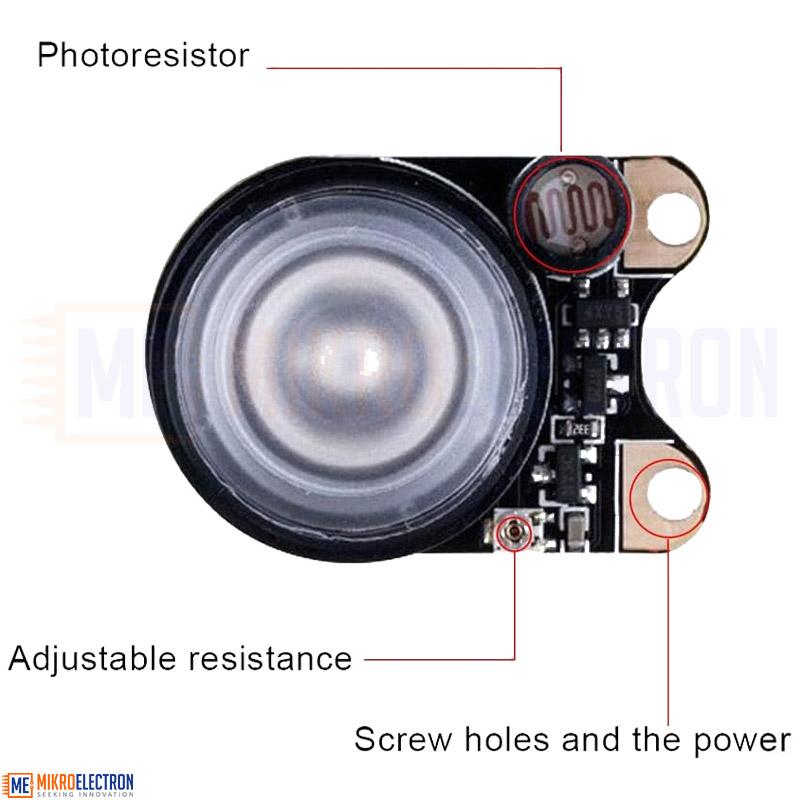

The board includes an onboard photoresistor ambient light sensor that automatically detects surrounding light conditions. An adjustable resistor allows users to customize the sensitivity threshold for switching the infrared LED ON or OFF depending on ambient brightness.

Designed specifically for compatibility with RPi Camera (E) and RPi Camera (F) modules, this infrared LED board is suitable for security monitoring, robotics, wildlife observation, and low-light imaging applications.

Specifications

• Product Type: Night Vision Infrared LED Board
• LED Type: 850nm Infrared LED
• LED Power: 3W High-Power LED
• Sensor Type: Onboard Photoresistor
• Function: Automatic ambient light detection
• Adjustable Sensitivity: Yes
• Compatibility:
  • Raspberry Pi Camera (E)
  • Raspberry Pi Camera (F)
• Application Type: Night Vision Enhancement
• Board Type: Light-Sensing Infrared LED Board

Applications

• Night vision surveillance systems
• Raspberry Pi security cameras
• Robotics vision systems
• Wildlife monitoring
• Smart home security projects
• Low-light imaging applications
• Motion detection systems
• Embedded AI camera projects
