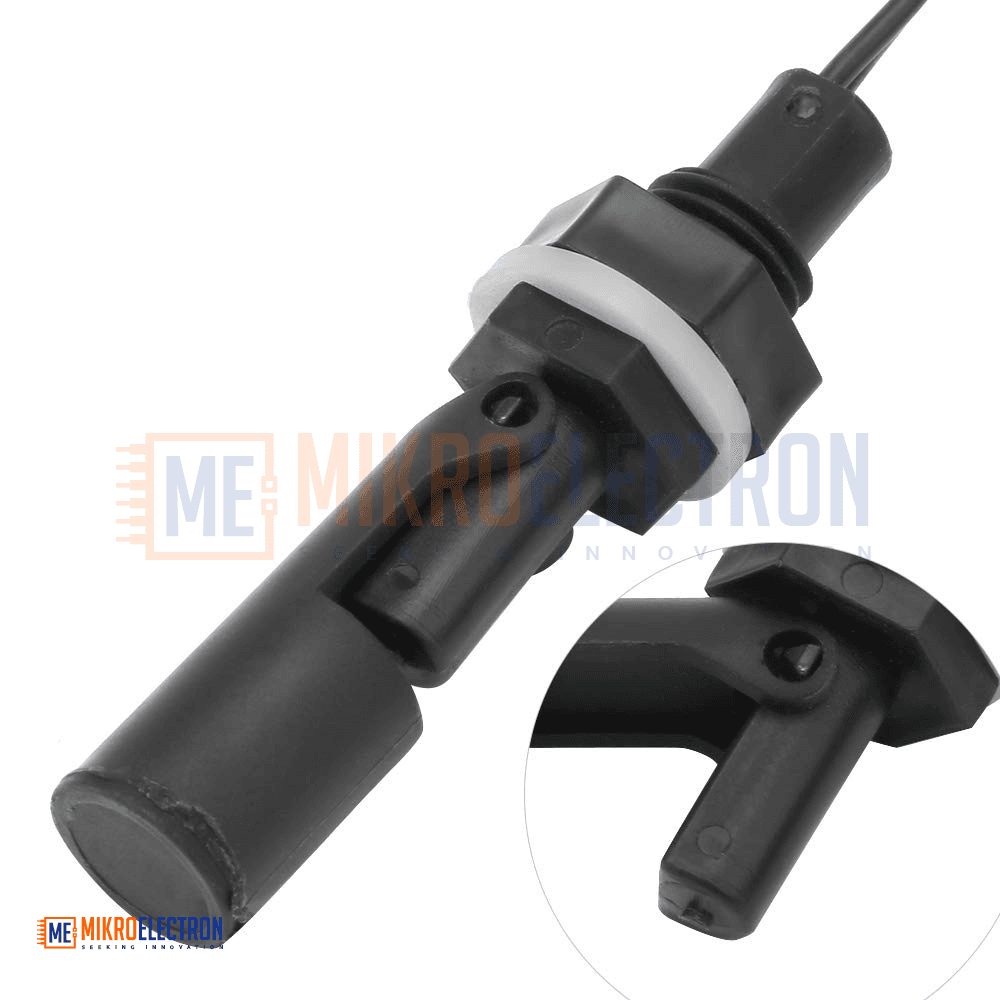

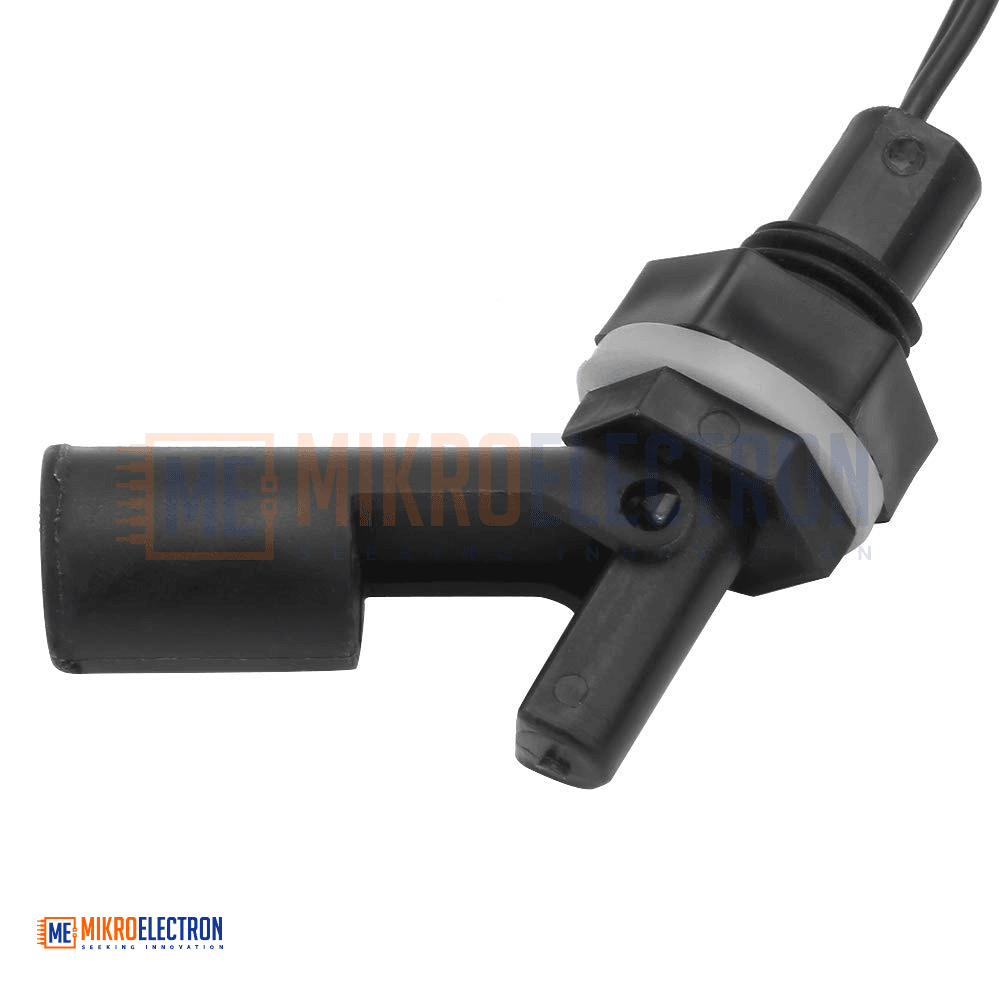

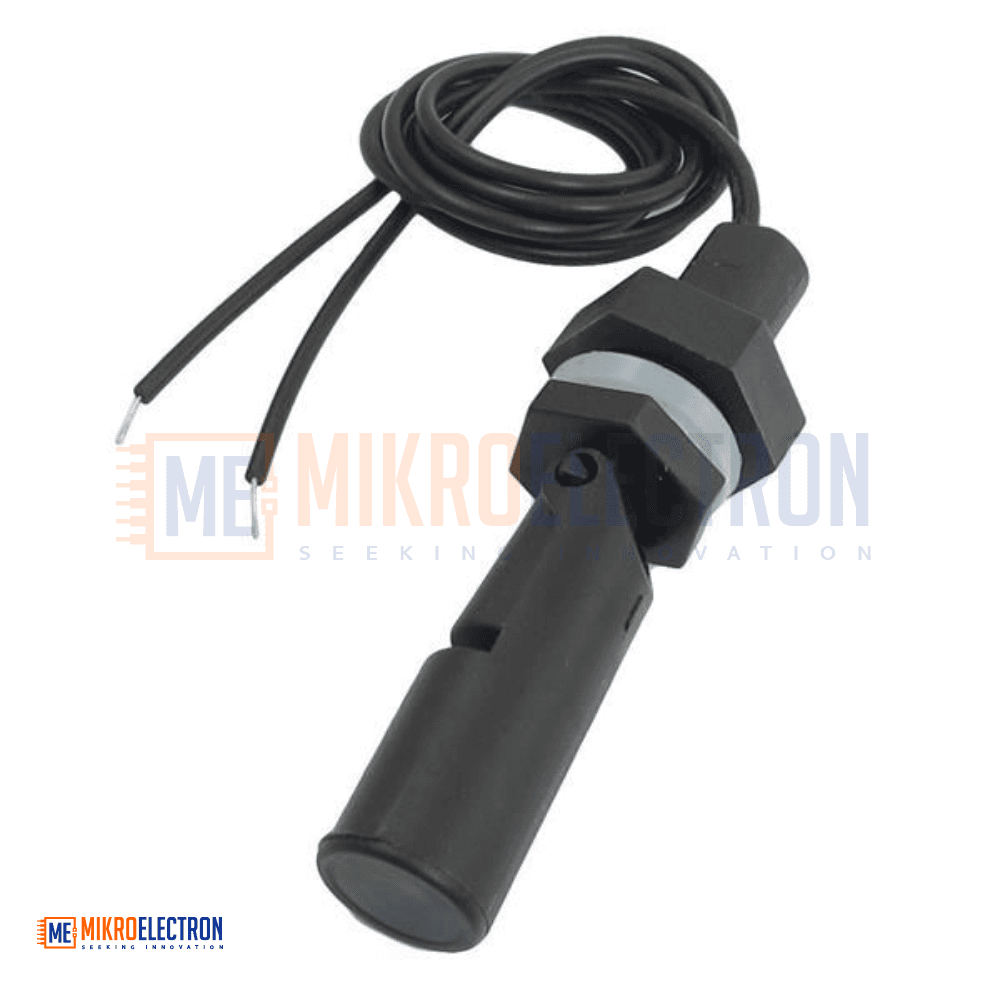

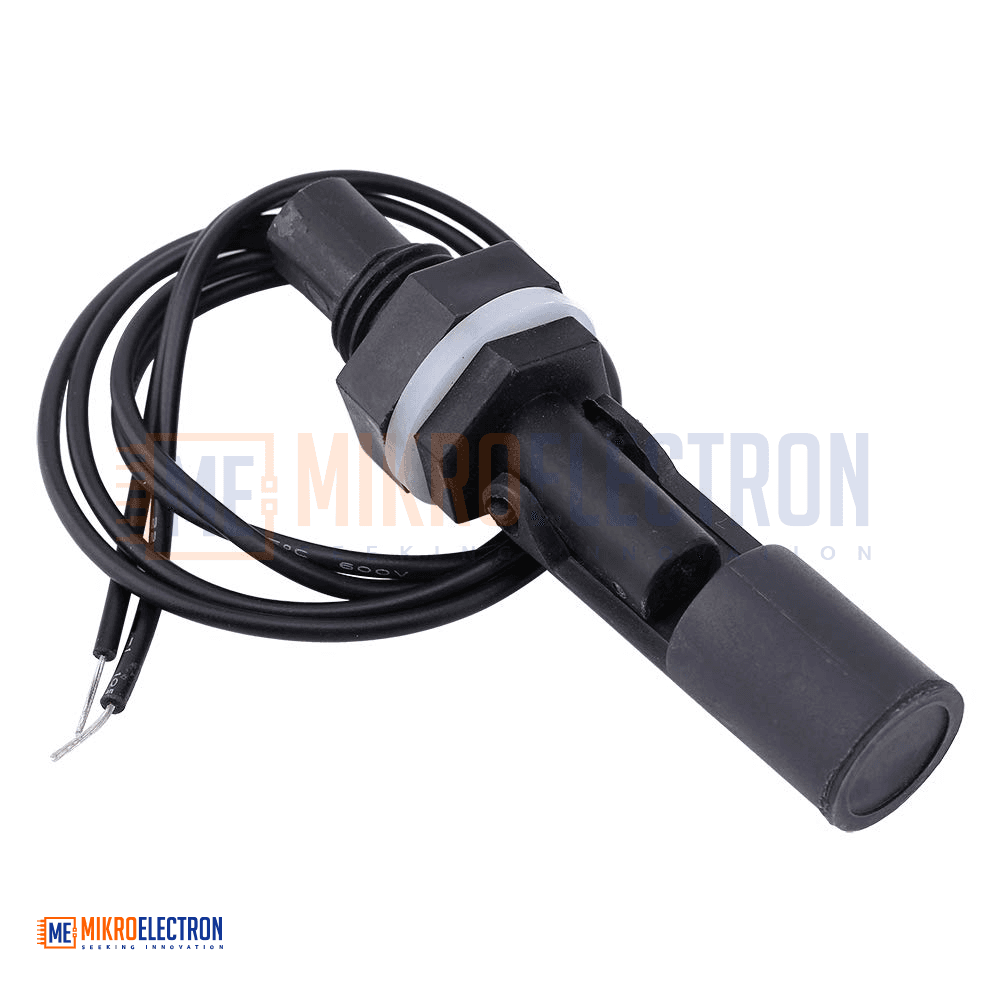

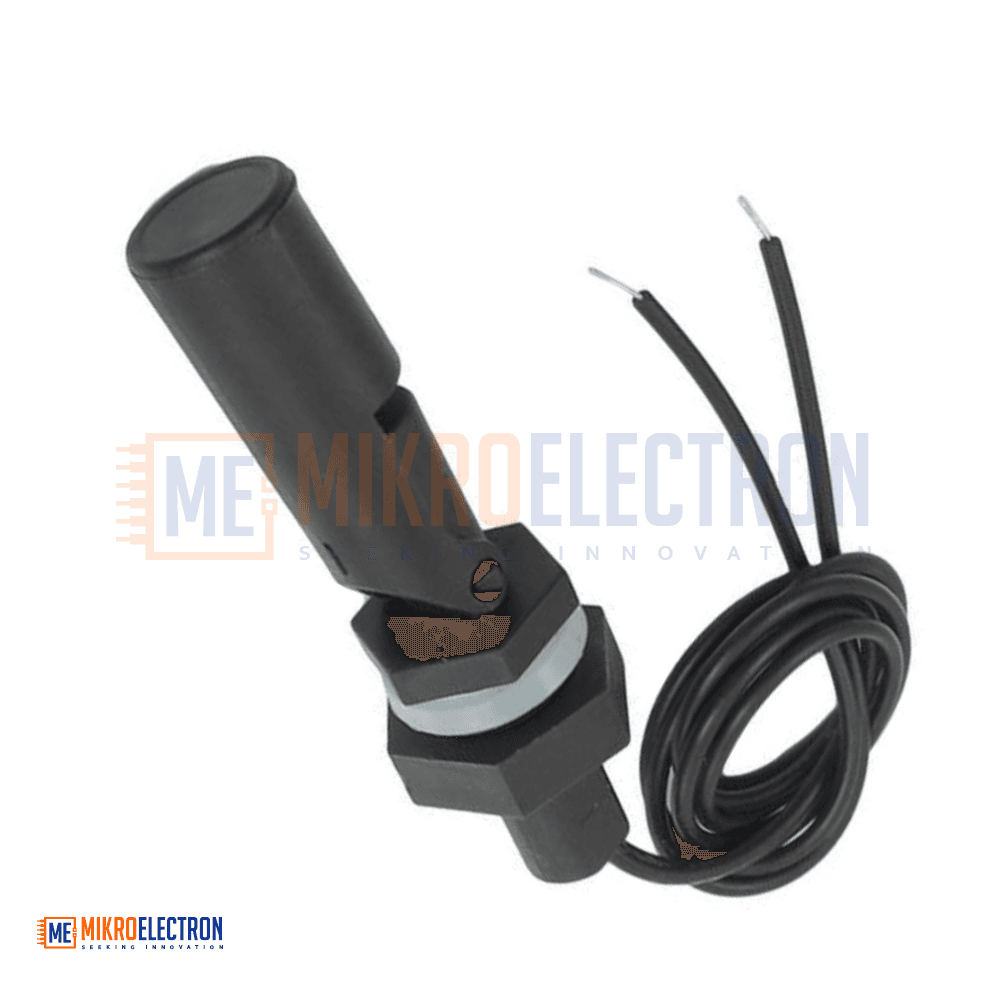

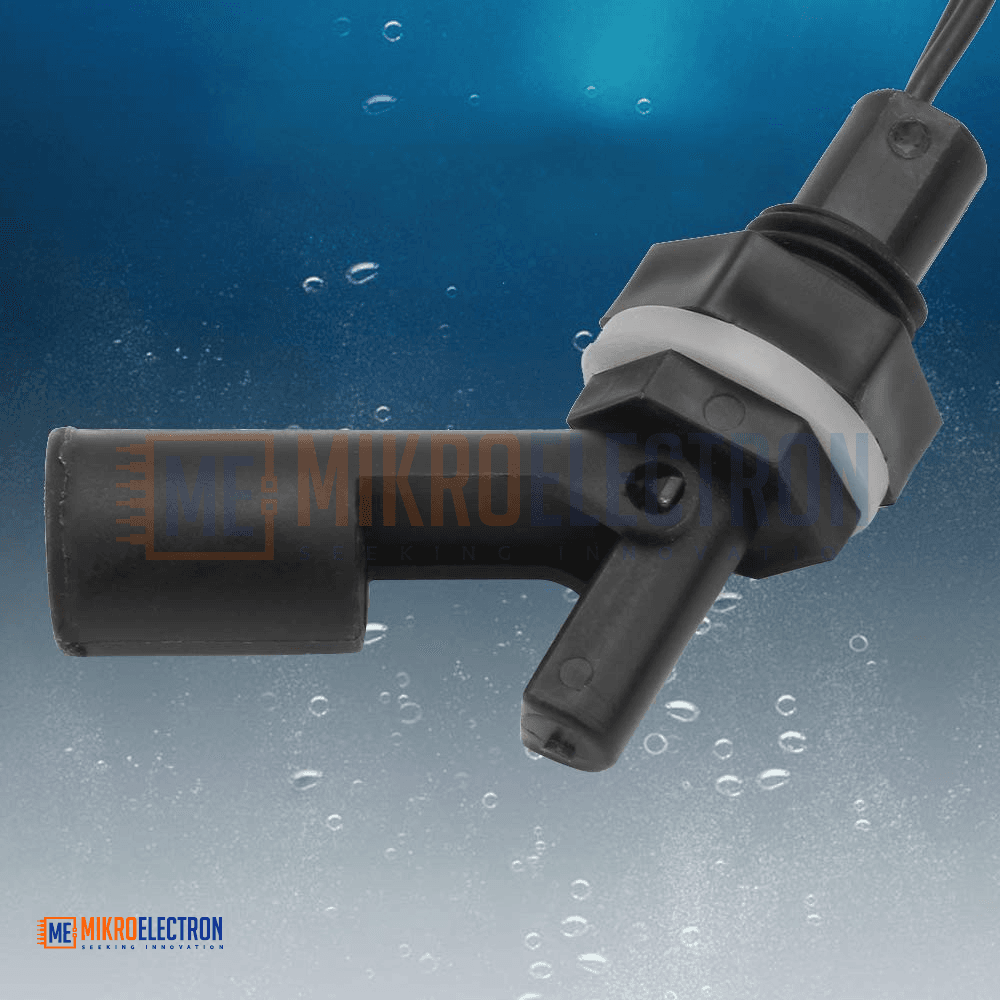

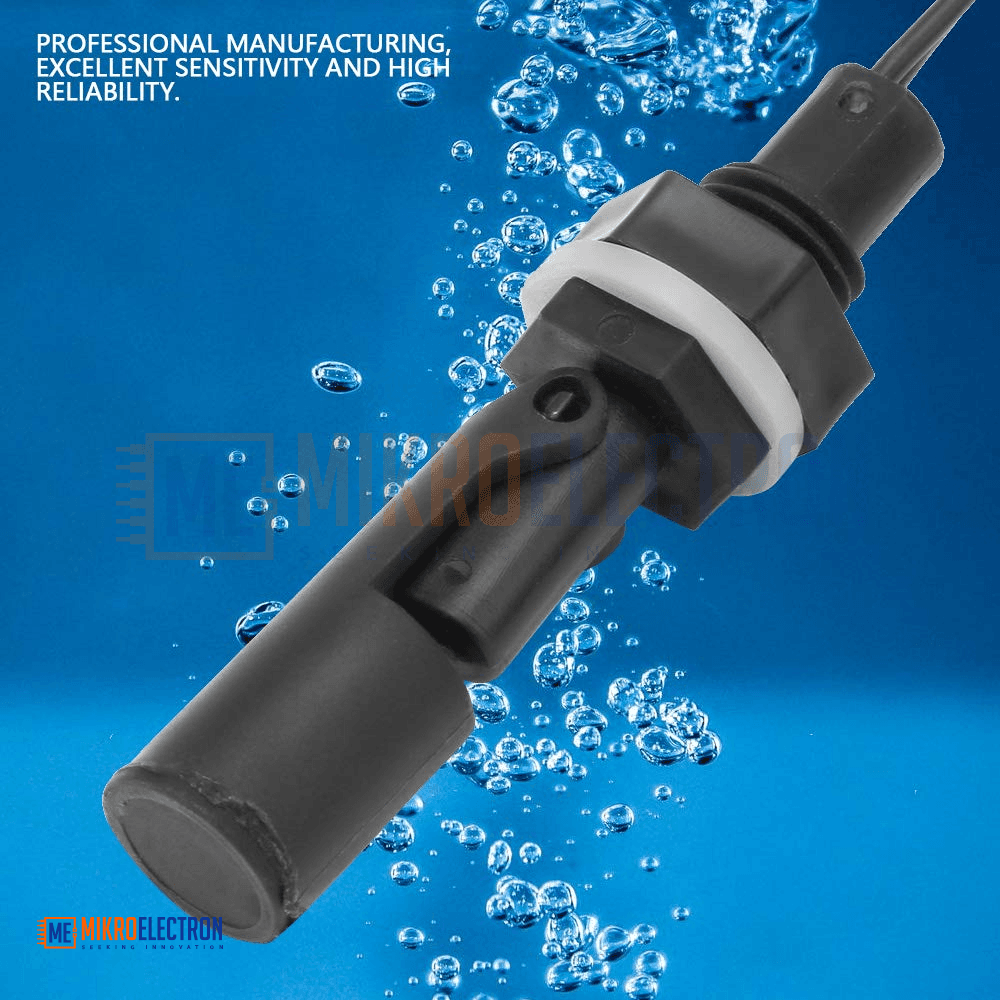

Water Level Float Switch Liquid Level Sensor 100vdc

The Water Level Float Switch Liquid Level Sensor 100VDC is an efficient liquid level sensing device designed for automatic water and fluid level control applications. It uses a floating ball mechanism that activates the internal switch according to the liquid level position, enabling accurate and reliable monitoring.

Constructed from durable PP (Polypropylene) material, both the float ball and body provide excellent resistance against corrosion and moisture, making the sensor suitable for long-term operation in water tanks and liquid systems.

With support for up to 100V DC switching voltage and compact threaded installation, this float switch is easy to integrate into automation projects, pump control systems, and industrial liquid management applications. Its lightweight structure and stable switching performance make it ideal for both commercial and DIY projects.

Specifications

• Product Type: Water Level Float Switch Sensor
• Sensor Type: Float Ball Liquid Level Sensor
• Maximum Contact Rating: 10W
• Maximum Switching Voltage: 100V DC
• Maximum Switching Current: 0.5A
• Maximum Breakdown Voltage: 220V DC
• Maximum Carry Current: 1.0A
• Maximum Contact Resistance: 100mΩ
• Operating Temperature:
  • -10°C to +60°C
  • Up to +85°C
• Float Ball Material: PP (Polypropylene)
• Float Body Material: PP (Polypropylene)
• Float Ball Size: 24 × 17mm
• Thread Diameter: 16mm (3/8" PT)
• Hex Nut Diameter: 23mm
• Body Length: 90mm
• Cable Length: 39cm
• Color: Black
• Net Weight: 22g

Applications

• Water tank level monitoring
• Automatic pump control systems
• Aquarium water level control
• Industrial liquid management
• Overflow prevention systems
• DIY automation projects
• Irrigation systems
• Reservoir monitoring systems
