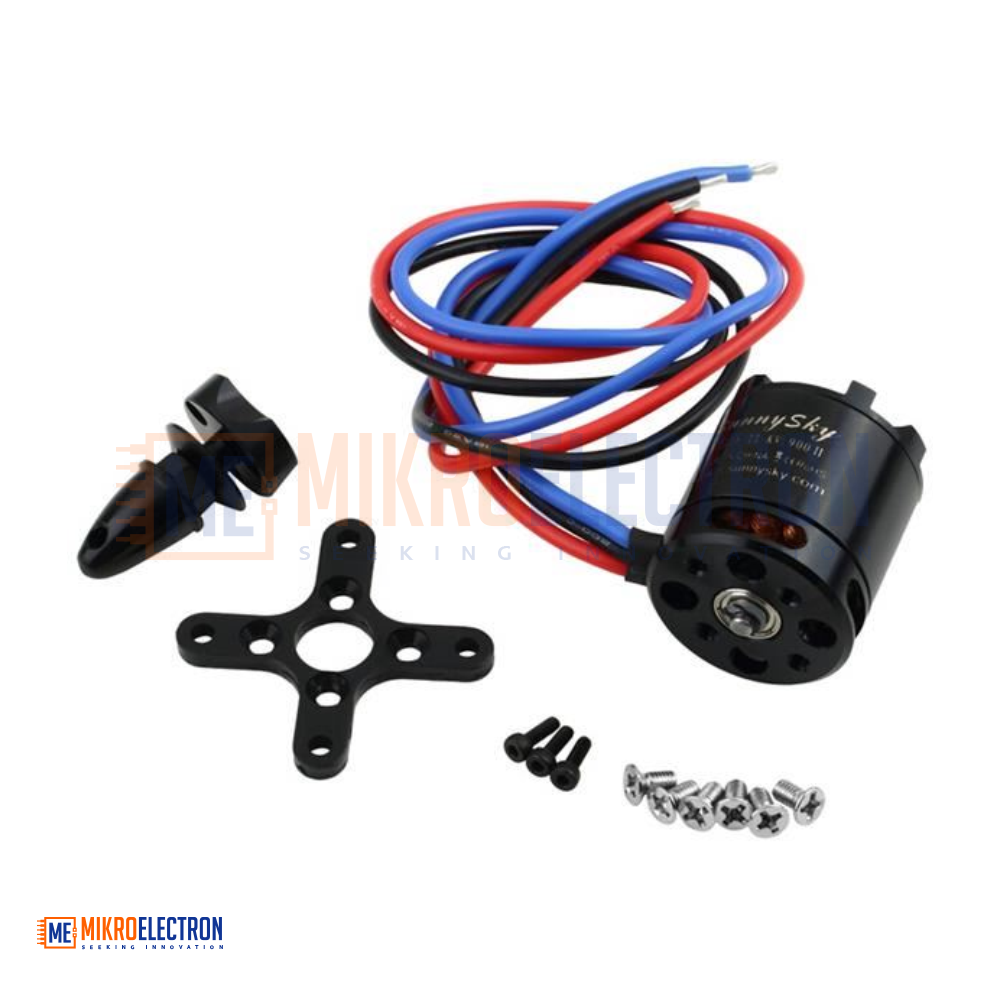

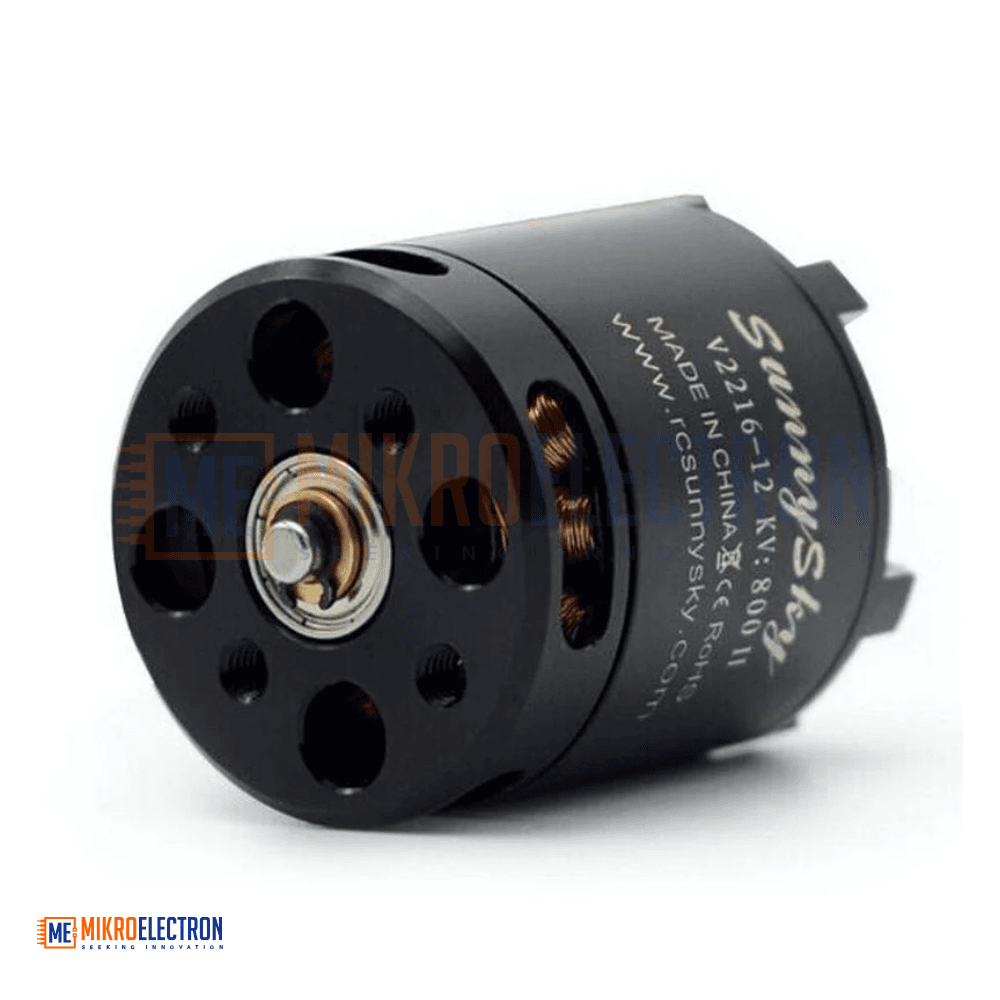

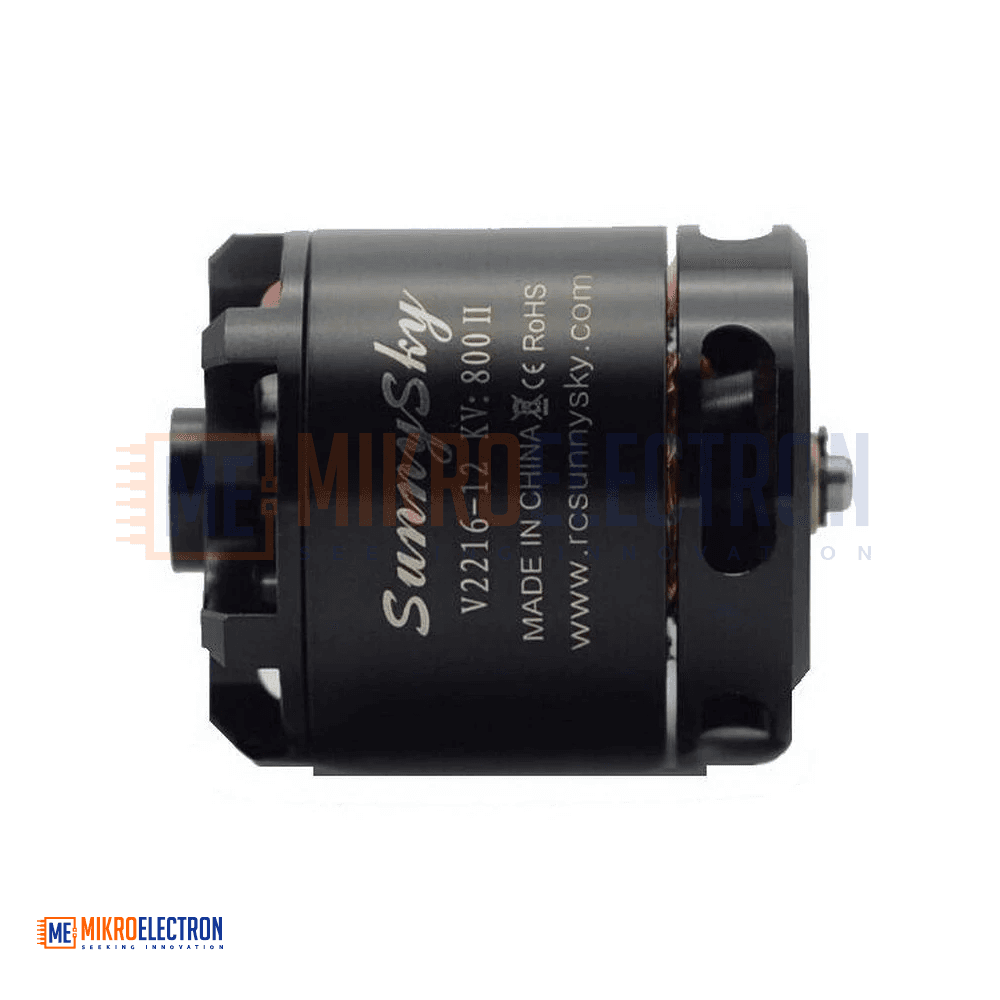

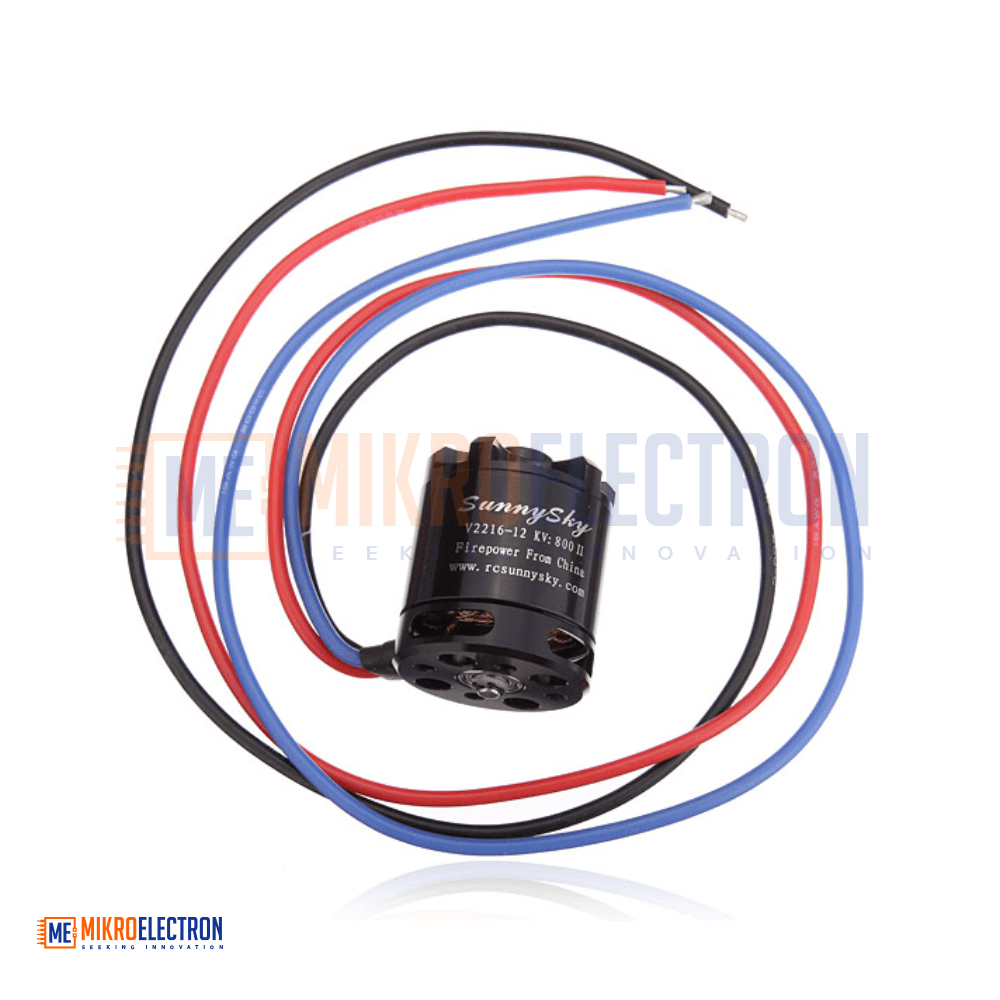

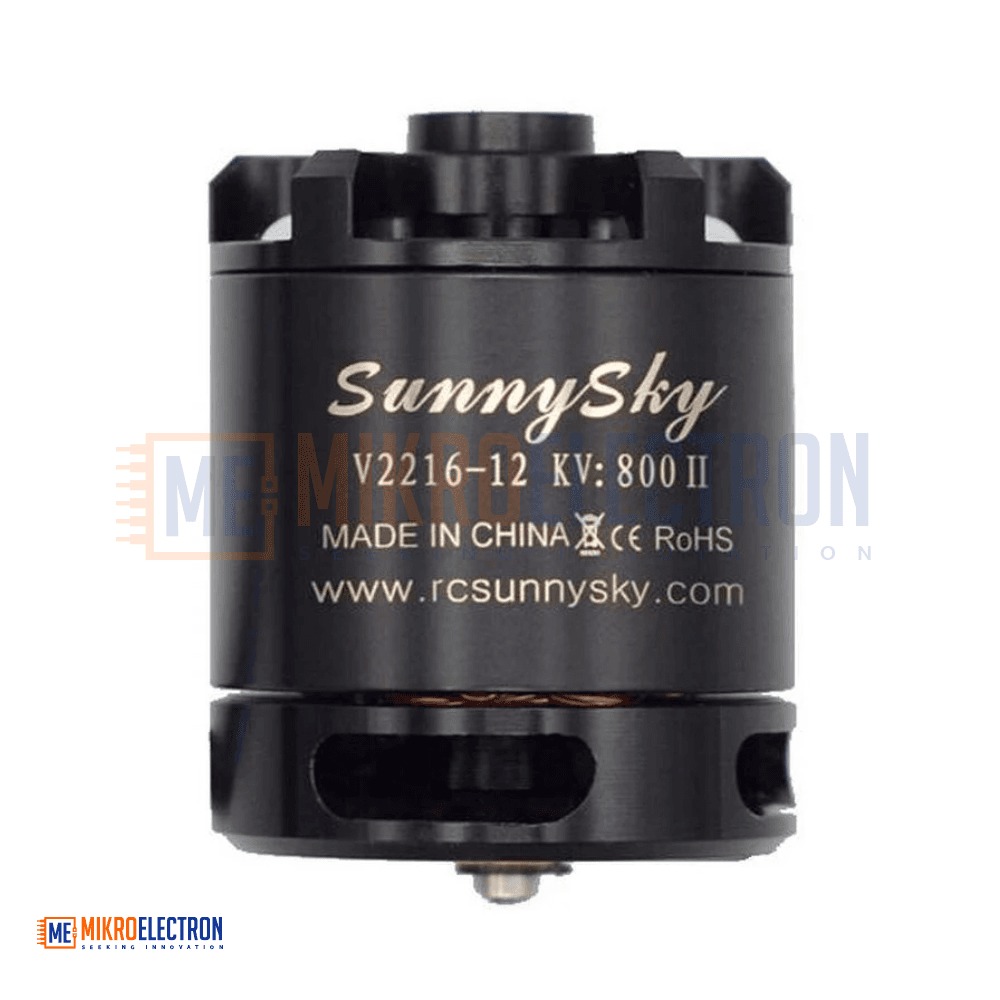

Original SUNNYSKY V2216-12 800KV BRUSHLESS MOTOR

The Original SunnySky V2216-12 800KV Brushless Motor is part of SunnySky's renowned V-Series, widely regarded as one of the most balanced, efficient, and reliable brushless motor lines available for multirotor and RC aircraft applications. With a KV rating of 800, this motor strikes an ideal balance between torque and speed, making it perfect for swinging 10-inch to 12-inch propellers on multirotor platforms.

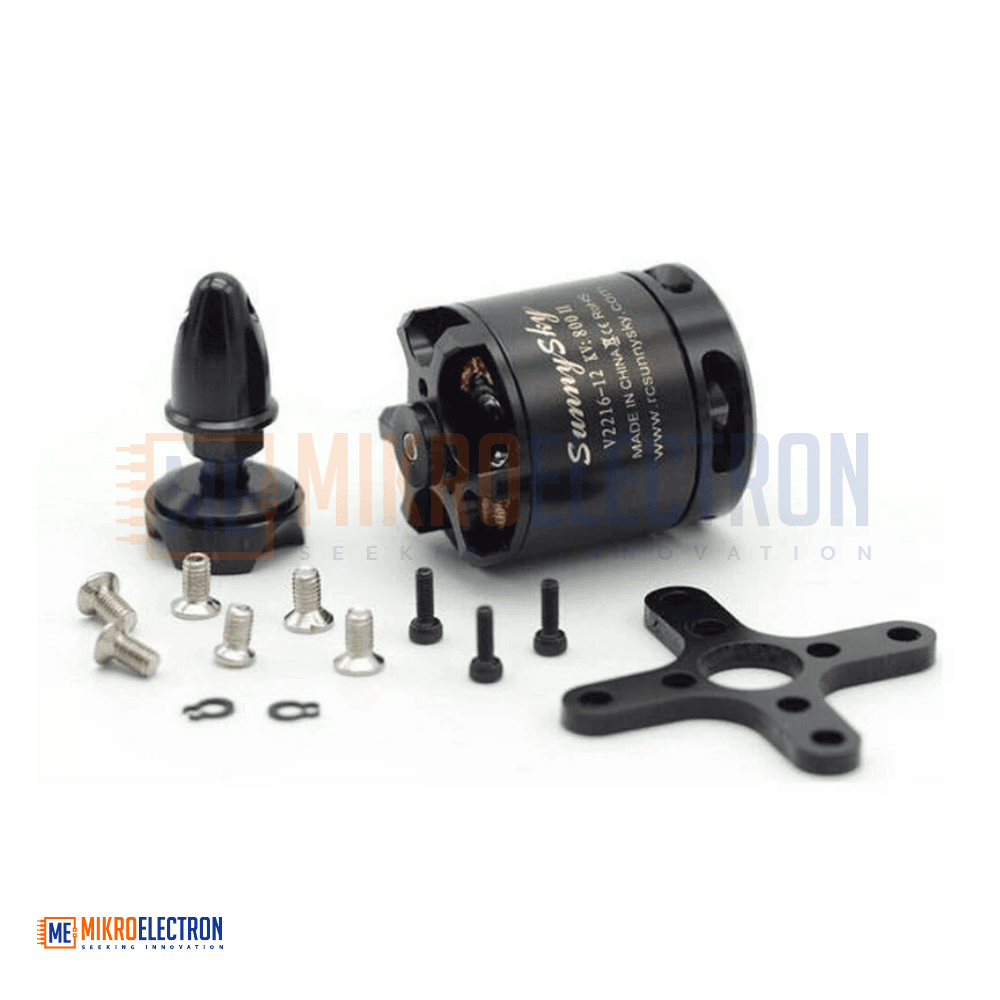

The motor features a redesigned prop adaptor that is mounted to the motor can with 3 screws, providing superior centralization and balance compared to traditional single-bolt designs. This translates directly into smoother operation, less vibration, and longer motor and propeller life.

Internally, the motor is built with premium components: long-life Japanese NMB ball bearings, highly efficient Japanese Kawasaki stator steel, rare earth magnets stable up to 180°C, and oxygen-free pure copper windings. The motor case is precisely CNC machined from aluminum, while silicone wire leads ensure excellent flexibility and high-temperature endurance. SunnySky's patented balancing techniques and unique wiring method further contribute to the motor's exceptional smoothness and efficiency.

Based on test data, the V2216-12 800KV produces around 830g of thrust at full throttle on a 3S battery with an APC 10x3.8 propeller, and up to 1320g of thrust on a 4S battery with a ZX 11x4.7 Carbon Fiber propeller — providing a wide operational range for many aircraft configurations.

Specifications

• Model: V2216-12 800KV
• Motor KV: 800 RPM/V
• Stator Diameter: 22 mm
• Stator Length: 16 mm
• Motor Size (OD x L): Φ27.8 × 34 mm
• Outside Diameter: 28 mm
• Body Length: 32 mm
• Shaft Diameter: 3 mm (no exposing part)
• Prop Adaptor Shaft Diameter: 5 mm
• Motor Weight: 75 g (with accessory: 13 g)
• Battery Compatibility: 2S – 4S LiPo
• Max Current: 17 A
• Max Power: 180 W
• Bearings: Japanese NMB ball bearings
• Stator Steel: Japanese Kawasaki silicon steel
• Magnets: Rare earth, stable up to 180°C
• Windings: Oxygen-free pure copper
• Case: CNC machined aluminum
• Wire Leads: Silicone insulated
• Prop Adaptor Mount: 3-screw centralized mount

Performance Highlights (from Test Data)

3S (11.1V) — APC 10x3.8 Propeller

• 50% throttle: 320g thrust, 2.1A, 23W
• 100% throttle: 830g thrust, 10.6A, 118W
• Motor temperature: 47°C after 10 min full throttle

3S (11.1V) — ZX 12x3.8 Carbon Fiber Propeller

• 100% throttle: 900g thrust, 11.4A, 127W
• Motor temperature: 48°C

4S (14.8V) — APC 10x3.8 Propeller

• 100% throttle: 1210g thrust, 15.2A, 225W
• Motor temperature: 55°C

4S (14.8V) — ZX 11x4.7 Carbon Fiber Propeller

• 100% throttle: 1320g thrust, 16.8A, 249W
• Motor temperature: 85°C (extreme load)

Best Efficiency: Achieved at 50% throttle on 3S with APC 10x3.8 — 13.7 g/W

Applications

• Quadcopter builds (F450, F500, X525 class)
• Hexacopter and octocopter multirotors (F550)
• Aerial photography and FPV platforms
• Fixed-wing RC aircraft (gliders, trainers, sport planes)
• Drone development and educational projects
• Long-endurance flight builds (high efficiency)
• Mapping, surveying, and inspection drones
• Hobby and competitive RC aircraft
