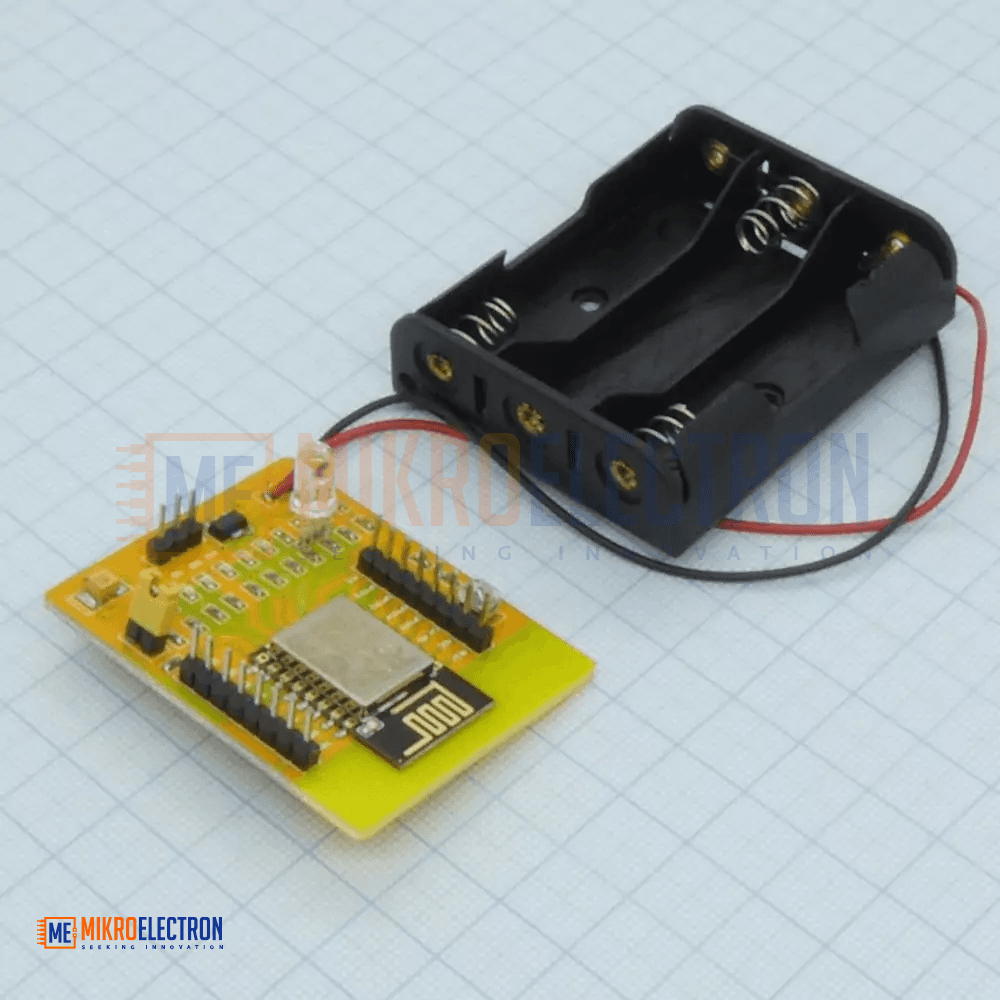

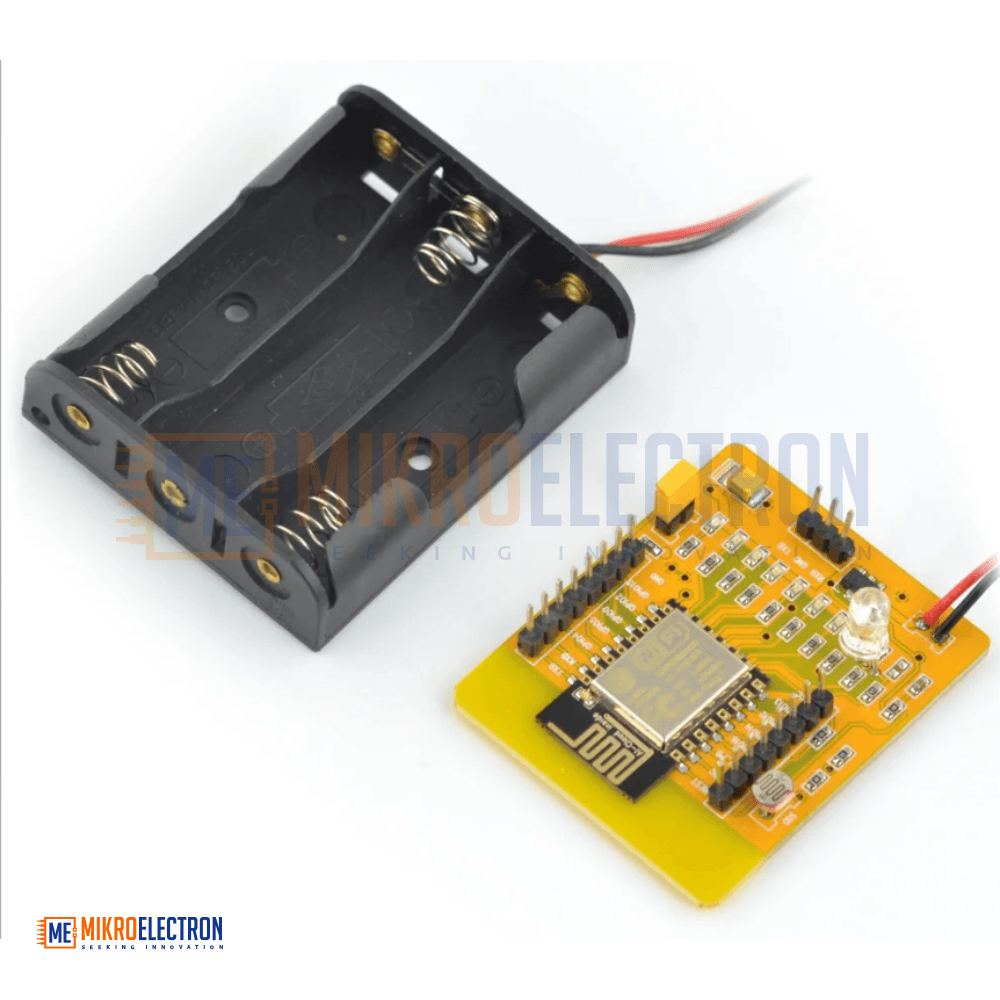

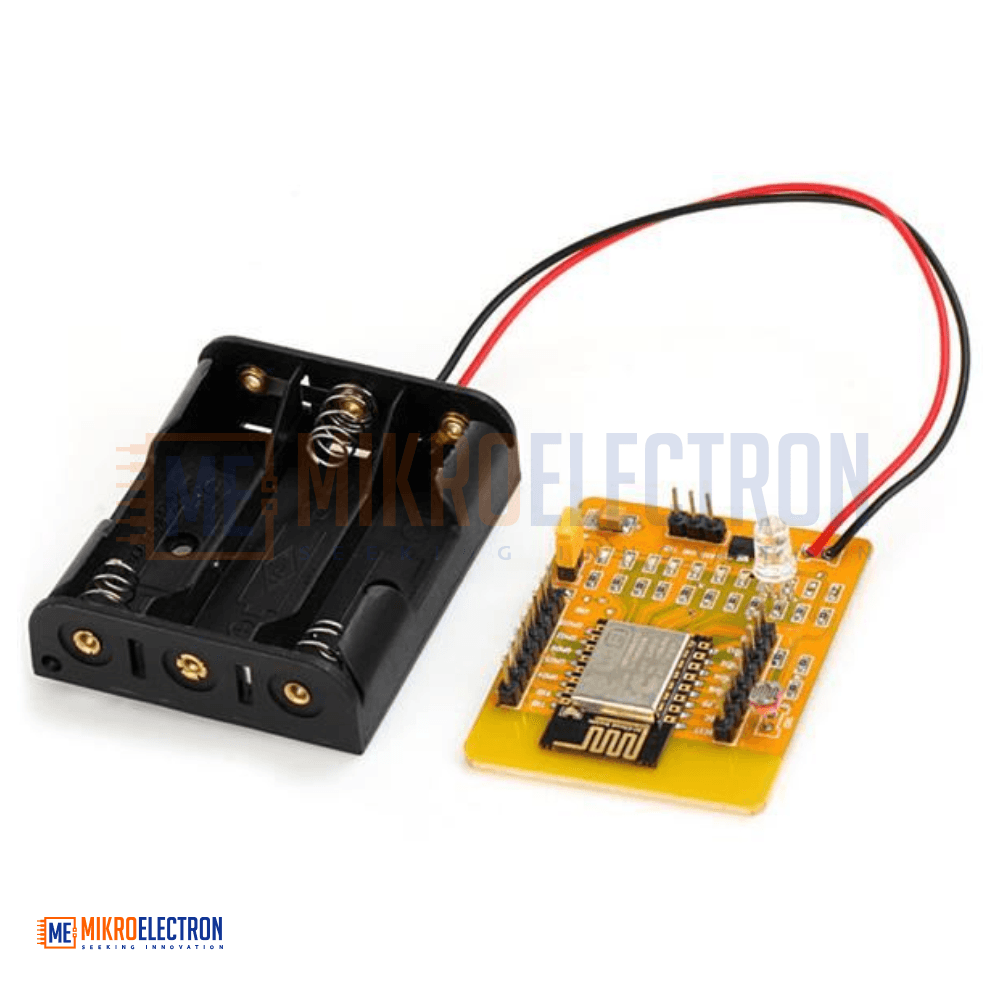

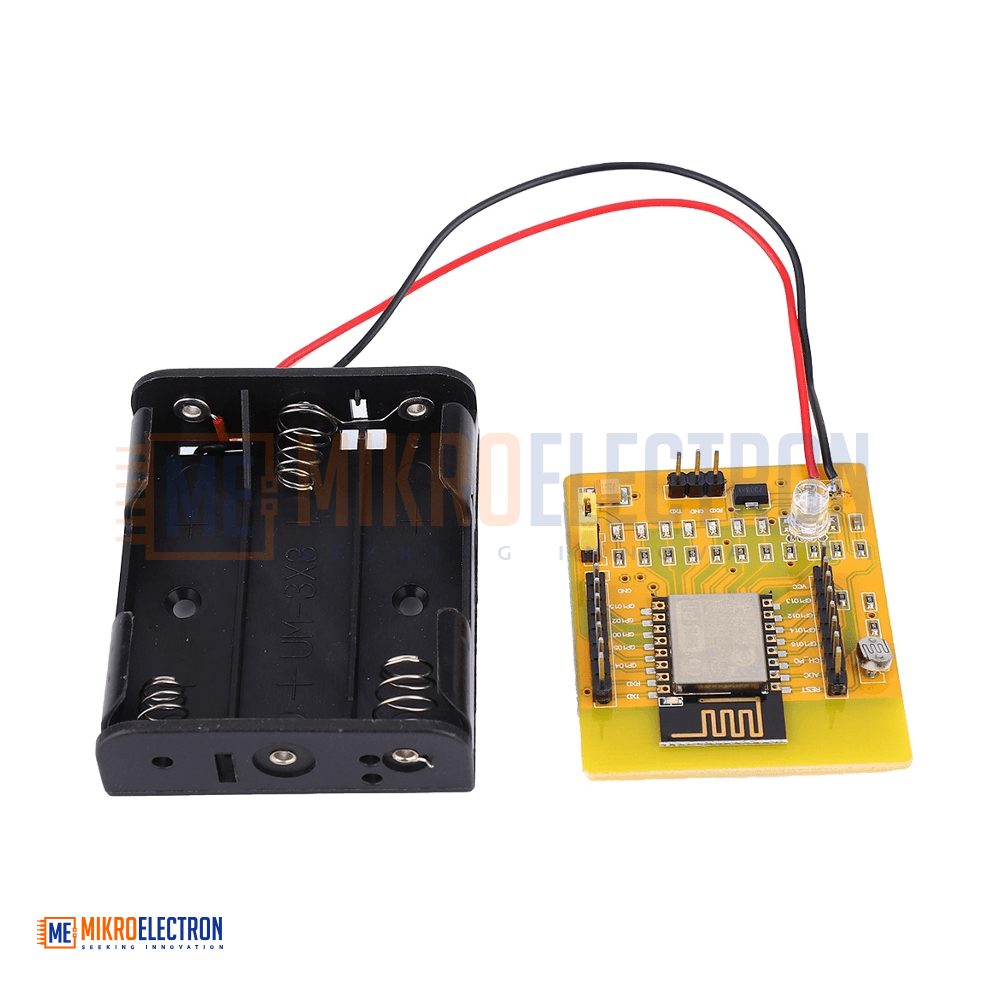

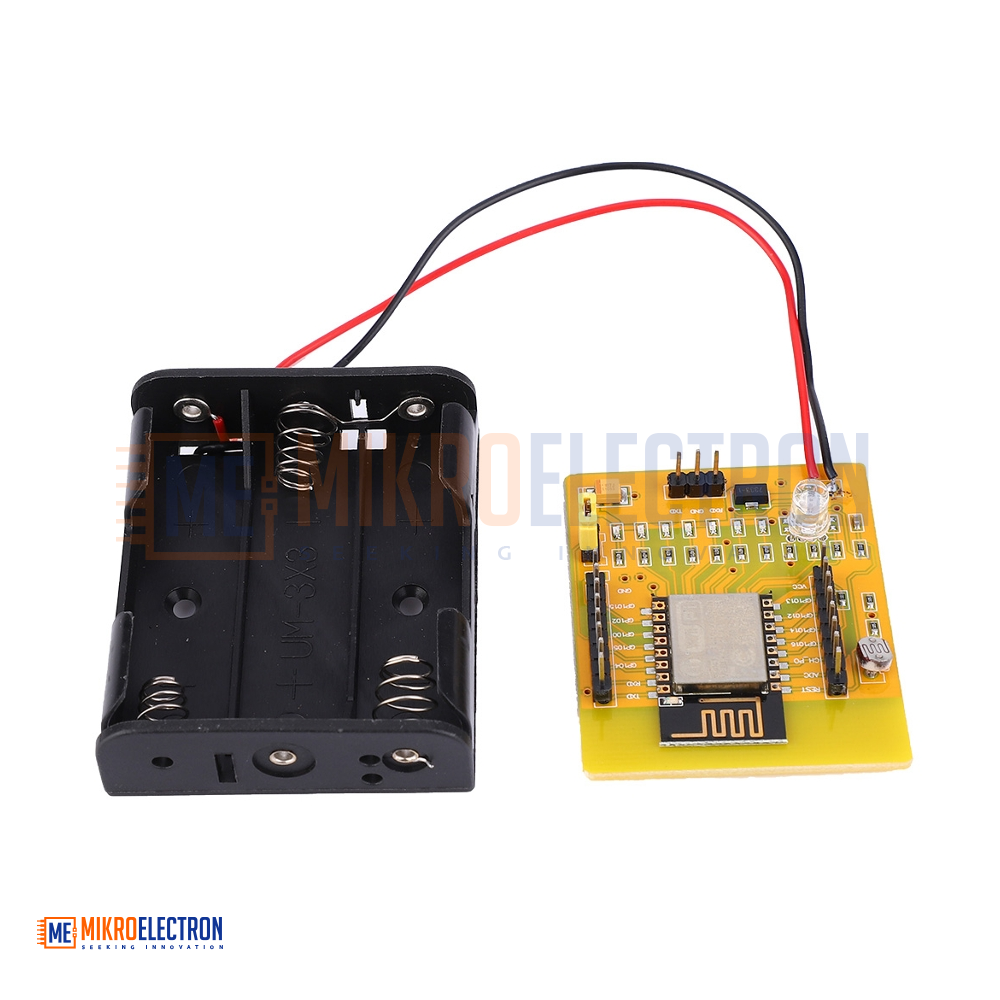

ESP8266 Serial WiFi Training Board
The ESP8266 Serial WiFi Training Board is a complete development platform built around the ESP-12 module, featuring FCC/CE certification, strong anti-interference, and an open-air range up to 400 meters. It exposes all GPIO pins along with 3 PWM channels, 6 ADC, and UART. Includes a mobile IoT app for direct phone control via WiFi AP, local network, or remote cloud server. Ideal for firmware testing, AT command learning, and IoT prototyping.
لوحة تدريب ESP8266 للواي فاي التسلسلي هي منصة تطوير متكاملة مبنية على وحدة ESP-12، حاصلة على شهادتي FCC و CE، بمناعة قوية ضد التشويش ومدى يصل إلى 400 متر في الأماكن المفتوحة. تتيح جميع منافذ GPIO مع 3 قنوات PWM و6 ADC ومنفذ UART. تتضمن تطبيق IoT للجوال للتحكم المباشر عبر WiFi AP أو الشبكة المحلية أو السيرفر السحابي. مثالية لاختبار الفيرموير، تعلم أوامر AT، ومشاريع إنترنت الأشياء.
The ESP8266 Serial WiFi Training Board is a comprehensive development and learning platform designed around the popular ESP-12 WiFi module. The board is certified to both FCC and CE standards and engineered with strong anti-interference characteristics, achieving an impressive open-air communication range of up to 400 meters in line-of-sight conditions.
The board breaks out the full set of ESP8266 GPIO pins directly to easy-access headers, including 3 PWM channels, 6 ADC inputs, and a full-speed UART interface. This makes it ideal for both AT-command-based prototyping and SDK-level firmware development. A metal shielding case is included to raise stability and reduce RF noise during operation.
The board can be used with the included mobile IoT app (Android .APK available, iOS supported), enabling three distinct control scenarios:
- Direct AP Mode: Use your phone to connect directly to the module's hotspot (default SSID AI-THINKER, password ai-thinker) and control GPIOs, PWM, and switches without any router.
- Local Network Mode: Join the module to your home WiFi router and control it from anywhere within the local network.
- Cloud Mode: Once the module is mounted to the remote server, you can control it from anywhere in the world using 2G, 3G, or 4G mobile data.
A built-in ESP8266 FLASHER workflow allows users to easily update or replace the firmware, switching between AT command firmware, custom user firmware, or the manufacturer's IoT firmware. The board can act as a standalone minimum system for ESP-12 testing or as a low-cost learning kit for AT commands and SDK development.
Specifications
- Core Module: ESP-12 (ESP8266)
- Certifications: FCC and CE
- Wireless Range: Up to 400 meters (open air, line of sight)
- GPIO: All ESP8266 GPIO pins broken out
- PWM Channels: 3-way PWM
- ADC Inputs: 6-way Analog Inputs
- Serial Interface: Full UART (TTL)
- Firmware: Upgradeable via ESP8266 FLASHER software
- AT Commands: Fully supported
- SDK Development: Supported
- Shielding: Metal shielded case for improved stability
- Default AP SSID: AI-THINKER
- Default AP Password: ai-thinker
- Mobile App: Android (.APK) and iOS IoT control app
- Cloud Server: Auto-mount remote server for global access
Applications
- IoT (Internet of Things) project development and prototyping
- Smart home appliances and automation systems
- Remote-controlled lighting, fans, and switches
- WiFi-controlled dimming and PWM applications
- Sensor data collection and remote monitoring
- AT command learning and experimentation
- ESP8266 SDK development and firmware testing
- Stability testing of ESP-12 modules
- Educational projects in wireless communication
- Wireless data logging via WiFi
- Industrial automation end-nodes
- Cloud-connected consumer electronics prototyping
