IC I2C interface Level Conversion Module 5V <-> 3V System
The I2C Logic Level Conversion Module 5V ↔ 3.3V is a compact interface board designed to enable reliable communication between 5V and 3.3V I2C devices. It safely converts logic levels between different voltage systems, making it ideal for connecting 3.3V sensors, modules, and microcontrollers to 5V development boards. The module includes a built-in 3.3V voltage regulator capable of supplying up to 100mA, eliminating the need for an external regulator in many applications. Compatible with breadboards and prototype circuits, it provides a simple and effective solution for voltage level matching in embedded systems and electronics projects.
تُعد وحدة تحويل مستويات الجهد I2C من 5 فولت إلى 3.3 فولت والعكس لوحة مدمجة مصممة لتمكين الاتصال الآمن والموثوق بين الأجهزة التي تعمل بجهود مختلفة. تقوم الوحدة بتحويل مستويات الإشارة بين أنظمة 5V و3.3V، مما يجعلها مثالية لتوصيل الحساسات والوحدات الإلكترونية والمتحكمات الدقيقة ذات جهد 3.3 فولت مع لوحات التطوير العاملة بجهد 5 فولت. تحتوي على منظم جهد مدمج 3.3 فولت بتيار يصل إلى 100mA، كما أنها متوافقة مع لوحات التجارب، مما يجعلها مناسبة لمشاريع الإلكترونيات والأنظمة المدمجة.
The I2C Logic Level Converter Module is designed to bridge communication between devices operating at different logic voltage levels, specifically 5V and 3.3V systems. It allows safe data exchange over the I2C bus by converting the SDA and SCL signal levels between high-voltage and low-voltage devices.
The module features dedicated connections for both voltage domains, making integration straightforward. A built-in 3.3V voltage regulator converts a 5V input into a regulated 3.3V output with up to 100mA current capability, which can be used to power compatible low-voltage modules.
Its breadboard-friendly design makes it suitable for rapid prototyping, educational projects, sensor interfacing, and embedded system development. The converter helps prevent damage caused by voltage mismatches while ensuring reliable communication between devices operating at different logic levels.
Specifications
| Parameter | Specification |
|---|---|
| Product Type | I2C Logic Level Converter Module |
| Logic Level Conversion | 5V ↔ 3.3V |
| Communication Interface | I2C (SDA, SCL) |
| Input Supply Voltage | 5V |
| Regulated Output Voltage | 3.3V |
| Maximum Output Current | 100mA |
| High-Voltage Side | AVCC, ASCL, ASDA, AGND |
| Low-Voltage Side | BVCC, BSCL, BSDA, BGND |
| Breadboard Compatible | Yes |
| Built-in Voltage Regulator | Yes |
| Maximum Stable Baud Rate | 28800 bps |
| Application Type | Logic Level Translation |

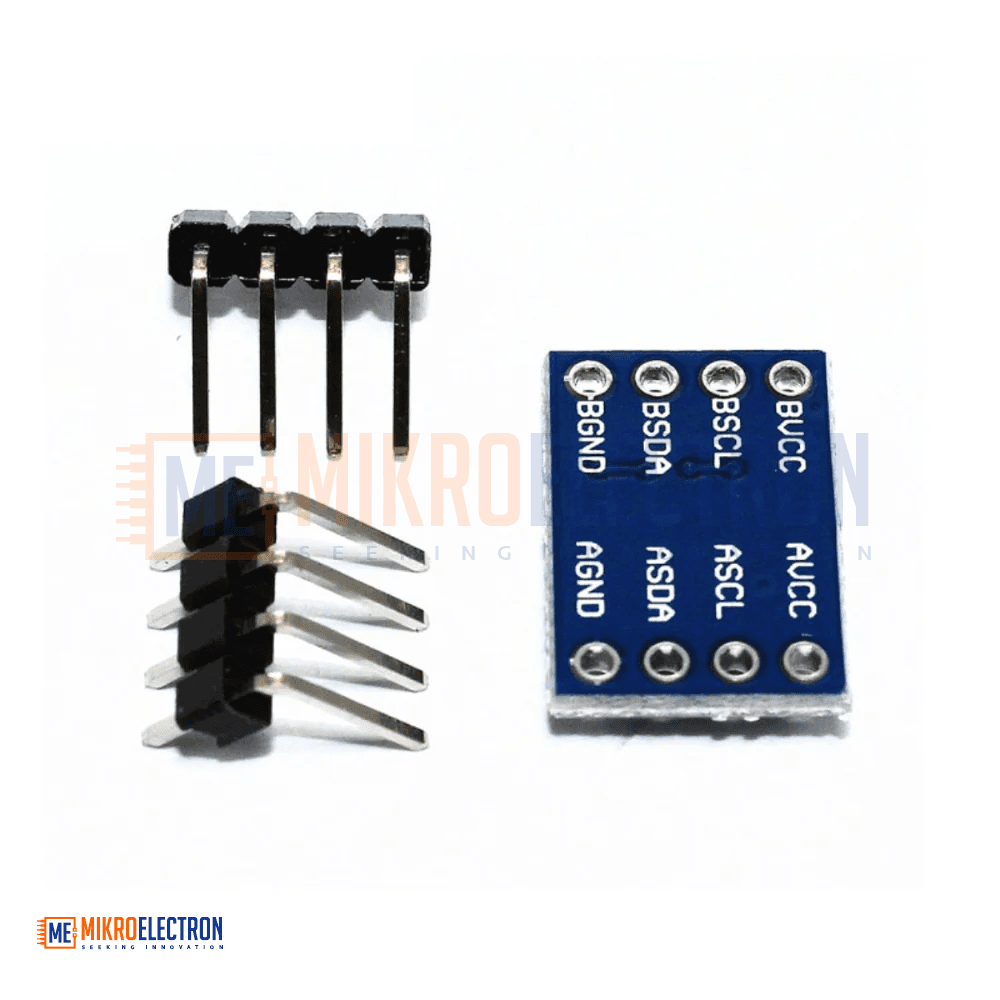

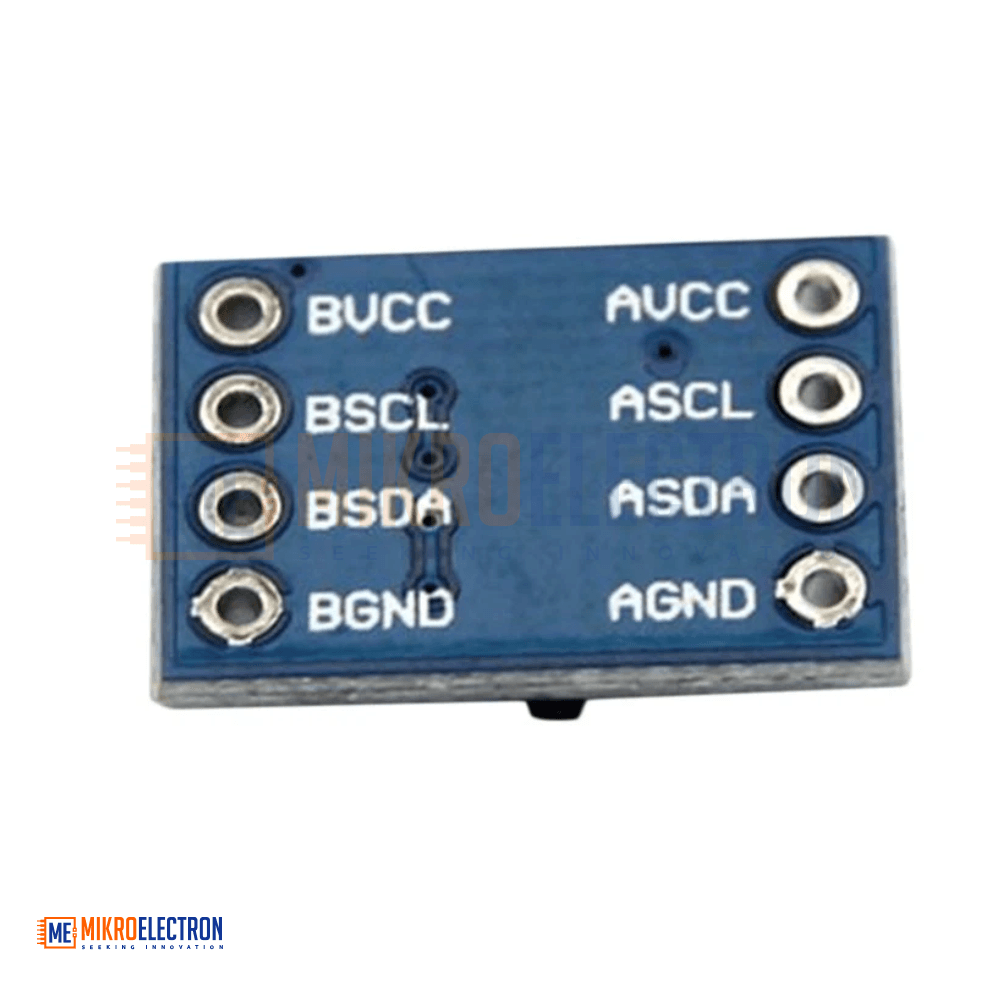

Pin Configuration
| Pin | Description |
|---|---|
| AVCC | 5V Power Supply Input |
| ASCL | 5V I2C Clock (SCL) |
| ASDA | 5V I2C Data (SDA) |
| AGND | 5V System Ground |
| BVCC | 3.3V Power Supply |
| BSCL | 3.3V I2C Clock (SCL) |
| BSDA | 3.3V I2C Data (SDA) |
| BGND | 3.3V System Ground |
Applications
- Interfacing 3.3V sensors with 5V microcontrollers
- Arduino to 3.3V sensor communication
- ESP8266 and ESP32 projects
- Raspberry Pi I2C device interfacing
- Embedded system development
- I2C communication level shifting
- Electronics prototyping and testing
- Industrial control systems
- Data acquisition systems
- Educational electronics projects
