Vibration Sensor Module - 3-5V - SW-18010P

5.0(1 review)
SKU: ME-5772
JD2.90JD4.00

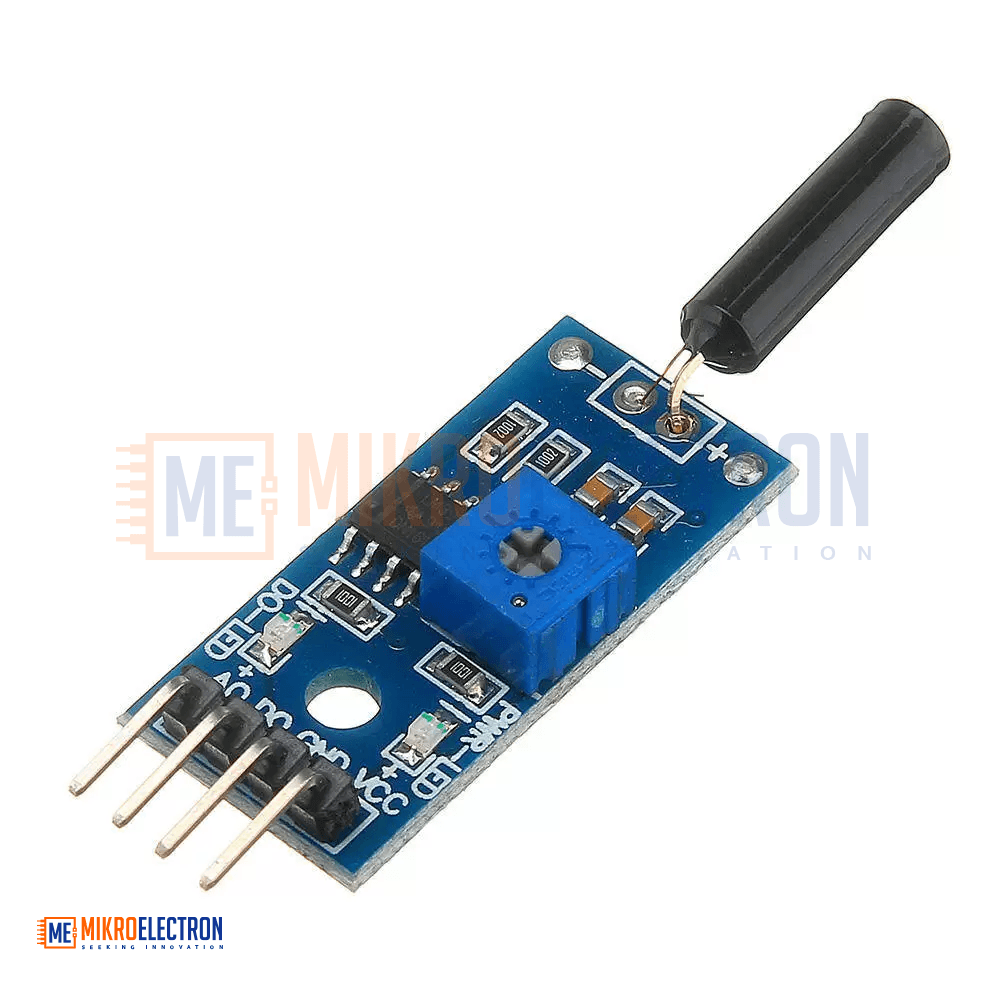

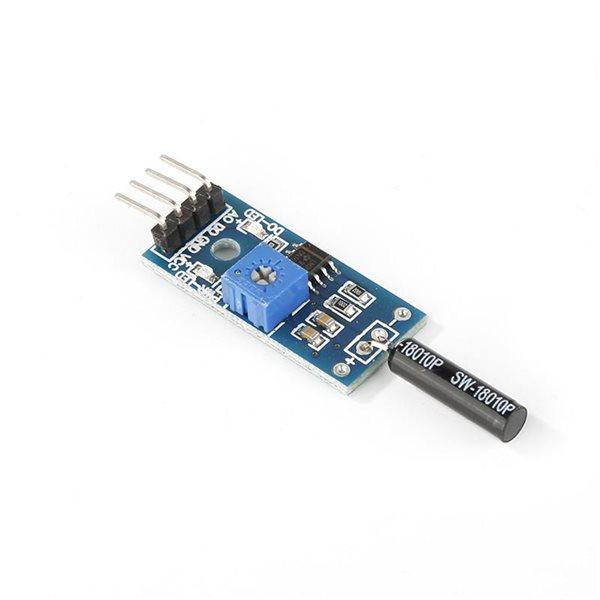

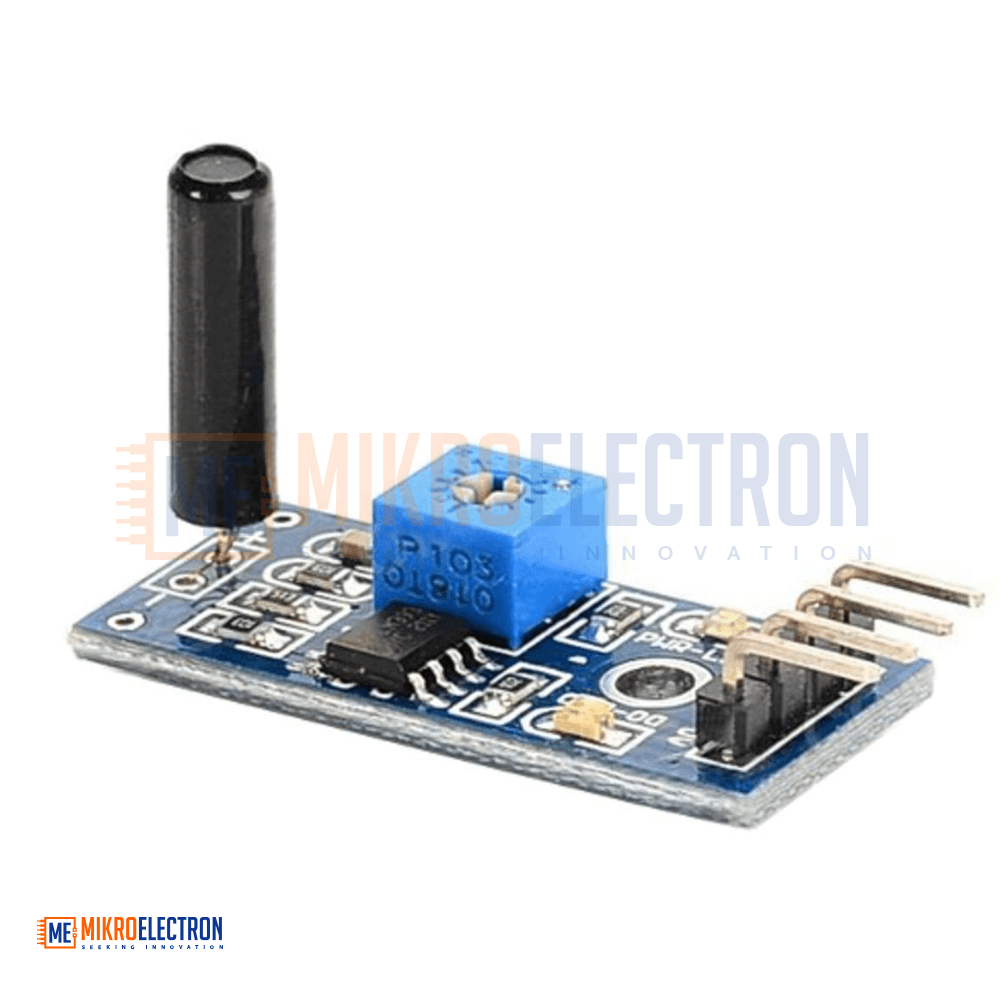

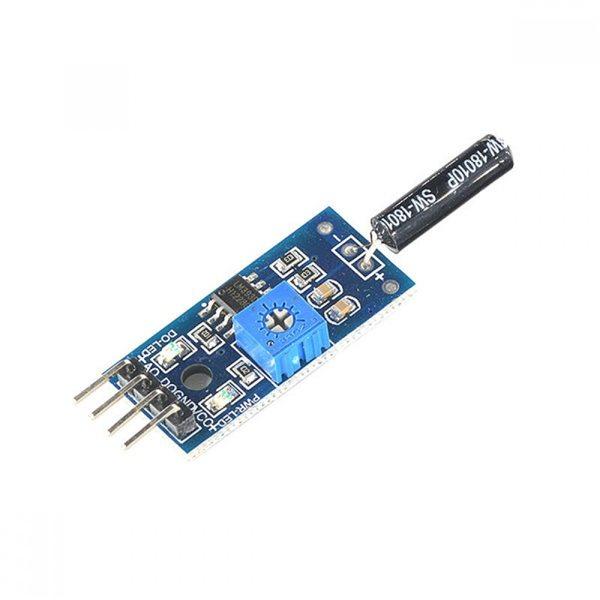

The SW-18010P Vibration Sensor Module is a compact sensor designed to detect vibration, shock, and movement in electronic systems. It uses the SW-18010P vibration sensor together with an LM393 comparator to provide stable and reliable detection. The module offers both digital (DO) and analog (AO) outputs, allowing integration with microcontrollers, alarm systems, and automation projects. Sensitivity can be adjusted using the onboard potentiometer to suit different applications. Operating from 3V to 5V DC, the module delivers fast response and clean output signals, making it ideal for security, monitoring, and motion detection applications.

تُعد وحدة حساس الاهتزاز SW-18010P وحدة استشعار مدمجة مصممة للكشف عن الاهتزازات والصدمات والحركة في الأنظمة الإلكترونية المختلفة. تعتمد على حساس SW-18010P مع دائرة المقارن LM393 لتوفير كشف موثوق واستجابة سريعة. توفر الوحدة مخرجي إشارة رقمية (DO) وإشارة تناظرية (AO) لسهولة الربط مع المتحكمات الدقيقة وأنظمة الإنذار والأتمتة. يمكن ضبط مستوى الحساسية بواسطة المقاومة المتغيرة المدمجة لتناسب متطلبات التطبيق. تعمل بجهد 3 إلى 5 فولت DC وتتميز بإشارة خرج مستقرة وواضحة، مما يجعلها مناسبة لمشاريع المراقبة والأمان والكشف عن الحركة والاهتزاز.

Proximity & Distance Sensors

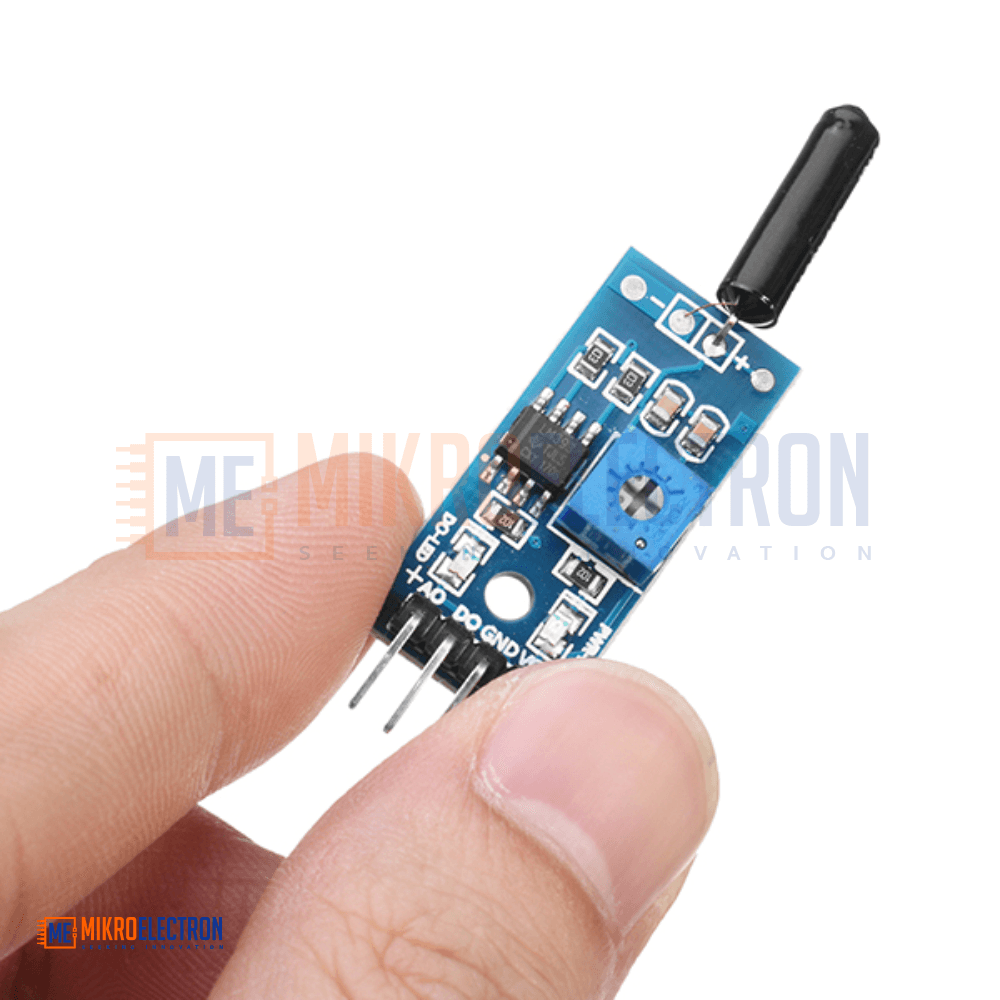

The SW-18010P Vibration Sensor Module is an electronic vibration detection module capable of sensing movement, impact, and mechanical vibration. The sensor contains an internal spring mechanism that generates a signal when vibration causes contact within the sensing element. Combined with an LM393 comparator, the module provides stable digital output and adjustable sensitivity for accurate vibration detection. Its compact design and mounting holes make it easy to integrate into security systems, robotics, automation equipment, and embedded electronic projects.

Specifications

ParameterSpecification
Product TypeVibration Sensor Module
Sensor ModelSW-18010P
Comparator ICLM393
Operating Voltage3V – 5V DC
Output TypeAnalog & Digital
Digital OutputDO
Analog OutputAO
Output Signal FormatDigital Logic (0 / 1)
Digital Output Drive Current>15mA
Sensitivity AdjustmentOnboard Potentiometer

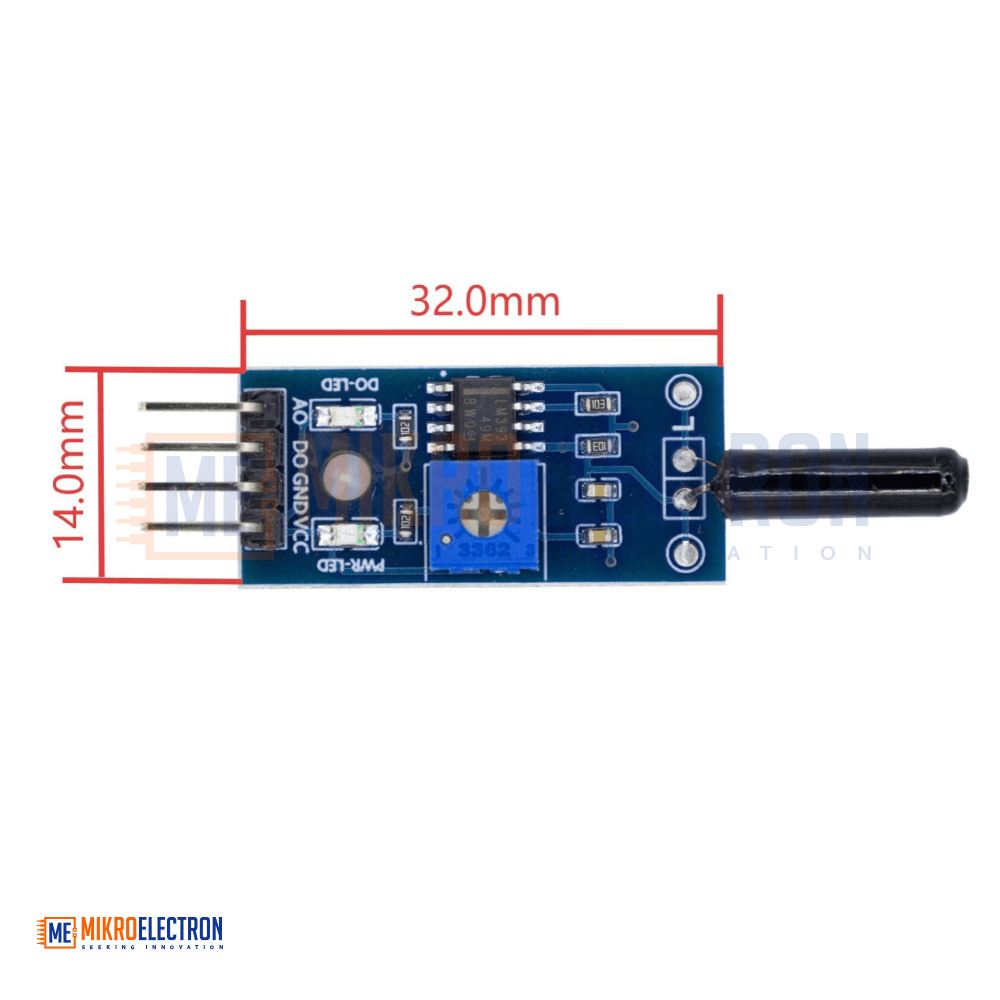

PCB Dimensions31 × 14 mm
Mounting MethodBolt Hole Mounting

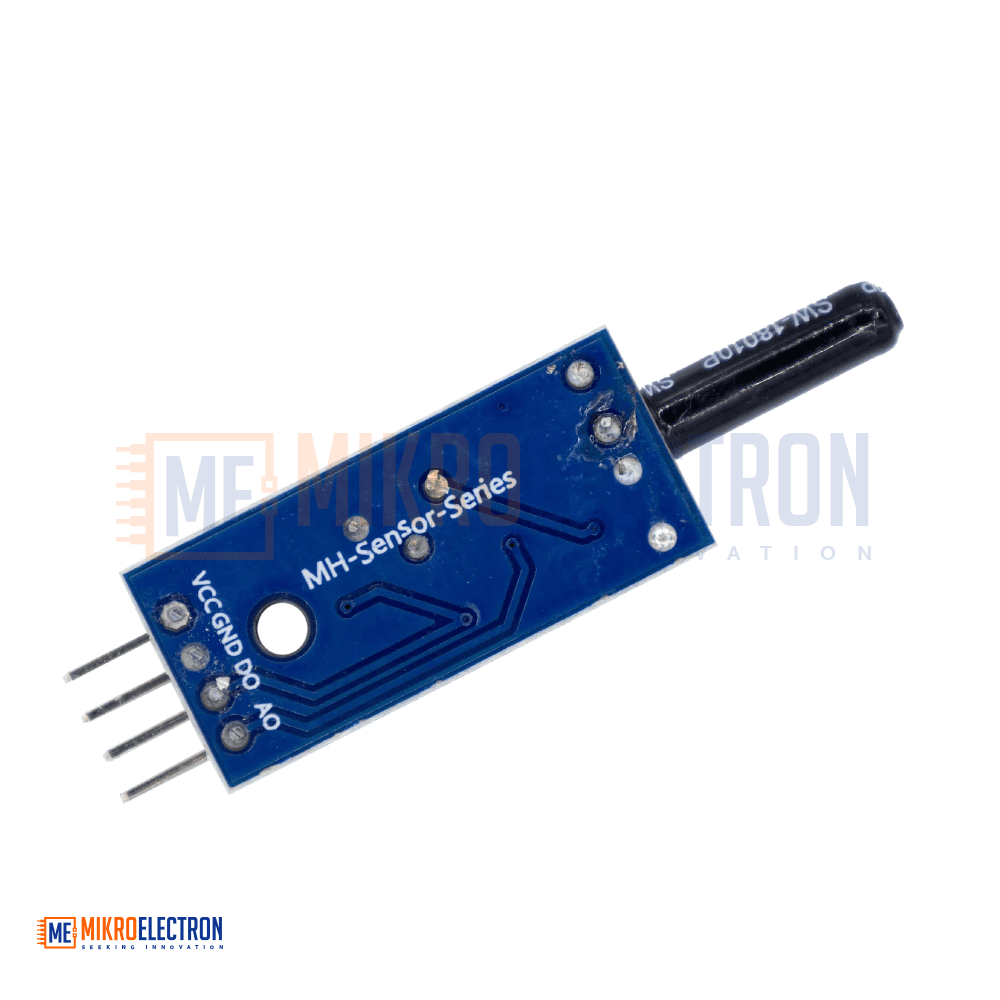

Pin Configuration

PinDescription
VCC3V–5V Power Input
GNDGround
DODigital Output
AOAnalog Output

Applications

  • Vibration detection systems
  • Shock and impact monitoring
  • Security alarm systems
  • Anti-theft devices
  • Earthquake and motion detection
  • Industrial equipment monitoring
  • Machine vibration analysis
  • Robotics projects
  • Arduino and ESP32 applications
  • Smart home automation
  • Equipment protection systems
  • Educational electronics projects
