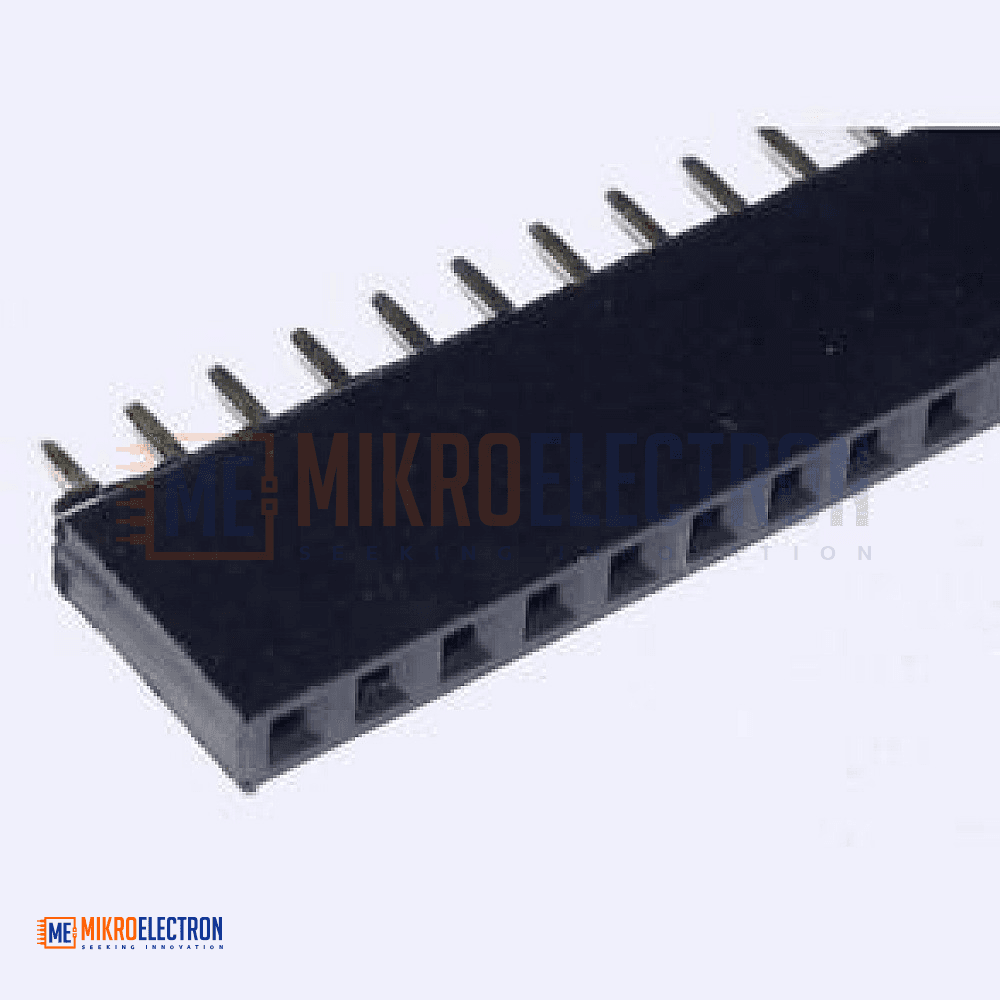

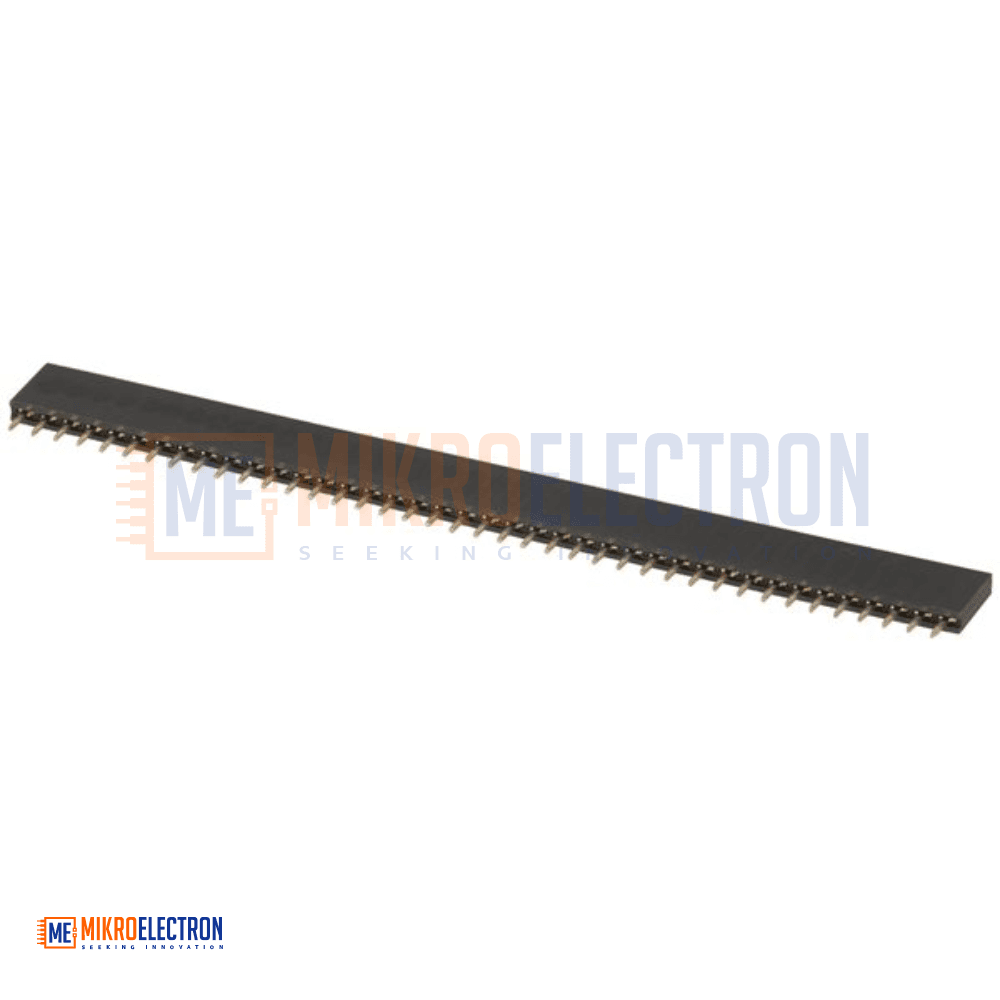

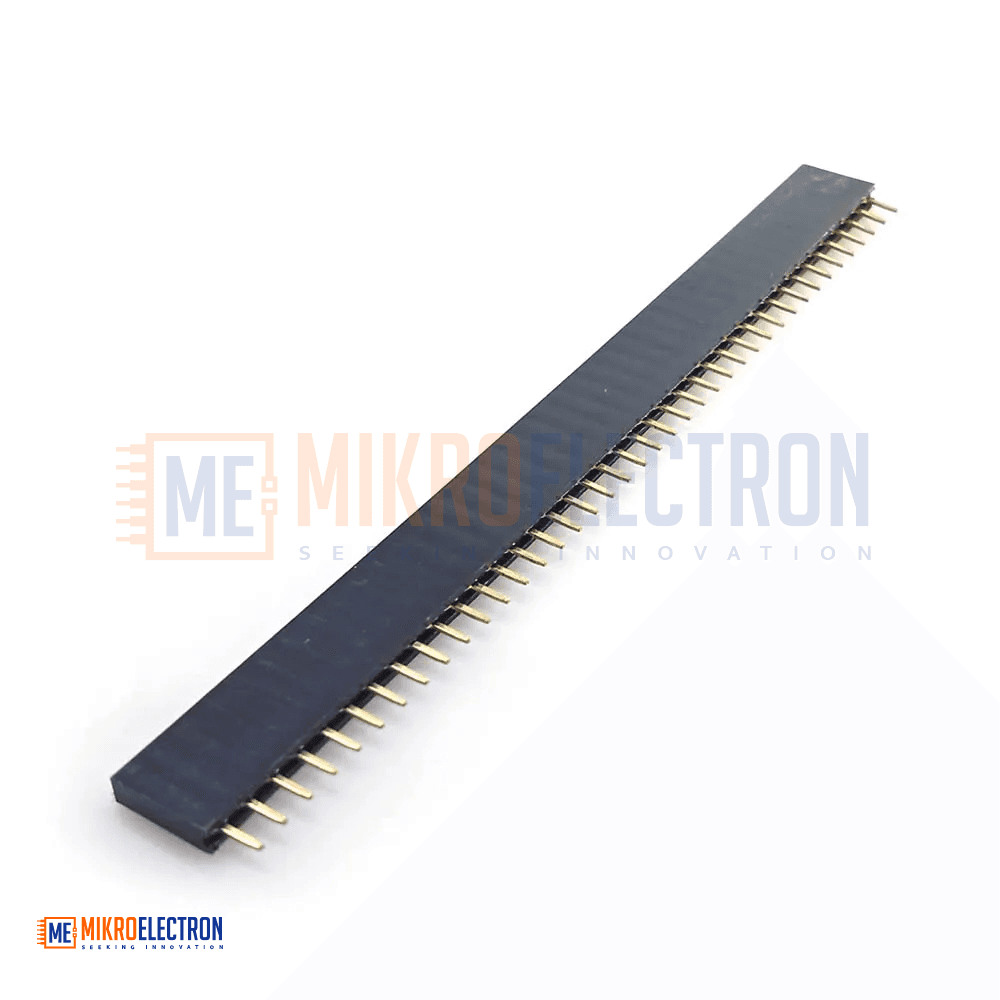

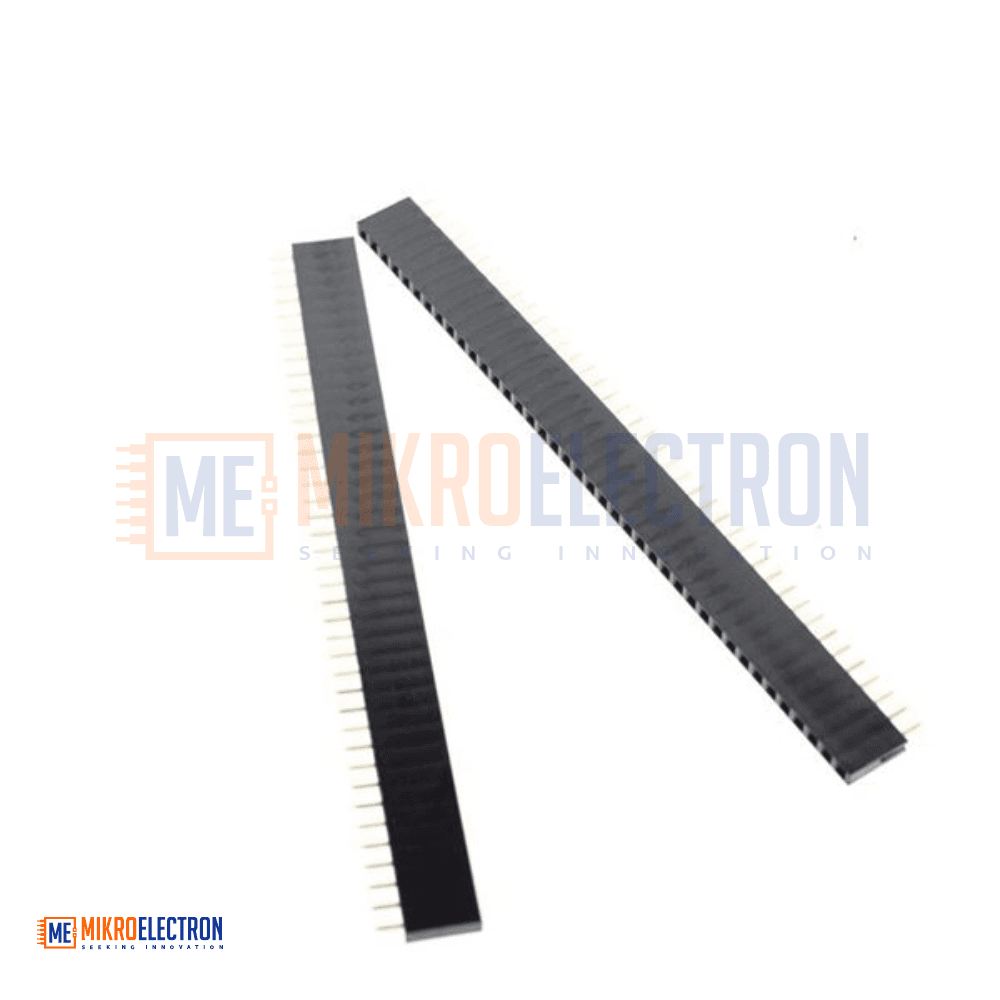

2.00 mm 40 Pin Female Header Strip
The 2.00mm 40-Pin Female Header Strip is a single-row PCB socket connector designed for reliable board-to-board and wire-to-board connections in electronic circuits. Featuring 40 female contacts with a 2.00mm pin pitch, it provides a compact solution for applications where space is limited. The connector is suitable for soldering directly onto printed circuit boards and is commonly used in embedded systems, development boards, prototyping, and custom electronic projects. Its durable construction ensures secure electrical contact and long-term reliability in both professional and hobbyist applications.
شريط Female Header مكون من 40 سنًا بمسافة 2.00 مم هو موصل أنثى أحادي الصف مصمم لتوفير توصيلات موثوقة بين اللوحات الإلكترونية والأسلاك. يحتوي على 40 نقطة اتصال بمسافة 2.00 مم بين الأرجل، مما يجعله مناسبًا للتطبيقات التي تتطلب تصميمًا مدمجًا وتوفيرًا للمساحة. يتم تثبيته مباشرة على لوحات الدوائر المطبوعة (PCB) ويُستخدم على نطاق واسع في أنظمة التحكم المدمجة ولوحات التطوير والنماذج الأولية والمشاريع الإلكترونية المختلفة.
The 2.00mm 40-Pin Female Header Strip is a high-quality single-row socket connector designed for PCB mounting and electronic interconnection applications. It provides a convenient and reliable method for connecting male pin headers, modules, expansion boards, and other electronic components.
With a 2.00mm pitch, this header offers a more compact alternative to standard 2.54mm connectors, making it ideal for designs where PCB space is limited. The strip contains 40 female contacts arranged in a single row, allowing multiple signal, power, or data connections through a single connector.
The connector is designed for direct soldering onto printed circuit boards and can be cut into smaller sections to suit specific project requirements. It is widely used in development boards, communication modules, embedded systems, industrial electronics, and DIY prototyping projects.
Its durable housing and precision contacts ensure stable electrical performance, secure mating with compatible male headers, and long operational life.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Female Header Strip |
| Header Style | Single Row |
| Connector Type | Socket |
| Number of Pins | 40 Pins |
| Pin Pitch | 2.00 mm |
| Mounting Method | PCB Through-Hole Mount |
| Contact Type | Female Socket Contacts |
| Row Configuration | Single Row |
| Housing Material | Insulating Plastic |
| Contact Material | Metal Alloy |
| Connection Type | Board-to-Board / Wire-to-Board |
| Cuttable | Yes |
| Reusable | Yes |
| Application | Electronic Interconnections |
Applications
- PCB interconnections
- Microcontroller development boards
- Embedded systems
- Arduino-compatible projects
- Sensor module connections
- Communication modules
- Custom electronic designs
- Prototyping and testing
- Industrial control circuits
- Educational electronics projects
- Board-to-board connections
- Signal and power distribution
