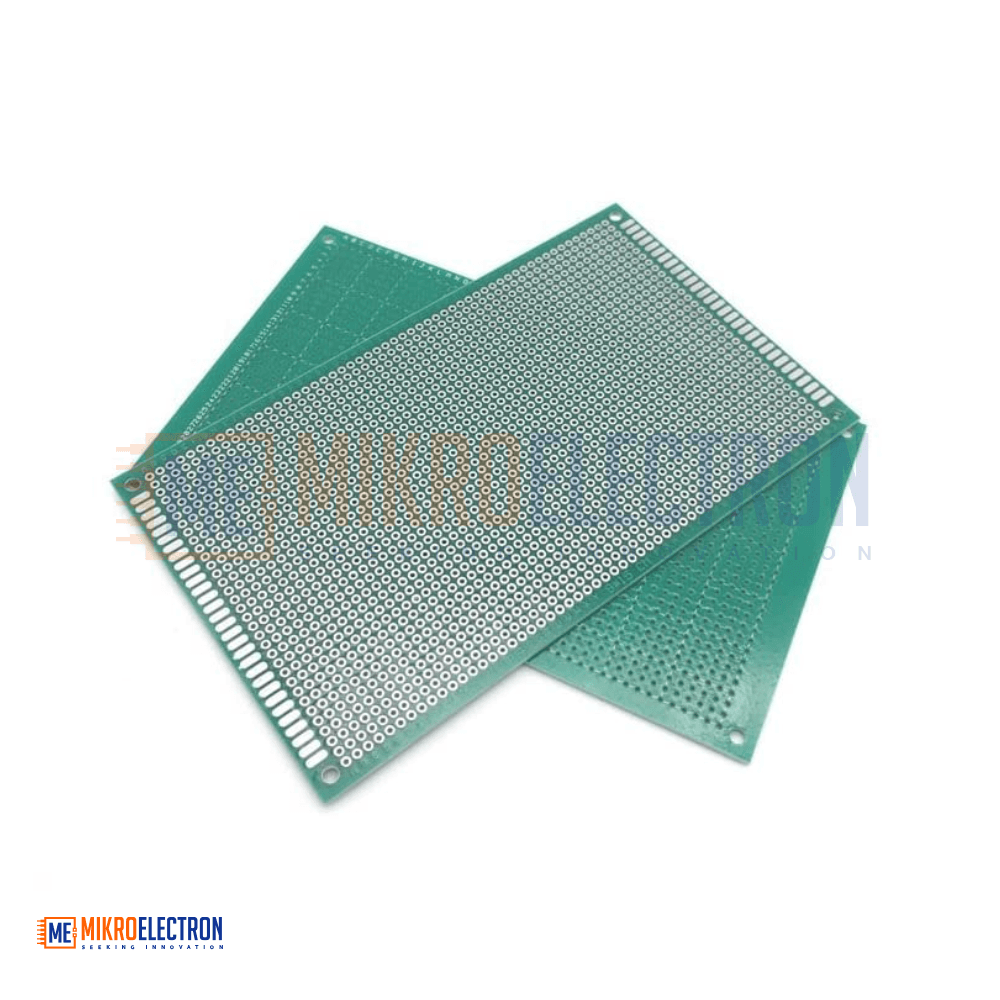

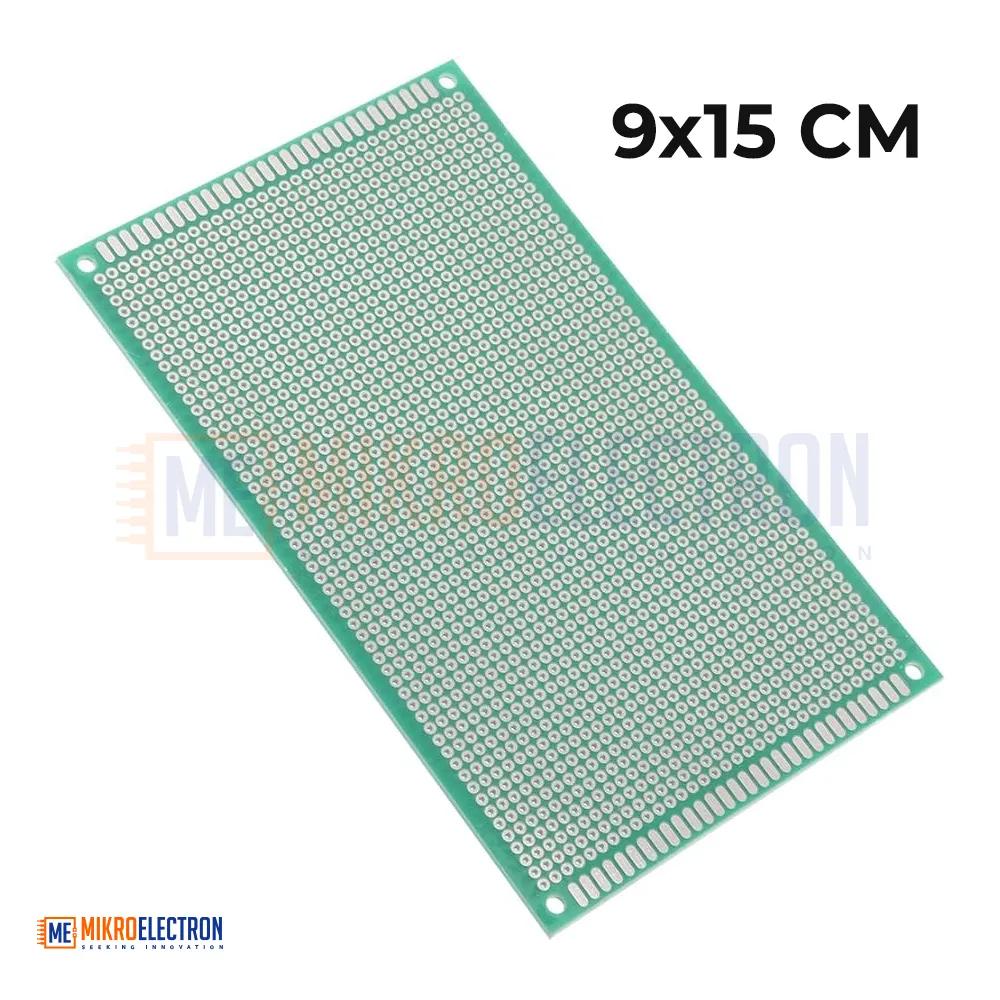

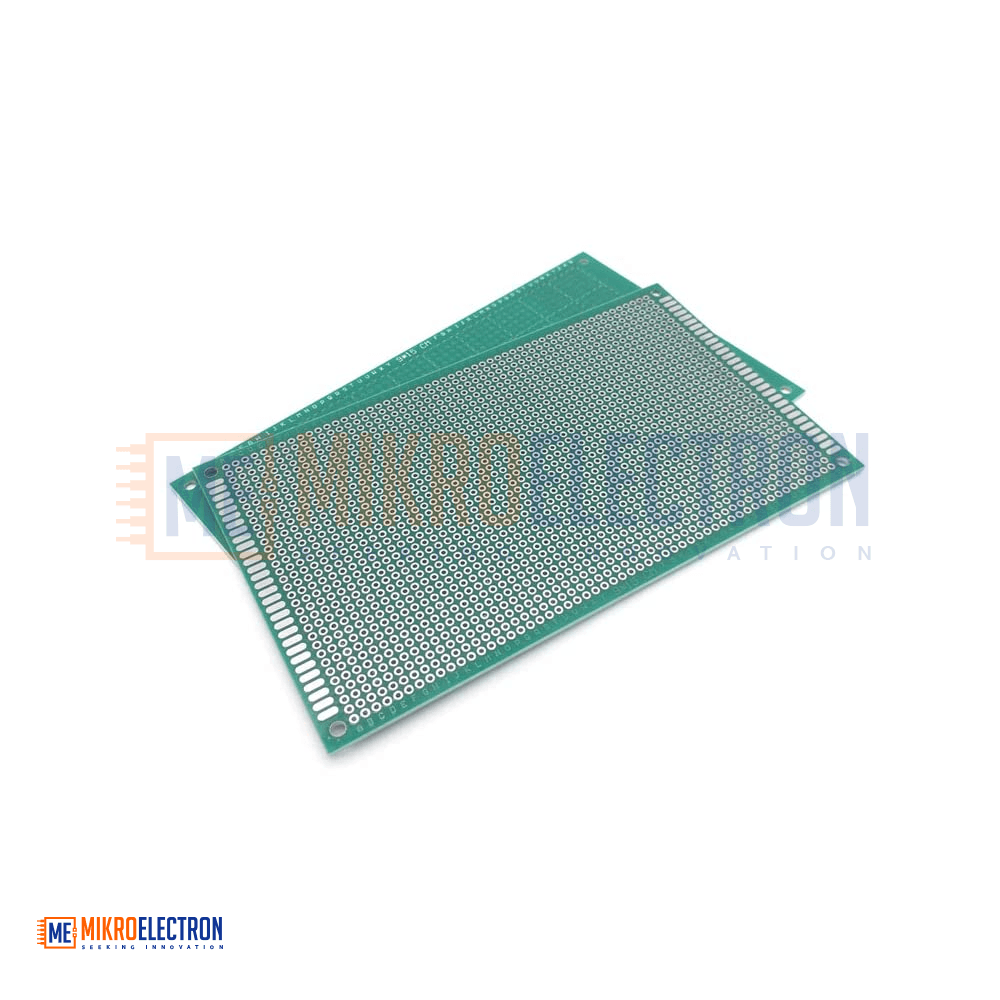

9*15cm Universal PCB Prototype Board Single-Sided 2.54mm Hole Pitch
The 9×15cm single-sided universal PCB prototype board with 2.54mm hole pitch is perfect for large or multi-circuit projects. Ideal for professional prototyping, educational use, and complex DIY builds using through-hole electronic components.
لوحة PCB نموذجية (prototype board) عالمية أحادية الجانب بأبعاد 9×15 سم، بمسافة ثقوب 2.54 مم، وهي مثالية للمشاريع الكبيرة أو متعددة الدوائر. مناسبة للنماذج الأولية الاحترافية، والاستخدام التعليمي، والتصميمات المنزلية (DIY) المعقدة باستخدام المكونات الإلكترونية عبر الثقوب (through-hole).
The 9×15cm Universal PCB Prototype Board is a large, single-sided prototyping board designed for comprehensive circuit design and testing. Featuring a standard 2.54mm (0.1 inch) hole pitch, it supports a wide range of through-hole components such as ICs, resistors, transistors, capacitors, pin headers, and connectors.
Constructed from high-quality FR4 fiberglass or phenolic resin, this board offers durable, heat-resistant copper pads for secure and reliable soldering. The generous board area allows for complex circuit designs, multiple modules, or even entire project assemblies on a single platform.
Whether you're a hobbyist, student, or professional engineer, this board is a robust and flexible solution for building, testing, and finalizing electronic circuits.
Specifications:

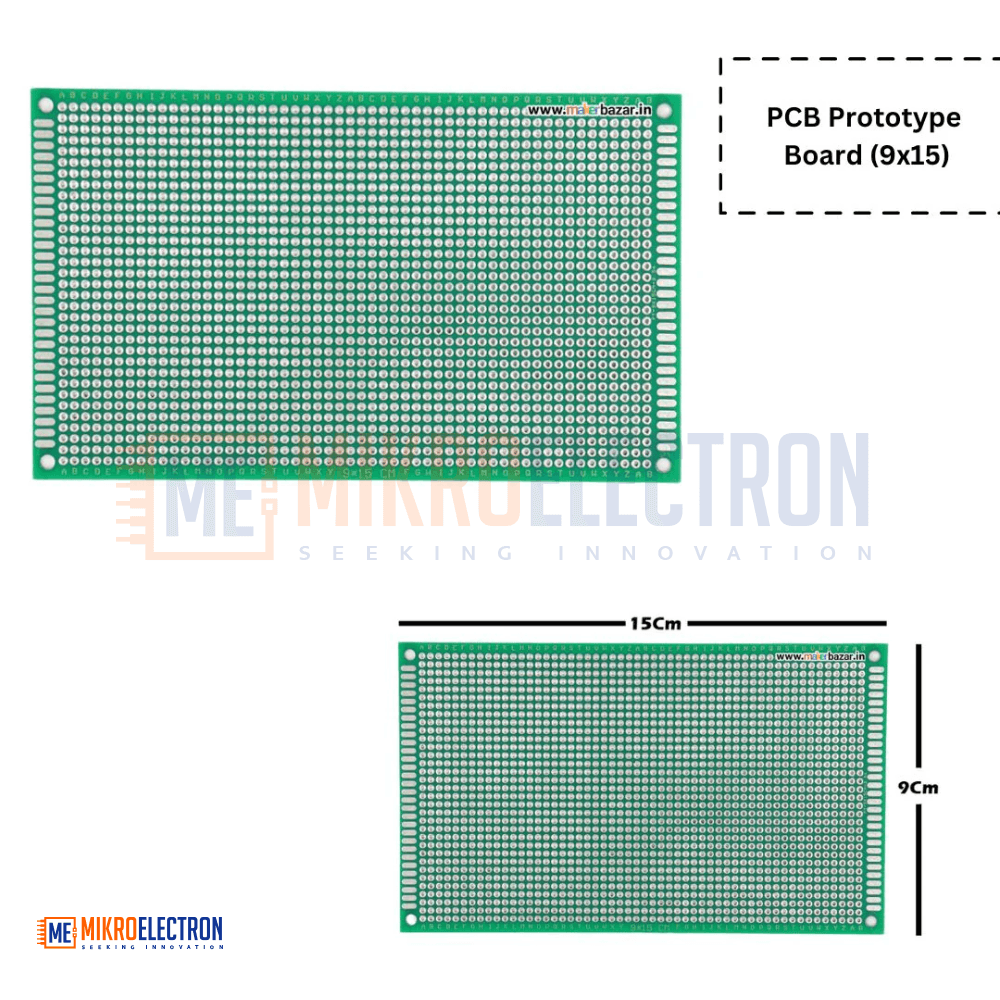

Board Size: 9cm x 15cm
Type: Single-sided universal prototype PCB
Hole Pitch: 2.54mm (standard)
Hole Diameter: ~1mm
Grid Size: Approx. 59 rows × 35 columns
Material: FR4 fiberglass or phenolic board
Copper Layer: Single-sided with copper pads
Color: Commonly green or brown
Component Compatibility: Through-hole (DIP) components
Customizable: Can be trimmed or cut as needed
