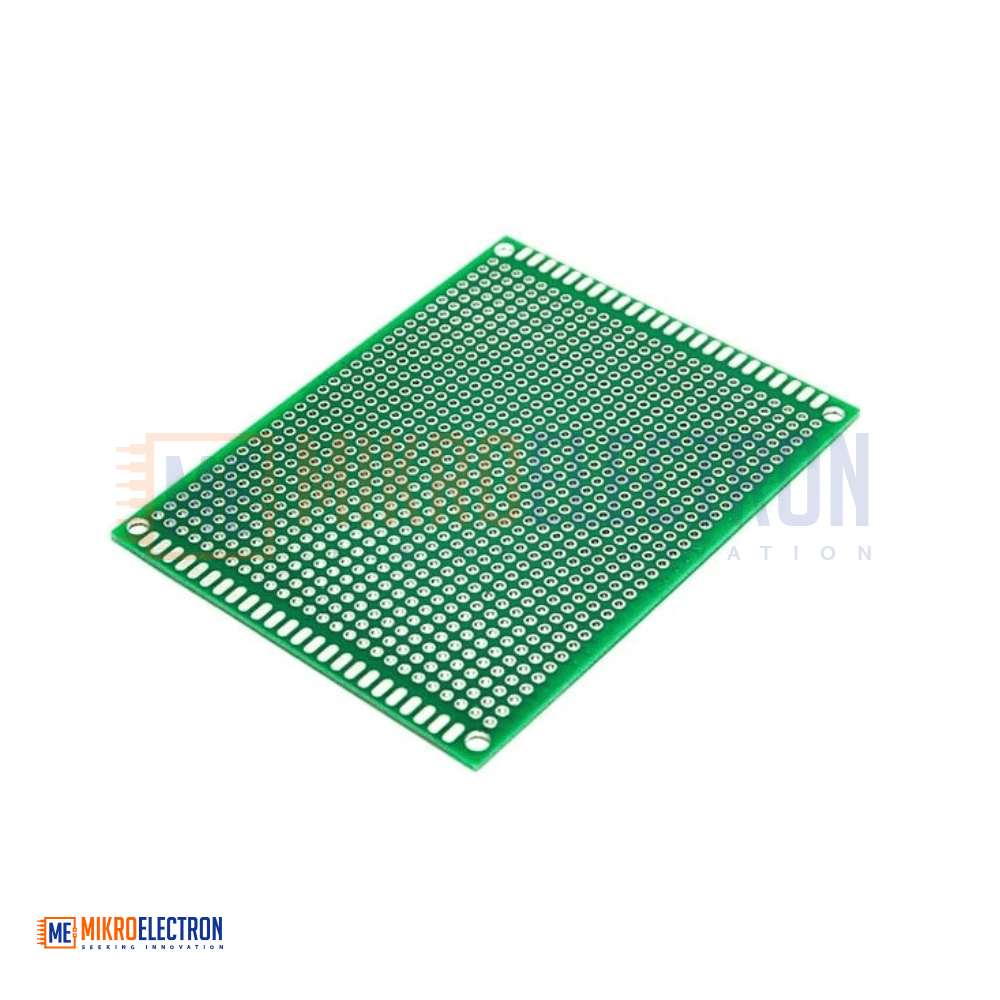

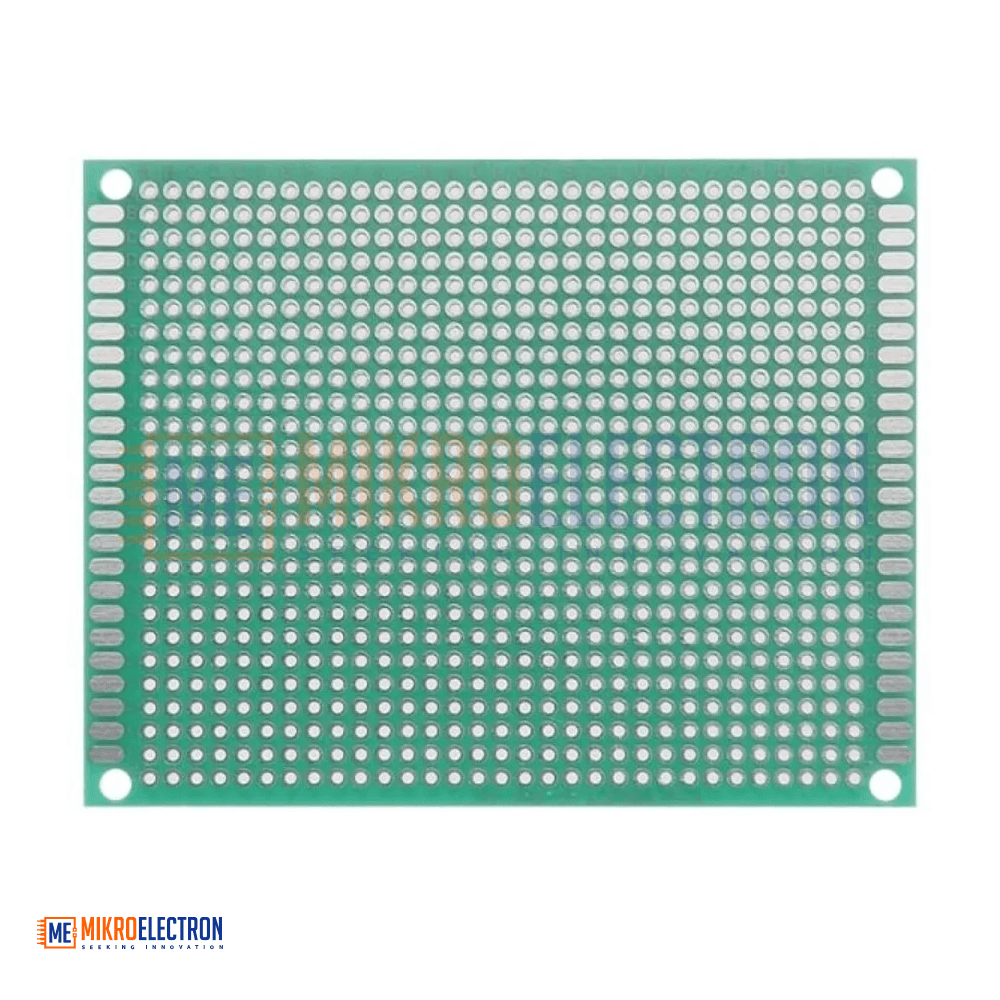

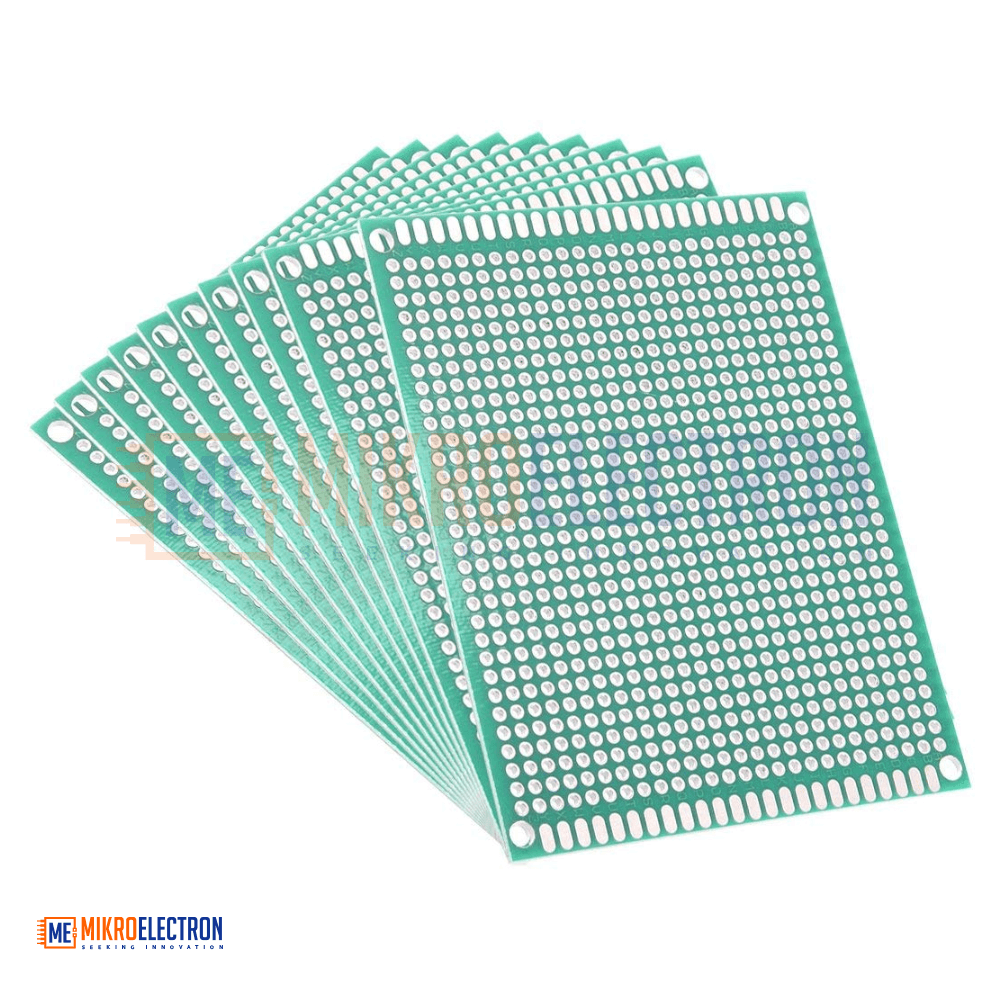

7*9cm Universal PCB Prototype Board Single-Sided 2.54mm Hole Pitch
The 7×9cm single-sided universal PCB prototype board features a standard 2.54mm hole pitch, making it ideal for building and soldering larger DIY circuits with through-hole components. Perfect for electronics prototyping, development, and permanent project assembly.
لوحة PCB نموذجية (prototype board) عالمية أحادية الجانب بأبعاد 7×9 سم، تحتوي على مسافة ثقوب قياسية 2.54 مم، مما يجعلها مثالية لبناء ولحام الدوائر المنزلية (DIY) الأكبر حجمًا باستخدام مكونات عبر الثقوب (through-hole). مثالية للنماذج الأولية الإلكترونية، والتطوير، والتجميع النهائي للمشاريع.
The 7×9cm Universal PCB Prototype Board is a single-sided prototyping board designed for building, testing, and finalizing custom electronic circuits using through-hole components. With a 2.54mm (0.1 inch) standard hole pitch, it supports a wide range of devices including ICs, resistors, capacitors, pin headers, and connectors.
Made from high-quality FR4 fiberglass or phenolic material, this board provides heat-resistant copper pads that allow for reliable and permanent soldering. The larger 7×9cm format offers generous space for more complex circuit layouts or multiple modules.
Whether you're a student, hobbyist, or engineer, this protoboard is ideal for electronics development, circuit expansion, or finalizing project layouts.
Specifications:

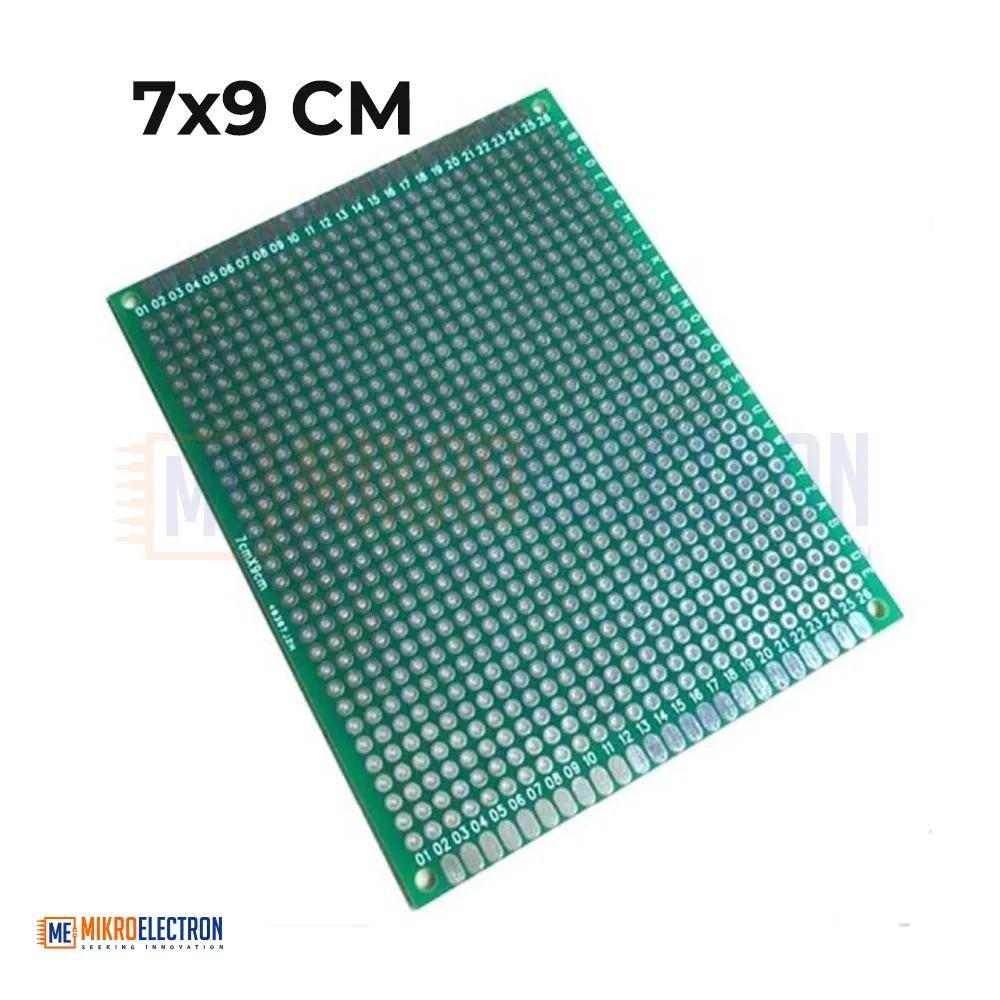

Board Size: 7cm x 9cm
Type: Single-sided universal prototype PCB
Hole Pitch: 2.54mm (standard)
Hole Diameter: ~1mm
Material: FR4 fiberglass or phenolic
Copper Pads: Single-sided, pre-tinned
Color: Typically green or brown
Grid Layout: ~36 rows × 27 columns (approx.)
Component Compatibility: Through-hole (DIP) components
Cuttable: Yes (can be trimmed with tools)
