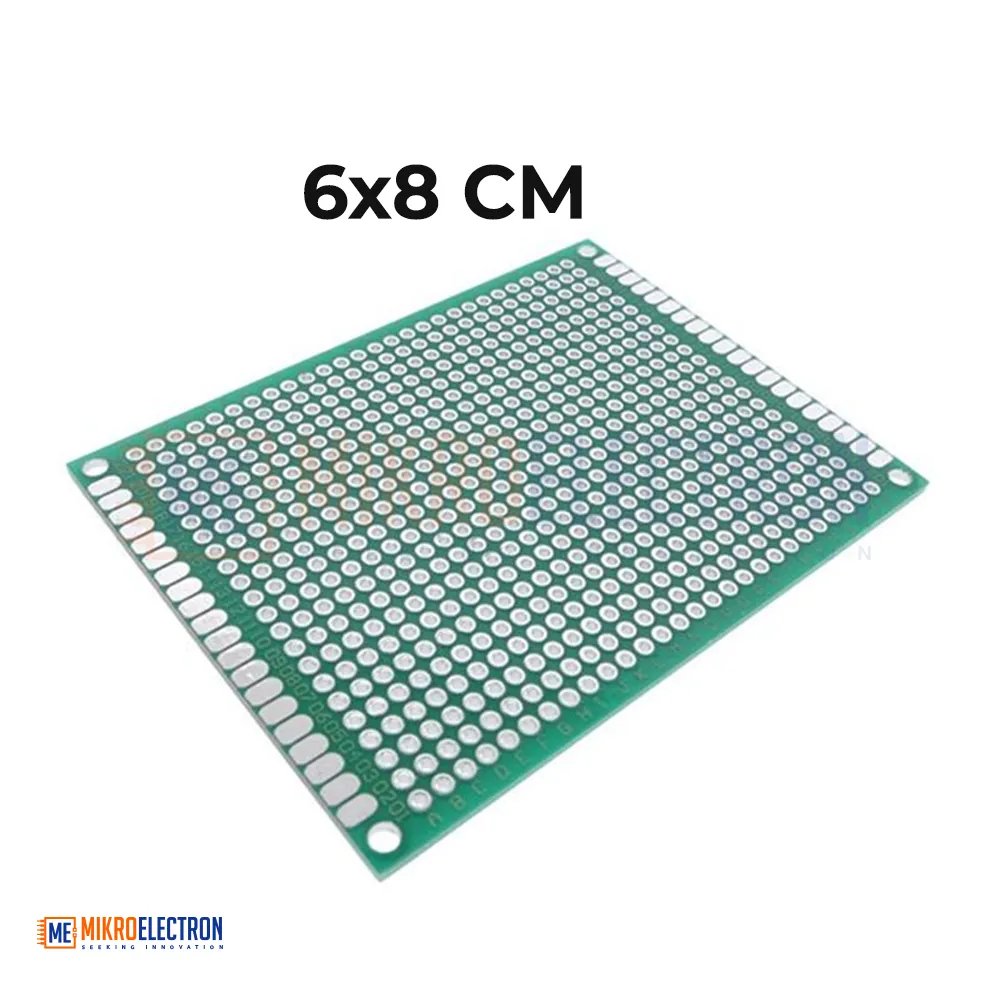

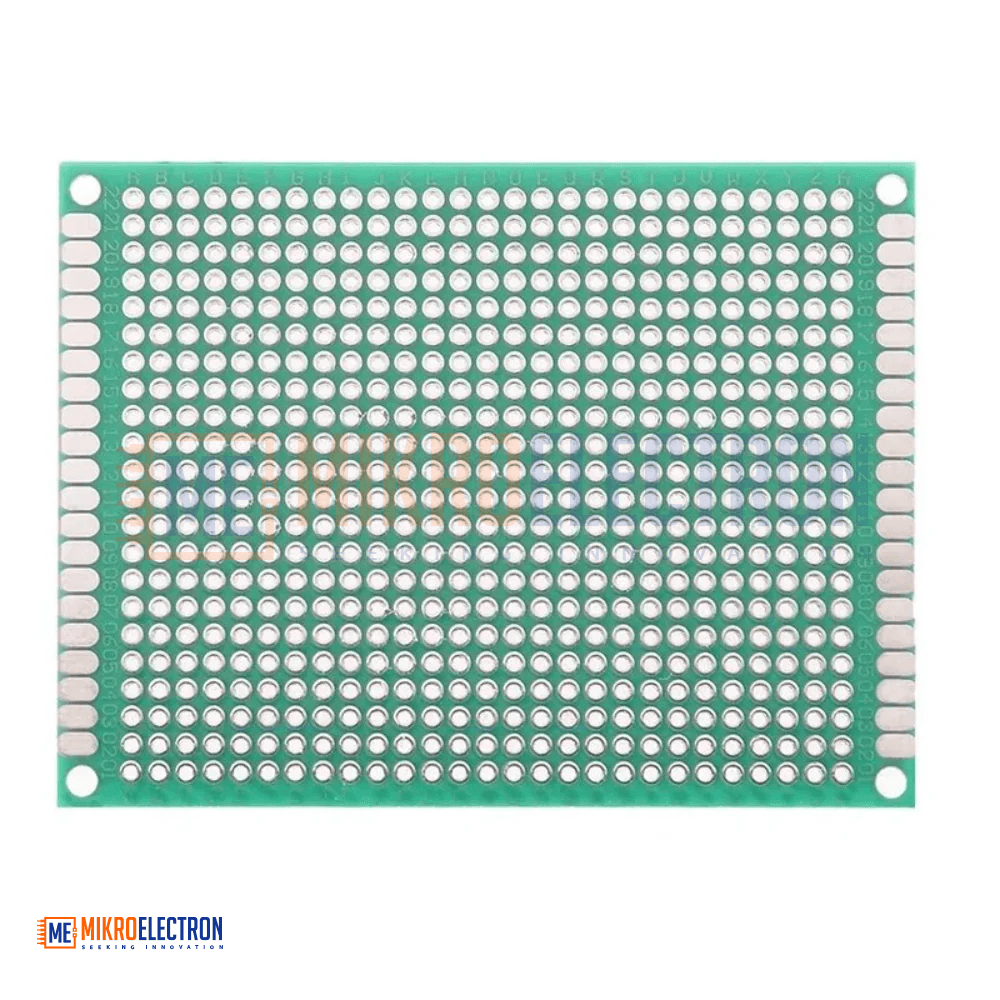

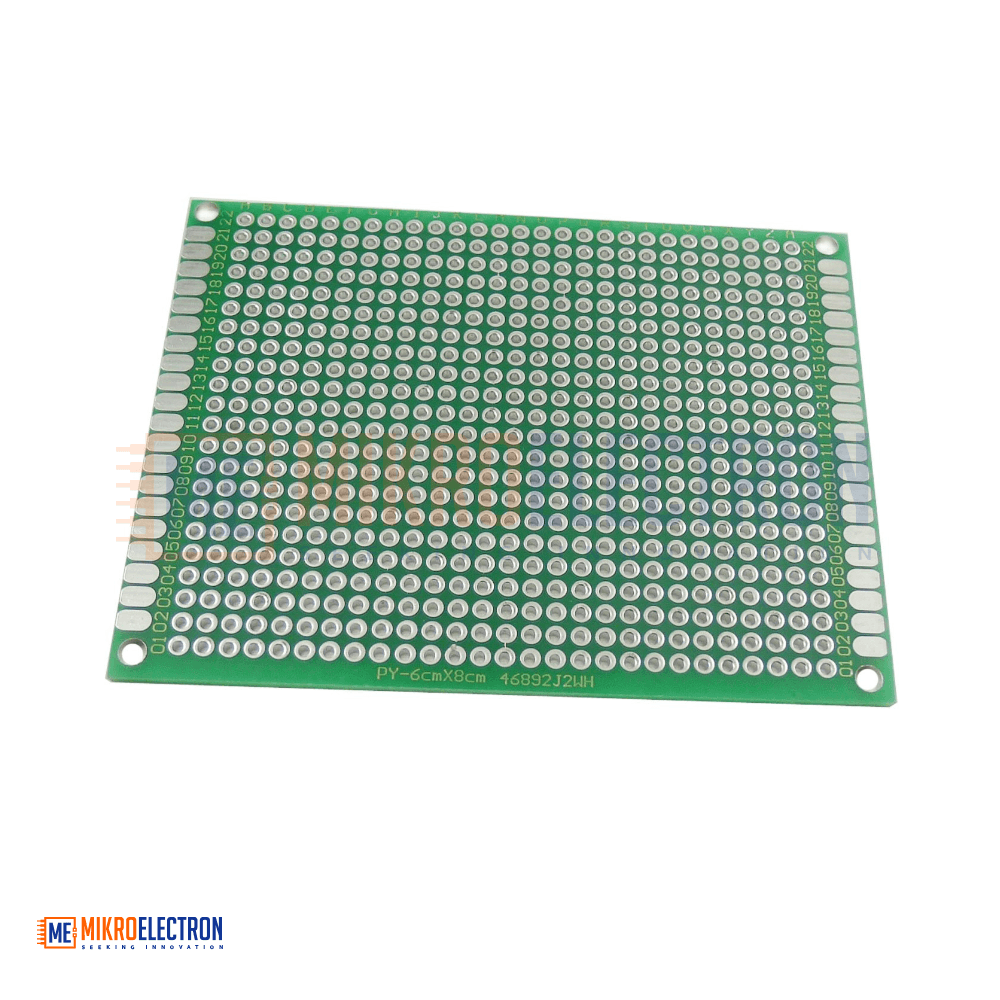

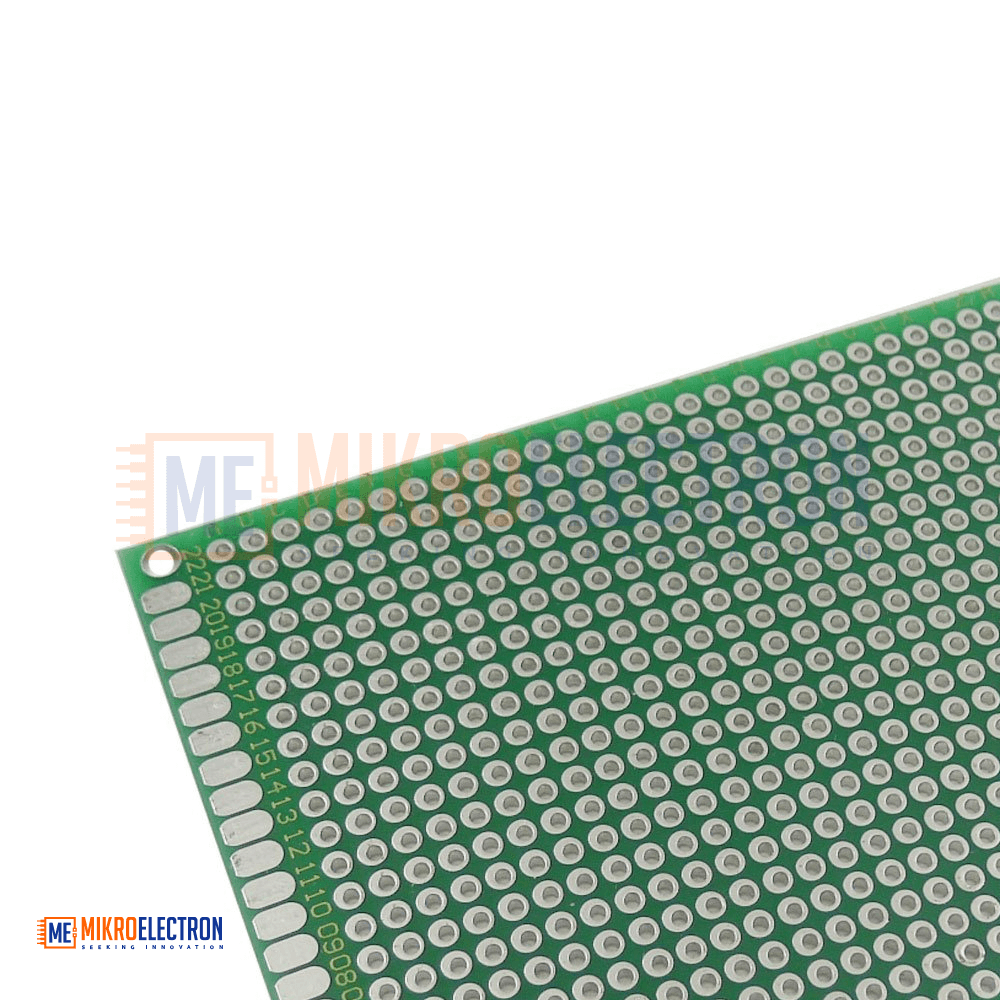

6*8cm Universal PCB Prototype Board Single-Sided 2.54mm Hole Pitch
The 6×8cm single-sided universal PCB prototype board features a 2.54mm standard hole pitch, ideal for building and testing medium to large through-hole circuits. Great for DIY electronics, repairs, and prototyping with microcontrollers and discrete components.
لوحة PCB نموذجية (prototype board) أحادية الجانب بأبعاد 6×8 سم، بمسافة ثقوب قياسية 2.54 مم، مثالية لبناء واختبار الدوائر الإلكترونية ذات الثقوب (through-hole) متوسطة إلى كبيرة الحجم. رائعة للإلكترونيات المنزلية (DIY)، والإصلاحات، والنماذج الأولية باستخدام المتحكمات الدقيقة والمكونات المنفصلة.
The 6×8cm Universal PCB Prototype Board is a versatile single-sided prototyping board tailored for through-hole electronic components. It features a standard 2.54mm (0.1 inch) hole pitch, compatible with a wide range of parts including ICs, resistors, capacitors, headers, and sockets.
Crafted from FR4 fiberglass or phenolic resin, this board offers strong, heat-resistant solder pads to ensure long-lasting connections. With its larger size, it is well-suited for more complex or multi-component designs while still remaining compact and manageable.
This board is a valuable tool for electronics hobbyists, engineers, students, and repair technicians working on custom circuits or educational projects.
Specifications:
Board Size: 6cm x 8cm
Type: Single-sided prototype PCB board
Hole Pitch: 2.54mm (standard spacing)
Hole Diameter: ~1mm
Material: FR4 fiberglass or phenolic board
Copper Layer: Single-sided with copper-plated pads
Color: Typically green or brown
Hole Grid: ~31 rows × 24 columns (approx.)
Compatibility: Supports DIP/through-hole components
Usage: Ideal for permanent soldered circuits
