U-BLOX NEO-7 MMini GPS Module With Serial TTL RS232

Name: U-BLOX NEO-7 MMini GPS Module With Serial TTL RS232 | U BLOX NEO7 MMini, GPS, Module, With, Serial, TTL, RS232
Brand: Mikroelectron
SKU: me-5830
Price: 22.00 JOD
Availability: OutOfStock
Rating: 5.0 (1 reviews)

5.0(1 review)

SKU: ME-5830

JD22.00

Out Of Stock

MIni GPS Module Board With TTL RS232Item Name: GPS ModulePositionaI Accuracy: 2.5mCEP (SBAS:2.0mCEP)Update rate: Max 10 Hz(default 1Hz)Capture time: Cold start: 27S(Max),Hot Start:1SCapture tracking sensitivity: -162dBmOscillator: TCXO (+/-0.5PPM)Communication protocol: NMEA(default)/UBX BinarySerial communication baud rate: 9600Operating temperature: -40℃-85℃Operating Voltage: 2.7V-5.0V(VCC pin i...

GSM & GPS

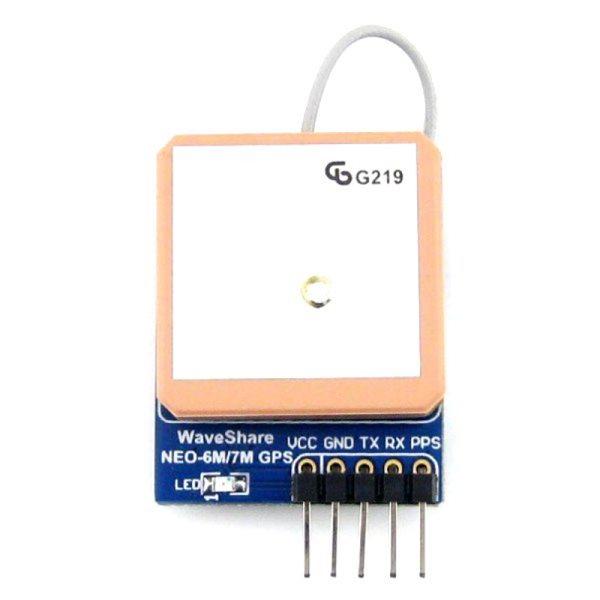

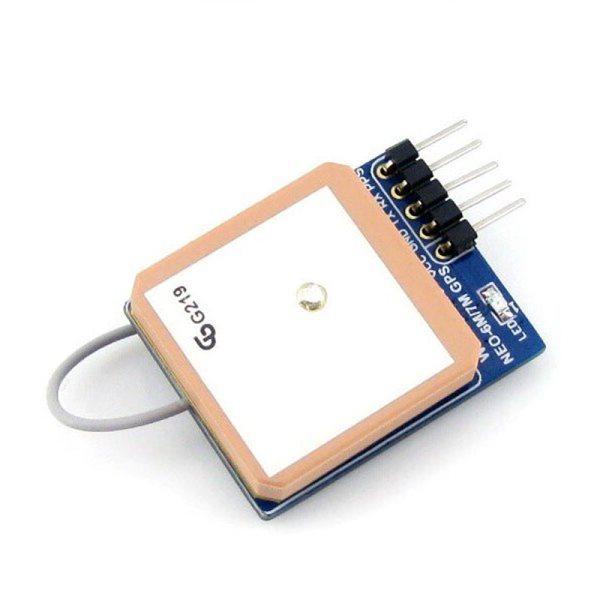

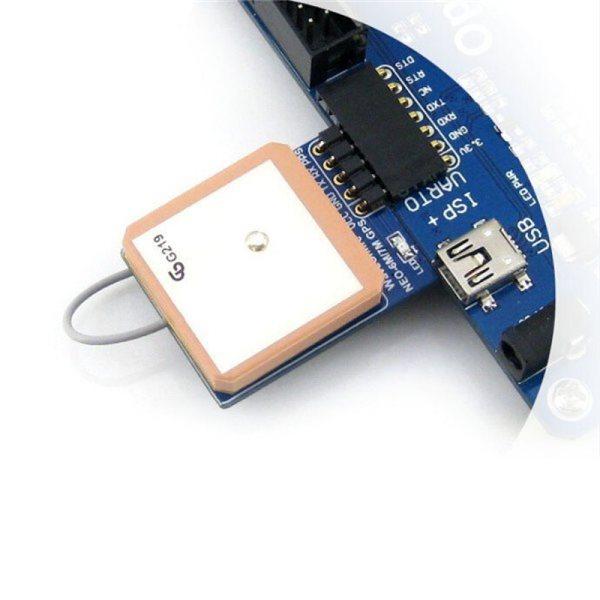

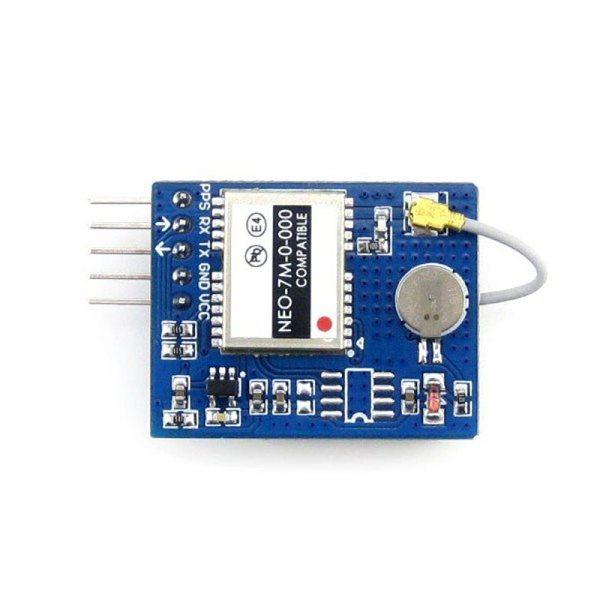

MIni GPS Module Board With TTL RS232

Item Name: GPS Module

PositionaI Accuracy: 2.5mCEP (SBAS:2.0mCEP)

Update rate: Max 10 Hz(default 1Hz)

Capture time: Cold start: 27S(Max),Hot Start:1S

Capture tracking sensitivity: -162dBm

Oscillator: TCXO (+/-0.5PPM)

Communication protocol: NMEA(default)/UBX Binary

Serial communication baud rate: 9600

Operating temperature: -40℃-85℃

Operating Voltage: 2.7V-5.0V(VCC pin input)

Operating Current: 35mA

TXD/RXD impedance: 510 Ω

Characteristics of interfaces: TTL level compatible with 3.3V/5V SCM system

Receiving characteristics: 56 channel,GPS L1(1575.42Mhz) C/A code,SBAS:WAAS/EGNOS/MSAS
