Mikroelectron Digital Multimeter (Fused)
Out Of Stock

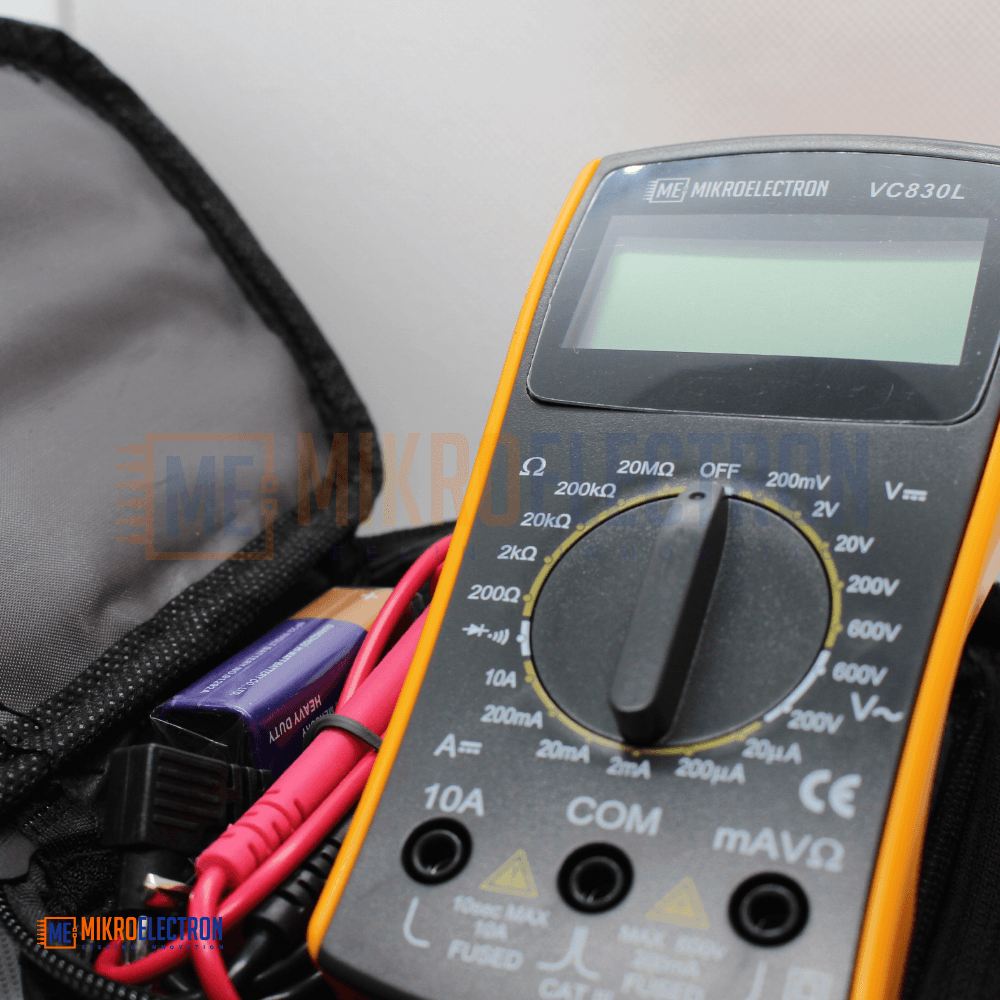

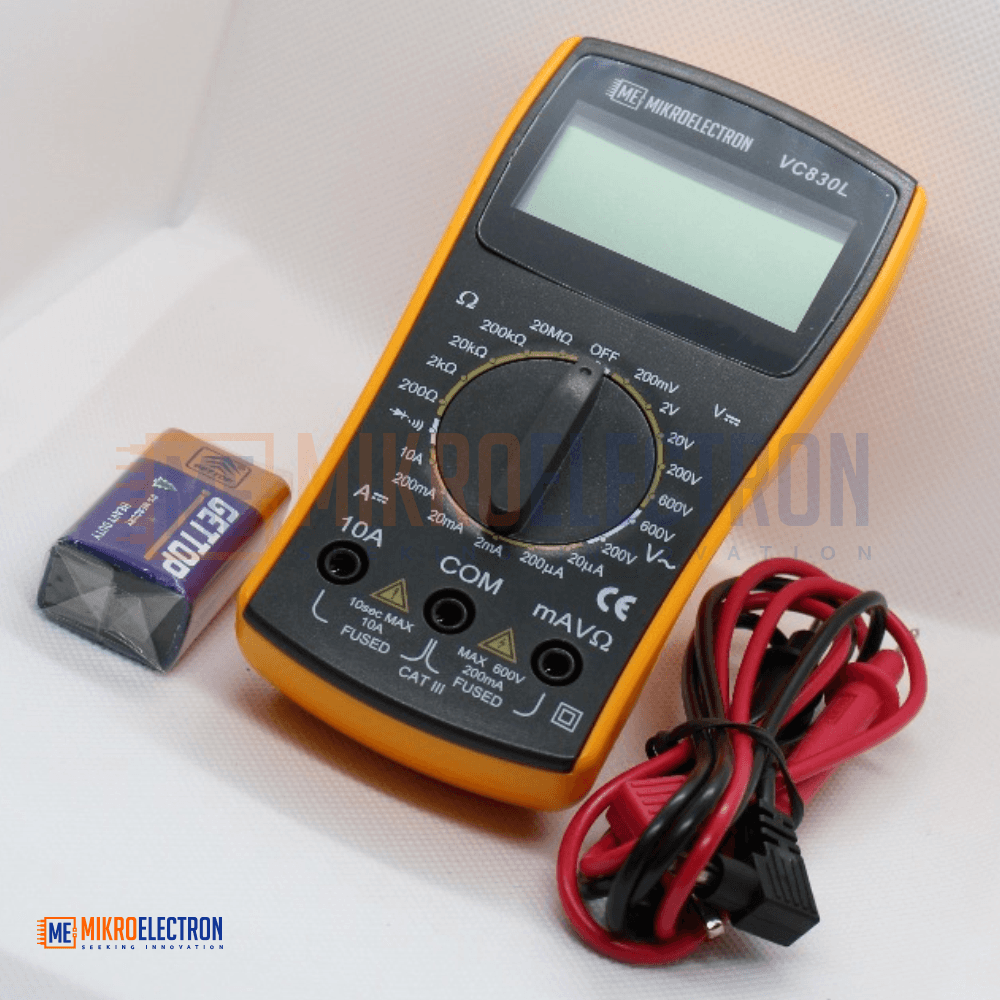

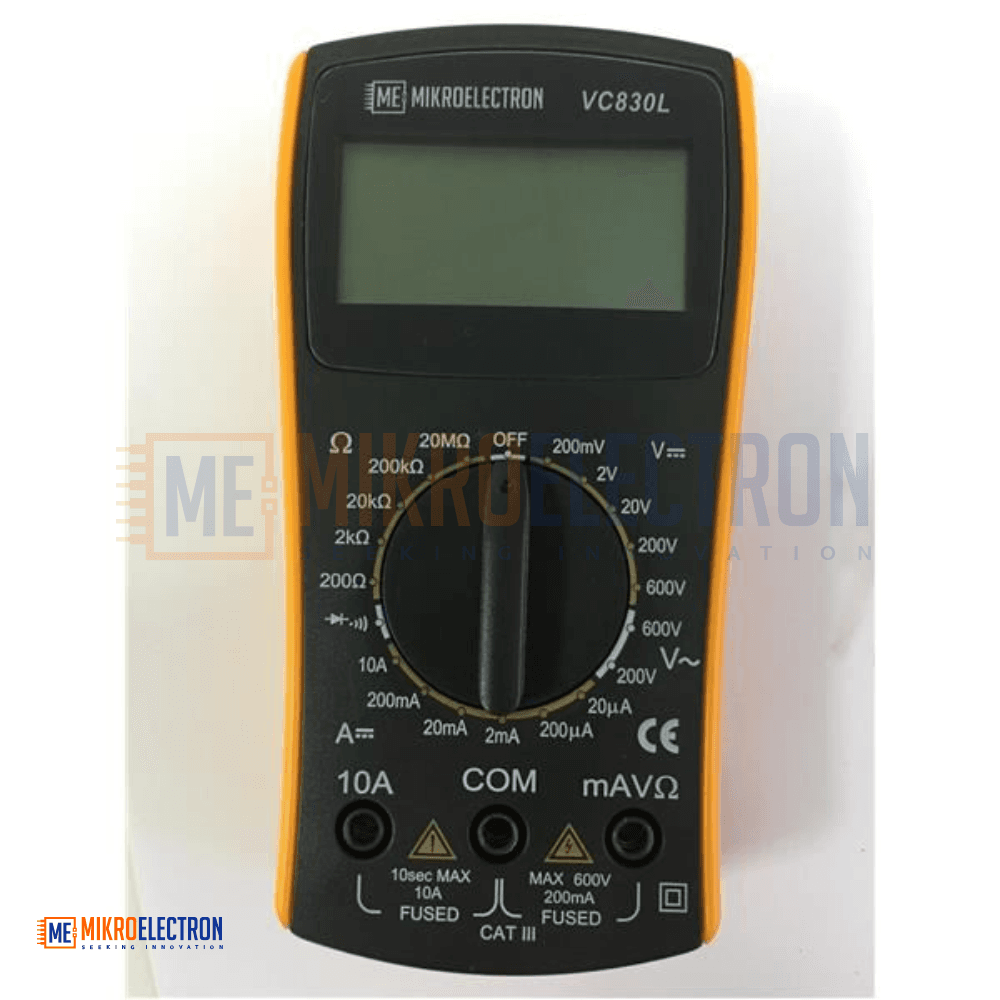

The Mikroelectron Digital Multimeter (Fused) is a reliable pocket-sized DMM ideal for students, hobbyists, and electronics enthusiasts. Measure DC voltage up to 600V, AC voltage up to 600V, DC current up to 10A, and resistance from 0 to 20 MΩ, plus diode and continuity testing with a loud buzzer. Powered by a 9V battery with over 170 hours of battery life, it features a 22mm LCD, fuse protection, and quality test probes — perfect for labs, repairs, and DIY projects.
ملتيميتر رقمي محمي بفيوز من Mikroelectron هو جهاز قياس متعدد عملي بحجم الجيب، مثالي للطلاب والهواة وعشاق الإلكترونيات. يقيس الجهد المستمر حتى 600 فولت، الجهد المتردد حتى 600 فولت، التيار المستمر حتى 10 أمبير، والمقاومة من 0 إلى 20 ميجا أوم، مع اختبار الدايود وفحص الاستمرارية ببرّاد صوتي. يعمل ببطارية 9 فولت تدوم أكثر من 170 ساعة، ويحتوي على شاشة LCD بارتفاع رقم 22 مم وحماية بفيوز ومسبارين عاليي الجودة.
The Mikroelectron Digital Multimeter (Fused) is an essential tool in every electronics enthusiast's arsenal. Whether you're a student, hobbyist, technician, or maker, this pocket-sized digital multimeter delivers reliable measurements with a clear display and intuitive operation — all at an affordable price.
This multimeter is designed for users who need a dependable, no-frills meter without the high cost of premium models. It can measure DC voltage, AC voltage, DC current, resistance, perform diode tests, and check continuity with a loud audible buzzer that makes troubleshooting circuits fast and easy. The fused current input provides essential protection against accidental overcurrent damage, giving you peace of mind during testing.
Featuring a large 22mm digit LCD display with a maximum reading of 1999 (3½ digits), auto-polarity indication, and an over-range warning ("1" on the display), the meter makes readings clear and easy to interpret. It is powered by a single 9V battery, with a low-battery indicator to let you know when it's time for a replacement — and impressive battery life that lasts well over 170 hours (7 days) of continuous use.
Compact, lightweight (just 170g including battery), and built into a sturdy housing measuring 145 × 85 × 30 mm, this multimeter is perfect for benchtop, lab, field, and household electronics work. Note that this model does not include auto-ranging, auto power-off, or frequency measurement — making it a straightforward, easy-to-learn instrument ideal for first-time users and educational settings.
Specifications
General Features

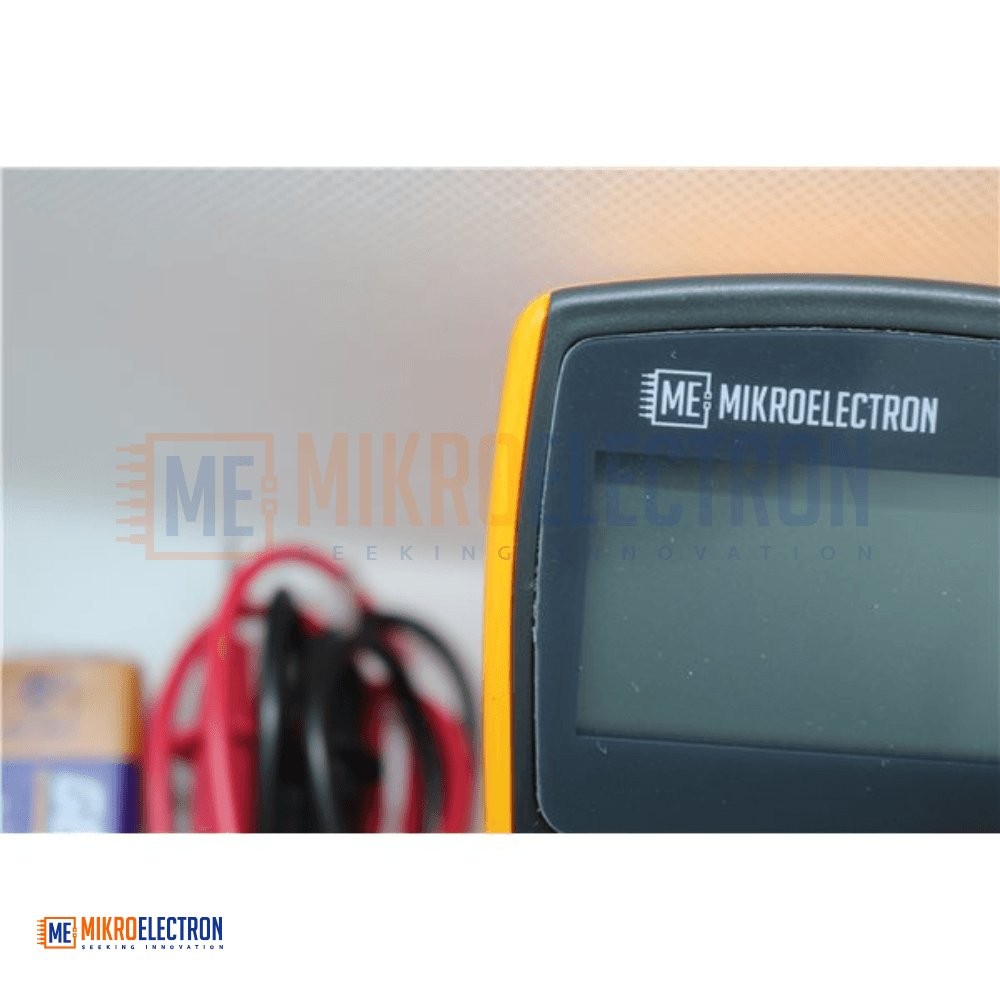

- Display: 22 mm digit height LCD
- Max Indication: 1999 (3½ digits) with auto polarity
- Sampling Rate: Approximately 3 times per second
- Over Range Indication: MSD displays "1"
- Low Battery Indication: Battery symbol on LCD
- Operating Environment: 0 to 40°C, relative humidity < 80%
- Power Supply: 9V battery (NEDA 1604 / 6F22 or equivalent)
- Battery Life: More than 170 hours (7 days)
- Dimensions: 145 × 85 × 30 mm (L × W × H)
- Weight: Approximately 170 g (including 9V battery)
- Accuracy: ± (a% × reading + d)
- Warranty: 1 year from date of manufacture
DC Voltage (DCV)
| Range | Accuracy | Resolution |
|---|---|---|
| 200 mV | ± (0.5% + 4) | 100 µV |
| 2 V | ± (0.5% + 4) | 1 mV |
| 20 V | ± (0.5% + 4) | 10 mV |
| 200 V | ± (0.5% + 4) | 100 mV |
| 600 V | ± (1.0% + 5) | 1 V |
- Input Impedance: 1 MΩ for all ranges
AC Voltage (ACV)
| Range | Accuracy | Resolution |
|---|---|---|
| 200 V | ± (1.2% + 10) | 100 mV |
| 600 V | ± (1.2% + 10) | 1 V |
- Input Impedance: 1 MΩ
- Frequency Response: 40 to 200 Hz
DC Current (DCA)
| Range | Accuracy | Resolution |
|---|---|---|
| 20 µA | ± (1.5% + 3) | 0.01 µA |
| 200 µA | ± (1.5% + 3) | 0.1 µA |
| 2 mA | ± (1.5% + 3) | 1 µA |
| 20 mA | ± (1.5% + 3) | 10 µA |
| 200 mA | ± (1.5% + 3) | 100 µA |
| 10 A | ± (2.0% + 5) | 10 mA |
- Max Input Current: 10A (no more than 6 seconds)
- Overload Protection: 0.2A/250V fuse; 10A/250V fuse
Resistance (Ω)
| Range | Accuracy | Resolution |
|---|---|---|
| 200 Ω | ± (0.8% + 5) | 0.1 Ω |
| 2 kΩ | ± (0.8% + 3) | 1 Ω |
| 20 kΩ | ± (0.8% + 3) | 10 Ω |
| 200 kΩ | ± (0.8% + 3) | 100 Ω |
| 20 MΩ | ± (1.0% + 15) | 10 kΩ |
- Overload Protection: 250V DC/AC peak value
Diode Test
- Forward DC Current: Approximately 1 mA
- Backward Voltage: Approximately 3 V
- Overload Protection: 250V DC/AC peak value
Continuity Test
- Buzzer Threshold: Resistance less than (70 ± 20) Ω
- Open Voltage: Approximately 3 V

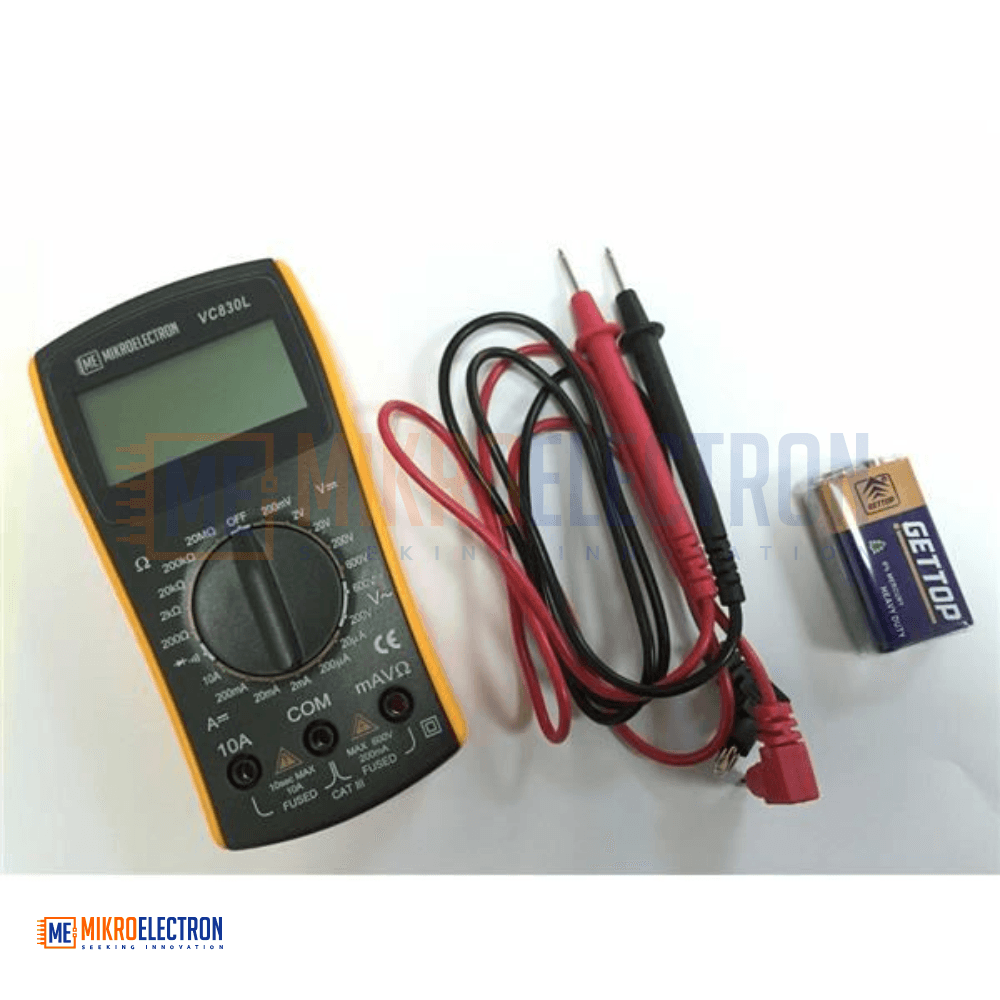

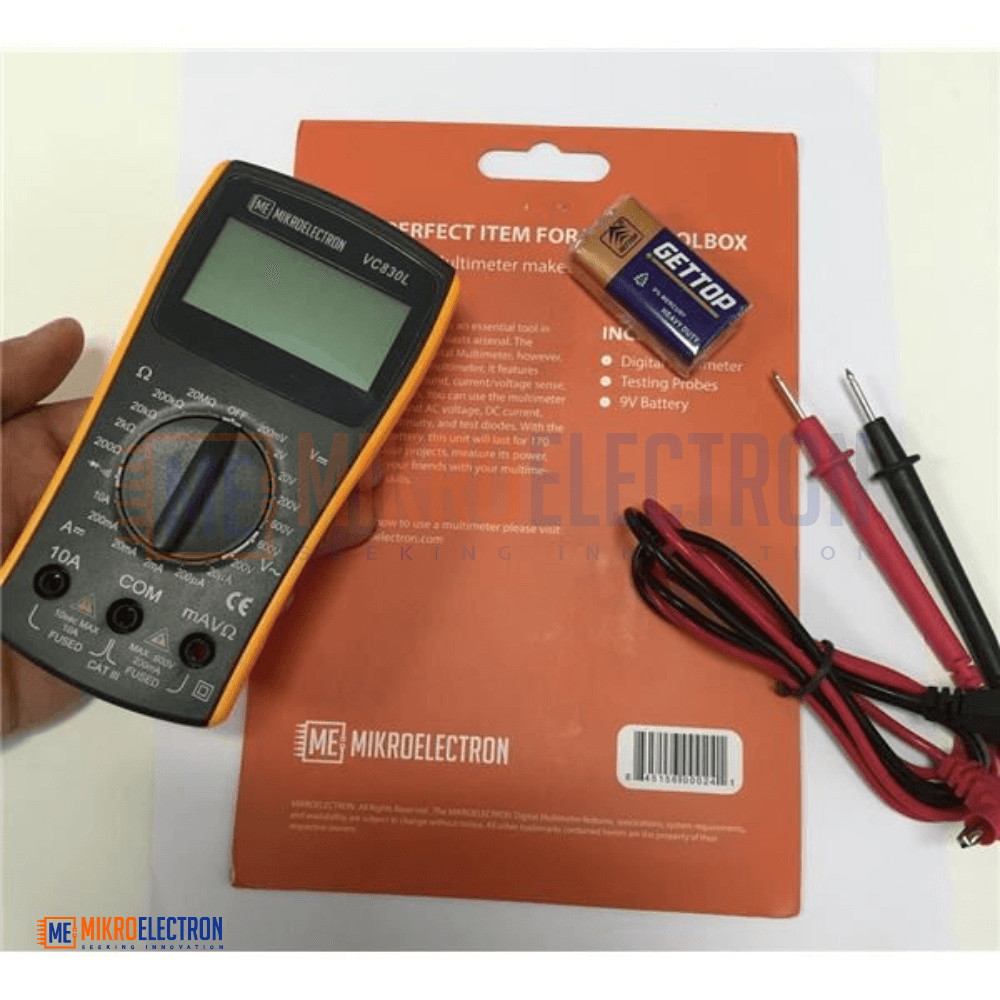

What's in the Box
- 1 × Digital Multimeter
- 1 × 9V Battery (pre-installed)
- 2 × Test Probes (Red and Black)
- 1 × Operation Manual
- 1 × Product Certificate
- 1 × Packing Box
Applications
- Electronics Labs – University, school, and training workshop measurements
- Hobbyist & DIY Projects – Arduino, Raspberry Pi, and maker projects
- Home Electrical Repair – Check outlets, batteries, fuses, and wiring
- Automotive Diagnostics – Test 12V automotive electrical systems
- Appliance Repair – Troubleshoot small appliances and electronic devices
- Continuity Testing – Quickly find broken wires or bad connections
- Battery Testing – Check voltage of AA, AAA, 9V, and rechargeable batteries
- Diode & Component Testing – Verify diodes, resistors, and circuit elements
- Educational Use – Excellent first multimeter for students and beginners
- Field Service – Lightweight enough to carry in any toolbox
