PICOSCOPE 2204A MADE IN UK
Out Of Stock

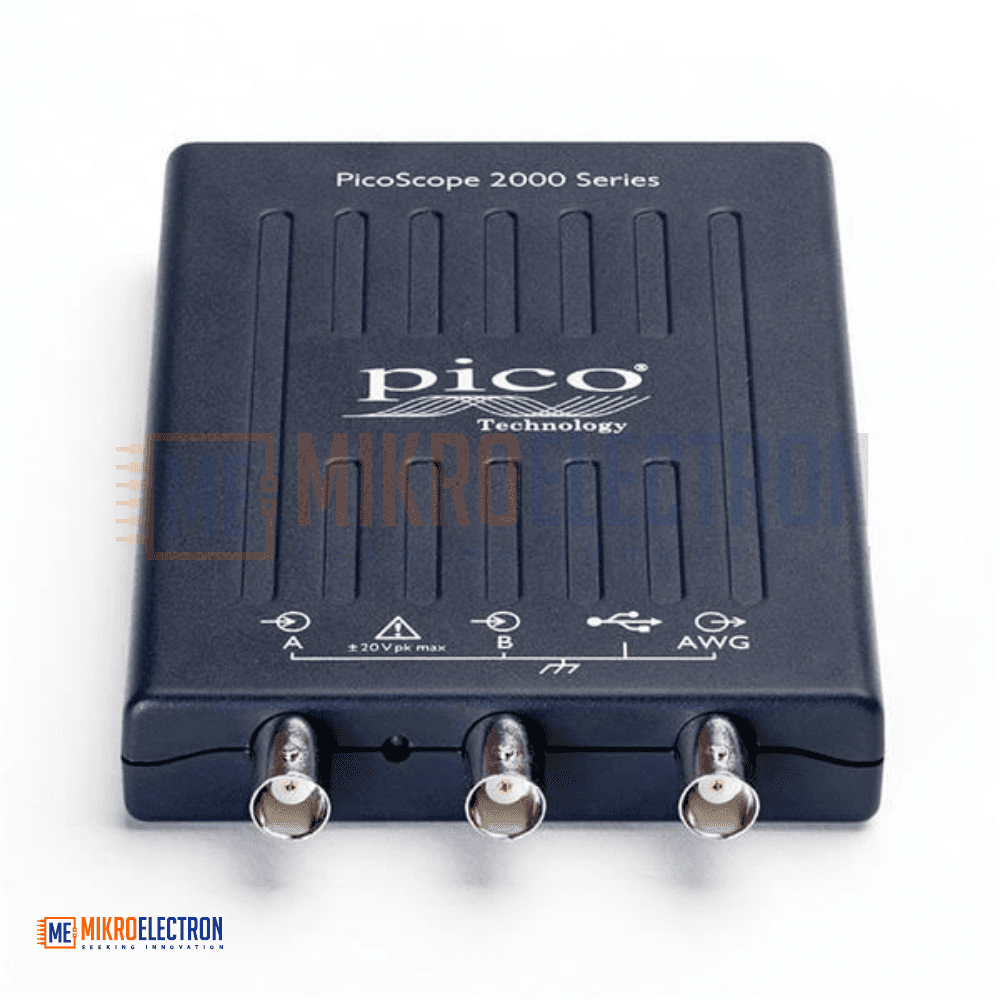

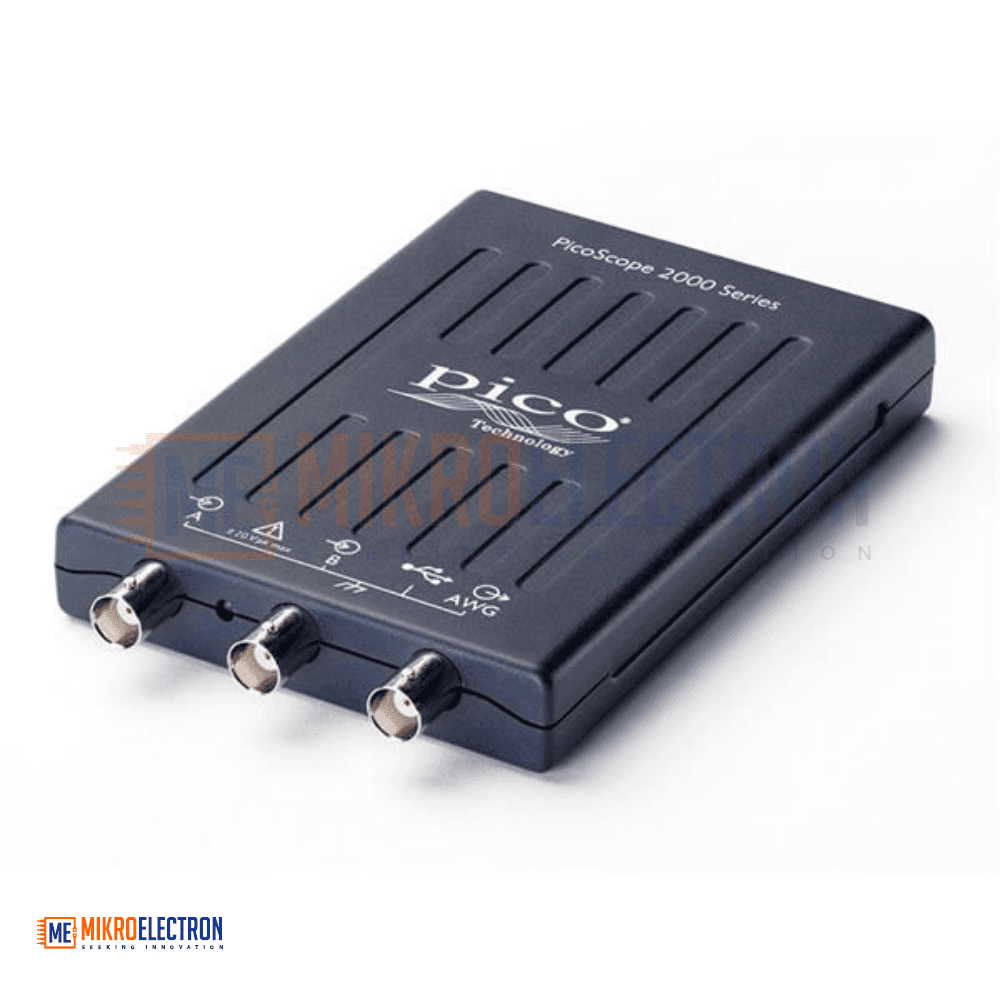

The PicoScope 2204A is a compact, USB-powered PC-based oscilloscope made in the UK, designed to replace bulky benchtop instruments. Featuring 2 channels, 10 MHz bandwidth, and 100 MS/s sampling rate, it includes a built-in arbitrary waveform generator, advanced digital triggers, mask limit testing, and serial bus decoding. Perfect for engineers on the move, it's ideal for design, testing, education, fault finding, and repair. Includes free software upgrades, technical support, and SDK with example programs.
PicoScope 2204A هو راسم ذبذبات (أوسيلوسكوب) مدمج يعمل عبر منفذ USB وصُنع في المملكة المتحدة، ليكون بديلاً عملياً للأجهزة المكتبية الضخمة. يوفر قناتين، عرض نطاق 10 ميجاهرتز، ومعدل أخذ عينات 100 مليون عينة/ثانية، مع مولد موجات قابل للبرمجة، ومشغّلات رقمية متقدمة، واختبار حدود القناع، وفك تشفير الحافلات التسلسلية. مثالي للمهندسين والطلاب في التصميم والاختبار والصيانة وكشف الأعطال. يشمل ترقيات مجانية ودعماً فنياً ومجموعة تطوير SDK.

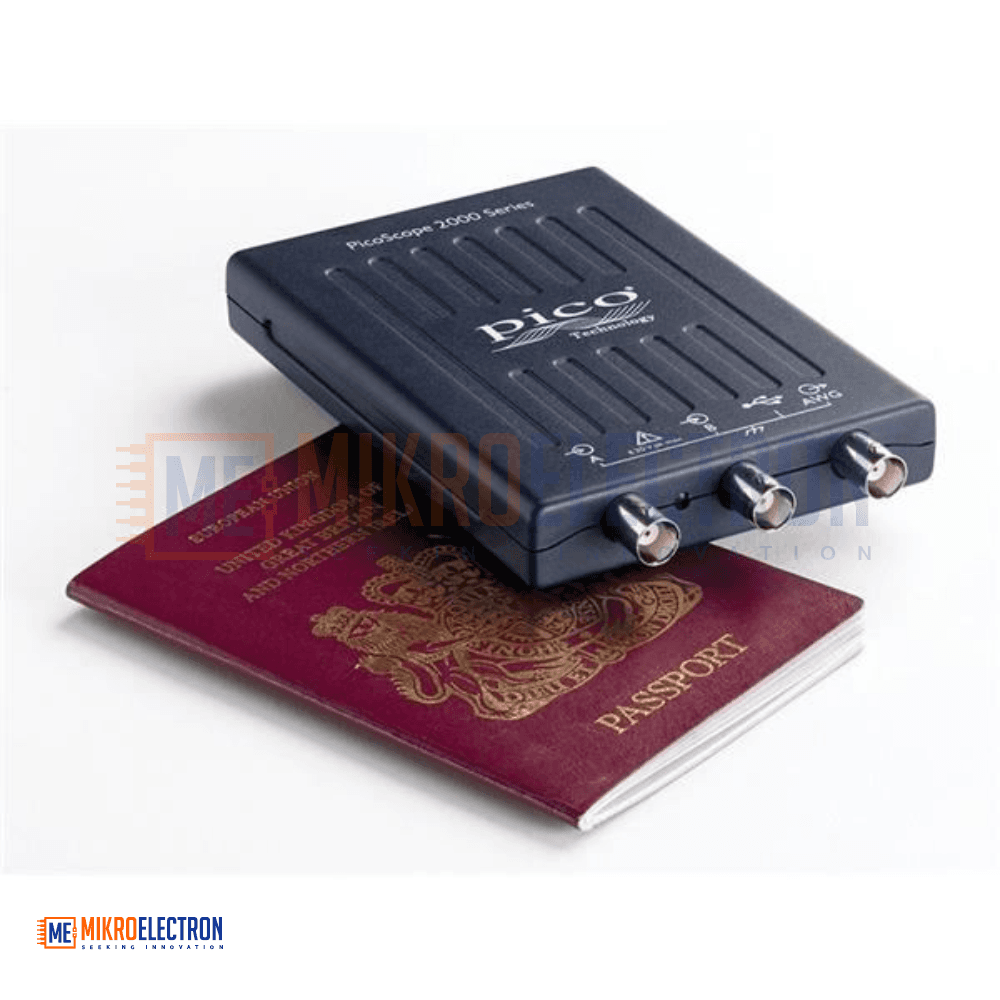

The PicoScope 2204A is part of the renowned PicoScope 2200A Series, offering a small, light, and modern alternative to bulky benchtop oscilloscopes. With its ultra-compact design, you can now fit a high-performance digital oscilloscope easily into your laptop bag — making it the ideal tool for engineers, students, technicians, and hobbyists on the move.
Despite its small size, the PicoScope 2204A delivers serious measurement power. It features 2 analog channels, a 10 MHz bandwidth, and a fast 100 MS/s sampling rate, allowing you to capture and analyze a wide range of signals with precision. The built-in Arbitrary Waveform Generator (AWG) and advanced digital triggers add even more versatility to your testing toolkit.
This is a USB-connected and USB-powered oscilloscope — no external power supply required. Simply plug it into your laptop or PC and start measuring instantly.

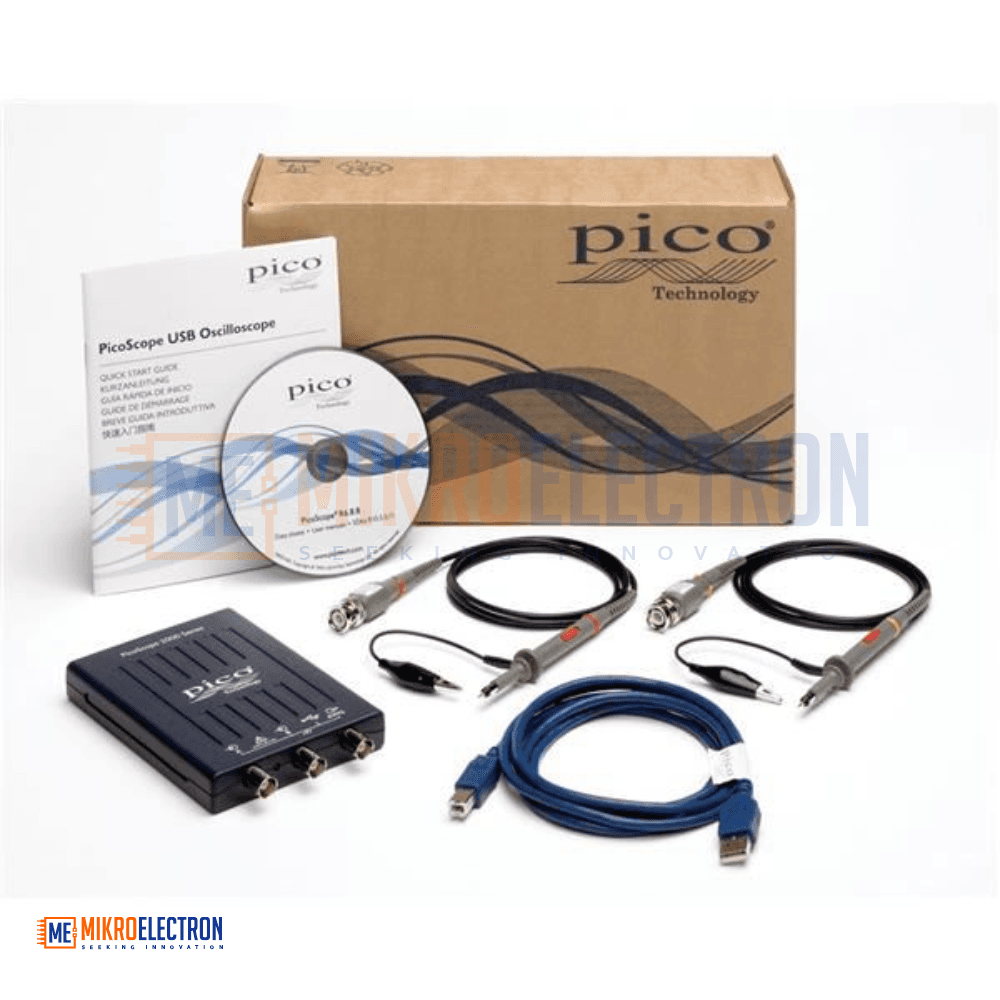

Beyond the hardware, the included PicoScope 6 software brings high-end features such as serial bus decoding, mask limit testing, persistence display modes, and advanced math channels — all included as standard, with no hidden licenses or paid add-ons. New functionality is regularly delivered through free software upgrades, optimized with the help of customer feedback.
The PicoScope 2204A is proudly made in the United Kingdom by Pico Technology, a trusted name in PC-based test and measurement instruments. Whether you're working in design, testing, education, service, monitoring, fault finding, or repair, this oscilloscope offers professional-grade performance in a portable package.
Specifications
- Model: PicoScope 2204A
- Country of Origin: Made in the United Kingdom
- Channels: 2 analog channels
- Bandwidth: 10 MHz
- Sampling Rate: 100 MS/s (Mega Samples per second)
- Arbitrary Waveform Generator: Built-in
- Triggering: Advanced digital triggers
- Display Modes: Persistence display modes
- Connection: USB connected and USB powered
- Software Included: PicoScope 6
- Mask Limit Testing: Included as standard
- Serial Bus Decoding: Included as standard
- SDK: Supplied with example programs
- OS Compatibility: Windows XP, Windows Vista, Windows 7, Windows 8 (and later)
- Power Source: USB (no external power required)
Applications
- Electronics Design – Prototype, debug, and validate circuit designs
- Testing & Quality Control – Measure and verify signals against specifications
- Education & Training – Ideal for university labs, technical schools, and self-learners
- Service & Repair – Diagnose and troubleshoot electronic equipment
- Fault Finding – Quickly identify signal issues in development or in the field
- Monitoring – Capture and log signals over extended periods
- Embedded Systems Development – Debug microcontroller and digital circuit projects
- Serial Protocol Analysis – Decode I²C, SPI, UART, and other serial buses
- Audio Electronics – Analyze and tune audio circuits
- Hobbyist & Maker Projects – Compact tool for DIY electronics enthusiasts
