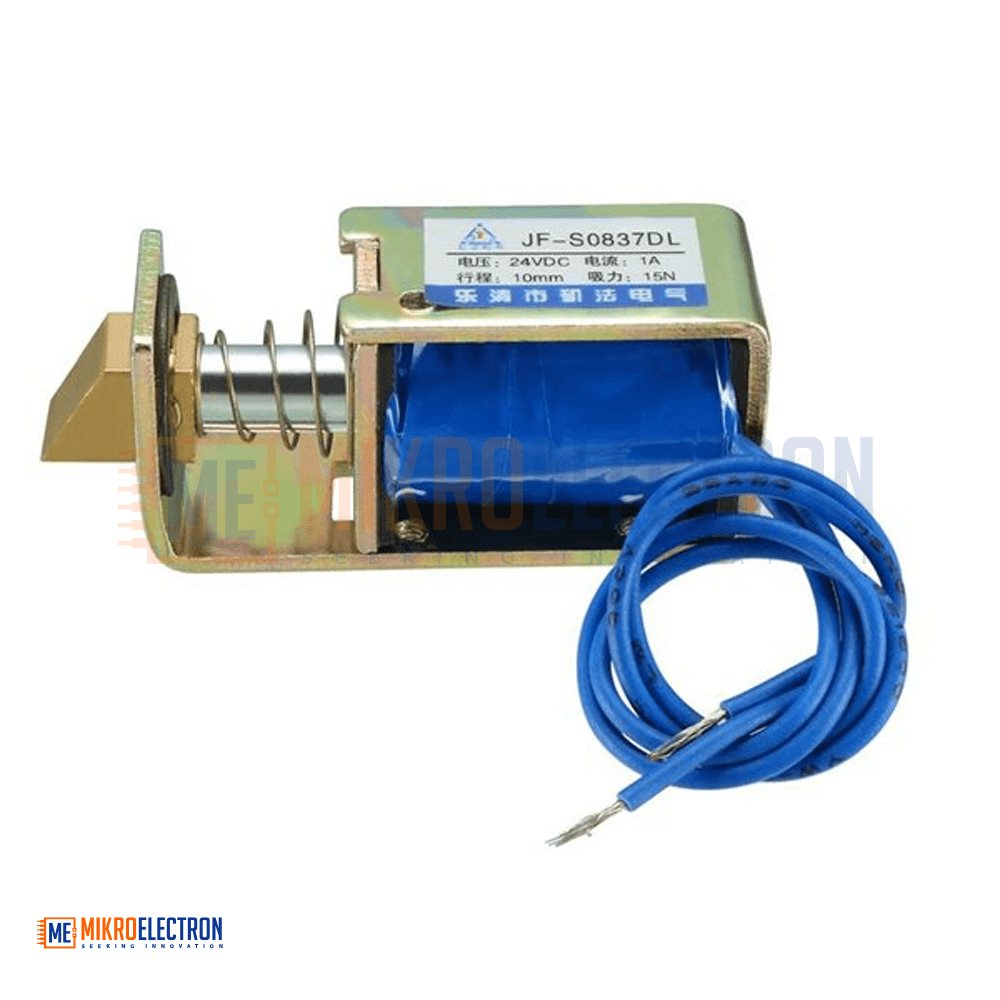

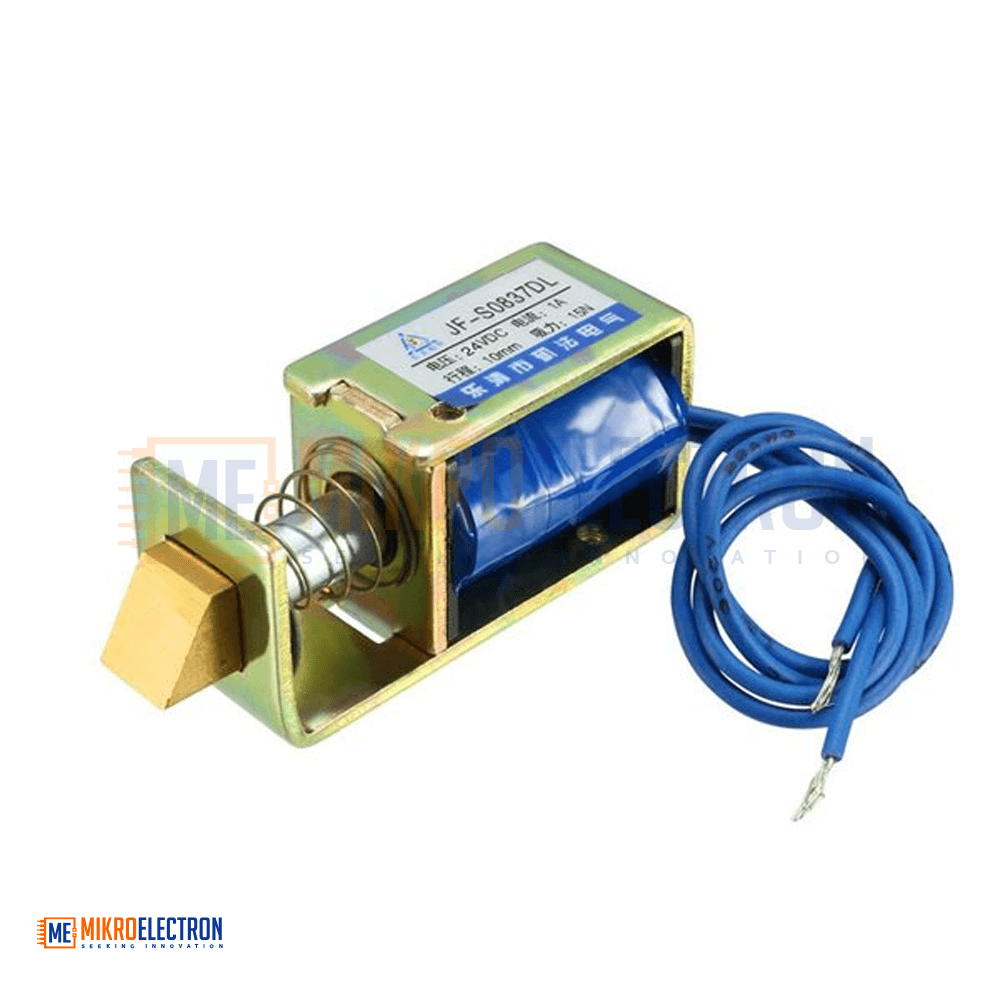

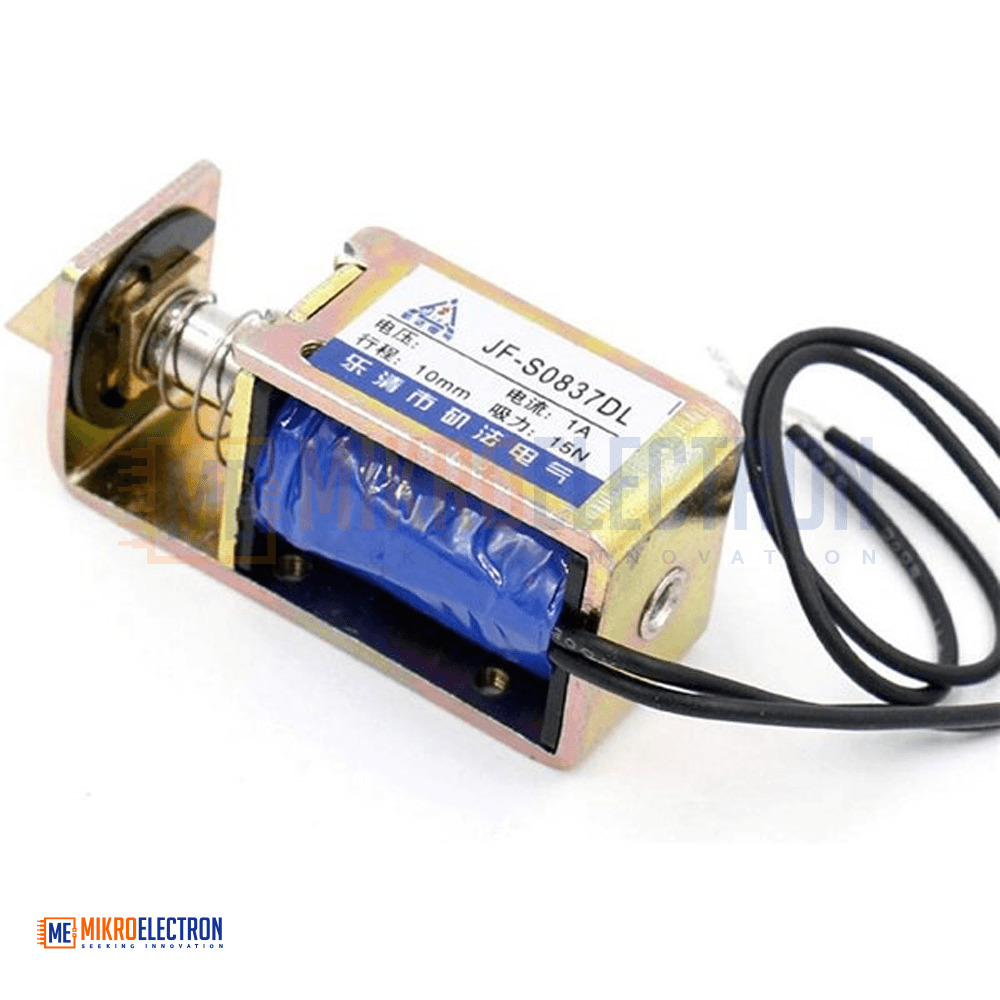

Electric Door Lock Solenoid JF-S0837DL , DC 12V 1Amp 15N Force Open Frame Electromagnet Assembly, 10mm Stroke JF-S0837DL
The JF-S0837DL Electric Door Lock Solenoid is a compact 12V DC open-frame electromagnet designed for electronic locking and automation systems. Delivering a 15N holding force with a 10mm stroke length, it provides reliable linear motion for door locks, cabinets, vending machines, and access control applications. Operating at 1A current, this solenoid features a durable metal construction and an 18cm cable for easy installation. Its compact size allows seamless integration into space-constrained projects, making it suitable for DIY electronics, industrial automation, smart home systems, and security devices.
يُعد ملف القفل الكهربائي JF-S0837DL مغناطيسًا كهربائيًا مفتوح الإطار يعمل بجهد 12 فولت تيار مستمر، ومصممًا لأنظمة الأقفال الإلكترونية وتطبيقات الأتمتة. يوفر قوة سحب تبلغ 15 نيوتن مع شوط حركة بطول 10 مم، مما يجعله مناسبًا للأبواب والخزائن وآلات البيع وأنظمة التحكم في الوصول. يعمل بتيار 1 أمبير ويتميز بهيكل معدني متين وسلك توصيل بطول 18 سم لسهولة التركيب. يتيح حجمه المدمج دمجه بسهولة في المشاريع ذات المساحات المحدودة، مما يجعله خيارًا مثاليًا للمنازل الذكية والمشاريع الإلكترونية والأنظمة الأمنية.
The JF-S0837DL Electric Door Lock Solenoid is a high-performance DC 12V open-frame electromagnet engineered to provide reliable linear actuation in electronic locking and control systems. When energized, the solenoid generates a magnetic force that moves the plunger over a 10mm stroke, enabling secure locking or unlocking actions.
With a rated current of 1A and an output force of up to 15N, this solenoid delivers consistent performance for a wide range of applications, including electronic door locks, cabinet latches, vending machines, smart access systems, and industrial automation equipment.

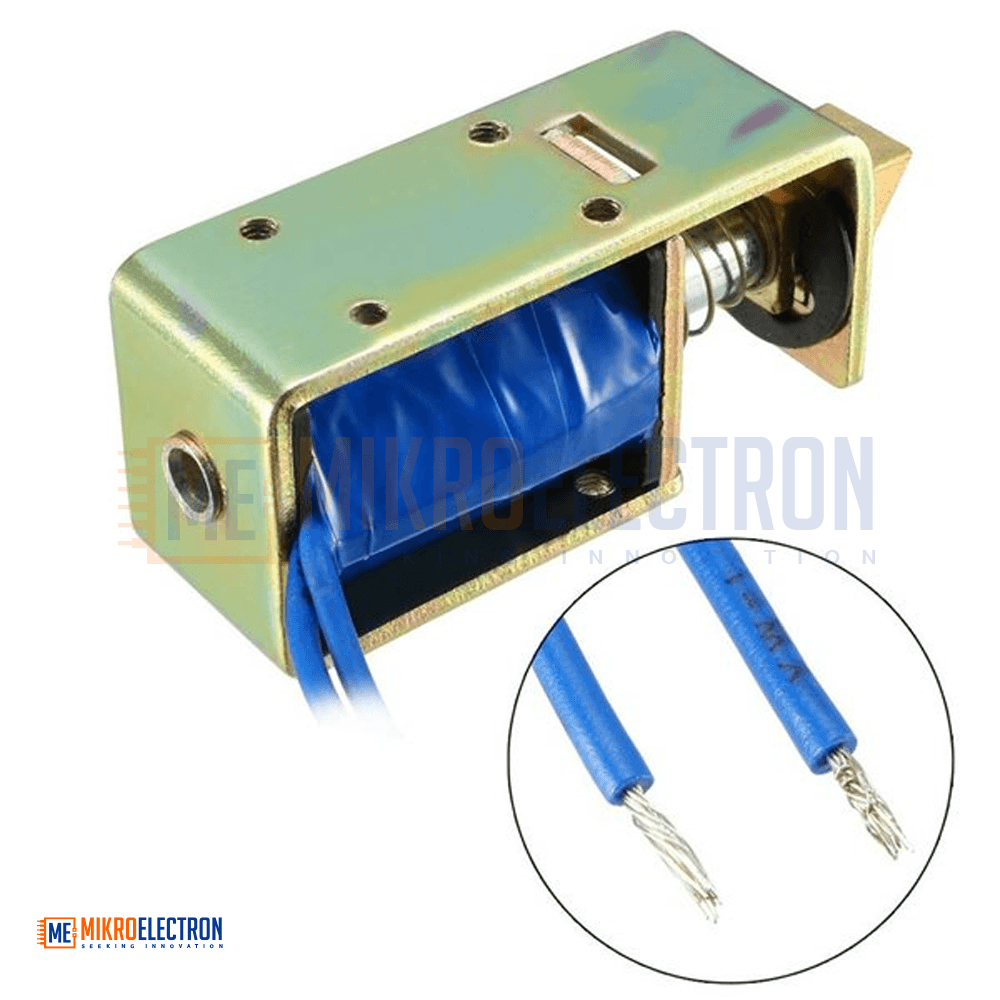

Its compact dimensions and lightweight design make it easy to install in confined spaces. The durable metal housing ensures dependable operation, while the attached 18cm cable leads simplify electrical connections.
The JF-S0837DL is suitable for intermittent-duty applications where fast and controlled linear movement is required. For optimal performance and extended service life, it is recommended to operate the solenoid within its rated voltage and current specifications.
Specifications
| Specification | Details |
|---|---|
| Product Name | Door Lock Solenoid |
| Model | JF-S0837DL |
| Type | Open-Frame Electromagnet |
| Rated Voltage | DC 12V |
| Rated Current | 1A |
| Actuation Force | 15N |
| Stroke Length | 10mm |
| Overall Dimensions (L × W × H) | 64 × 26 × 20mm |
| Cylinder Dimensions (L × D) | 28 × 18mm |
| Cable Length | 18cm |
| Net Weight | 108g |
| Housing Material | Metal |
| Operation Mode | Push/Pull Linear Motion |
| Package Contents | 1 × Door Solenoid Electromagnet |
Applications
- Electronic door lock systems
- Smart home access control devices
- Cabinet and drawer locking mechanisms
- Vending machines
- Locker systems
- Industrial automation equipment
- DIY robotics projects
- Automatic latches and catches
- Security systems
- Remote-controlled mechanical actuators
